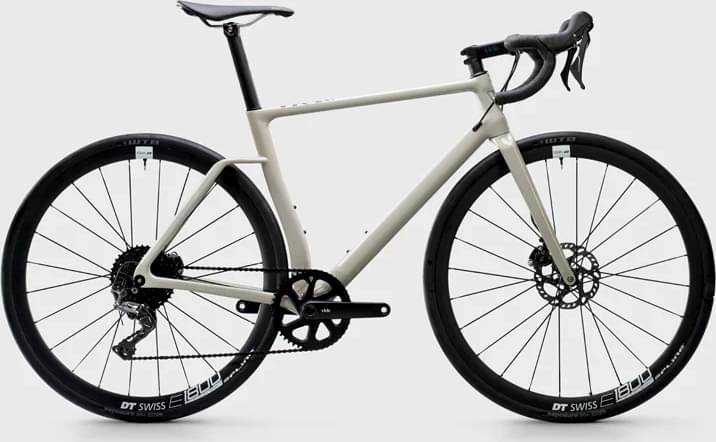

vielo R+1 Strato Shimano GRX Mechanical 11 speed 2024
2024 Road
Estimate price |
4,950$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
160cm - 167cm
SM
165cm - 175cm
MD
172cm - 185cm
LG
182cm - 193cm
XL
190cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full Carbon Fibre 1100g raw (semi internal cable routing)
Suspension Fork
Full Carbon Fibre (semi internal hose routing)
Drivetrain
Rear Derailleur
Shimano GRX mechanical
Shift Levers
Shimano GRX mechanical
Cassette
Shimano 11 speed 11-40
Crank
Vielo Alloy crank and Chain ring
Bottom Bracket
Token Ninja BB386 Evo Pressfit
Chain
Shimano 11 speed
Wheels
Rims
DT Swiss E 1800 alloy 32mm deep
Tires
Continental GP5000 700x32c
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Zipp Alloy Stem length 90, 100, 110mm
Handlebar
Zipp XPLR alloy Bar width 40cm, 42cm, 44cm
Headset
Vielo by Token
Seat
Saddle
Selle Italia SLR Boost Manganese rail
Seatpost
Vielo Carbon Kam tail shape
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.351 mm | 1.356 mm | 1.363 mm | 1.37 mm |
| Bottom Bracket Height | 270.5 mm | 273 mm | 275.5 mm | 275.5 mm | 278 mm |
| Front Center | 588 mm | 605 mm | 622 mm | 641 mm | 657 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 63 mm | 61 mm | 57 mm | 57 mm | 56 mm |
| Stack | 505.2 mm | 523.7 mm | 543.9 mm | 566.4 mm | 586.4 mm |
| Reach | 371.5 mm | 387.7 mm | 401.1 mm | 415.5 mm | 428 mm |
| Top Tube Length | 505 mm | 530 mm | 555 mm | 580 mm | 605 mm |
| Seat Tube Angle | 75.25 ° | 74.75 ° | 74.25 ° | 73.75 ° | 73.25 ° |
| Seat Tube Length | 420 mm | 455 mm | 490 mm | 520 mm | 550 mm |
| Head Tube Angle | 70.25 ° | 70.75 ° | 71.25 ° | 71.5 ° | 71.75 ° |
| Head Tube Length | 100 mm | 120 mm | 142.5 mm | 165 mm | 187.5 mm |
| Chainstay Length | 400 mm | 400 mm | 400 mm | 400 mm | 400 mm |
| Wheelbase | 975 mm | 993 mm | 1011 mm | 1030 mm | 1047 mm |
| Bottom Bracket Drop | 77 mm | 74 mm | 72 mm | 72 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 165 cm | 172 cm | 182 cm | 190 cm |
| Rider Max Height | 167 cm | 175 cm | 185 cm | 193 cm | 200 cm |
