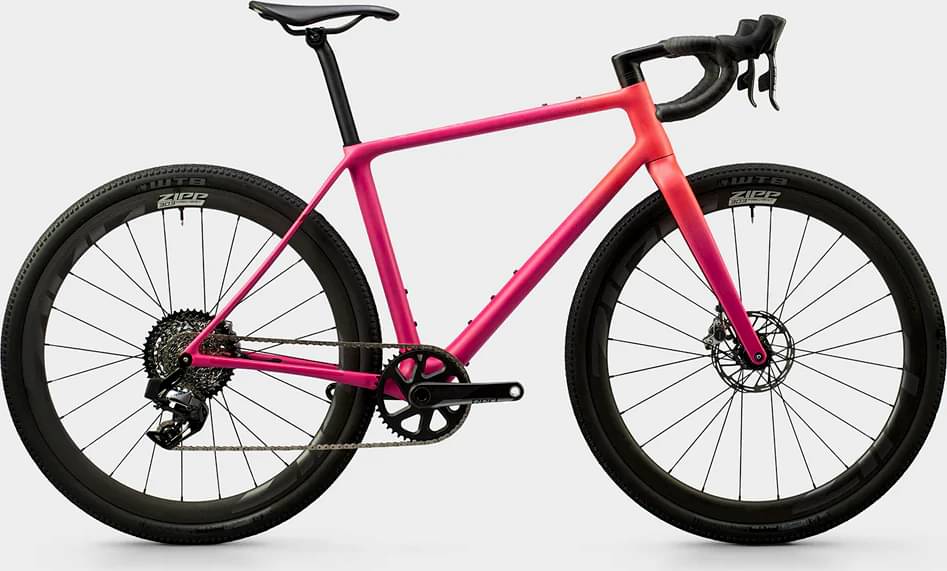

vielo V+1 Race Edition SRAM Rival XPLR eTap AXS 12 Speed 2024
2024 Road
Estimate price |
5,960$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival XPLR AXS, Rival AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
160cm - 167cm
SM
165cm - 175cm
MD
172cm - 185cm
LG
182cm - 193cm
XL
190cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full Carbon Fibre 880g raw (Full internal hose routing)
Suspension Fork
Full Carbon Fibre (Full internal hose routing)
Drivetrain
Rear Derailleur
SRAM Rival XPLR e-tap wide for 10-44
Shift Levers
SRAM Rival e-tap AXS shifters / levers
Cassette
SRAM XG-1251 XPLR wide 10-44
Crank
Vielo alloy crank arm with Vielo CNC machined chain ring
Bottom Bracket
Token Ninja BB386 Evo Pressfit
Chain
SRAM 12 speed
Wheels
Rims
DT Swiss G1800
Tires
Continental Terra Hardpack 700 x 50mm
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Vielo Carbon Bar-Stem unit. Stem length 90, 100, 110mm
Handlebar
Vielo Carbon Bar-Stem unit. Bar width 40cm, 42cm, 44cm
Headset
Vielo by Token
Seat
Saddle
Selle Italia SLR Novus Boost Evo X-Cross Manganese rail saddle
Seatpost
Vielo Carbon 30.9mm x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.453 mm | 1.453 mm | 1.455 mm | 1.451 mm | 1.464 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 593 mm | 614 mm | 631 mm | 650 | 667 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 70 mm | 68 mm | 67 mm | 66 mm | 64 mm |
| Stack | 530.3 mm | 552.2 mm | 572.1 mm | 592.2 mm | 614.3 mm |
| Reach | 364.9 mm | 380 mm | 393.1 mm | 408 mm | 419.5 mm |
| Top Tube Length | 505 mm | 530 mm | 555 mm | 580 mm | 605 mm |
| Seat Tube Angle | 75.25 ° | 74.75 ° | 74.25 ° | 73.75 ° | 73.25 ° |
| Seat Tube Length | 410 mm | 445 mm | 480 mm | 515 mm | 550 mm |
| Head Tube Angle | 70 ° | 70.25 ° | 70.5 ° | 70.75 ° | 71 ° |
| Head Tube Length | 100 mm | 122.5 mm | 145 mm | 165 mm | 187.5 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1017 mm | 1038 mm | 1056 mm | 1075 mm | 1092 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 165 cm | 172 cm | 182 cm | 190 cm |
| Rider Max Height | 167 cm | 175 cm | 185 cm | 193 cm | 200 cm |
