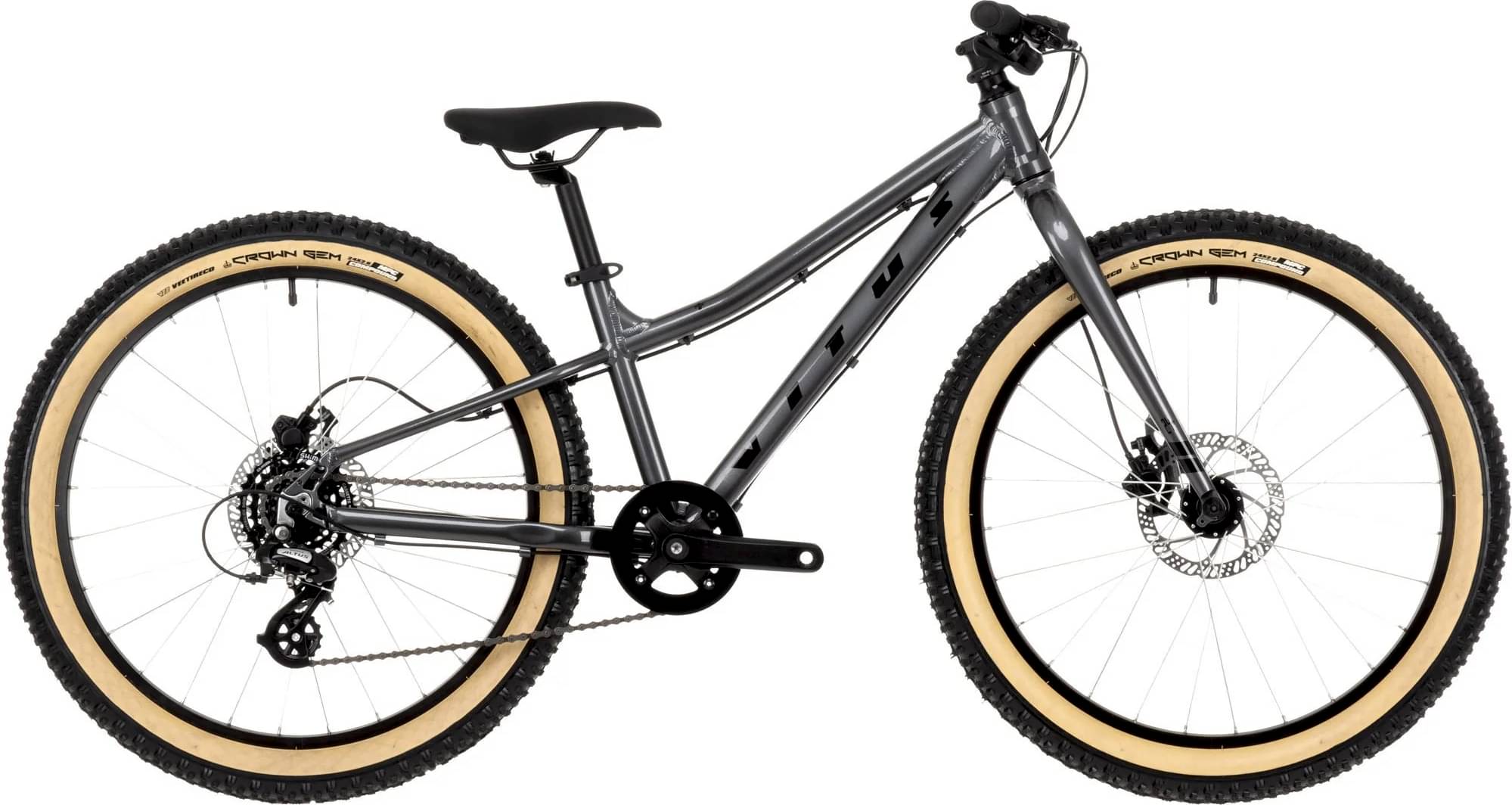

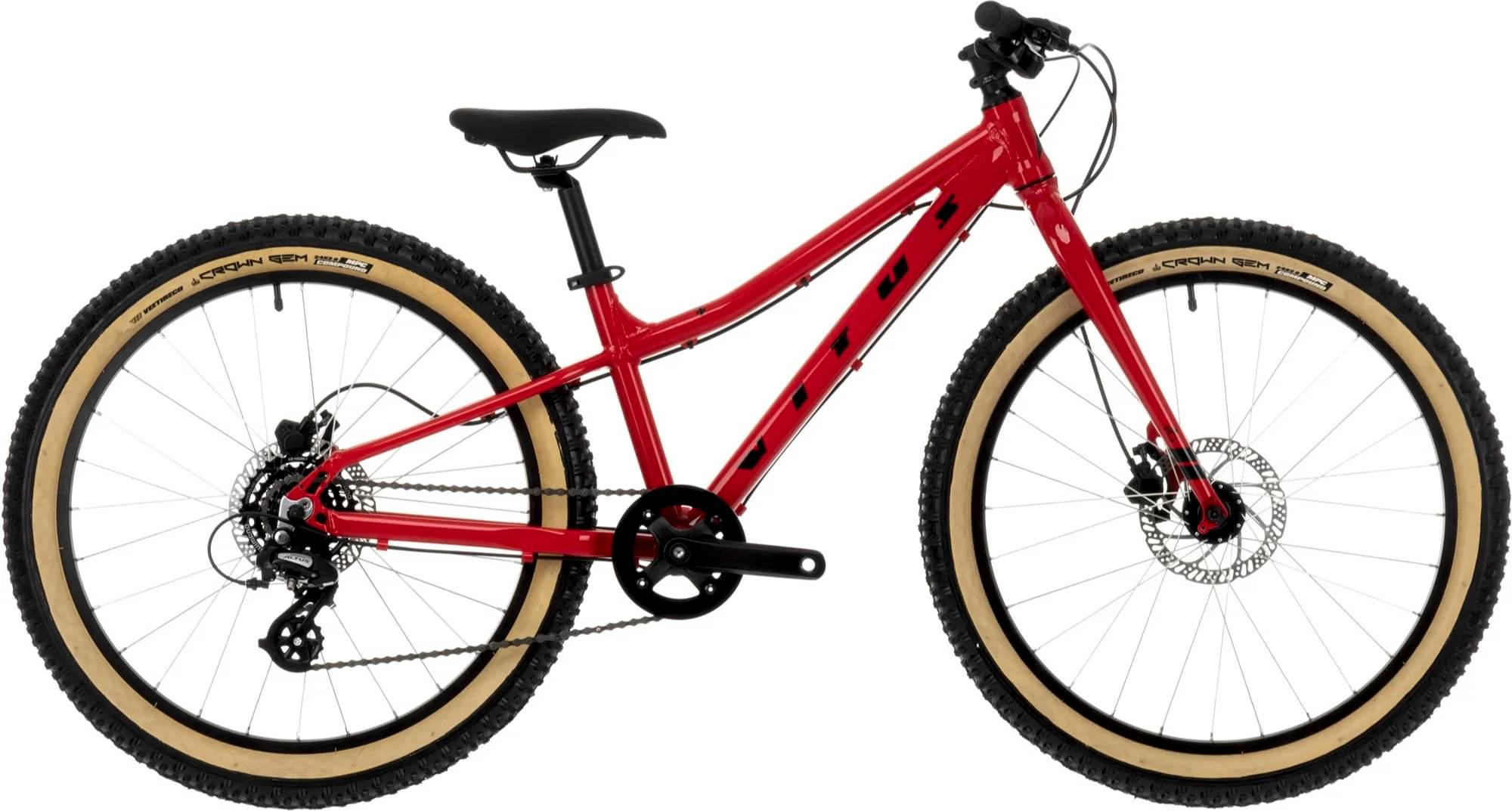

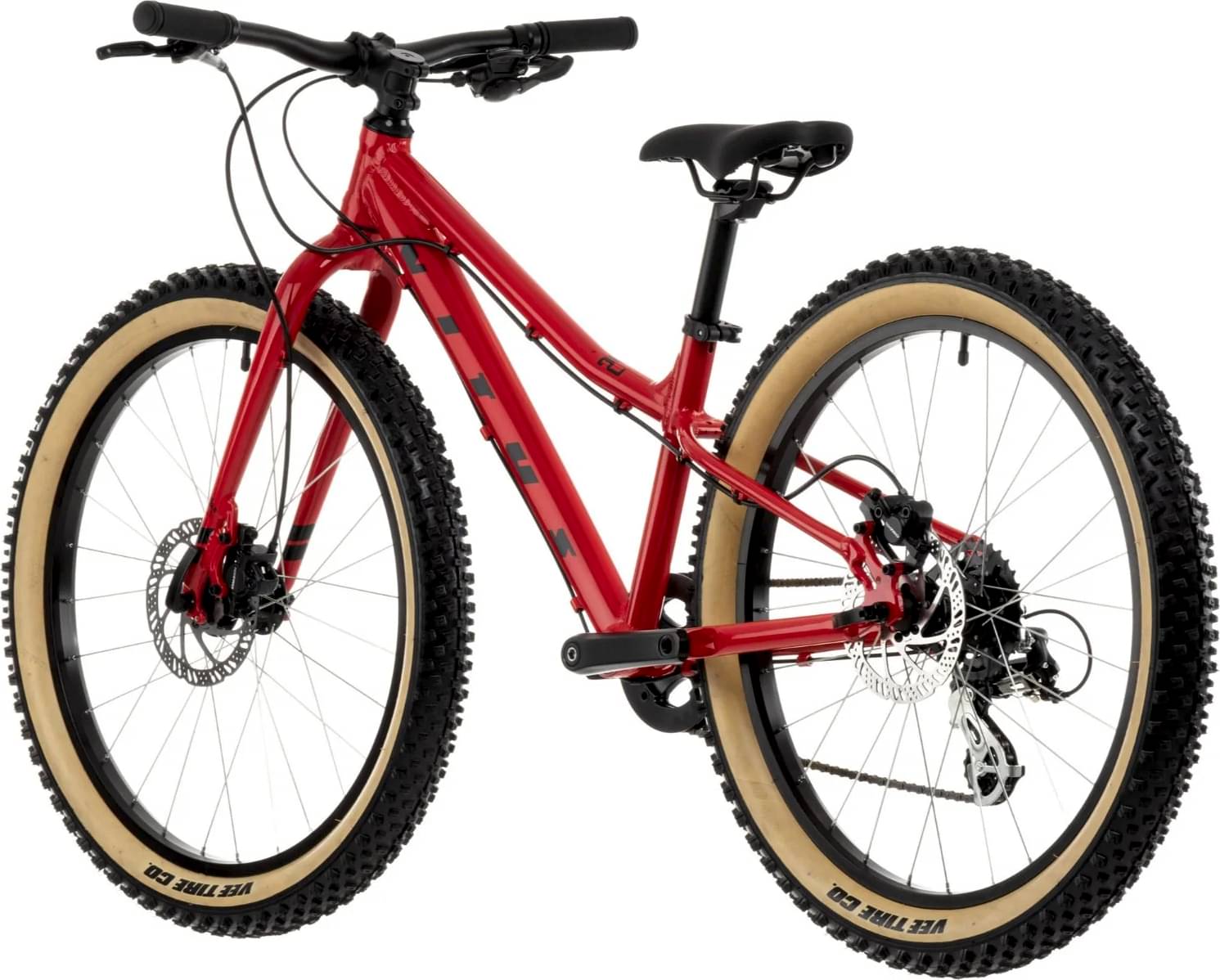

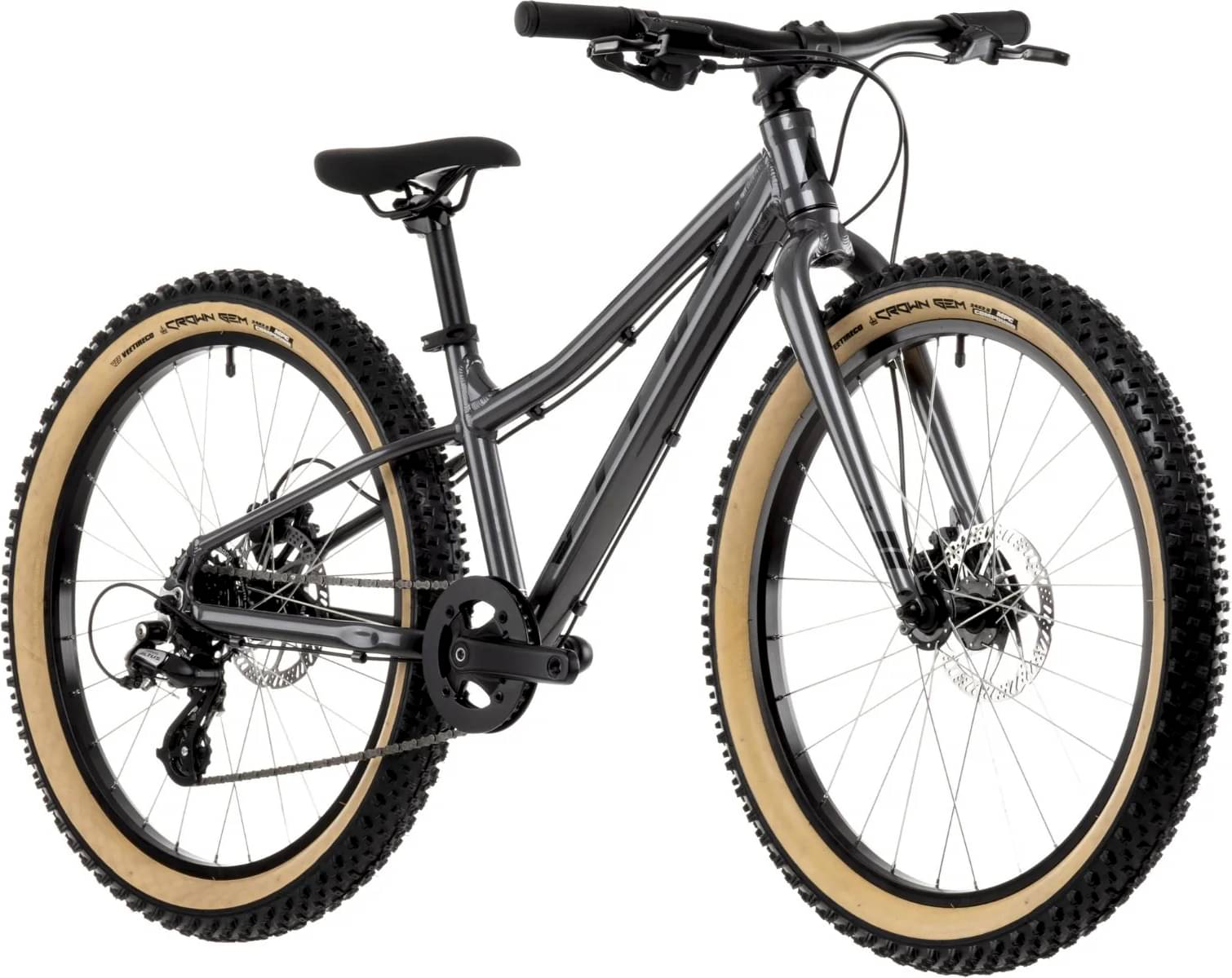

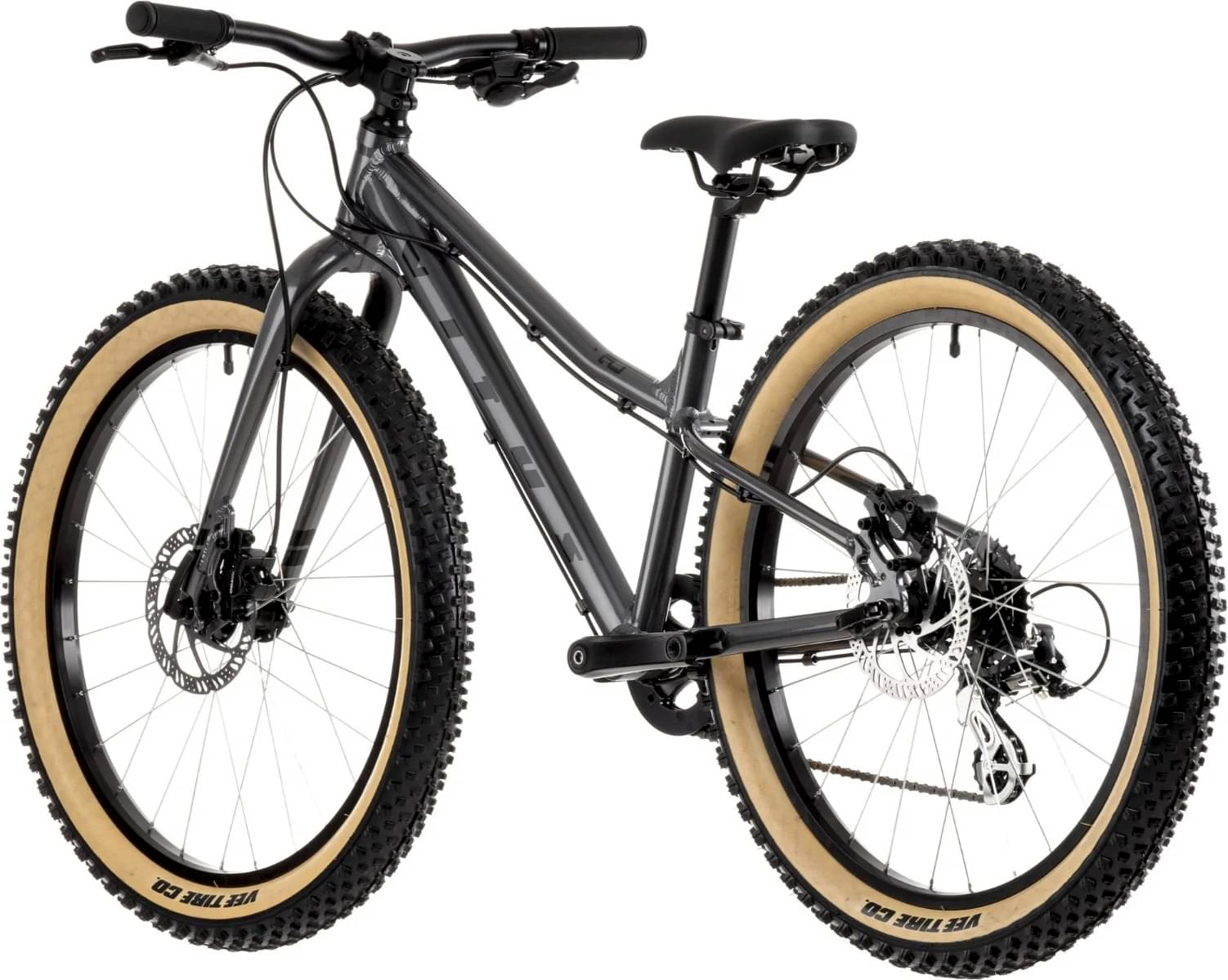

Vitus 24+ Kids 2024
2024 Youth
Estimate price |
717$
Weight | 11.16 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Altus -
Suspension Rigid -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
24"
132cm - 147cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium, 6061-T6 Aluminium, IS Disc Mount, Threaded BB, QR
Suspension Fork
Aluminium, Aluminium, IS Disc Mount, QR
Drivetrain
Rear Derailleur

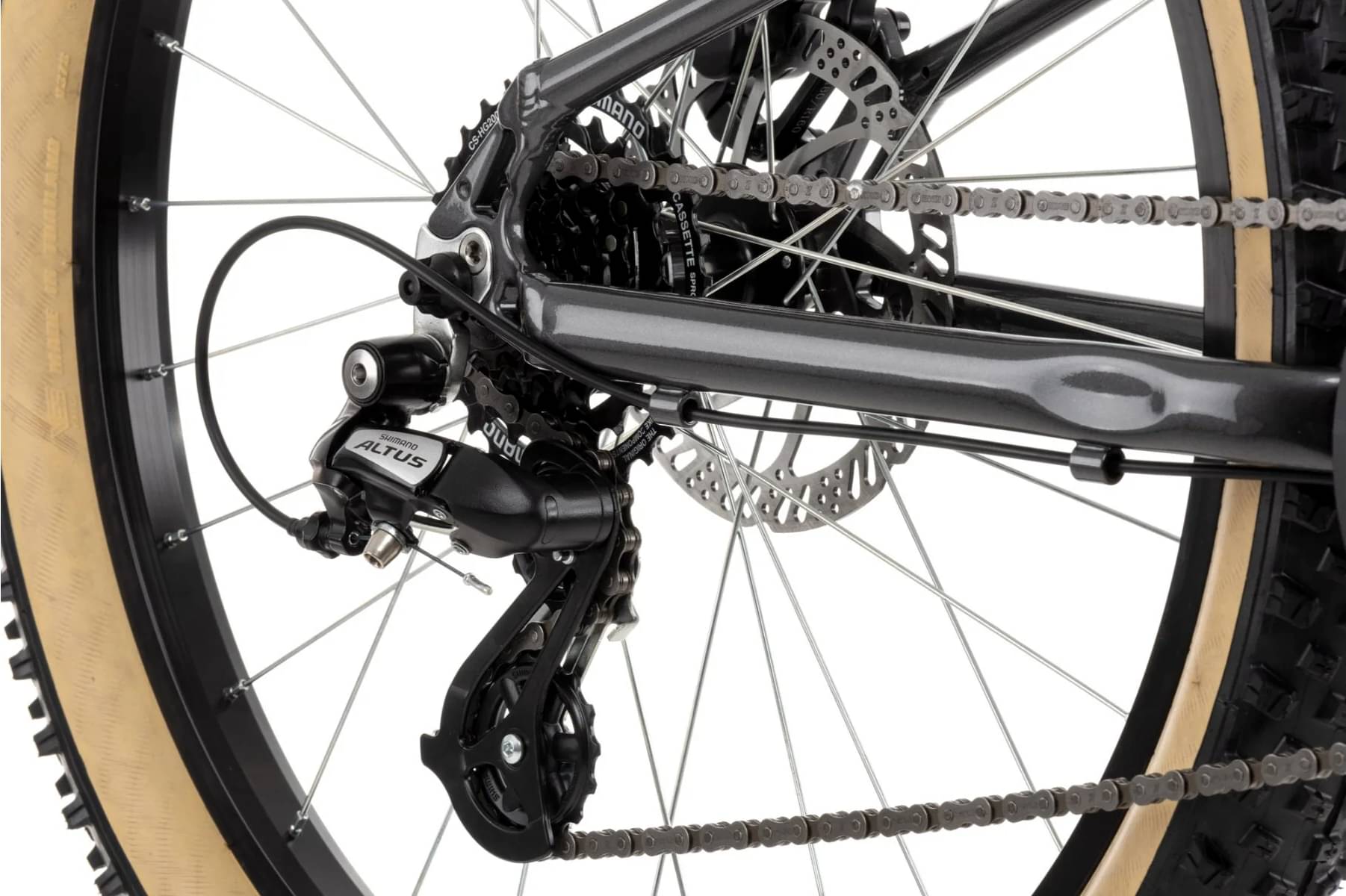

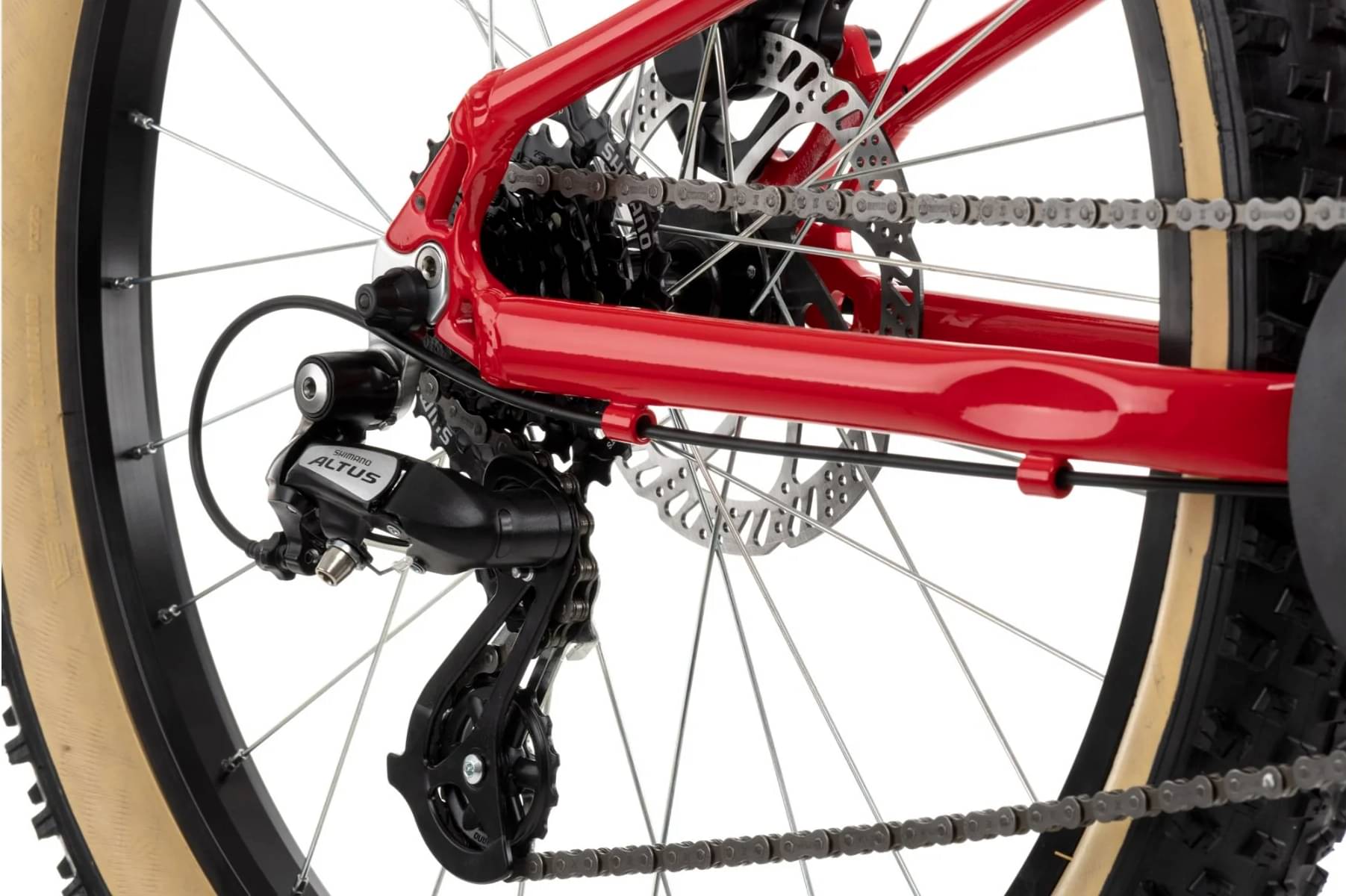

Shimano Altus 7 Speed, SL-M310-S, 7/8 Speed
Shift Levers
Shimano Altus Rapidfire 7 Speed, SL-M315-7R, 7 Speed, Rapidfire Plus, Optical Gear Window
Cassette
Shimano 12-32T, HG-200, 7 Speed
Crank
Samox, 140mm Crank Arm, Twin Chainguard, Reduced Q Factor, 32T, 3/32" x 1/2"
Bottom Bracket
Square Taper, Sealed Cartridge Bearings, English Thread, BSA, 68mm
Chain
KMC Z7, N/A
Wheels
Front Hub
Joytech, D761DSE, 28 Hole, 100mm QR, 6-Bolt
Rear Hub
Joytech, D142TSE, 28 Hole, 135mm QR, 7 Speed, 6-Bolt
Rims
Front: Weinmann DM30, 24", 28 Hole, Rear: Weinmann DM30, 24", 28 Hole
Spokes
Steel, 12mm Nipple
Tires
Front: Vee Crown Gem, 24" x 2.6", Rear: Vee Crown Gem, 24" x 2.6"
Brakes
Brakes

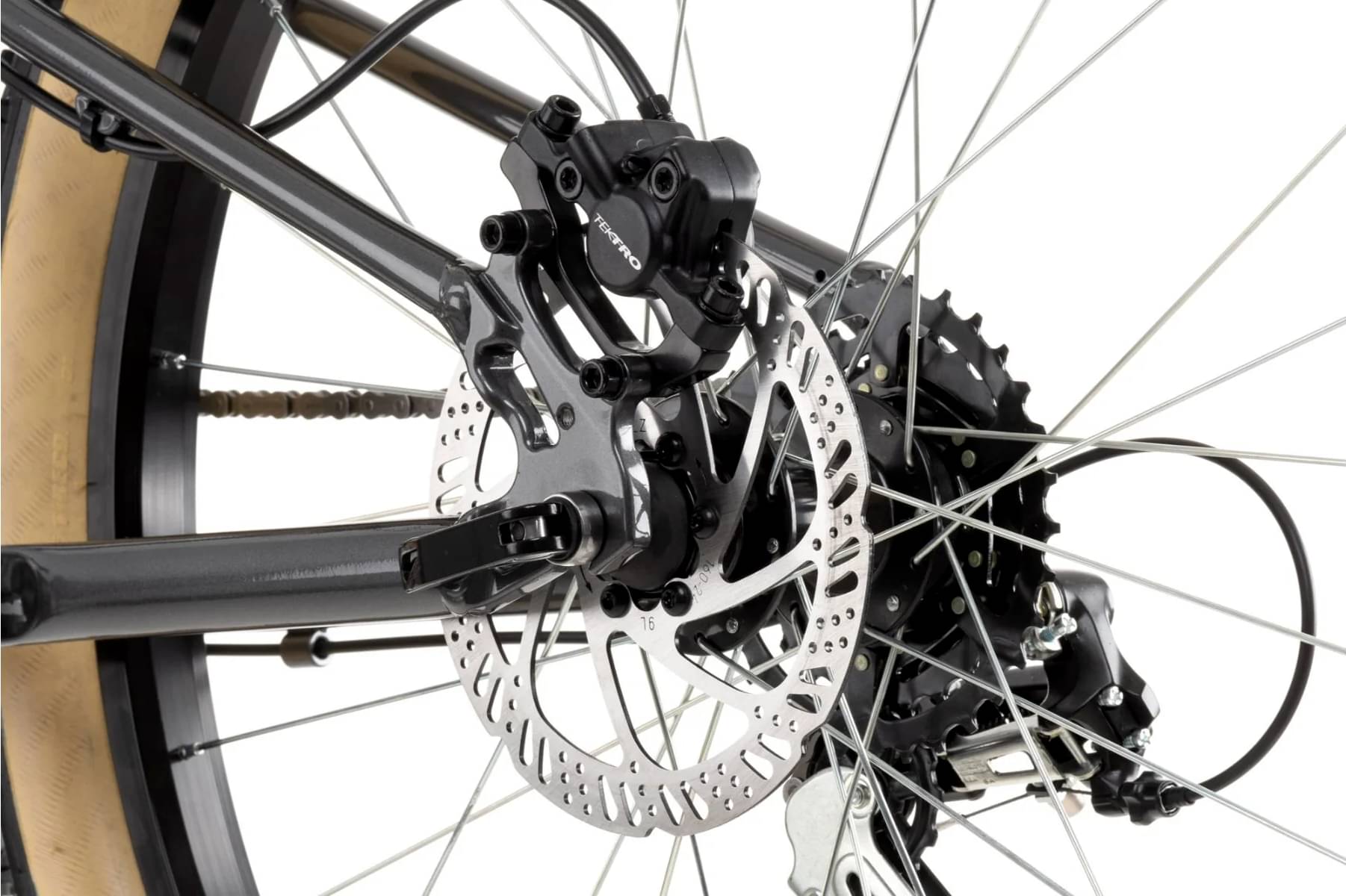

Front: Tektro HD-M276 Hydraulic Disc, Adjustable Reach, Rear: Tektro HD-M276 Hydraulic Disc, Adjustable Reach
Brake Levers
Tektro HD-M276 Hydraulic Disc, Adjustable Reach
Cockpit
Stem
VITUS 6061 Aluminium Kids, Length 50mm
Handlebar
VITUS 6061 Aluminium Kids, 31.8mm Bar Bore, 600mm Width, 15mm Rise, 9 Degree Backsweep, Safety End Caps
Grips
VITUS Kids, TPR Rubber
Headset
VP, 28.6 / 44 / 30, 10mm Aluminium Cover
Seat
Saddle
VITUS Kids, Steel Rail
Seatpost
VITUS 6061 Aluminium Kids, 27.2mm x 250mm
Fit data
Geometry
