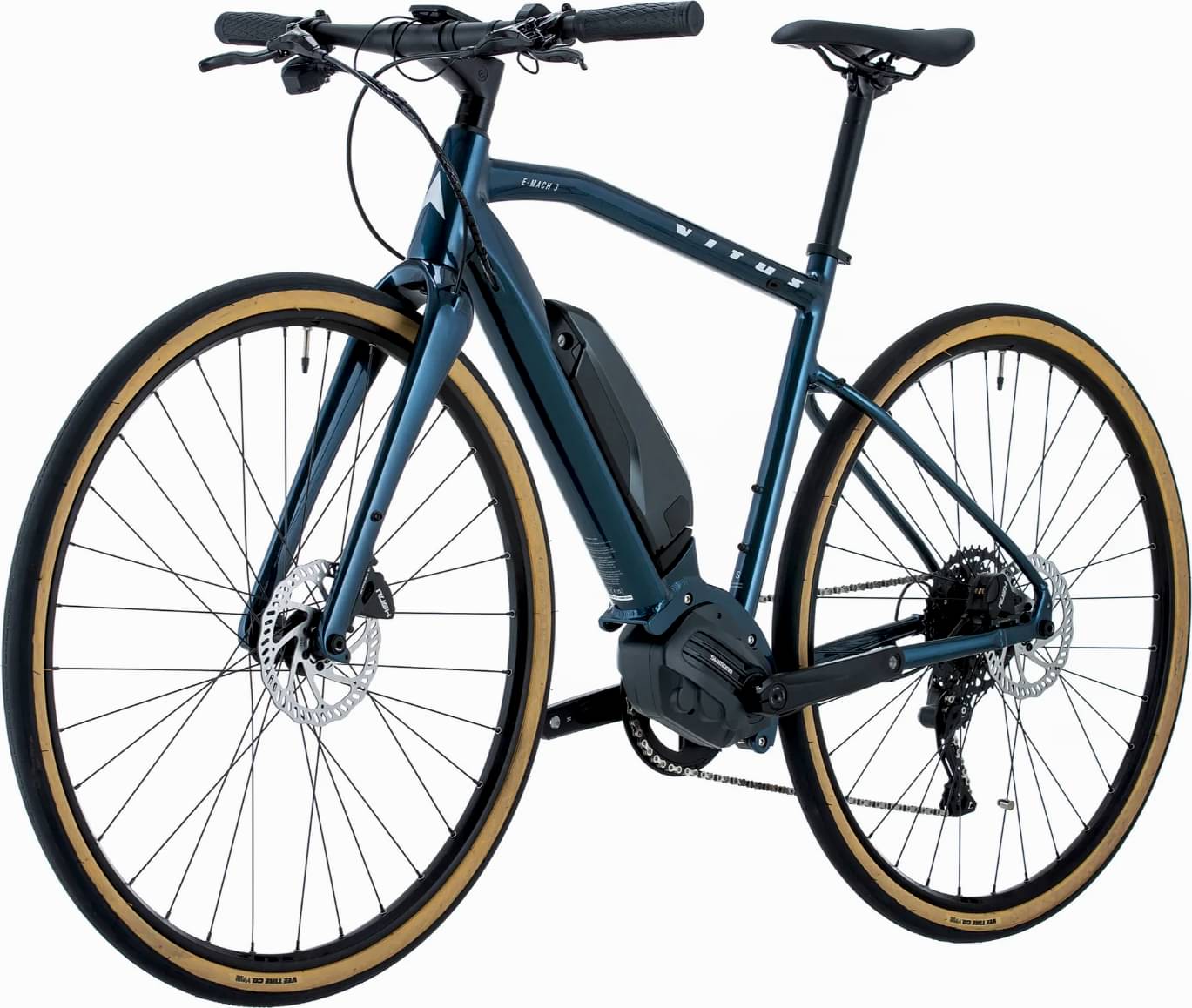

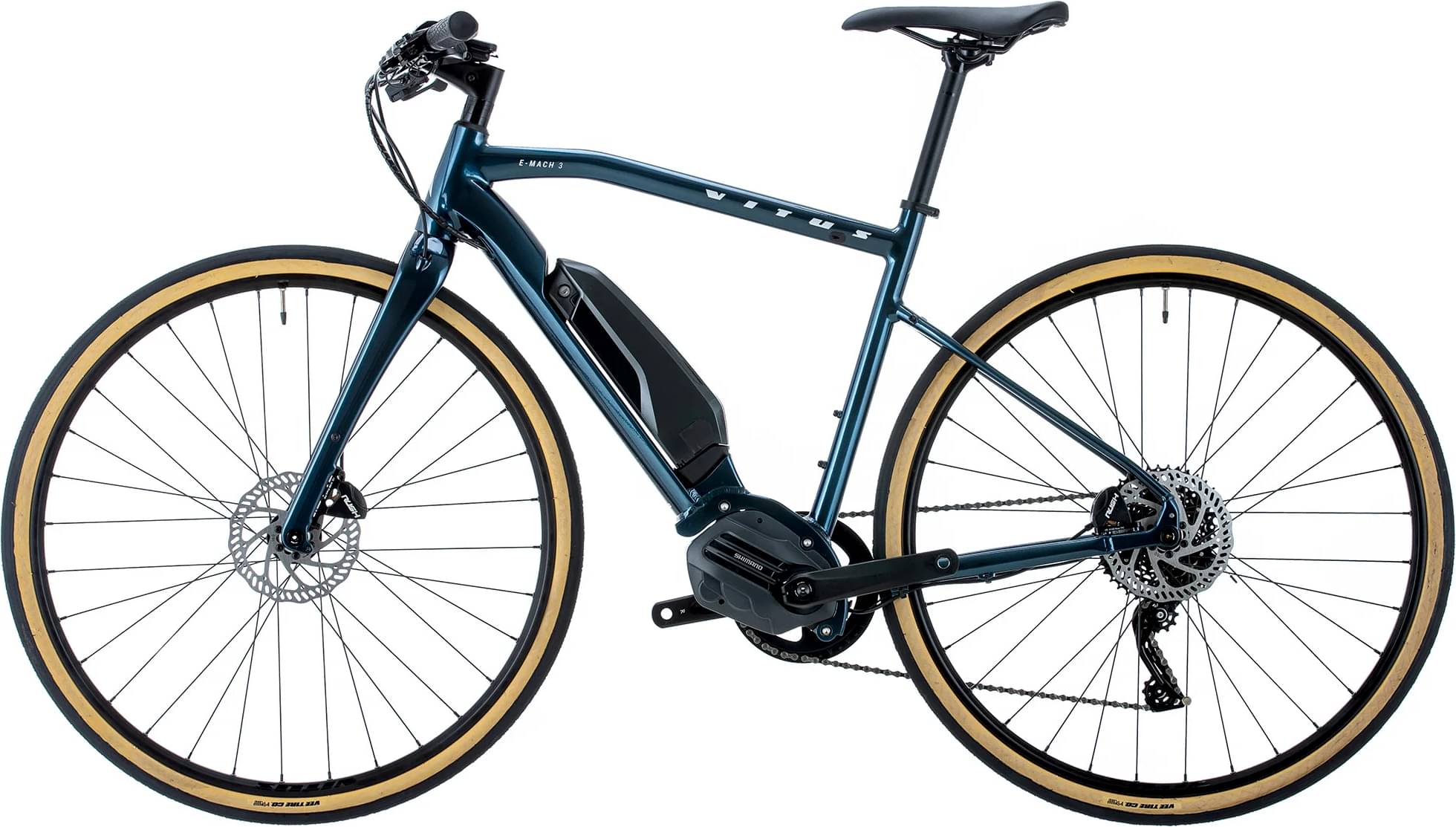

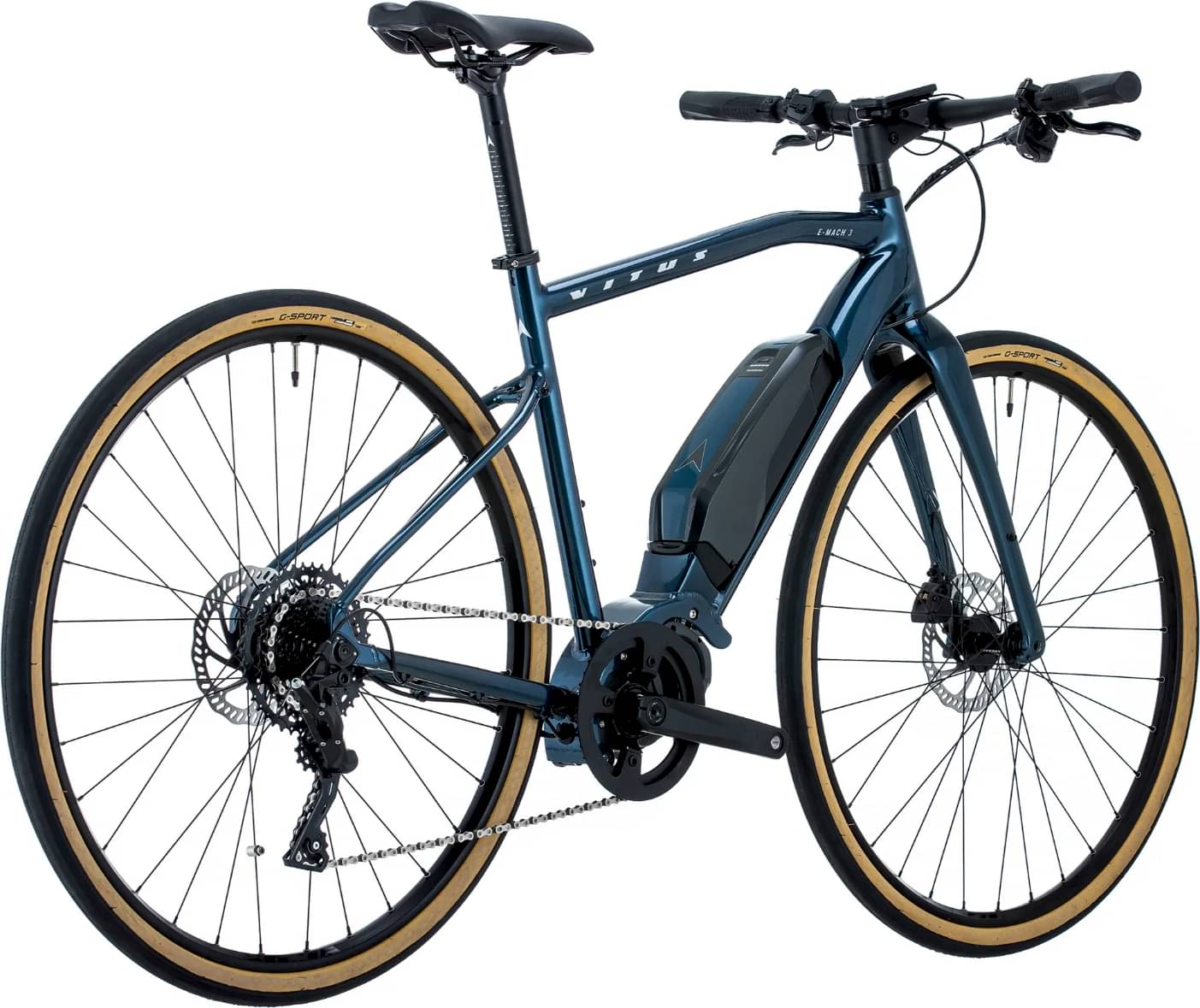

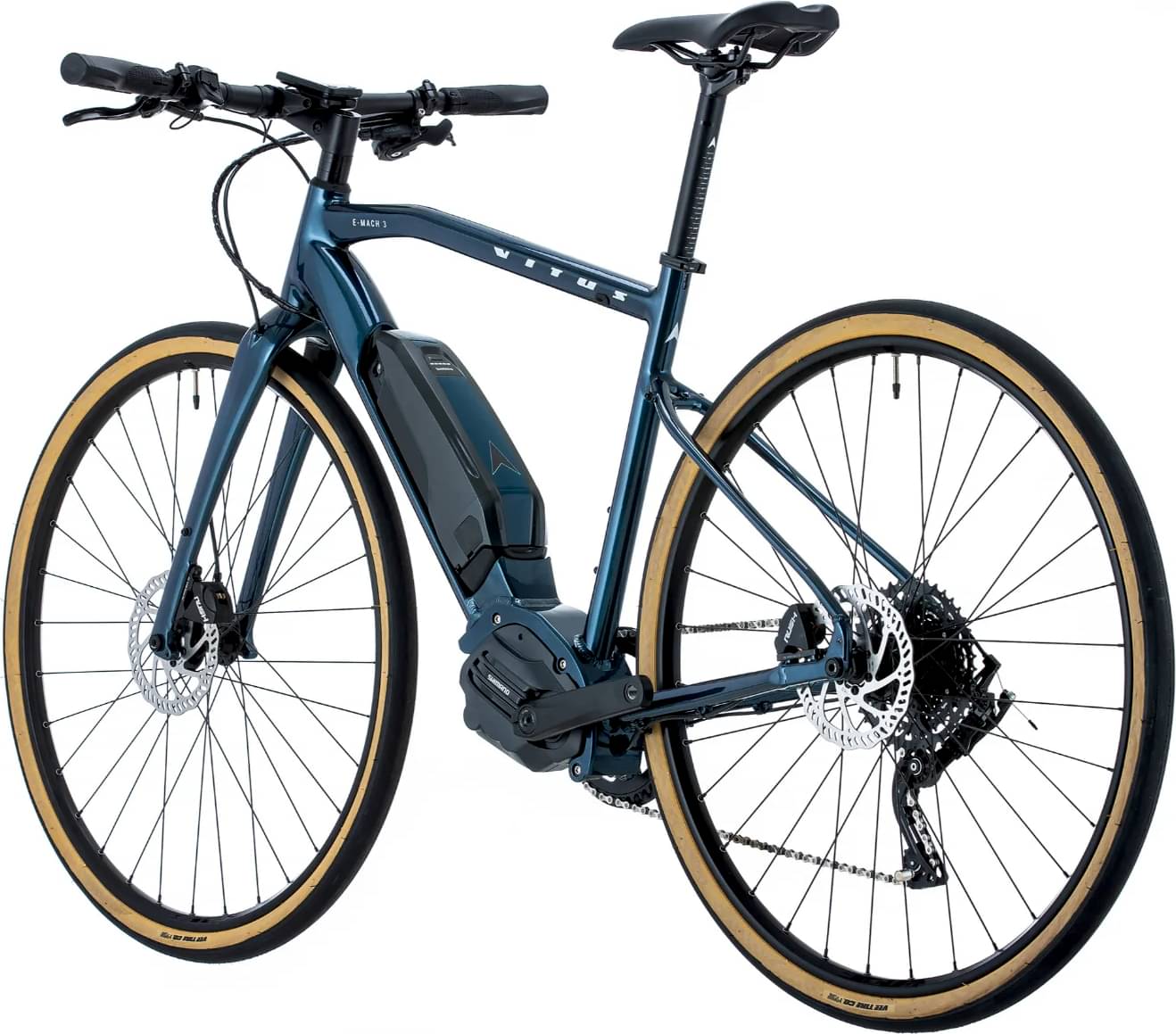

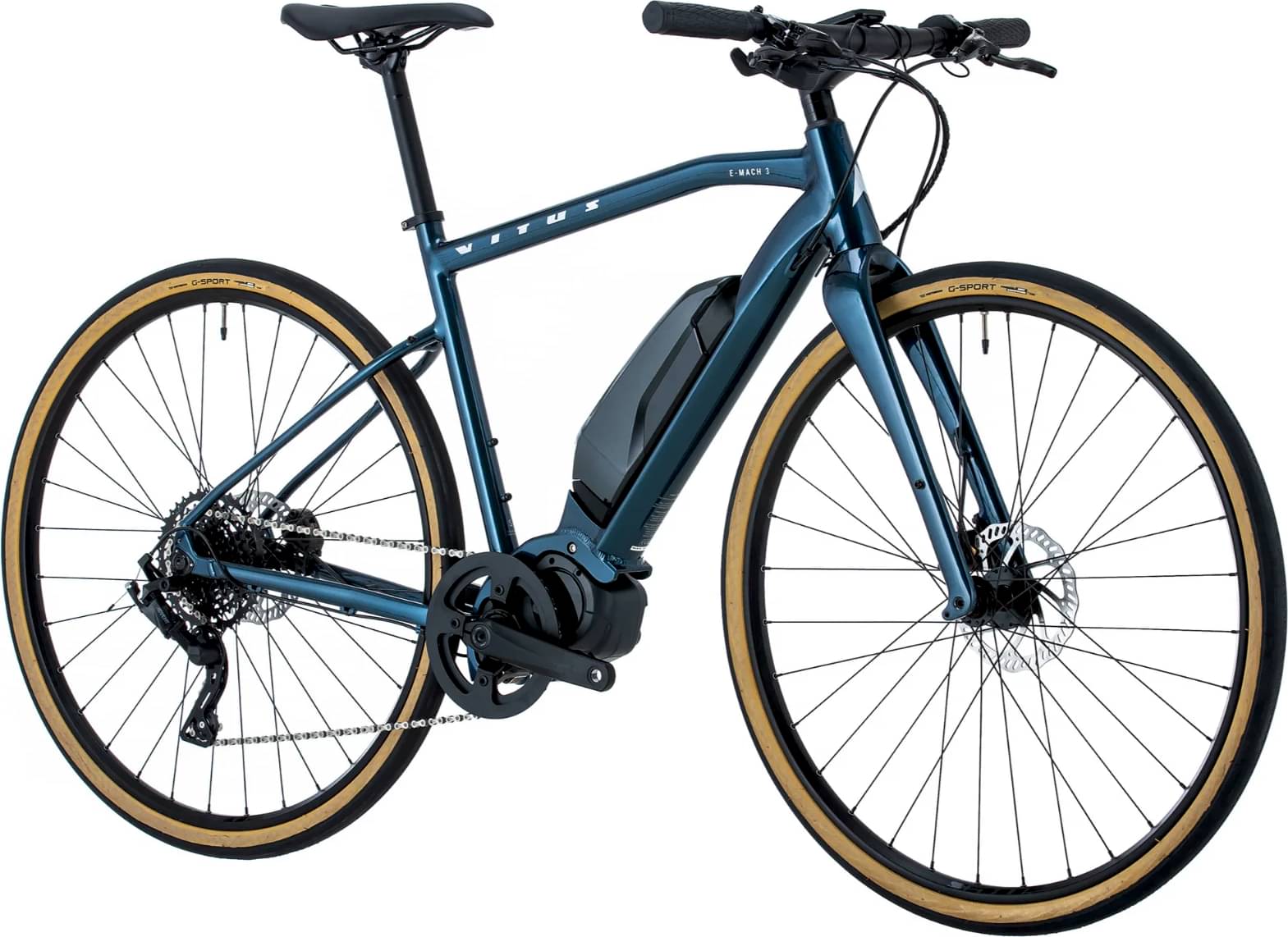

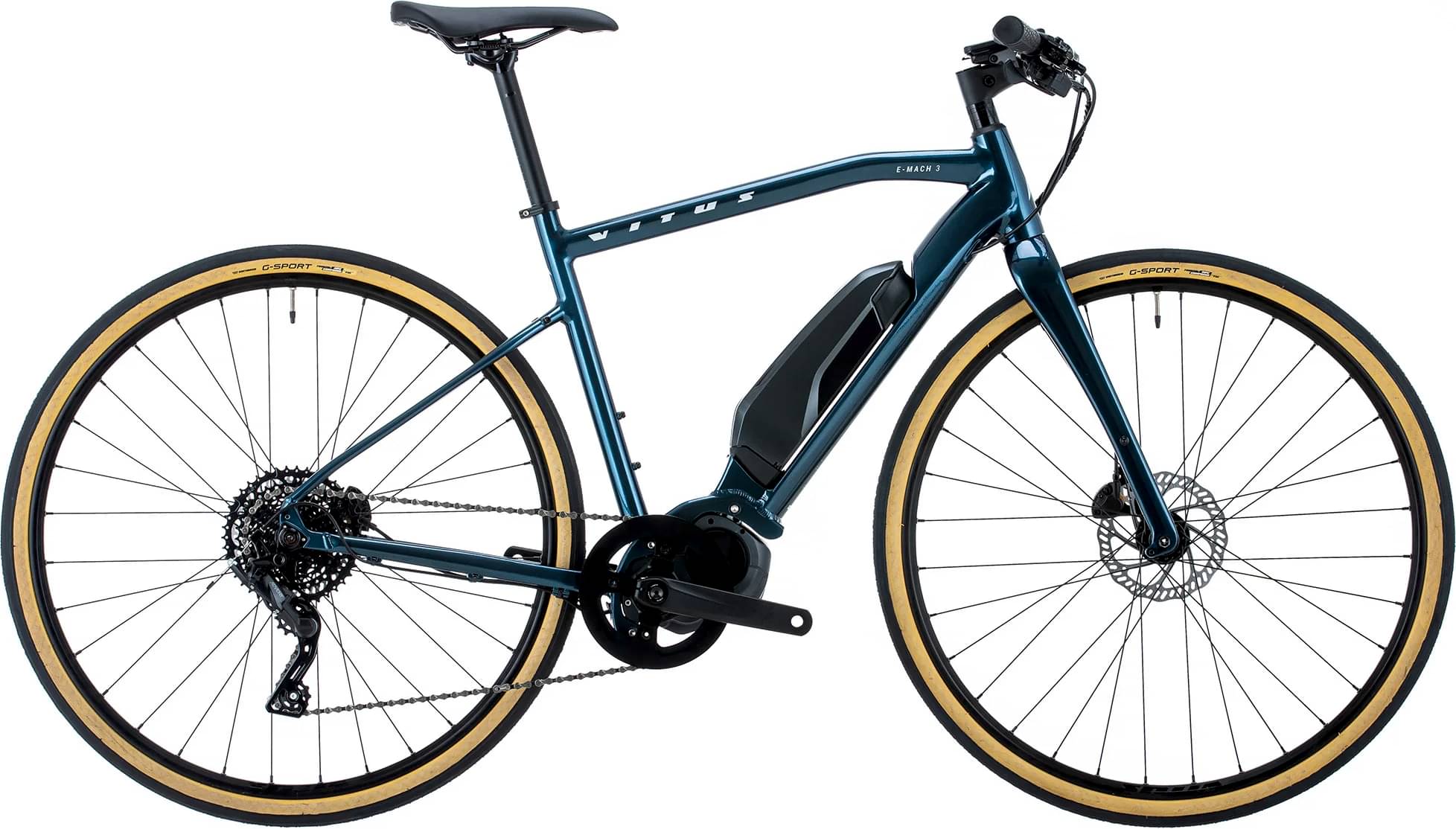

Vitus E-Mach 3 Electric Hybrid 2024
2024 E-bike
Estimate price |
3,115$
Weight | 17.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Advent -
Suspension Rigid -
Motor Shimano mid-drive -
Battery Shimano STEPS E8010 504Wh, BT-E8010, 504Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 169cm
SM
166cm - 174cm
MD
171cm - 177cm
LG
174cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Mach 3 Aluminium, 6061-T6 Double Butted Aluminium, Shimano STEPS 6100 Motor Mount, Internal Cable Routing, Flat Mount, Mud Guard Mounts, Rack Mounts

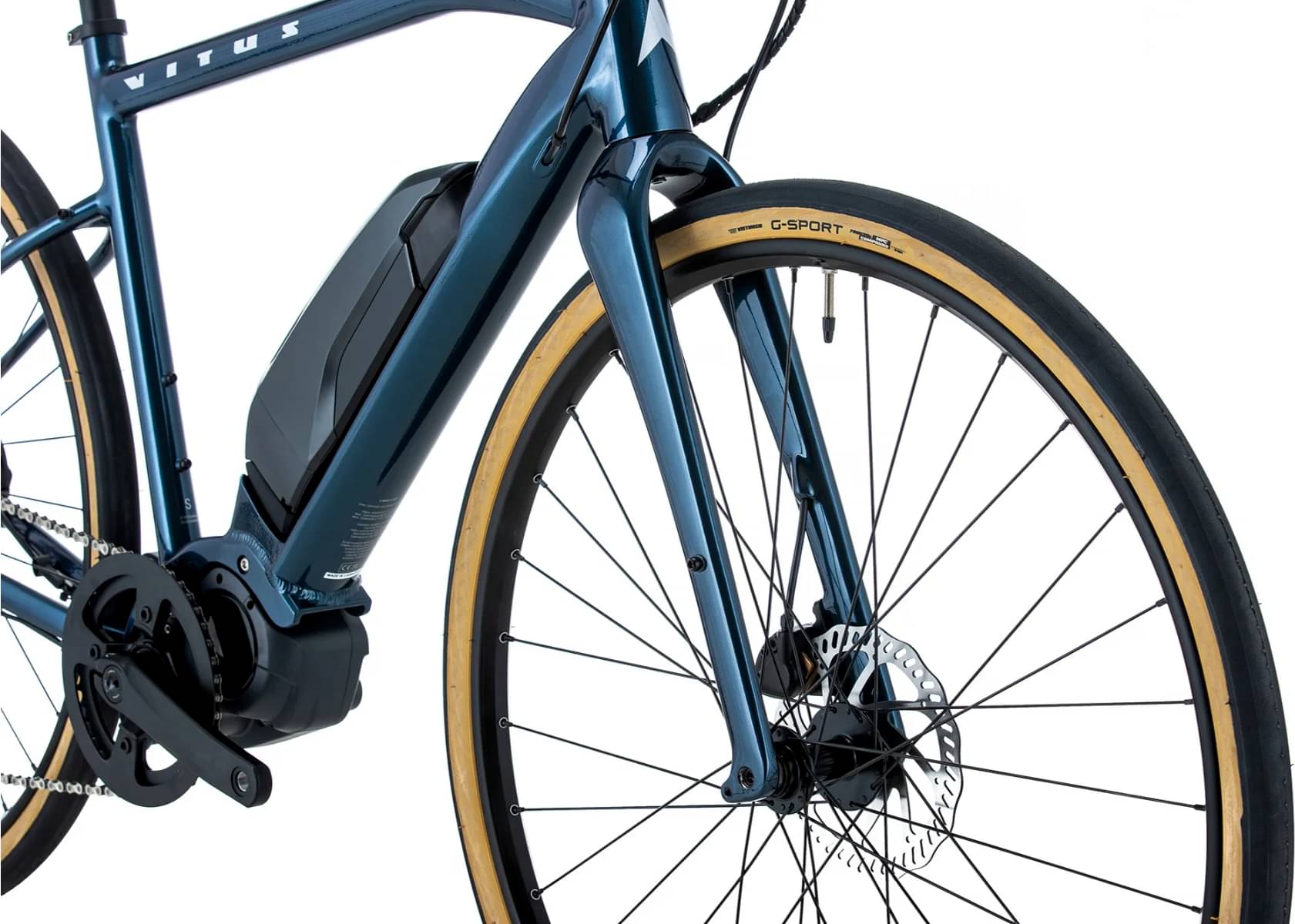

Suspension Fork
Mach 3 Carbon, UD Carbon, Tapered Steerer, 100 x 12mm Axle, Flat Mount, Mud Guard Mounts
Rear Shock
N/A, N/A
Drivetrain
Rear Derailleur
Microshift Advent, 9 Speed
Front Derailleur
N/A, N/A
Shift Levers
Microshift Advent, 9 Speed, Trigger Shifter
Cassette
Microshift Advent H Series, 11-42T, 9 Speed
Crank
Prowheel, 42T, 170mm Crank Arm
Bottom Bracket
N/A, N/A
Chain
KMC e9 Sport, 9 Speed, E-Bike Specific
Wheels
Front Hub
Vitus KT, MSCF, 6-Bolt Disc Brake, 100 x 12mm
Rear Hub
Vitus KT, SNCR, 6-Bolt Disc Brake, 142 x 12mm
Rims
Front: Vitus Shining, DB-21, 700c, 32 Hole, Rear: Vitus Shining, DB-21, 700c, 32 Hole
Tires
Front: Vee Tire Co. G-Sport, 700 x 35c, Rear: Vee Tire Co. G-Sport, 700 x 35c
Brakes
Brakes
C-Star BH-RS925, Hydraulic Disc, Flat Mount
Cockpit
Stem
Vitus Integrated Flat Bar & Stem, 6061 Aluminium, Bar Bore 31.8mm, +/- 15 Degree,
Handlebar
Vitus Integrated Flat Bar & Stem, 6061 Aluminium, 4 Degree Rise, 9 Degree Sweep, XXS: 640mm, XS: 640mm, S: 640mm, M: 680mm, L: 680mm, XL: 680mm
Grips
Vitus Ergo Grips, Anti Slip, Ergonomic Shape, Integrated Lock Ring
Headset
ACROS Aix-Low R3, Sealed Bearings, OD46, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40
Seat
Saddle
Vitus, Steel Rail
Seatpost
Vitus 6061 Aluminium, 27.2mm x 300mm
Motor & Battery
Motor
Shimano STEPS E8010 504Wh, BT-E8010, 504Wh

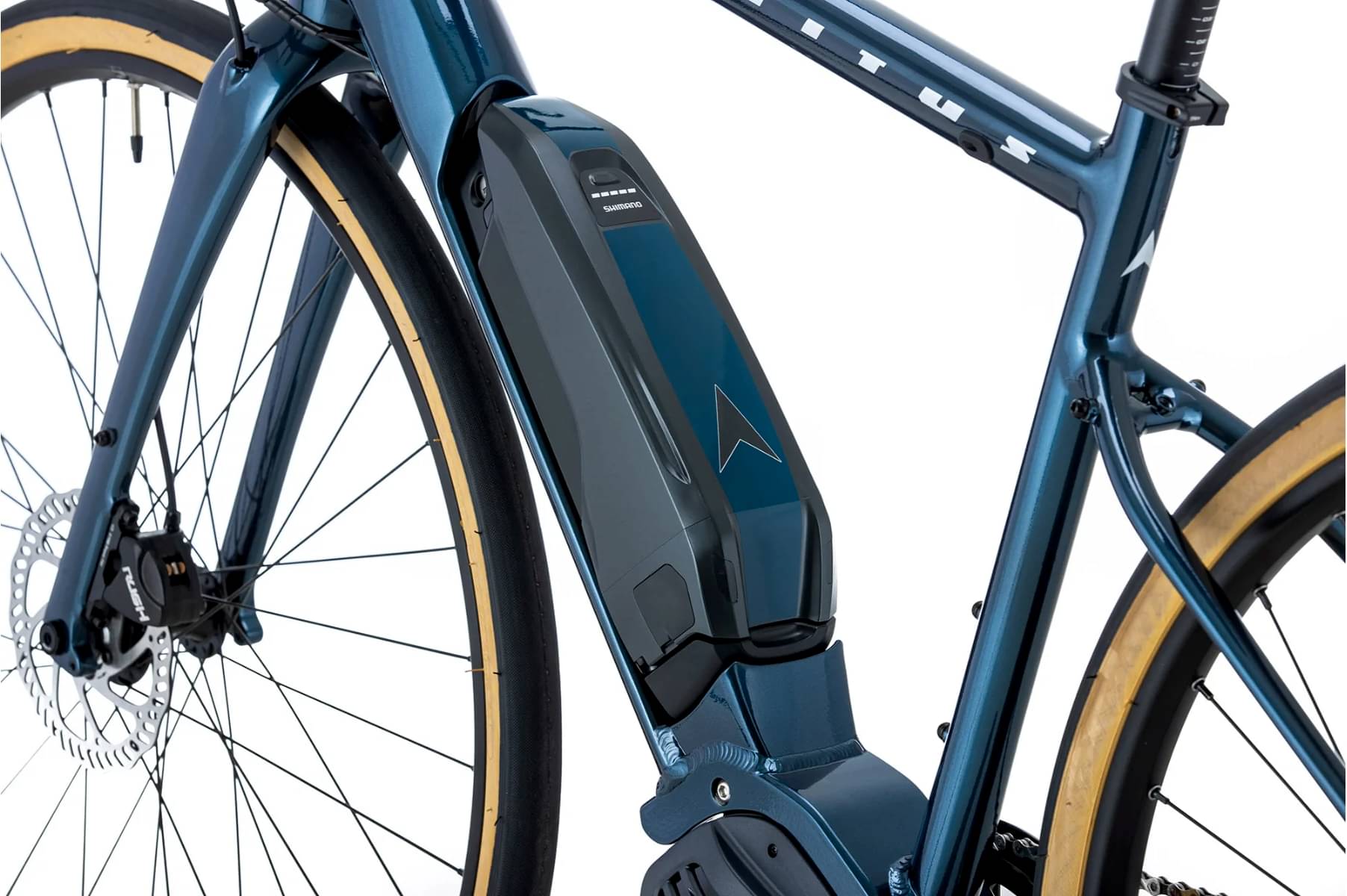

Battery
Shimano STEPS E8010 504Wh, BT-E8010, 504Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.361 mm | 1.381 mm | 1.387 mm | 1.396 mm |
| Front Center | 611.6 mm | 617.4 mm | 627.5 mm | 638.7 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 77 mm | 73 mm | 70 mm | 68 mm |
| Stack | 535 mm | 551 mm | 566 mm | 582 mm |
| Reach | 393 mm | 399 mm | 408 mm | 417 mm |
| Top Tube Length | 554 mm | 567.5 mm | 581 mm | 597.2 mm |
| Seat Tube Angle | 73.25 ° | 73 ° | 73 ° | 72.8 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm |
| Head Tube Angle | 70.4 ° | 71 ° | 71.4 ° | 71.7 ° |
| Head Tube Length | 122 mm | 136 mm | 150 mm | 166 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1041 mm | 1047 mm | 1057 mm | 1069 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 166 cm | 171 cm | 174 cm |
| Rider Max Height | 169 cm | 174 cm | 177 cm | 182 cm |
