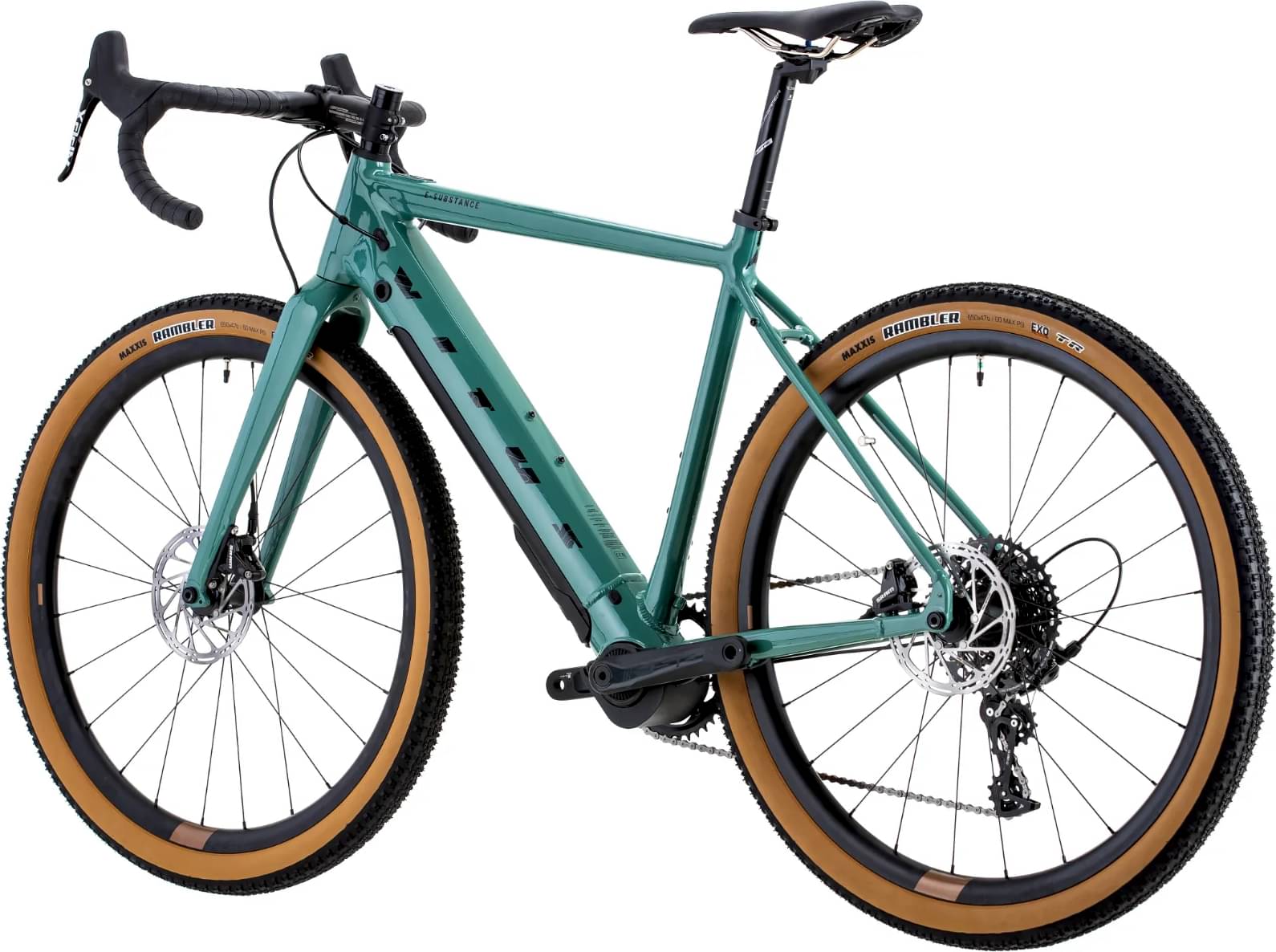

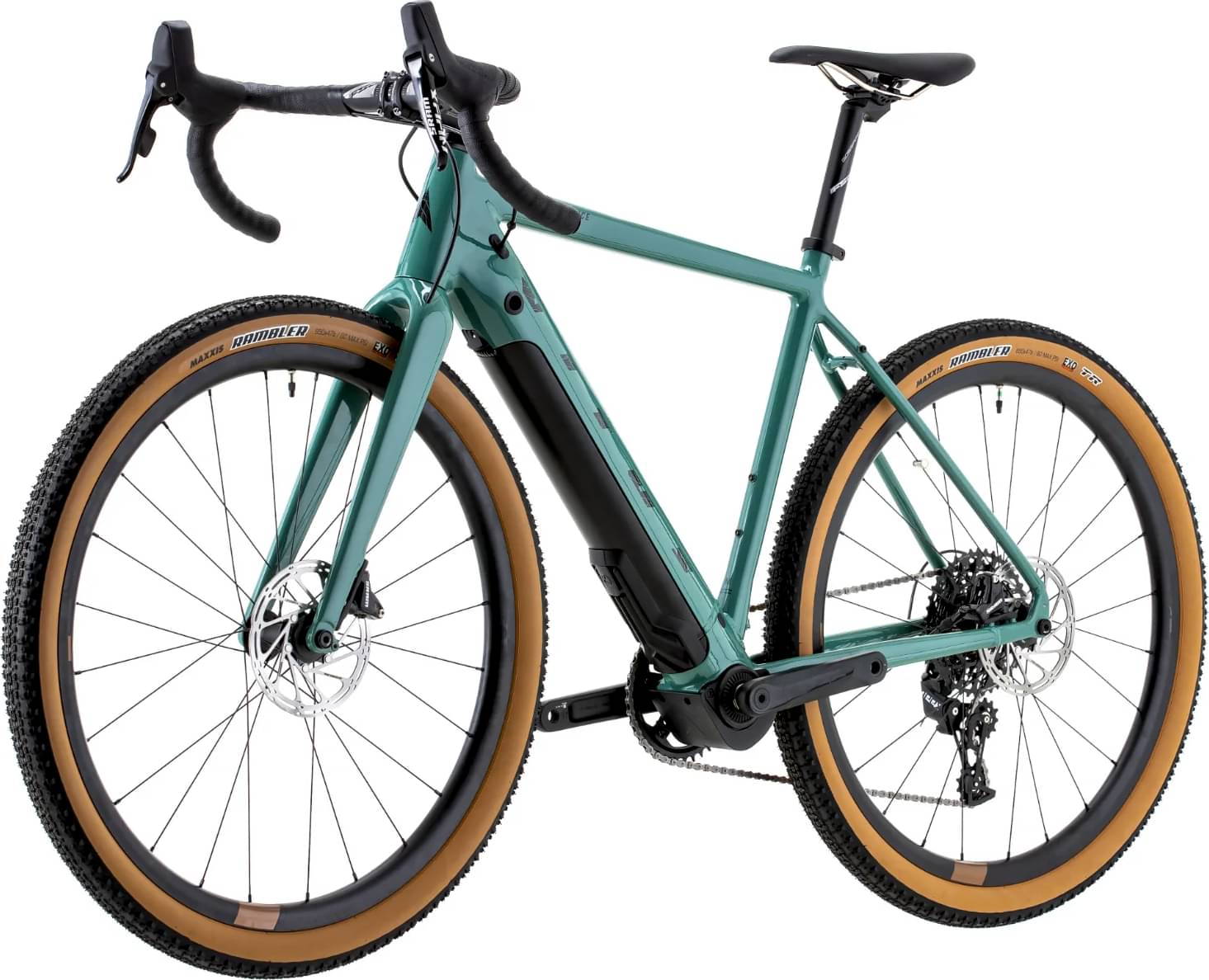

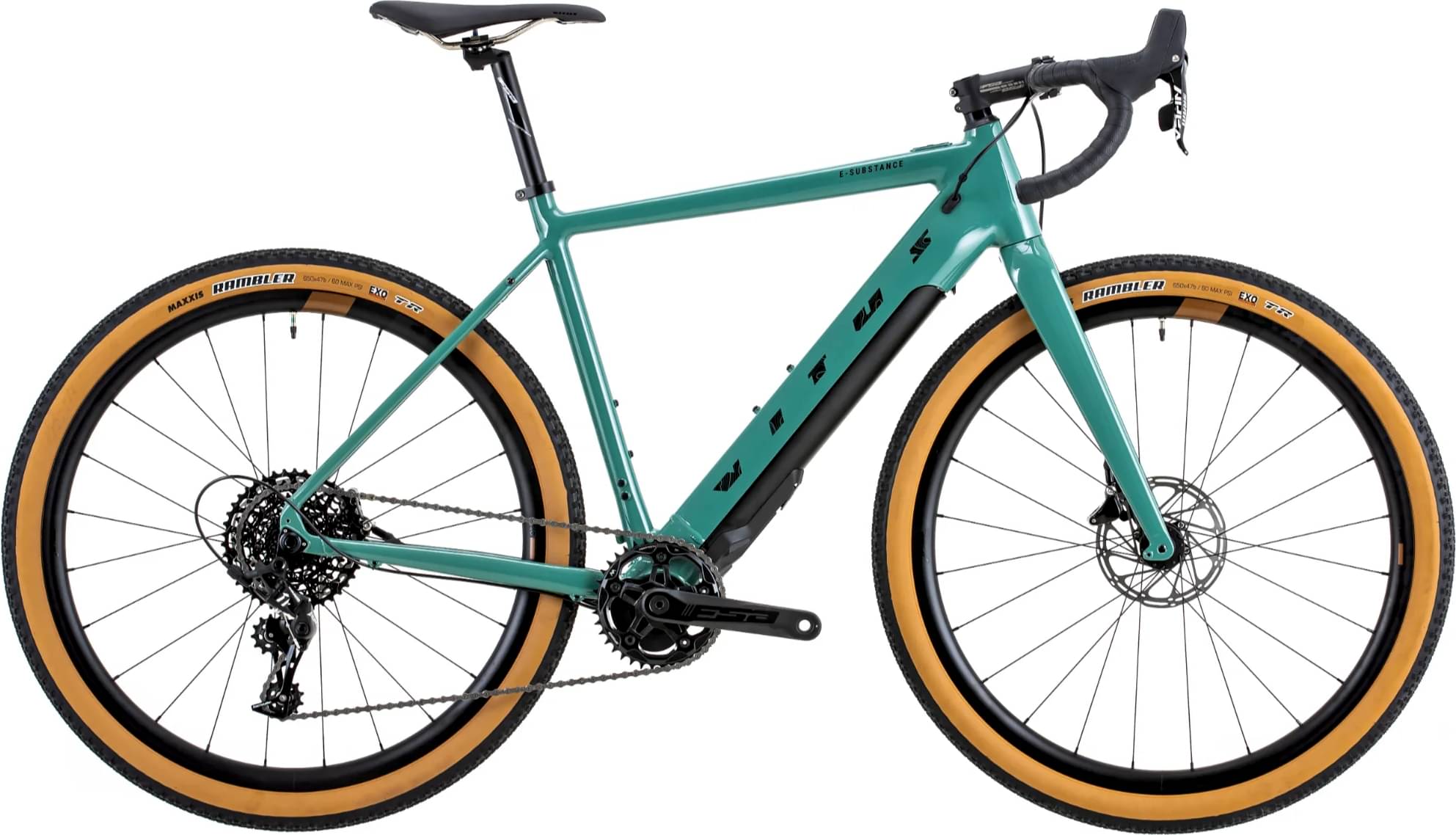

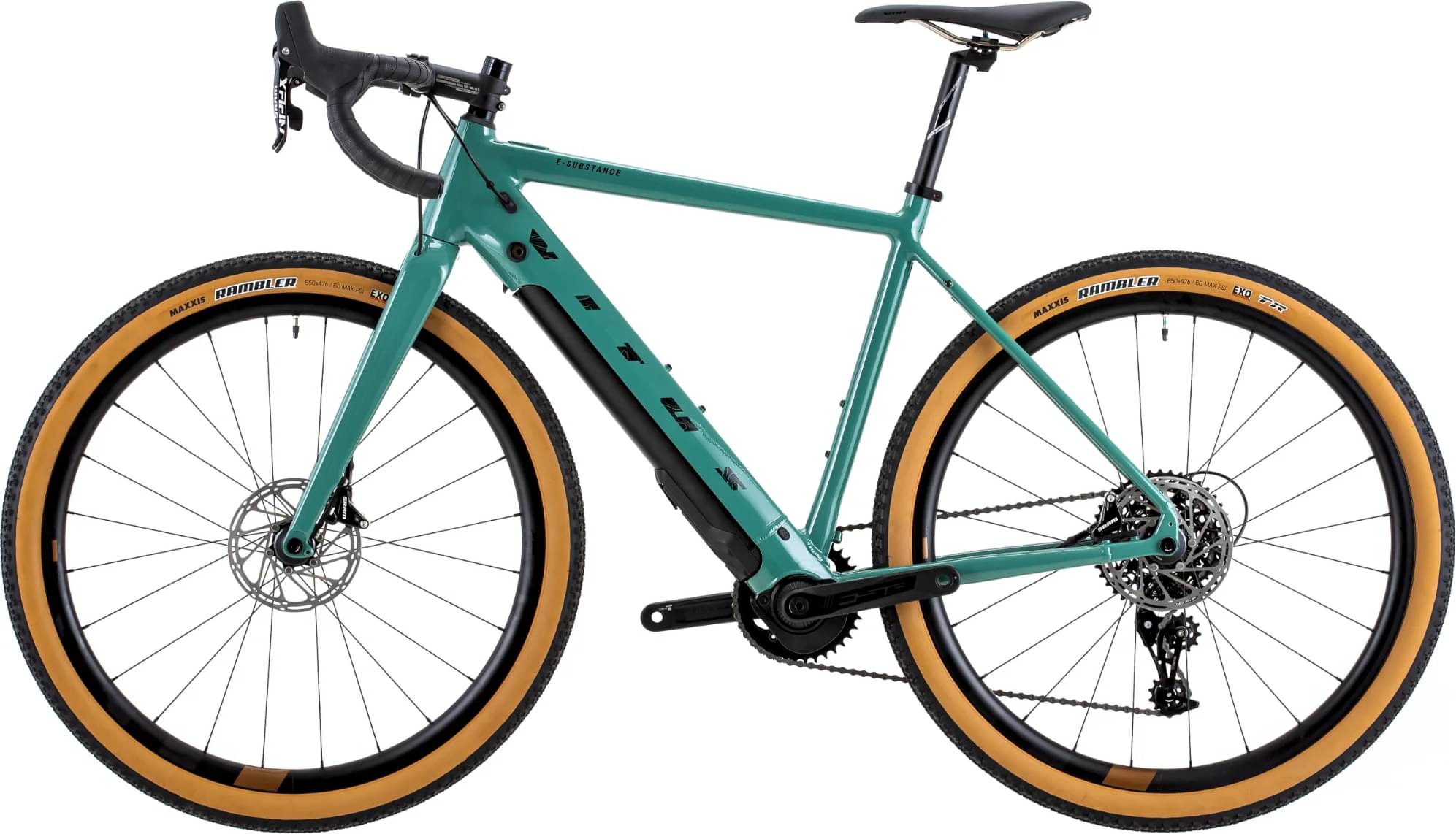

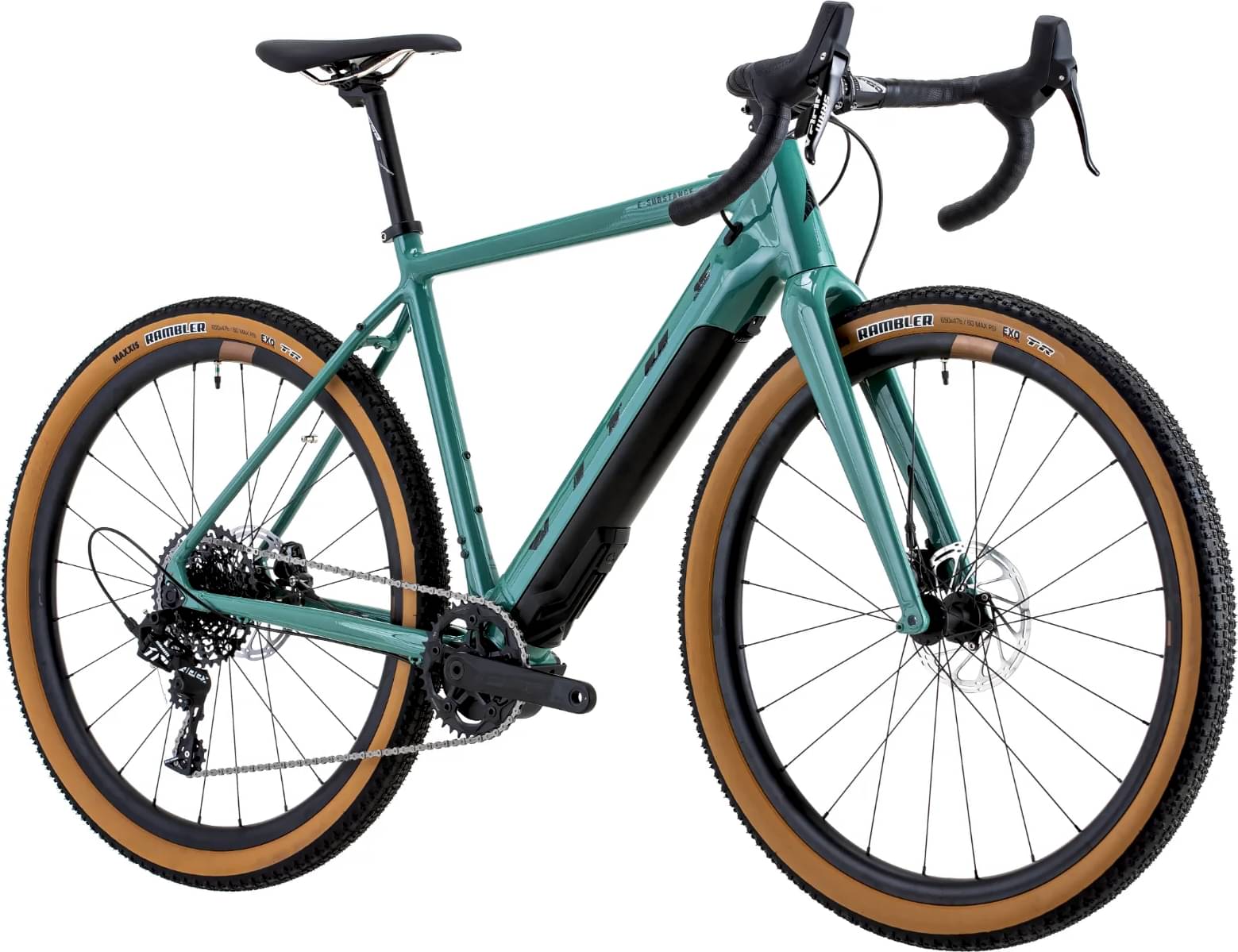

Vitus E-Substance Aluminium Apex (Fazua) 2024
2024 E-bike
Estimate price |
4,950$
Weight | 15.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Apex -
Suspension Rigid -
Motor Fazua mid-drive -
Battery Fazua Energy 250X, Frame Integrated, 252Wh - 36v / 7ah -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Substance Aluminium - Fazua, 6061-T6 Aluminium, Fazua Evation Integration, Internal Cable Routing, Flat Mount, Mud Guard Mounts, Rear Rack Mounts, 142 x 12mm Hub Spacing, Axle Specifcations: 160mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch

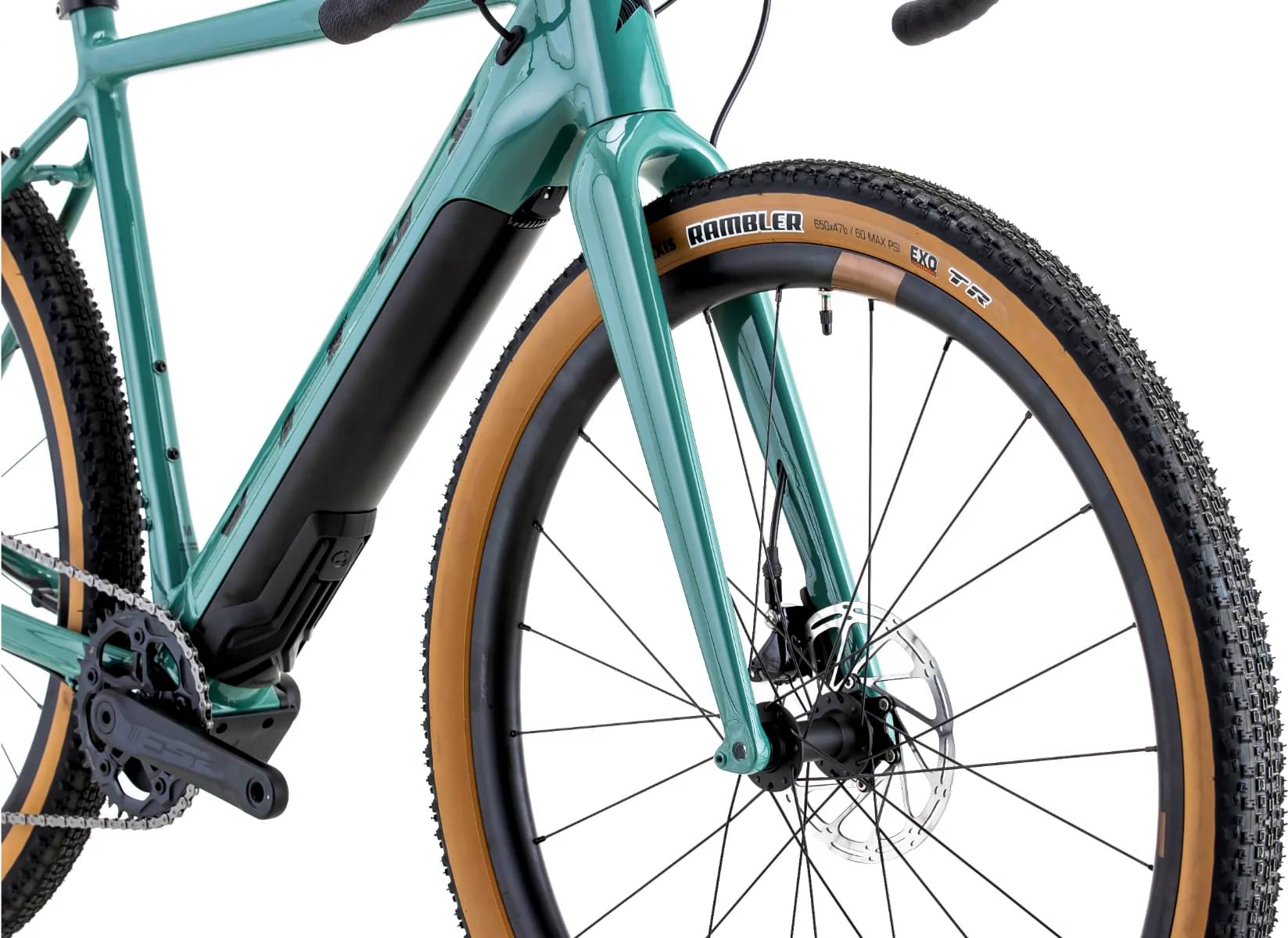

Suspension Fork
E-Substance Carbon, UD Carbon, Tapered Steerer, 100 x 12mm Axle, Flat Mount, Mud Guard Mounts, Axle Specifcations: 120mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch
Rear Shock
N/A, N/A

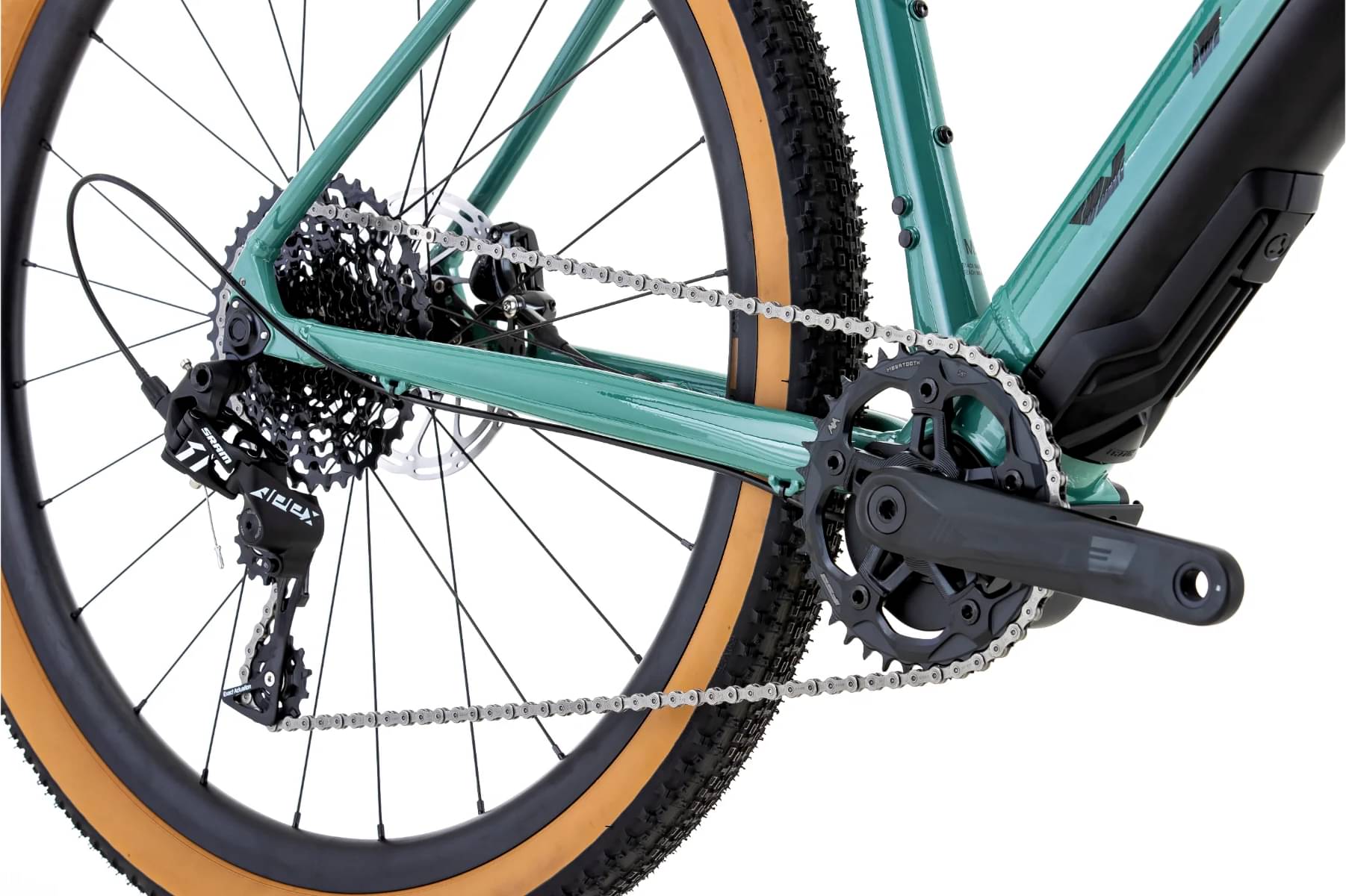

Drivetrain
Rear Derailleur
SRAM Apex, 11 Speed, Long Cage
Front Derailleur
N/A, N/A
Shift Levers
SRAM Apex, 11 Speed
Cassette
SRAM XG-1150, 11 Speed, 10-42T
Crank
FSA CK 746, 38T, 11 Speed, S:170mm M:172.5mm L:172.5mm XL:175mm
Bottom Bracket
N/A, N/A
Chain
SRAM PC1110, 11 Speed with PowerLock
Wheels
Front Hub
Prime SR2D, 100 x 12mm, Centre Lock
Rear Hub
Prime SR2D, 142 x 12mm, Centre Lock, XD-R Freehub, 36T Ratchet System
Rims
Front: Prime Orra V2 Alloy, 650b, Tubeless Ready, Rear: Prime Orra V2 Alloy, 650b, Tubeless Ready
Tires
Front: Maxxis Rambler, 650b x 47, Tubeless Ready, EXO Casing, Tan Wall, Rear: Maxxis Rambler, 650b x 47, Tubeless Ready, EXO Casing, Tan Wall
Brakes
Brakes
SRAM Apex, Hydraulic Disc, Flat Mount
Cockpit
Stem
FSA Omega 6061 Aluminium, 3D Forged, Bar Bore: 31.8mm, +/- 6 degrees, S:80mm M:90mm L:100mm XL:110mm
Handlebar
FSA Adventure Compact Handlebars, 6061 Aluminium, 80mm Reach, 125mm Drop, 12 Degree Flare, S:420mm M:420mm L:440mm XL:440mm
Grips
Vitus Super Grip, Anti Slip, Shockproof
Headset
ACROS Aix-Low R3, Sealed Bearings, OD48, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40
Seat
Saddle
Vitus, Ti Rail
Seatpost
FSA Gossamer, Aluminium, 27.2mm x 350mm

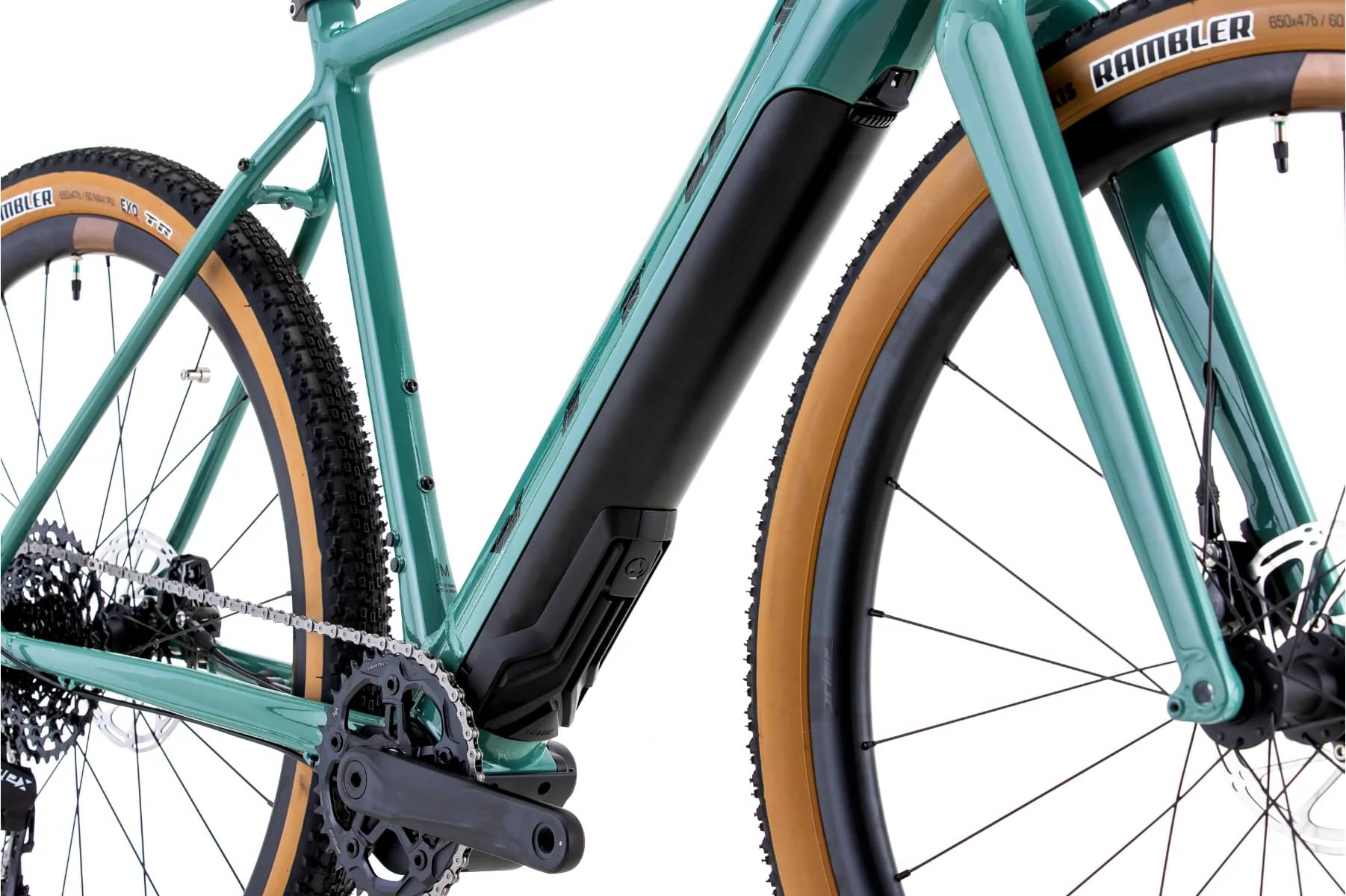

Motor & Battery
Motor
Fazua Energy 250X, Frame Integrated, 252Wh - 36v / 7ah
Battery
Fazua Energy 250X, Frame Integrated, 252Wh - 36v / 7ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.486 mm | 1.475 mm | 1.493 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 596.6 mm | 605.1 mm | 617.4 mm | 630.6 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 65 mm | 64 mm | 64 mm | 68 mm |
| Stack | 550.6 mm | 567.5 mm | 577 mm | 595 mm |
| Reach | 377.1 mm | 381.9 mm | 391.1 mm | 398.4 mm |
| Top Tube Length | 535 mm | 550 mm | 562 mm | 578 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.2 ° |
| Seat Tube Length | 495 mm | 515 mm | 535 mm | 555 mm |
| Head Tube Angle | 71.3 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 127 mm | 144 mm | 154 mm | 173 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 440 mm |
| Wheelbase | 1022 mm | 1031 mm | 1043 mm | 1057 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 775 mm | 794 mm | 807 mm | 825 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
