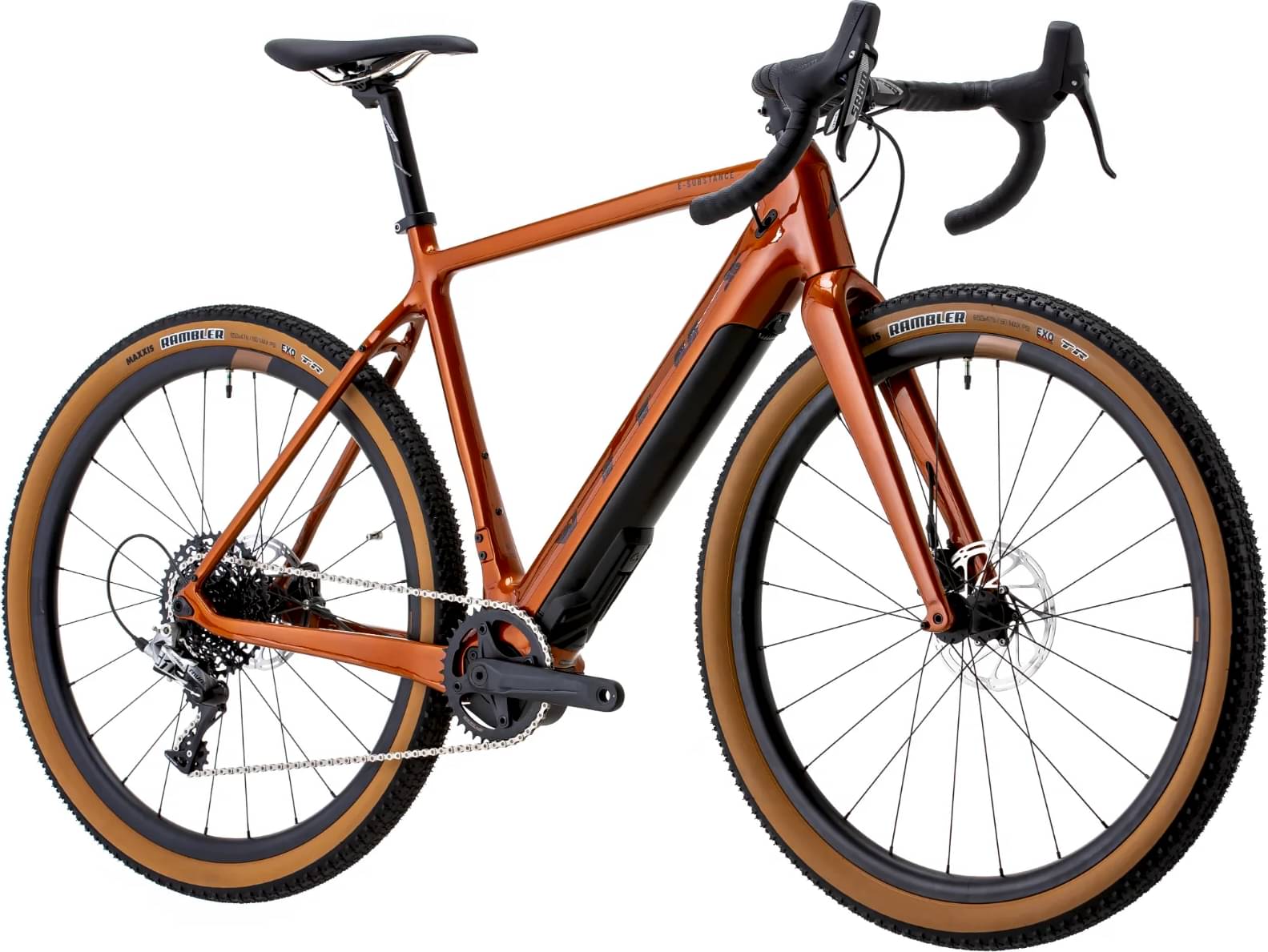

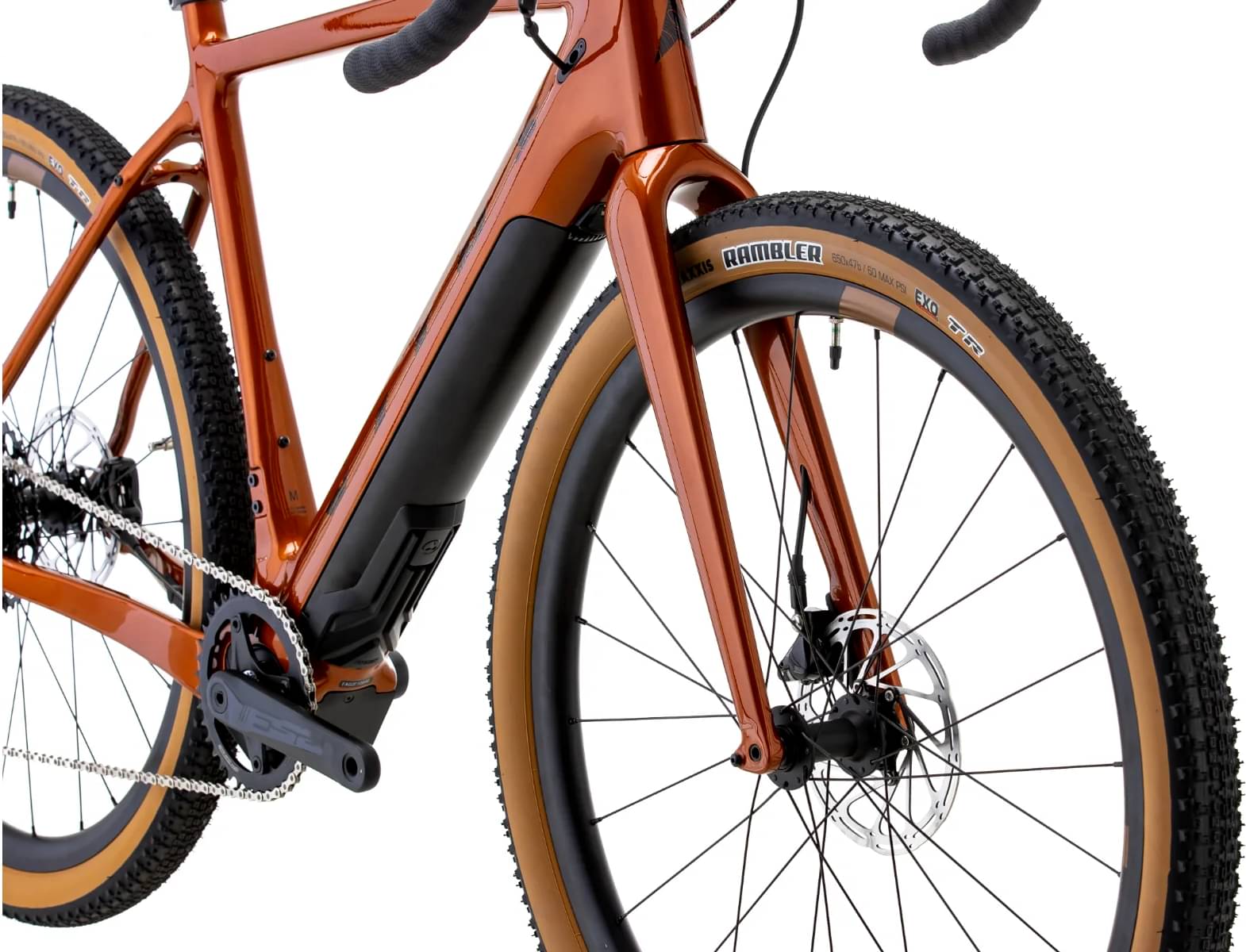

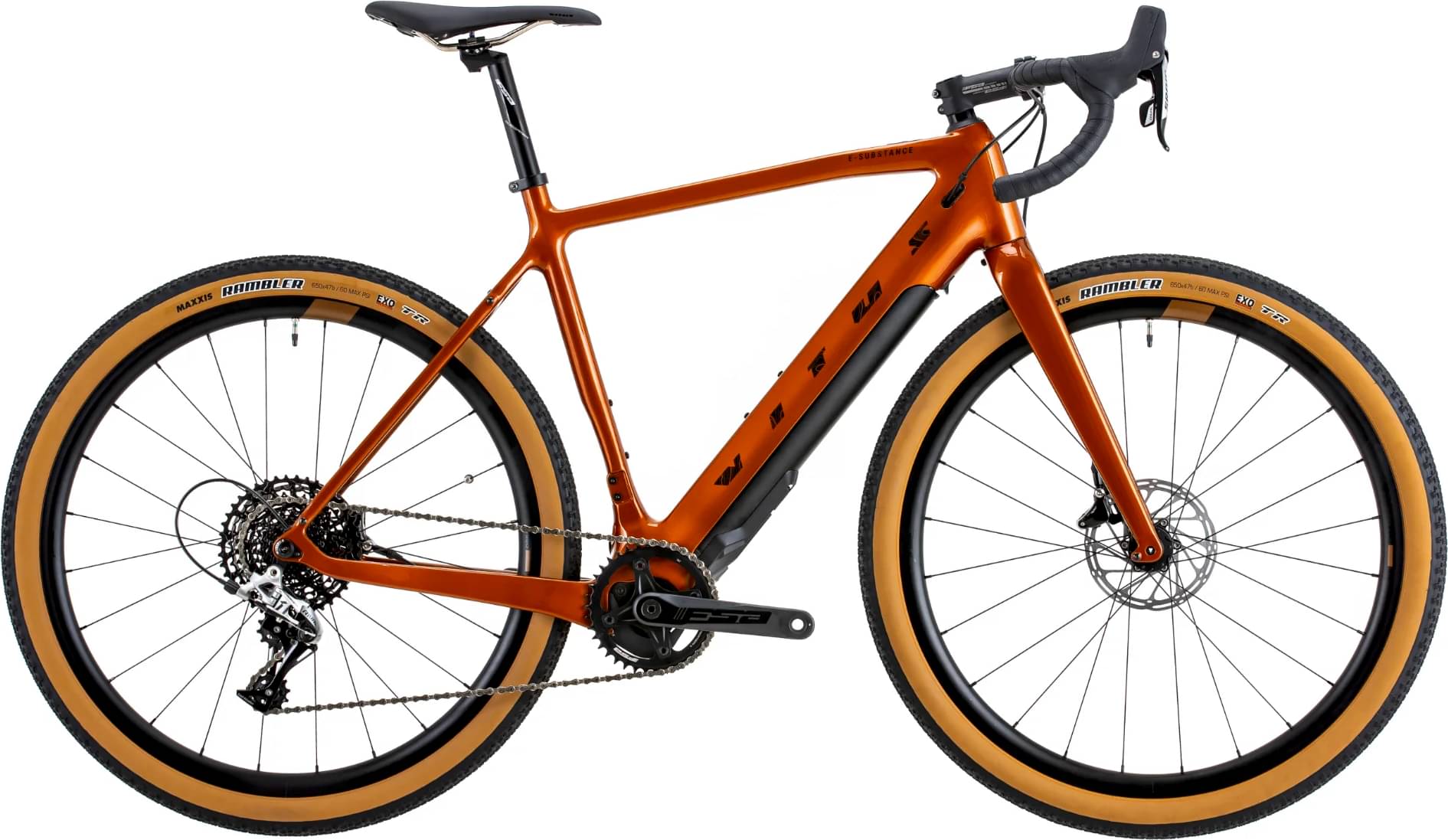

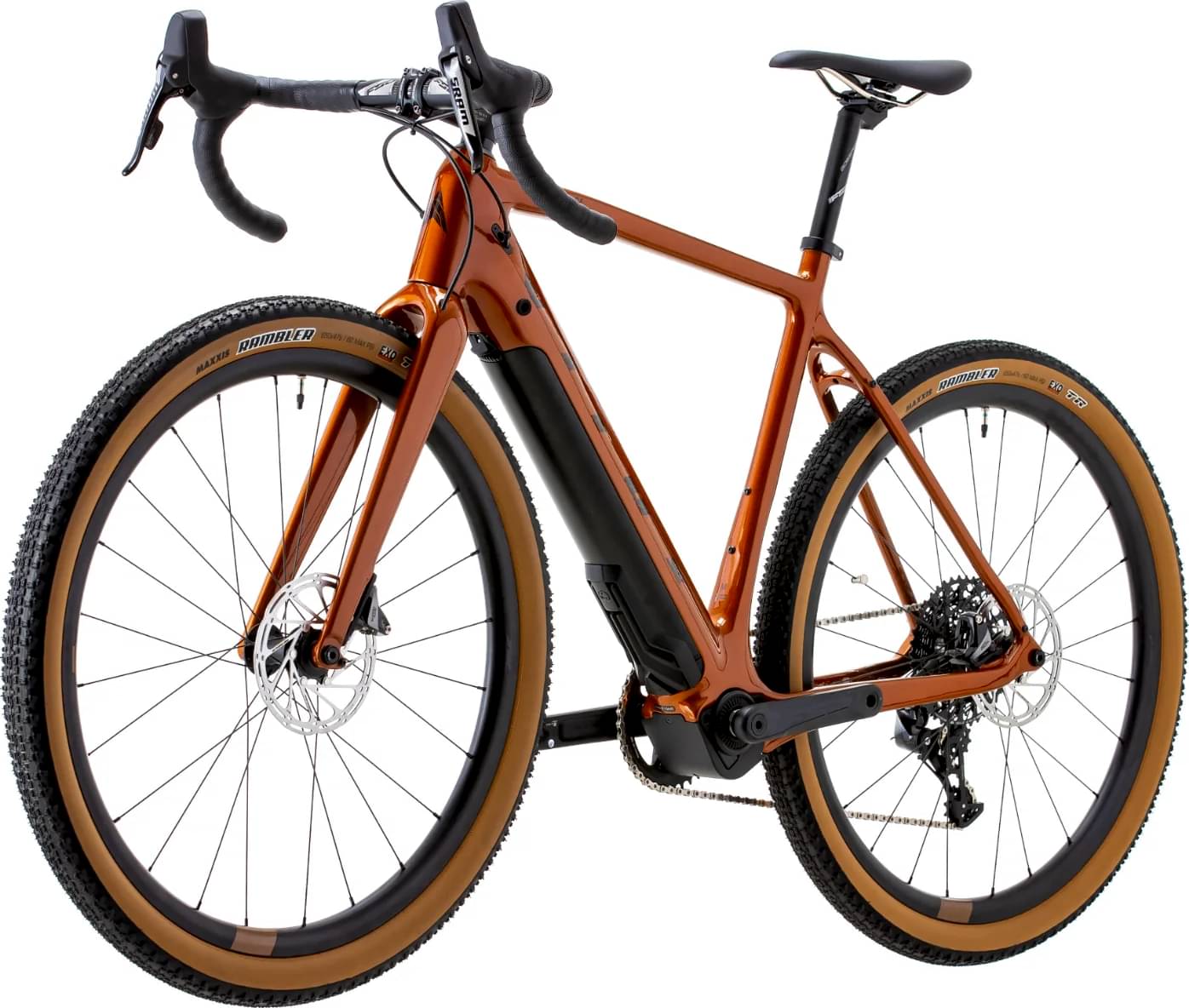

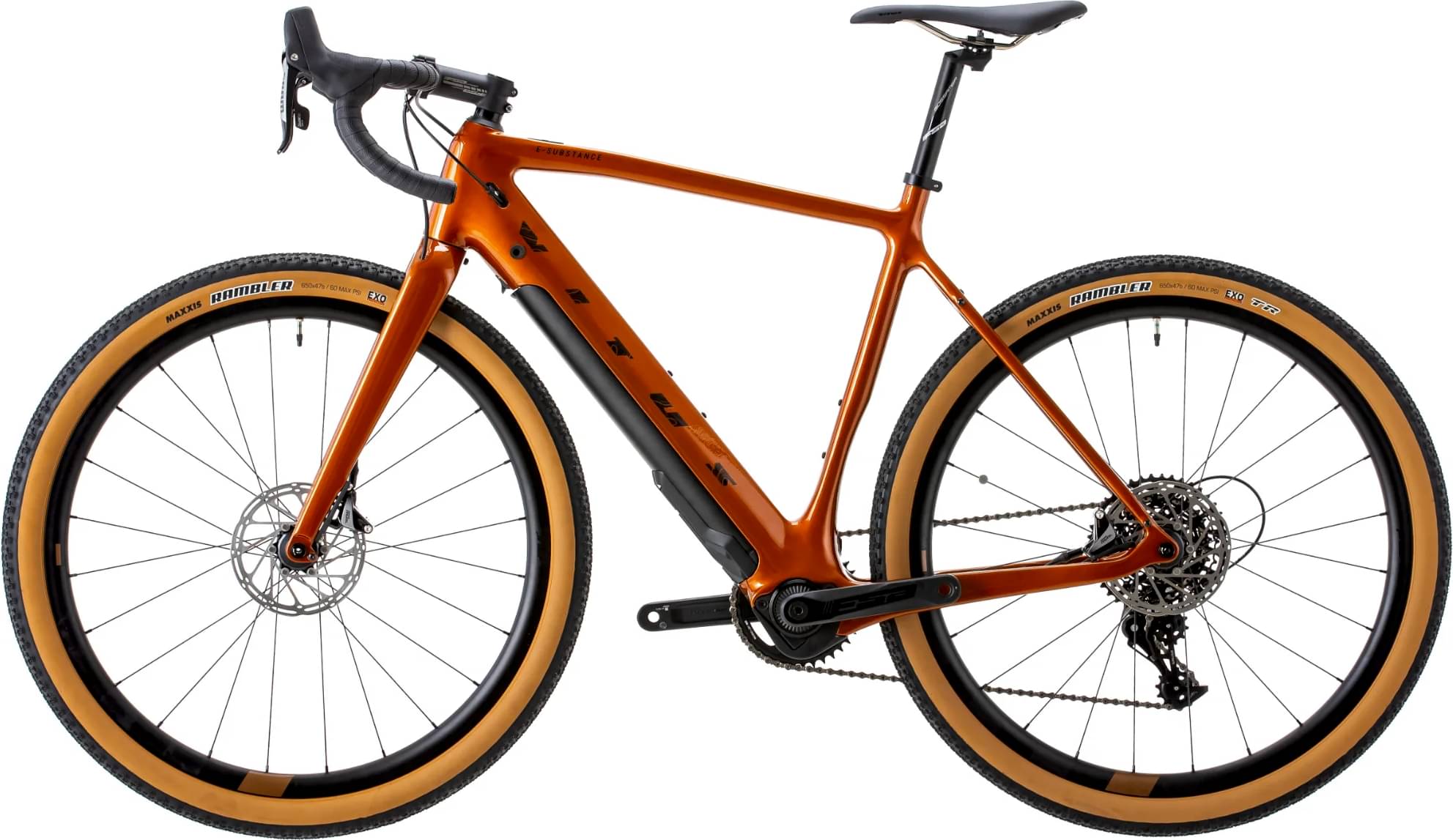

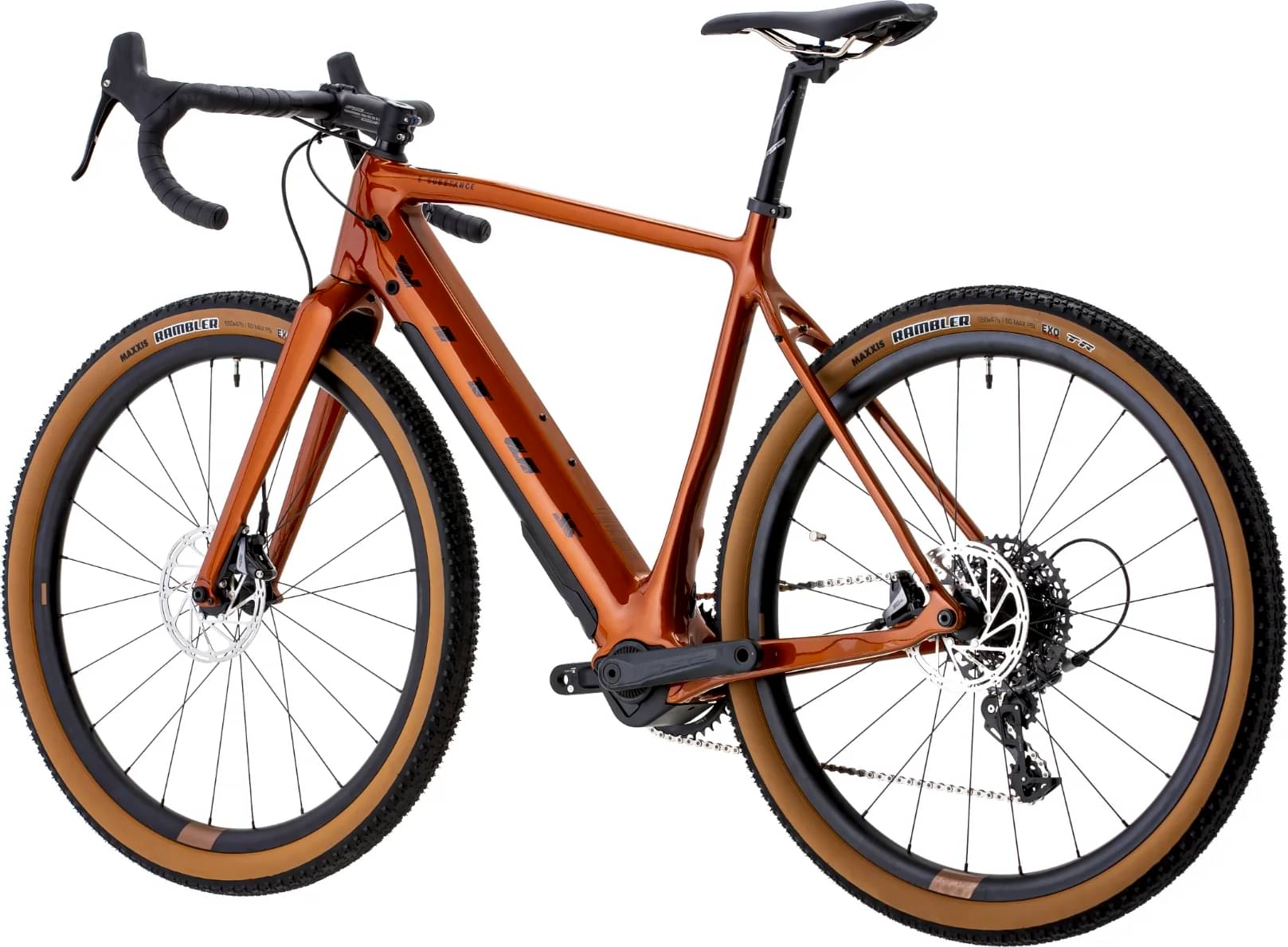

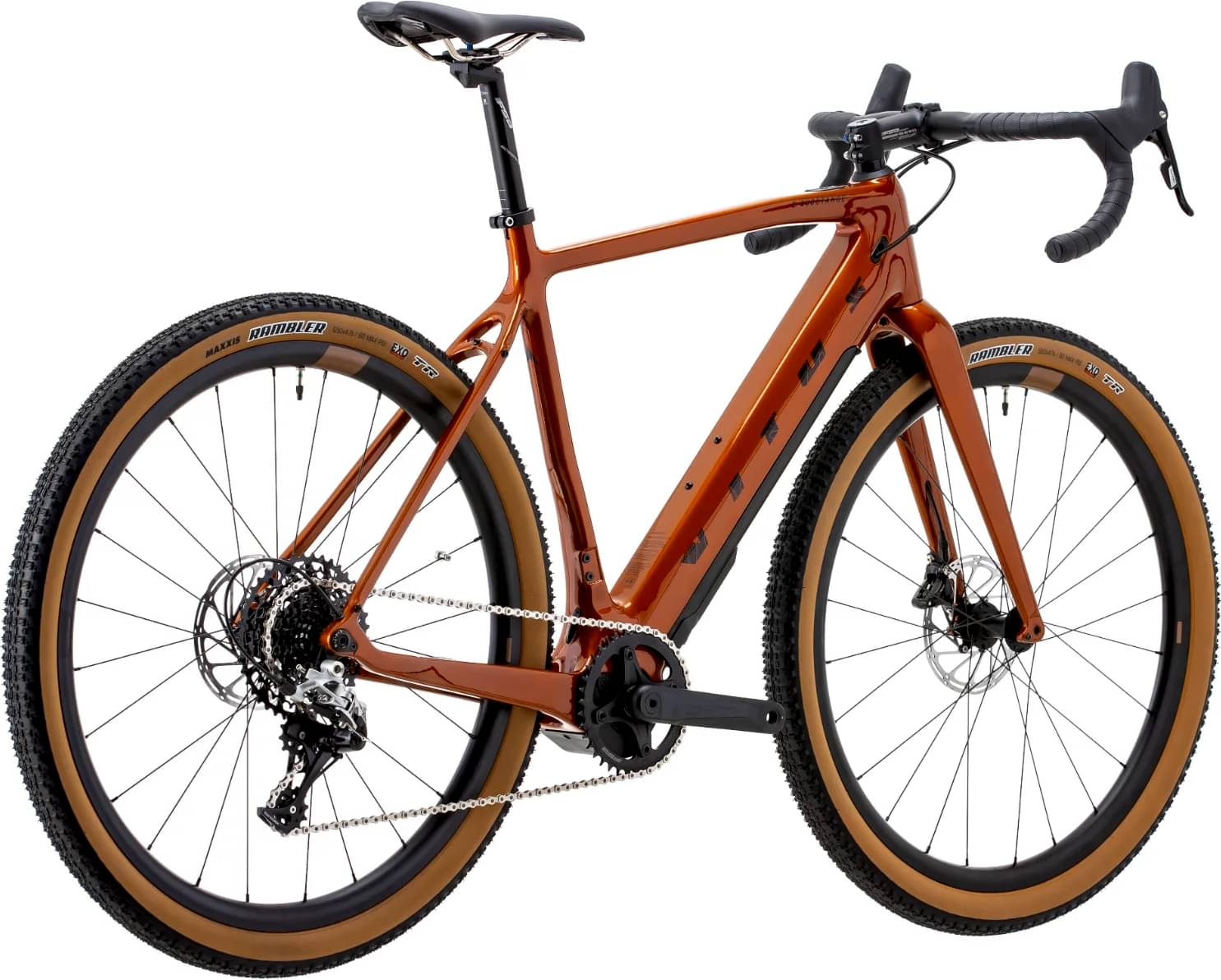

Vitus E-Substance Carbon Rival (Fazua) 2024
2024 E-bike
Estimate price |
5,825$
Weight | 14.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Rival -
Suspension Rigid -
Motor Fazua mid-drive -

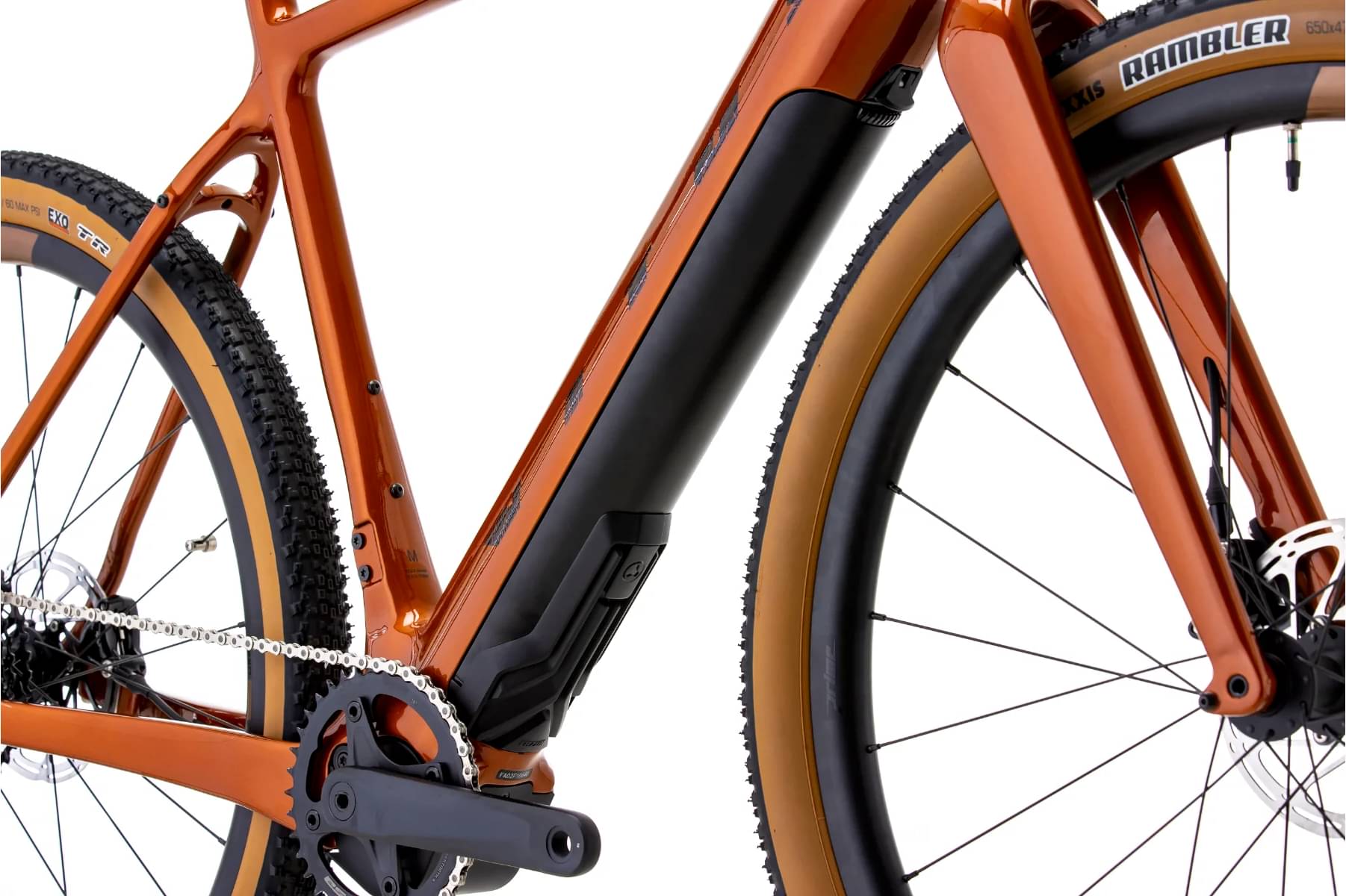

Battery Fazua Energy 250X, Frame Integrated, 252Wh - 36v / 7ah -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
E-Substance Carbon - Fazua, UD Carbon, Fazua evation Integration, Mudguard Mounts, Rack Mounts, 12mm x 142mm Hub Spacing, Flat Mount, Axle Specifcations: 172mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch
Suspension Fork
E-Substance Carbon, UD Carbon, Tapered Steerer, 100 x 12mm Axle, Flat Mount, Mud Guard Mounts, Axle Specifcations: 120mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch
Rear Shock
N/A, N/A
Drivetrain
Rear Derailleur
SRAM Rival, 11 Speed, Long Cage
Front Derailleur
N/A, N/A
Shift Levers
SRAM Rival, 11 Speed
Cassette
SRAM XG-1150, 11 Speed, 10-42T
Crank
FSA CK 746, 38T, 11 Speed, S:170mm M:172.5mm L:172.5mm XL:175mm
Bottom Bracket
N/A, N/A
Chain
KMC e11T, 11 Speed, E-Bike Specific
Wheels
Front Hub
Prime SR2D, 100 x 12mm, Centre Lock
Rear Hub
Prime SR2D, 142 x 12mm, Centre Lock, XD-R Freehub, 36T Ratchet System
Rims
Front: Prime Orra V2 Alloy, 650b, Tubeless Ready, Rear: Prime Orra V2 Alloy, 650b, Tubeless Ready
Tires
Front: Maxxis Rambler, 650b x 47, Tubeless Ready, EXO Casing, Tan Wall, Rear: Maxxis Rambler, 650b x 47, Tubeless Ready, EXO Casing, Tan Wall
Brakes
Brakes
SRAM Rival, Hydraulic Disc, Flat Mount
Cockpit
Stem
FSA Omega 6061 Aluminium, 3D Forged, Bar Bore: 31.8mm, +/- 6 degrees, S:80mm M:90mm L:100mm XL:110mm
Handlebar
FSA Adventure Compact Handlebars, 6061 Aluminium, 80mm Reach, 125mm Drop, 12 Degree Flare, S:420mm M:420mm L:440mm XL:440mm
Grips
Vitus Super Grip, Anti Slip, Shockproof
Headset
ACROS Aix-Low R3, Sealed Bearings, OD48, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40
Seat
Saddle
Vitus, Ti Rail
Seatpost
FSA Gossamer, Aluminium, 27.2mm x 350mm
Motor & Battery
Motor
Fazua Energy 250X, Frame Integrated, 252Wh - 36v / 7ah
Battery
Fazua Energy 250X, Frame Integrated, 252Wh - 36v / 7ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.504 mm | 1.531 mm | 1.54 mm | 1.562 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 277 mm | 277 mm |
| Front Center | 581 mm | 595 mm | 604 mm | 634 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 73 mm | 68 mm | 60 mm | 61 mm |
| Stack | 541.4 mm | 565.8 mm | 586.9 mm | 623.6 mm |
| Reach | 359.9 mm | 369.6 mm | 381 mm | 399.3 mm |
| Top Tube Length | 510 mm | 532.2 mm | 560 mm | 590 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73 ° | 73 ° |
| Seat Tube Length | 501 mm | 525 mm | 560 mm | 590 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 145 mm | 170 mm | 205 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1006 mm | 1020 mm | 1031 mm | 1060 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 775 mm | 794 mm | 807 mm | 825 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
