Vitus Escarpe 290 AMP 2024
2024 Mountain
Estimate price |
7,451$
Weight | 13.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Lyrik Ultimate
-
Groupset X0 Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
157cm - 169cm
MD
166cm - 179cm
LG
176cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Escarpe full T800 carbon front & rear triangles, Internal cable routing, post disc brake mounts, BSA threaded BB, Boost hub spacing – 148mm x 12mm thru axle. Axle Specifications: 180mm Length, 13mm Thread Length, M12xP1.0 Thread Pitch
Suspension Fork

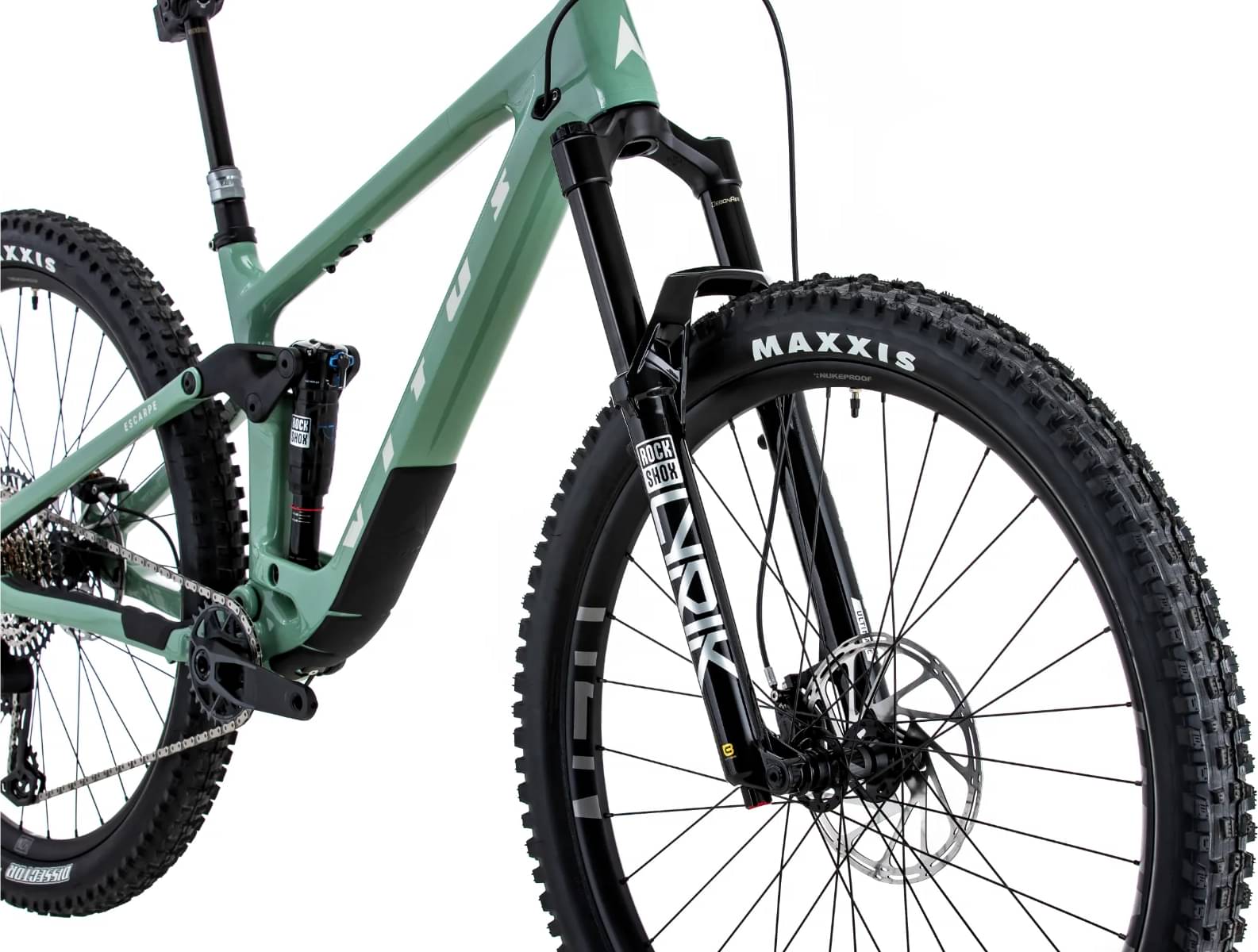

RockShox Lyrik Ultimate 29", 150mm travel, Charger 3 RC2 damper with ButterCups, DebonAir, 35mm stanchions, 110mm x 15mm Maxle Stealth axle, 44mm offset
Rear Shock

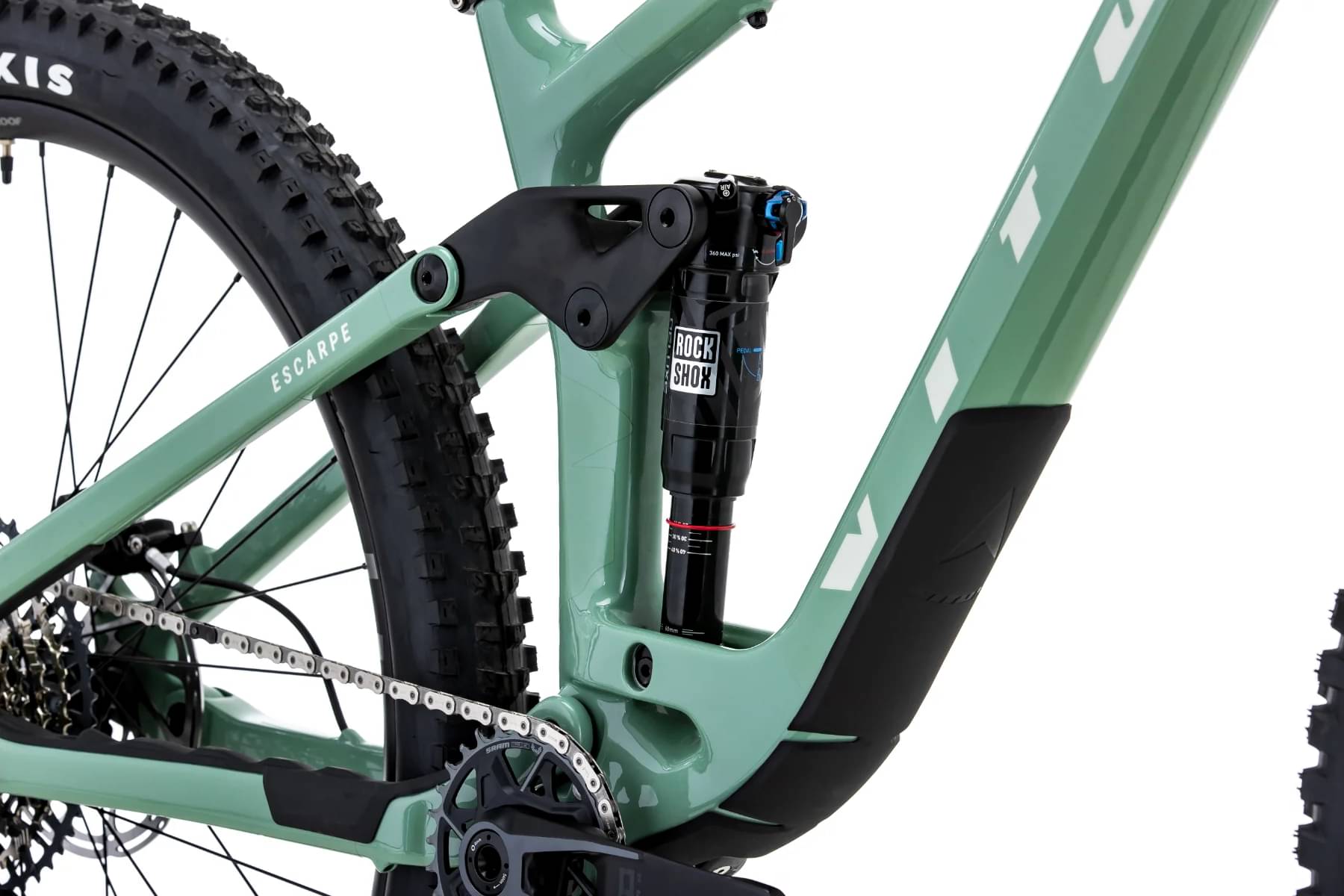

RockShox Deluxe Ultimate RCT, 205mm x 60mm, DebonAir, trunnion
Drivetrain
Rear Derailleur
SRAM X0 Eagle T-Type AXS, 12 Speed, Wireless Electronic, Long Cage
Front Derailleur
N/A, N/A
Shift Levers
SRAM AXS Pod Controller, 12 Speed, Wireless Electronic, MMX Clamp
Cassette
SRAM Transmission, 12 Speed, 10-52T Range
Crank
SRAM X0 Eagle T-Type, 12 Speed, 30T Narrow Wide Chainring, 170mm Crank Length
Bottom Bracket
SRAM DUB, BSA Threaded BB, 73mm Shell
Chain
SRAM Transmission, 12 Speed, 118 Links
Wheels
Front Hub
Nukeproof Horizon V2, 32H, 6 Bolt Disc Fitment, 110mm x 15mm
Rear Hub
Nukeproof Horizon V2, 32H, 6 Bolt Disc Fitment, XD Freehub, 148mm x 12mm
Rims
Front: Nukeproof Horizon V2, 29", 32H, Presta Valve, Tubeless Ready Rim Tape Installed, Rear: Nukeproof Horizon V2, 29", 32H, Presta Valve, Tubeless Ready Rim Tape Installed
Tires
Front: Maxxis Assegai, 29" x 2.50" WT, 3C MaxxTerra compound, EXO casing, Rear: Maxxis Dissector, 29" x 2.4" WT, 3C MaxxTerra compound, EXO+ casing
Brakes
Brakes
SRAM Code RSC, Post Mount, Four Piston Caliper
Cockpit
Stem
Nukeproof Horizon, 6061 Alloy, 50mm length, 31.8mm Handlebar Clamp Diameter, 5° Rise
Handlebar
Nukeproof Horizon V2 Carbon Riser, 25mm Rise, 9° Back Sweep, 31.8mm Clamp Diameter, 780mm Wide
Grips
Nukeproof Sam Hill, Enduro Race Super Soft Grips
Headset
Nukeproof, ZS44/28.6 upper & ZS56/40 lower to suit 1-1/8" upper tapered to 1.5" lower headtube
Seat
Saddle
Nukeproof Horizon Enduro Saddle, Black, Ti Alloy Rails
Seatpost
RockShox Reverb AXS, Wireless Electronic, 31.6mm Diameter, S: 125mm drop, M: 150mm drop, L & XL: 170mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.386 mm | 1.326 mm | 1.23 mm |
| Front Center | 750 mm | 780 mm | 811 mm | 859 mm |
| Rake | 38 mm | 48 mm | 48 mm | 48 mm |
| Trail | 133 mm | 122 mm | 122 mm | 122 mm |
| Stack | 616 mm | 625 mm | 634 mm | 642 mm |
| Reach | 437 mm | 451 mm | 478 mm | 522 mm |
| Top Tube Length | 566 mm | 595 mm | 619 mm | 660 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77.5 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1188 mm | 1218 mm | 1249 mm | 1297 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 166 cm | 176 cm | 187 cm |
| Rider Max Height | 169 cm | 179 cm | 189 cm | 200 cm |
