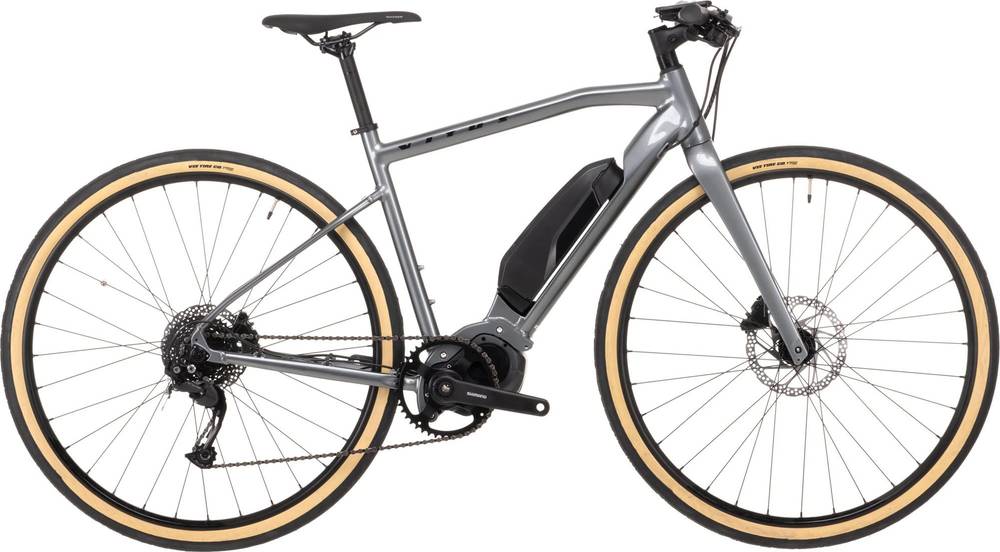

Vitus Mach-E Urban E 2021
2021 E-bike
Estimate price |
2,943$
Weight | 17.32 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Alivio, Shimano -
Suspension Rigid -
Motor Shimano hub-drive -
Battery Shimano STEPS E8010 504Wh BT-E8010, 504Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 169cm
MD
166cm - 174cm
LG
171cm - 177cm
XL
174cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach E Aluminium, 6061-T6 Double Butted Aluminium, Shimano STEPS 6100 Motor Mount, Internal Cable Routing, Flat Mount, Mud Guard Mounts, Rack Mounts
Suspension Fork
Mach 3 Carbon, UD Carbon, Tpered Steerer, 100 x 12mm Axle, Flat Mount, Mud Guard Mounts
Rear Shock
N/A, N/A
Drivetrain
Rear Derailleur
Shimano Alivio, RD-M3100, 9 Speed
Front Derailleur
N/A, N/A
Shift Levers
Shimano Alivio Rapidfire Plus SL-M4000, 9 Speed, Optical Gear Display
Cassette
Sunrace M90, CS-M9-, 11-34T
Crank
Shimano STEPS E6100, FC-E6100 + SM-CRE61, 44T, 170mm Crank Arm
Bottom Bracket
N/A, N/A
Chain
KMC e9 Sport 9 Speed, E-Bike Specific
Wheels
Front Hub
Vitus KT MSCF, 6-Bolt, Thru-Axle 12 x 100mm, 32 Hole
Rear Hub
Vitus KT, SNCR, 6-Bolt, Thru-Axle 12 x 142mm, 32 Hole, Shimano HG Freehub
Rims
Vitus Shining, DB-21, 700c, 32 Hole,
Spokes
N/A, 14mm Nipple
Tires
Vee G-Sport, 700c x 38, MPC, B-Proof
Brakes
Brakes
Shimano UR300 Hydraulic Disc BL-MT201-R/L & BR-UR300-F/R, Flat Mount
Disk Rotors
Shimano RT56 Front:160mm, Rear:160mm
Cockpit
Stem
Vitus Integrated Flat Bar / Stem 6061 Aluminium, S:80mm M:90mm L:100mm XL:110mm
Handlebar
Vitus Integrated Flat Bar / Stem 6061 Aluminium, 4 Degree Rise, 9 Degree Sweep, S:640mm M:640mm L:680mm XL:680mm
Grips
Vitus Ergo Anti Slip, Ergonomic Shape, Integrated Lock Ring
Headset
ACROS Aix-Low R3 Sealed Bearings, OD46, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40
Seat
Saddle
VITUS Steel Rail
Seatpost
VITUS Aluminium 27.2mm, 12mm Offset, 350mm
Motor & Battery
Motor
Shimano STEPS E8010 504Wh BT-E8010, 504Wh
Battery
Shimano STEPS E8010 504Wh BT-E8010, 504Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.39 mm | 1.4 mm | 1.4 mm |
| Front Center | 611.6 mm | 617.4 mm | 627.5 mm | 638.7 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 77 mm | 73 mm | 70 mm | 68 mm |
| Stack | 527 mm | 543 mm | 558 mm | 574 mm |
| Reach | 385 mm | 391 mm | 400 mm | 409 mm |
| Top Tube Length | 546 mm | 559.5 mm | 573 mm | 589.2 mm |
| Seat Tube Angle | 73.25 ° | 73 ° | 73 ° | 72.8 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm |
| Head Tube Angle | 70.4 ° | 71 ° | 71.4 ° | 71.7 ° |
| Head Tube Length | 122 mm | 136 mm | 150 mm | 166 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1033 mm | 1039 mm | 1049 mm | 1061 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 166 cm | 171 cm | 174 cm |
| Rider Max Height | 169 cm | 174 cm | 177 cm | 182 cm |
Model Overview
Mach-E Urban E is a Vitus E Mach E model. Vitus launched 3 e-bikes of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2675$. Comparing the average cost of a Hybrid e-bike to this one, you will see that Mach-E Urban E price is 7.86% more expensive.
Average weight for Hybrid e-bikes
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Mach-E Urban E weighs 17.32 kg (38.18 lbs) and is much lighter than the average. In conclusion, the average Hybrid e-bike weighs 37.36% more than Mach-E Urban E.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Mach-E Urban E components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Mach-E Urban E model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Mach-E Urban E has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Vitus Mach-E Urban E e-bike has 4 sizes, in the range of 162 cm – 182 cm (5.31 ft – 5.97 ft). In conclusion, it won’t take much to find one that’s right for you.
