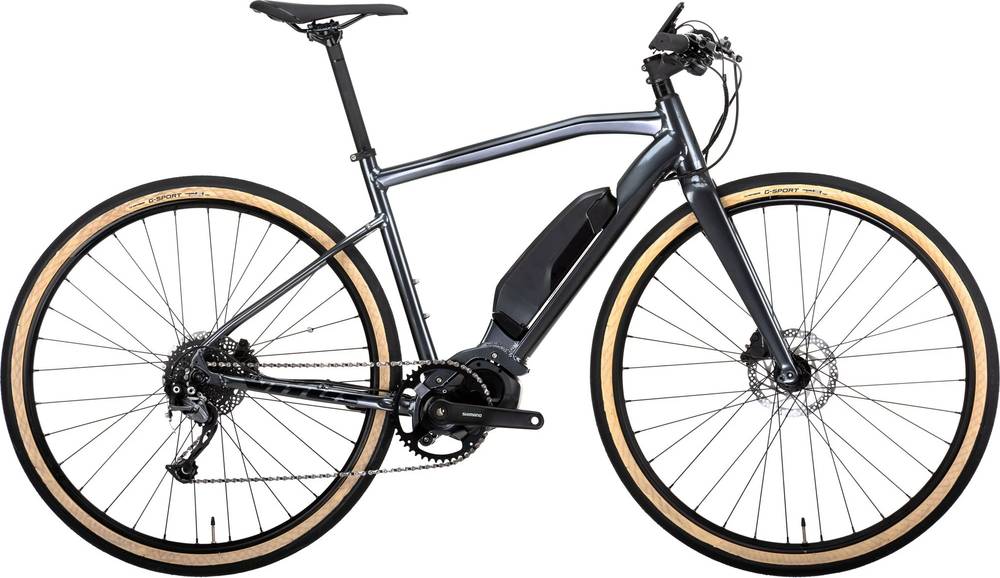

Vitus Mach E Urban eBike Alivio 2020
2020 E-bike
Estimate price |
2,809$
Weight | 17.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Alivio, Shimano -
Suspension Rigid -
Motor hub-drive -
Battery BT-E8010 504Wh, Charger Included -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 169cm
MD
166cm - 174cm
LG
171cm - 177cm
XL
174cm - 182cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach E Aluminium 6061-T6 Double Butted, "Integrated Shimano STEPS, Flat Mount Brake Mount, Internal cable routing, 142 x 12mm rear end, mud-guard mounts, pannier mounts, internal rear light routing "
Suspension Fork
UD carbon, Full carbon tapered steerer, 100 x 12mm, mud-guard mounts.
Rear Shock
N/A, N/A
Drivetrain
Rear Derailleur
Shimano Alivio, RD-M4000-SGS, 9 Speed
Front Derailleur
N/A, N/A
Shift Levers
Shimano Alivio SL-M4000, Rapidfire Plus, 9 Speed, Optical Gear Display
Cassette
Sunrace M90 11-34T, 9 speed
Crank
Shimano STEPS FC-E6100 44T, 170mm Crank Arm, SM-CRE61 44T Chainring
Bottom Bracket
STEPS E6100, CYCLE COMPUTER, SC-E6100, CLAMP BAND DIAMETER 31.8MM
Chain
KMC e9 Sport 9 Speed
Wheels
Front Hub
Vitus KT MSCF 12 x 100mm, 6-Bolt
Rear Hub
Vitus KT, SNCR 12 x 142mm, 9/10/11 Speed, 6-Bolt
Rims
Vitus 700c, DB-21, 32 Hole
Spokes
14G STAINLESS DB BLACK, N/A
Tires
Vee G-Sport 700c x 38mm, B-Proof Aramid Belt, Skinwall
Brakes
Brakes
Shimano UR300 BR-UR300, SMRT56 Rotors, 160mm 6-BOLT
Cockpit
Stem
VITUS 6061 Aluminium 3D Forged, bar bore 31.8mm, +/- 7 degrees, XS:70mm S:70mm M:80mm L:90mm XL:90mm
Handlebar
VITUS 6061 Aluminium Flat 600mm Wide, 6 Degree Sweep
Grips
VITUS EVA Rubber
Headset
ACROS Aix 322 R3 Tapered 1 1/8"- 1 1/2", upper bearing 41.8 / 28.6, lower bearing 52 / 40
Seat
Saddle
VITUS 0
Seatpost
VITUS 6061 Aluminium 27.2mm x 350mm, 12mm offset
Motor & Battery
Motor
BT-E8010 504Wh, Charger Included
Battery
BT-E8010 504Wh, Charger Included
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.39 mm | 1.4 mm | 1.4 mm |
| Front Center | 611.6 mm | 617.4 mm | 627.5 mm | 638.7 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 77 mm | 73 mm | 70 mm | 68 mm |
| Stack | 527 mm | 543 mm | 558 mm | 574 mm |
| Reach | 385 mm | 391 mm | 400 mm | 409 mm |
| Top Tube Length | 546 mm | 559.5 mm | 573 mm | 589.2 mm |
| Seat Tube Angle | 73.25 ° | 73 ° | 73 ° | 72.8 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm |
| Head Tube Angle | 70.4 ° | 71 ° | 71.4 ° | 71.7 ° |
| Head Tube Length | 122 mm | 136 mm | 150 mm | 166 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1033 mm | 1039 mm | 1049 mm | 1061 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 166 cm | 171 cm | 174 cm |
| Rider Max Height | 169 cm | 174 cm | 177 cm | 182 cm |
Model Overview
Mach E Urban eBike Alivio belongs to the Vitus E Mach model. 1 e-bike variation carries this model name so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2553$. Comparing this to the average Hybrid e-bike price, we see that the price is 2.94% more expensive.
Average weight for Hybrid e-bikes
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 17.6 kg (38.8 lbs), Vitus e-bike is much lighter than average. In conclusion, the average Hybrid e-bike weighs 35.17% more than Mach E Urban eBike Alivio.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Mach E Urban eBike Alivio components
Fork material
The fork on this e-bike is made out of carbon, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the Mach E Urban eBike Alivio e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Vitus Mach E Urban eBike Alivio e-bike has 4 sizes, in the range of 162 cm – 182 cm (5.31 ft – 5.97 ft). In short, it won’t be difficult to find the right one for you.
