Vitus Mythique 24 2024
2024 Mountain
Estimate price |
2,166$
Weight | 13.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Travel Rear 120mm -
Fork Manitou JUNIT Expert
-
Groupset Box Four -
Suspension Full -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
24"
124cm - 137cm
26"
134cm - 154cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mythique Youth 24", 6061-T6 Alloy, post disc brake mounts, BSA threaded BB, external cable routing, Boost hub spacing – 148mm x 12mm thru axle, UDH hanger, rubber frame protection
Suspension Fork

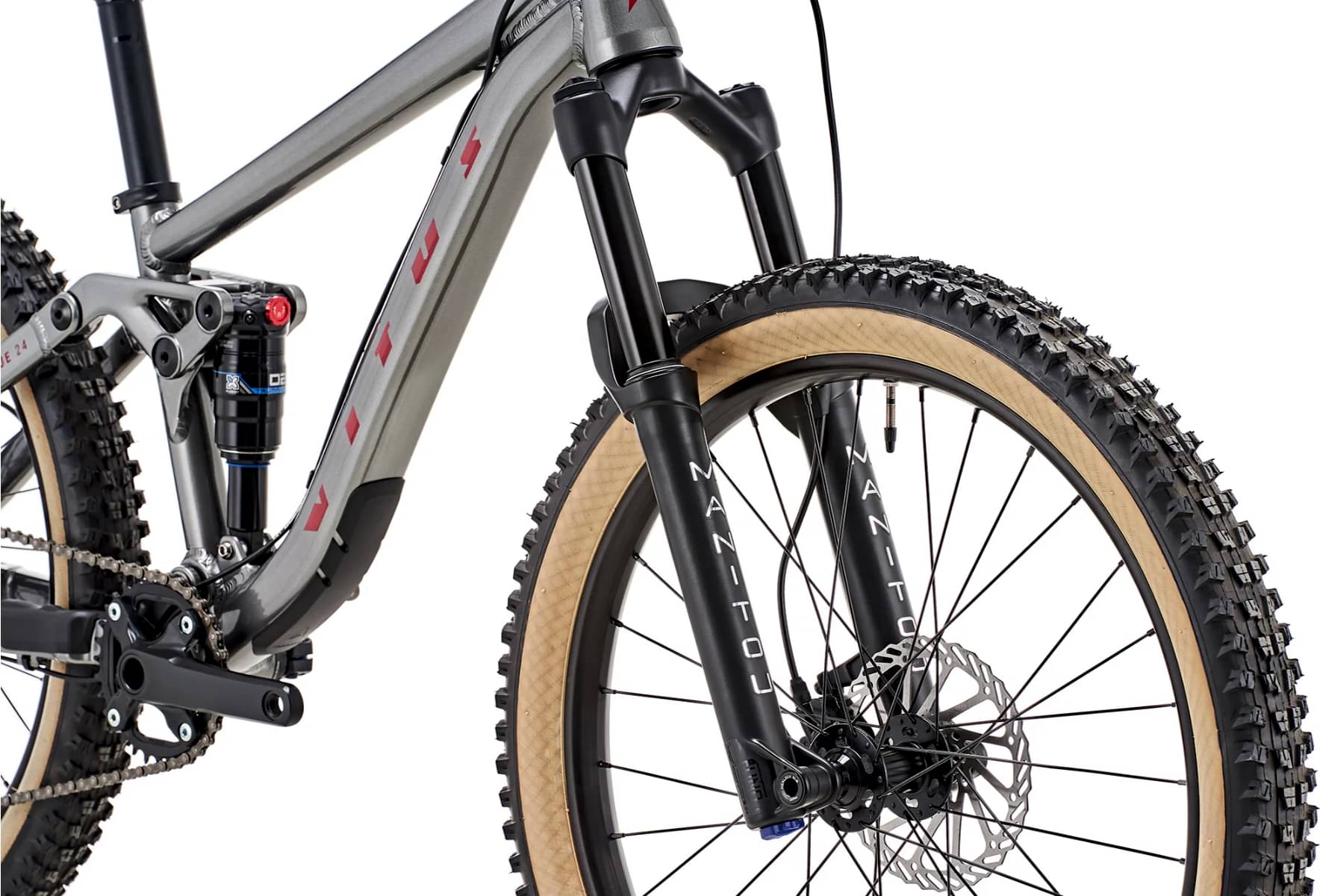

Manitou Junit Expert 24", 120mm travel, RC damper, 34mm stanchions, tapered alloy steerer, 110mm x 15mm thru axle, 42mm offset
Rear Shock

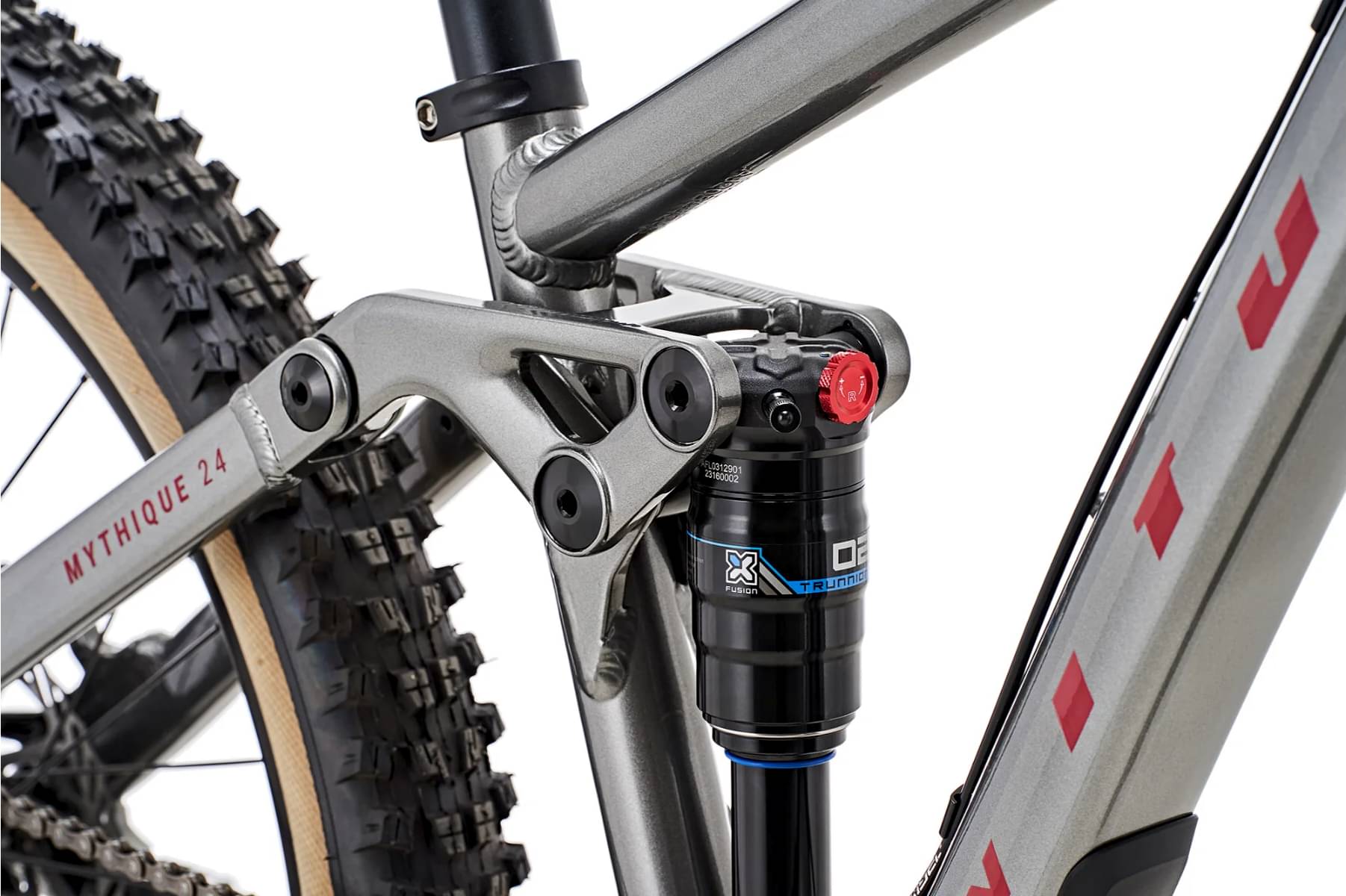

X-Fusion O2 Pro R, 165mm x 40mm, trunnion
Drivetrain
Rear Derailleur
Box Four, 8 Speed, Long Cage
Front Derailleur
N/A, N/A
Shift Levers
Box Four, 8 Speed, Trigger Shifter
Cassette
Sunrace CSM680, 8 Speed, 11-42T Range
Crank
Samox, 32T Narrow Wide Chainring, 152mm Crank Length
Bottom Bracket
Samox, BSA Threaded BB, 68mm Shell
Chain
Box Four, 8 Speed, 110 Links
Wheels
Front Hub
Vitus KT DHF112, 32H, 6 Bolt Disc Fitment, 110mm x 15mm
Rear Hub
Vitus KT H5ER-SH, 32H, 6 Bolt Disc Fitment, HG Freehub, 148mm x 12mm
Rims
Front: WTB ST i30 TCS 2.0, 24", 32H, Presta Valve, Tubeless Ready Rim Tape Installed, Rear: WTB ST i30 TCS 2.0, 24", 32H, Presta Valve, Tubeless Ready Rim Tape Installed
Tires
Front: Vee Flow Snap, 24” x 2.4”, Rear: Vee Flow Snap, 24” x 2.4”
Brakes
Brakes
Clarks Clout1, Post Mount, Two Piston Caliper
Cockpit
Stem
Vitus Alloy, 50mm Reach, 3° Rise, 31.8mm Handlebar Clamp Diameter
Handlebar
Nukeproof Youth, Alloy, 15mm Rise, 9° Back Sweep, 31.8mm Clamp Diameter, 700mm Wide
Grips
Vitus Lock On, Black
Headset
Acros AZX-212-CO R5, ZS44/28.6 upper & ZS56/40 lower to suit 1-1/8" upper tapered to 1.5" lower headtube
Seat
Saddle
Vitus, Black, Steel Rails
Seatpost
Vitus Alloy, 31.6mm Diameter, 300mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 24" | 26" |
|---|---|---|
| Stack Reach Ratio | 1.519 mm | 1.491 mm |
| Front Center | 616 mm | 680 mm |
| Rake | 45 mm | 47 mm |
| Stack | 527 mm | 571 mm |
| Reach | 347 mm | 383 mm |
| Top Tube Length | 483 mm | 532 mm |
| Seat Tube Angle | 75.5 ° | 75.4 ° |
| Seat Tube Length | 330 mm | 350 mm |
| Head Tube Angle | 66.6 ° | 66 ° |
| Head Tube Length | 100 mm | 100 mm |
| Chainstay Length | 410 mm | 422 mm |
| Wheelbase | 1025 mm | 1101 mm |
| Bottom Bracket Drop | 20 mm | 20 mm |
| Wheels | 24" | 24" |
| Rider Min Height | 124 cm | 134 cm |
| Rider Max Height | 137 cm | 154 cm |
