Vitus Nucleus 26 2024
2024 Mountain
Estimate price |
852$
Weight | 12.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset Box Four -
Suspension Hardtail -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
24"
124cm - 137cm
26"
134cm - 154cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nucleus Aluminium - 26" Wheel, BSA threaded BB, IS disc brake mounts, 135mm x 9mm QR Axle

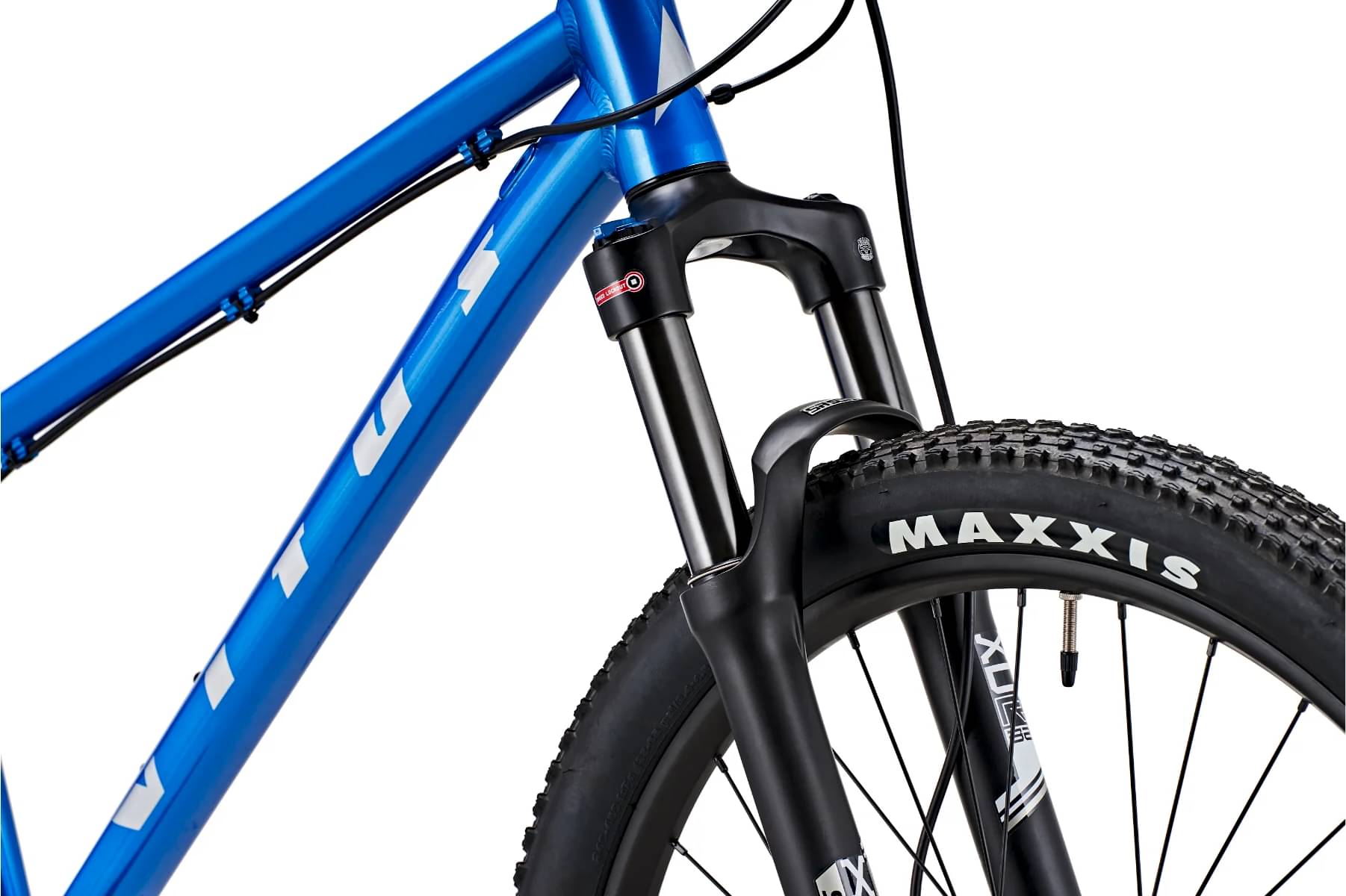

Suspension Fork
Suntour XCR-DS-LO Air Forks, 100mm travel, IS Mount, 100mm x 9mm QR Axle, Lock-Out, 1 1/8" Steerer
Rear Shock
N/A, N/A

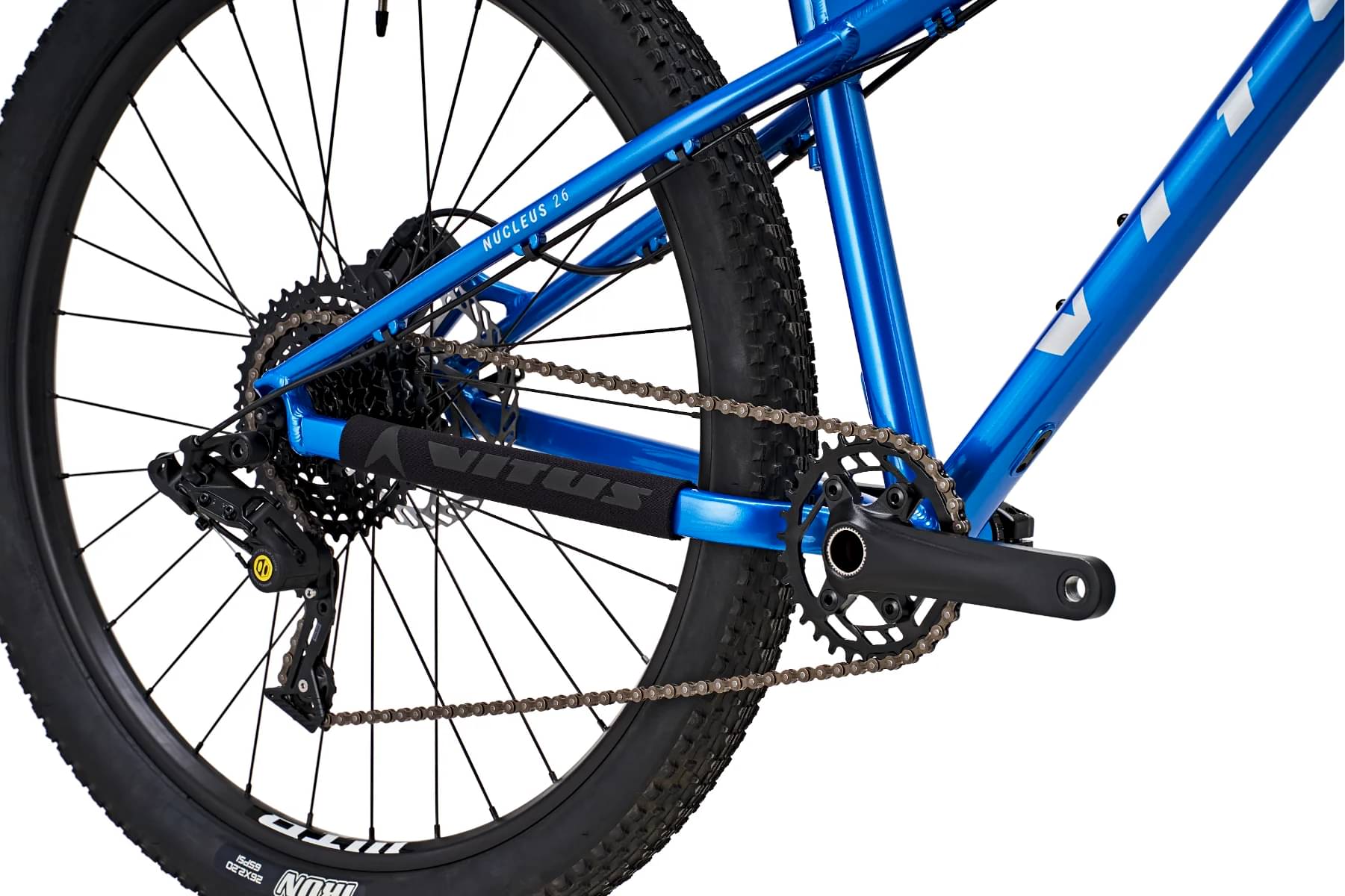

Drivetrain

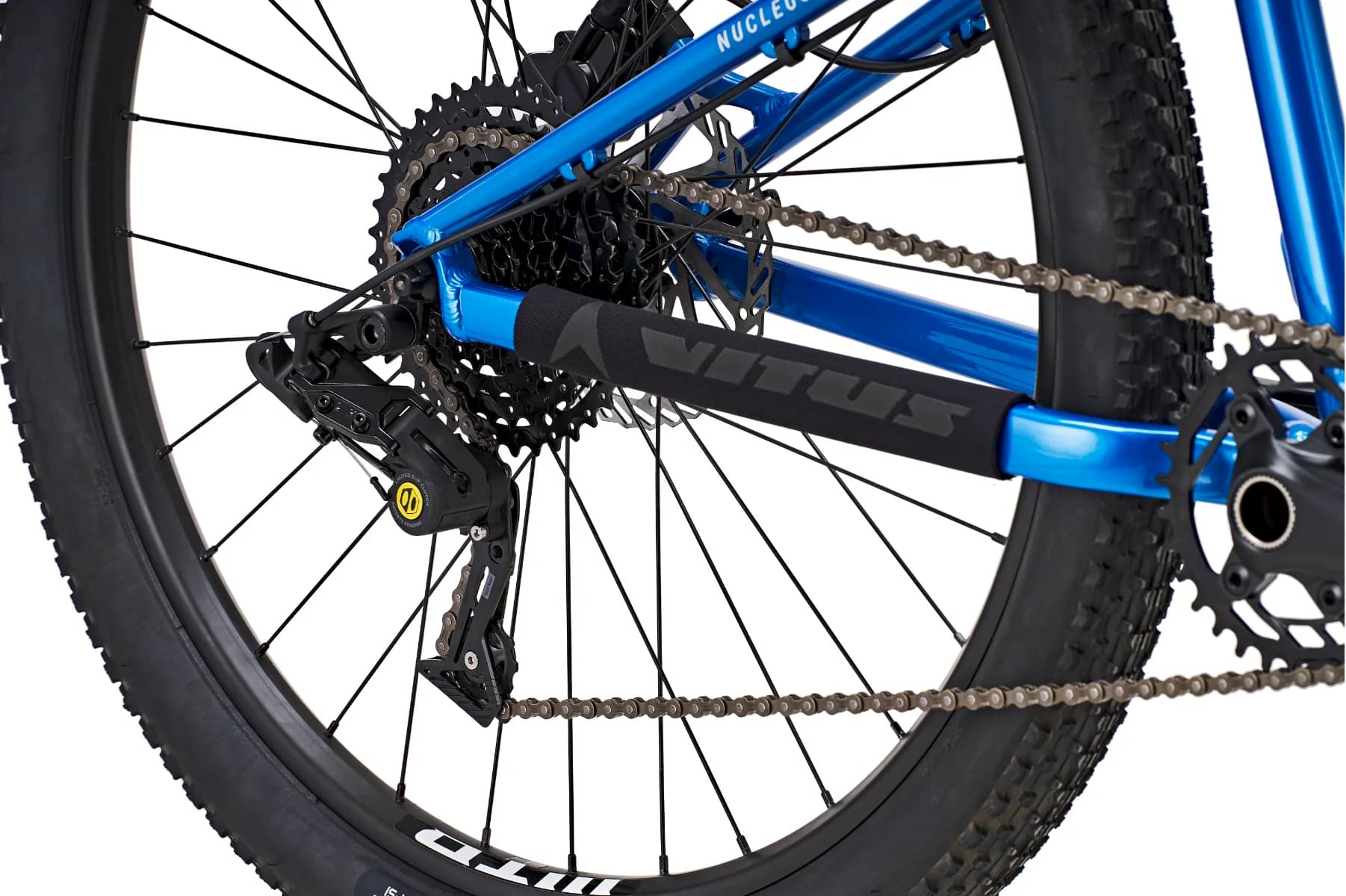

Rear Derailleur
Box Four 8, 8 Speed w/ Clutch
Front Derailleur
N/A, N/A
Shift Levers
Box Four 8, 8 Speed
Cassette
Sunrace CSM680, 11-40T, 8 Speed
Crank
Prowheel, 165mm Crank Arm, 32T, Double Chain Guard, Reduced Q Factor
Bottom Bracket
Samox BSA 24mm, BSA Threaded, 68mm Wide, English Thread
Chain
Box Four 8, 8 Speed
Wheels
Front Hub
Vitus KT, K08F, 32 Hole, 6 Bolt, 100mm x 9mm QR
Rear Hub
Vitus KT, K08R, 32 Hole, 6 bolt, 135mm x 9mm QR, 8/9/10 Speed HG Freehub
Rims
Front: WTB ST i25 TCS 2.0, 26", 32 Hole, Disc Specific, Rear: WTB ST i25 TCS 2.0, 26", 32 Hole, Disc Specific
Tires
Front: Maxxis Ikon, 26” x 2.2”, Rear: Maxxis Ikon, 26” x 2.2”
Brakes
Brakes
Clarks Clout Disc Brake, Hydraulic, Reach Adjust
Cockpit
Stem
Vitus 6061 Aluminium, 40mm Length, +/- 3°
Handlebar
Vitus 6061 Aluminium, 15mm Rise, 9° Back Sweep, 700mm Wide
Grips
Vitus, 110mm, Closed End
Headset
Neco No:11G, Semi-Cartridge, 1.5mm Top Cover, Height 9.8mm
Seat
Saddle
Vitus, Kids Specific, Steel Rail
Seatpost
Vitus 6061 Aluminium, 27.2mm x 250mm, 20mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 24" | 26" |
|---|---|---|
| Stack Reach Ratio | 1.425 mm | 1.397 mm |
| Front Center | 444 mm | 461.5 mm |
| Rake | 41 mm | 38 mm |
| Stack | 487.3 mm | 553.1 mm |
| Reach | 342 mm | 396 mm |
| Top Tube Length | 495.96 mm | 565.1 mm |
| Seat Tube Angle | 72.5 ° | 73 ° |
| Seat Tube Length | 340 mm | 356 mm |
| Head Tube Angle | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 105 mm |
| Chainstay Length | 415 mm | 430 mm |
| Wheelbase | 966 mm | 1071 mm |
| Bottom Bracket Drop | 45 mm | 40 mm |
| Wheels | 24" | 26" |
| Rider Min Height | 124 cm | 134 cm |
| Rider Max Height | 137 cm | 154 cm |
