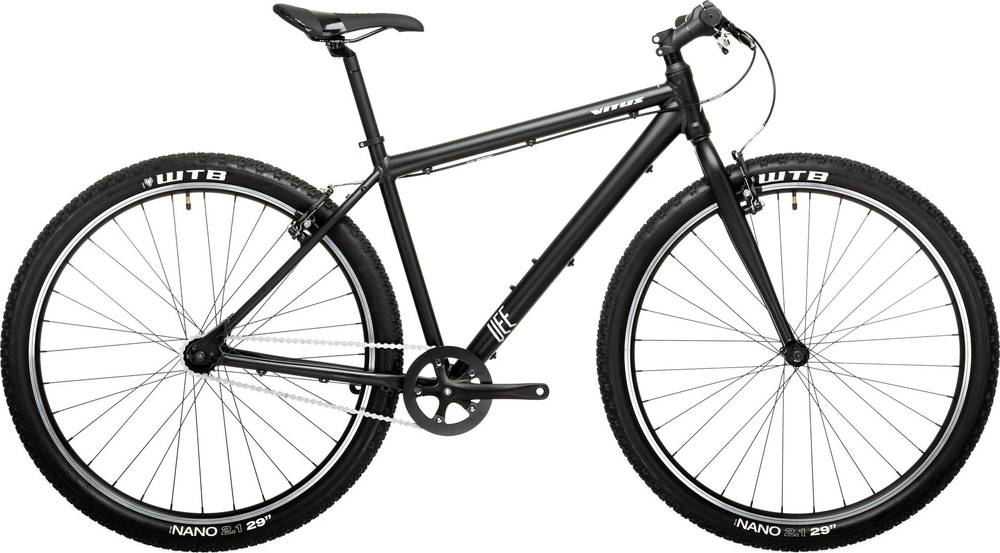

Vitus Vee 29 2020
2020 Urban
Estimate price |
400$
Weight | 11.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Rim
Sizing
Recommended size guide.
40.5cm
157cm - 172cm
48cm
169cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6, "V-Brake "
Suspension Fork
6061-T6 Aluminium 29er Rigid, 1 1/8" Steerer
Drivetrain
Rear Derailleur
Single Speed, N/A
Front Derailleur
Single Speed, N/A
Shift Levers
N/A N/A
Cassette
18T Freewheel, N/A
Crank
Shun 38T, 170mm crank length
Bottom Bracket
BSA Threaded, Cartridge BB, 68mm x 113.5mm, Square Taper
Chain
KMC B1 Wide 1/2" x 1/8" Single Speed with Anti-Rust
Wheels
Front Hub
Vitus KT A16F
Rear Hub
Vitus KT, M1SR, with 18T Freewheel
Rims
Vitus 29er (622-19), 32 hole
Spokes
WTB N/A
Tires
WTB Nano 29" x 2.1", Comp, Wire Bead
Brakes
Brakes
Alhonga, HJ-MD15
Cockpit
Stem
VITUS 6061 Aluminium 3D Forged, bar bore 31.8mm, +/- 15 degrees, 90mm
Handlebar
VITUS 6061 Aluminium Flat 660mm Wide, 6 Degree Sweep
Grips
VITUS Rubber
Headset
Neco 1 1/8" Press-Fit Cups, 44mm ID, Internal
Seat
Saddle
Vitus Black
Seatpost
VITUS 6061 Aluminium 27.2mm x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 40.5cm | 48cm |
|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm |
| Front Center | 625 mm | 645 mm |
| Rake | 38 mm | 57 mm |
| Trail | 80 mm | 60 mm |
| Stack | 588 mm | 588 mm |
| Reach | 410 mm | 410 mm |
| Top Tube Length | 582.5 mm | 602.7 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 406 mm | 482 mm |
| Head Tube Angle | 71 ° | 71 ° |
| Head Tube Length | 105 mm | 105 mm |
| Chainstay Length | 461 mm | 461 mm |
| Wheelbase | 1077 mm | 1097 mm |
| Bottom Bracket Drop | 68 mm | 68 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 157 cm | 169 cm |
| Rider Max Height | 172 cm | 185 cm |
Model Overview
Vee 29 belongs to the Vitus Vee model. 8 bikes variations carry this model name so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Hybrid bikes
If you want an acceptable Hybrid bike you should know that the average price is 562$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Vitus released this model in 2020, its price was 364$. If we compare this with the average Hybrid bike cost we notice that the price is 54.4% lower.
Hybrid bikes average weight
Hybrid bikes have an average weight of 13.85 kg (30.53 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 11.9 kg (26.23 lbs), the Vee 29 model is much lighter than average. In short, the average Hybrid bike weight is 16.39% higher than this one.
Vee 29 components
Fork material
When it comes to the fork, this bike has an aluminum one, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
When it comes to wheels, the Vee 29 bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Vitus Vee 29 has Rim brakes installed. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
Sizes
There are 2 sizes available for this model. Rider height can be anywhere between 157 cm – 185 cm (5.15 ft – 6.07 ft). In conclusion, finding one for you shouldn’t be a problem.
