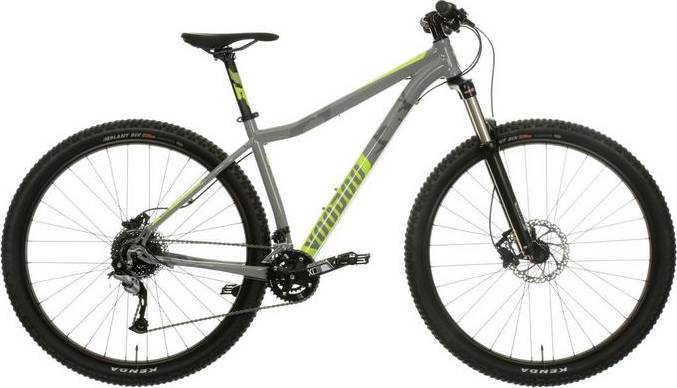

Voodoo Aizan 29er Mountain Bike 2020
2020 Mountain
Estimate price |
736$
Weight | 14.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Fork SunTour XCR 32 -
Groupset Acera, Shimano -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Suntour XCR 32 LO-R, 1 1/8" steerer
Drivetrain
Rear Derailleur
Shimano Acera Shadow, 9 speed
Front Derailleur
Shimano, front pull, direct mount
Cassette
Shimano HG2000, 9 speed, 11-36t
Crank
Suntour XCM 36/22T (M/L - 175mm)
Bottom Bracket
FSA BB-7420, 73x118mm
Chain
KMC 9 speed
Pedals
Flat Wellgo Alloy, 9/16"
Wheels
Front Hub
Alloy, quick release 9x100mm
Rear Hub
Alloy, boost 141 QR, 8/9/10 speed freehub
Rims
29" Alloy, black, 32H
Tires
Kenda K-1080, 60TPI, folding bead
Brakes
Brakes
Clarks M1, 180mm rotor
Cockpit
Handlebar
Voodoo Alloy, 31.8mm clamp
Grips
Black, lock-on
Headset
1-1/8" semi-integrated, 44mm upper and lower
Seat
Seatpost
Voodoo Alloy 31.6mm, 35mm Q/R seat clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm |
| Top Tube Length | 588 mm | 613 mm | 633 mm | 648 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 460 mm | 508 mm | 558 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 105 mm | 105 mm | 110 mm | 125 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Aizan 29er Mountain Bike is a Voodoo Aizan model. There are 2 bikes that carry this model name.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Voodoo Aizan 29er Mountain Bike price was 669$. In conclusion, this bike price is 184.75% smaller than the price of the average Crosscountry bike.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Voodoo Aizan 29er Mountain Bike it’s weighing 14.6 kg (32.19 lbs). At this weight, is much heavier than average. To sum up, it’s 17.74% heavier than the average weight of Crosscountry bikes.
Overview of components
Fork
Voodoo Aizan 29er Mountain Bike 2020 bike is equipped with the SunTour XCR 32 fork, and has mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The Aizan 29er Mountain Bike 2020 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Aizan 29er Mountain Bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
