Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Groupset Apex -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Rim
Sizing
Recommended size guide.
SM
152cm - 166cm
MD
164cm - 178cm
LG
176cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Steel Lugged with 1" Steerer tube
Drivetrain

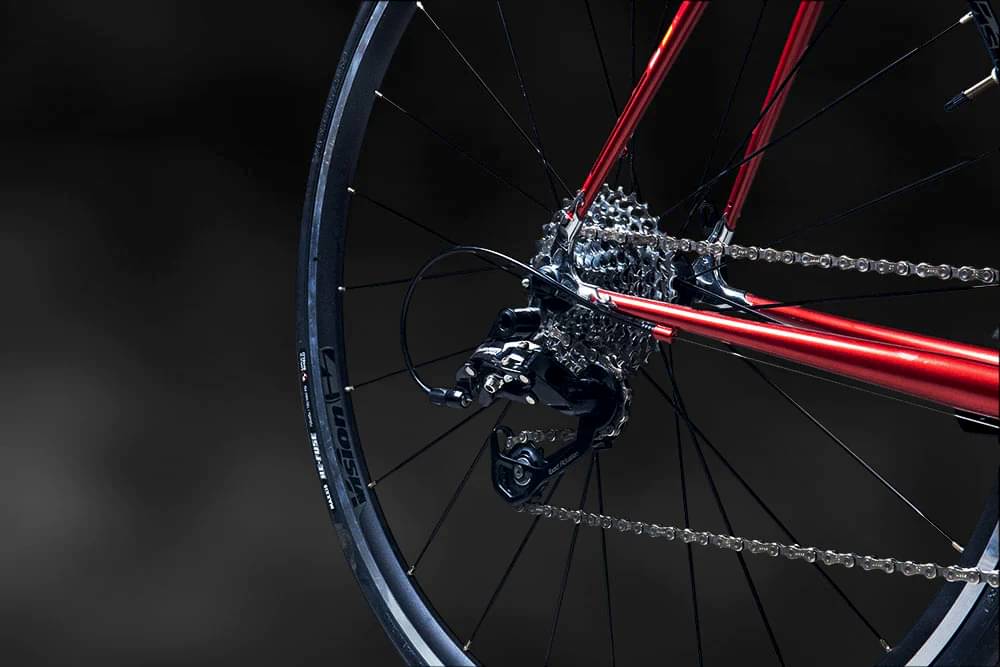

Rear Derailleur
SRAM RD APEX 1 LONG CAGE 11-spd
Front Derailleur
n/a
Shift Levers
SRAM APEX 11-speed; R/L Left Brake Lever; Right Rear Shifter
Cassette
SRAM PG-1130, 11-32 11-speed

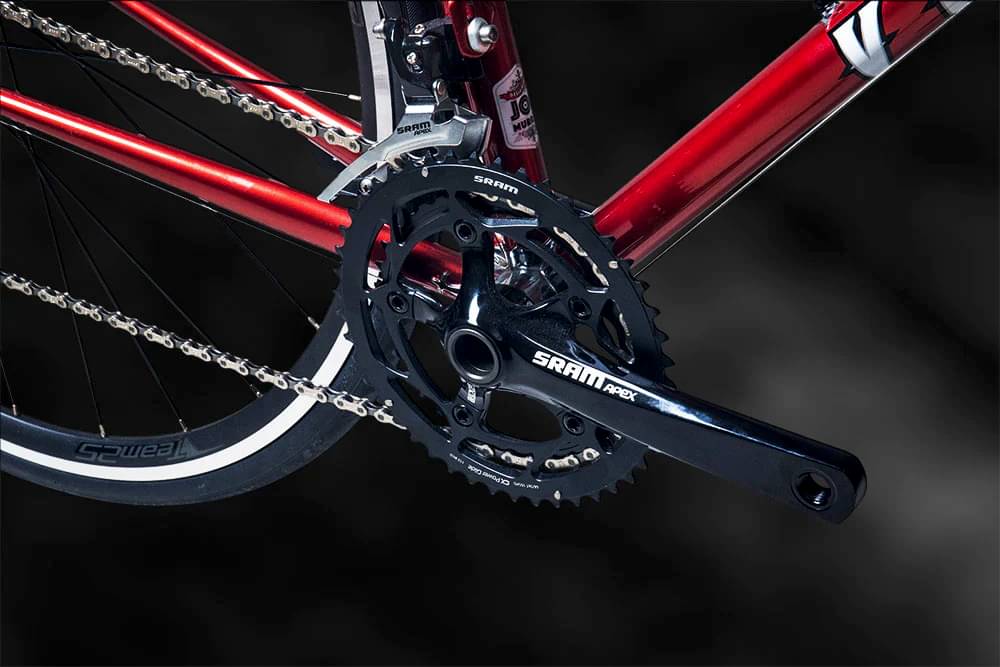

Crank
SRAM 1FC APEX 1 24MM 1725 XSYNC 42G
Bottom Bracket
Truvativ/SRAM GXP XR BB
Chain
SRAM PC1110 11-speed, 114 links
Pedals
Wellgo C172DU Road/Hybrid pedal
Wheels
Tires
Maxxis Re-Fuse 700 X 25c
Brakes
Brakes
SRAM Apex Brake Calipers F/R
Cockpit
Stem
Kalloy Threaded Road Quill Stem 25.4 Clamp (60, 80 & 100 mm)
Handlebar
Dimension 25.4mm X 40cm, 42cm or 44cm Handlebar : Silver
Headset
FSA Duron X 1" threaded
Seat
Saddle
WTB Rocket Comp 142 X 265 with Steel Rails
Seatpost
Kalloy SP-267 - 27.2mm X 350mm X 20mm SB - Silver
Fit data

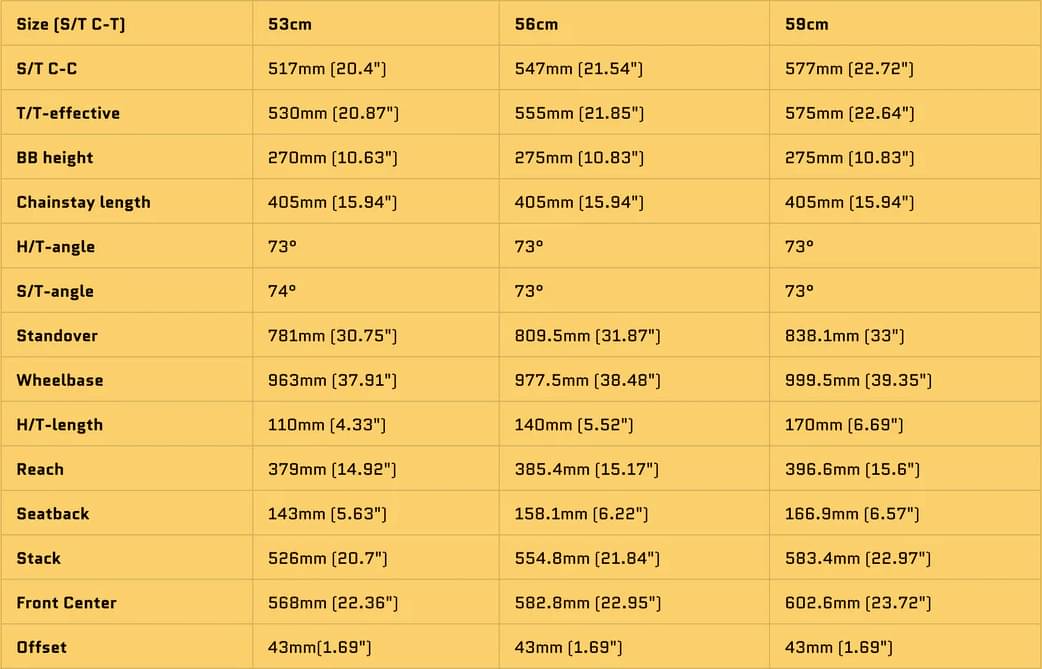

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 164 cm | 176 cm |
| Rider Max Height | 166 cm | 178 cm | 190 cm |
