Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour RAIDON
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 175cm
MD
172cm - 180cm
LG
178cm - 185cm
XL
183cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

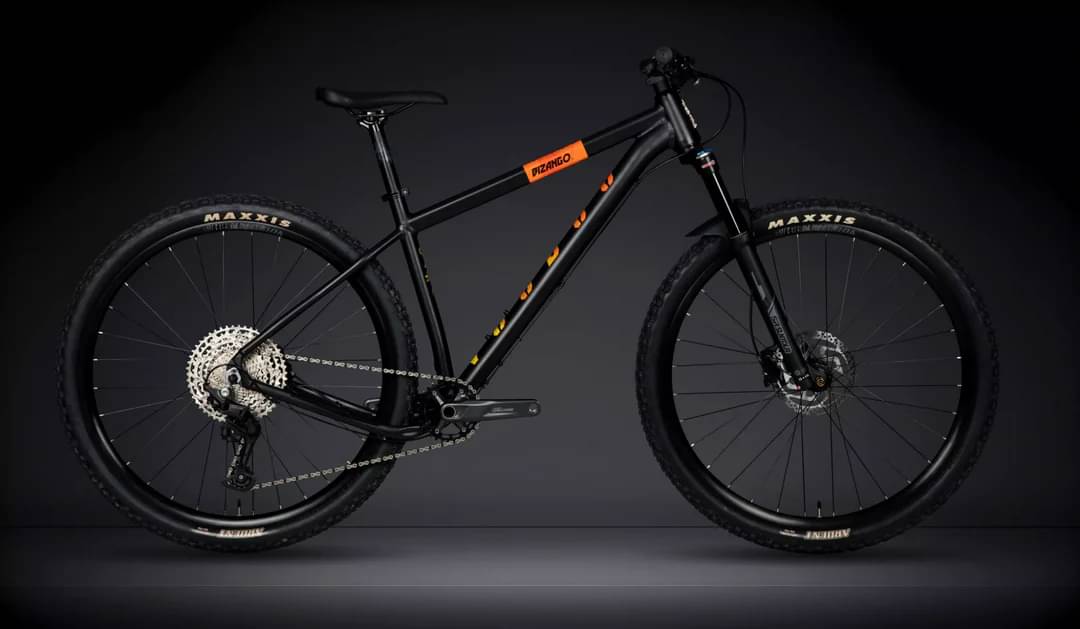

Bizango 29" hardtail MTB. Material: aluminium alloy. BSA bottom bracket. QR 141 mm dropout. Smooth welding

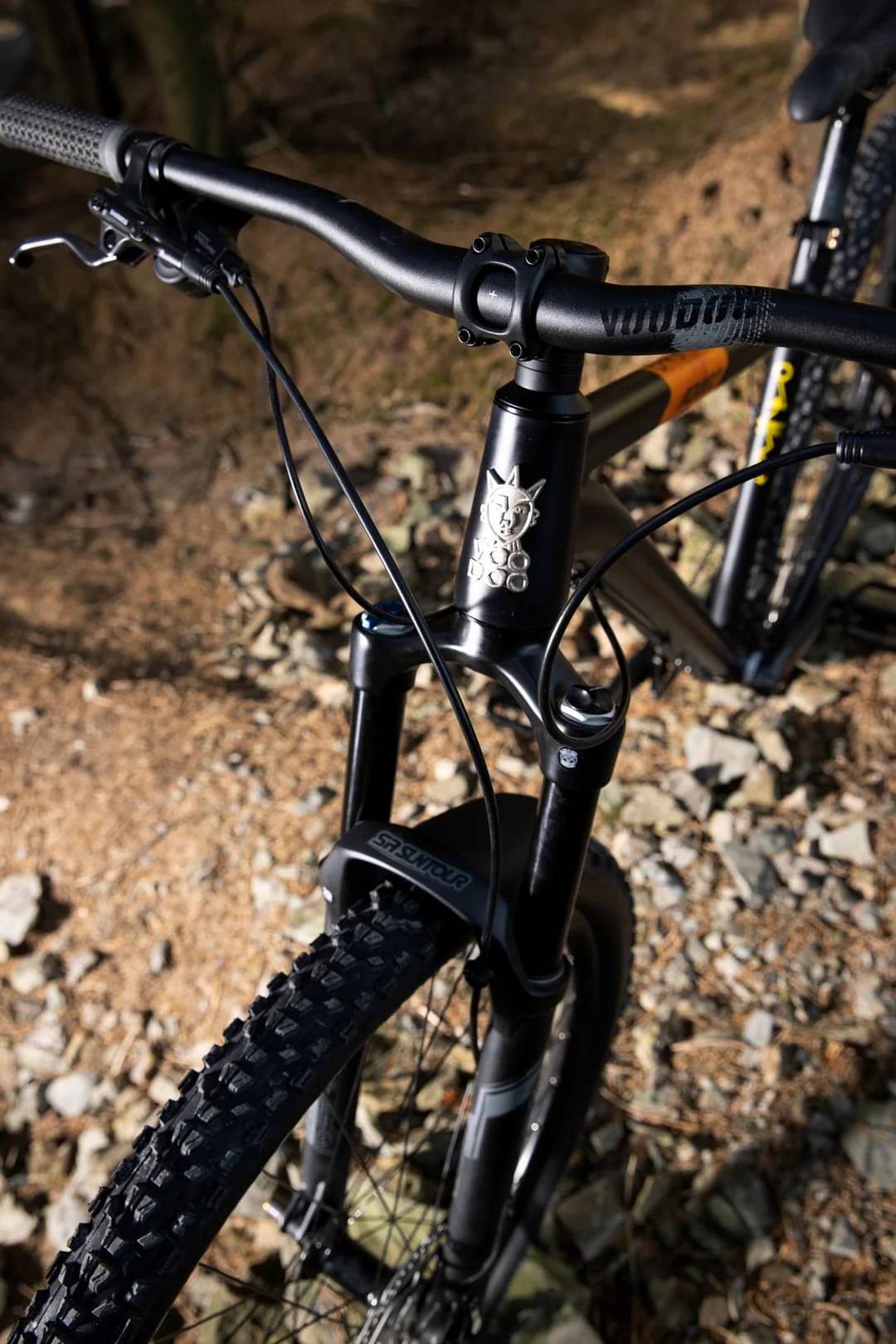

Suspension Fork

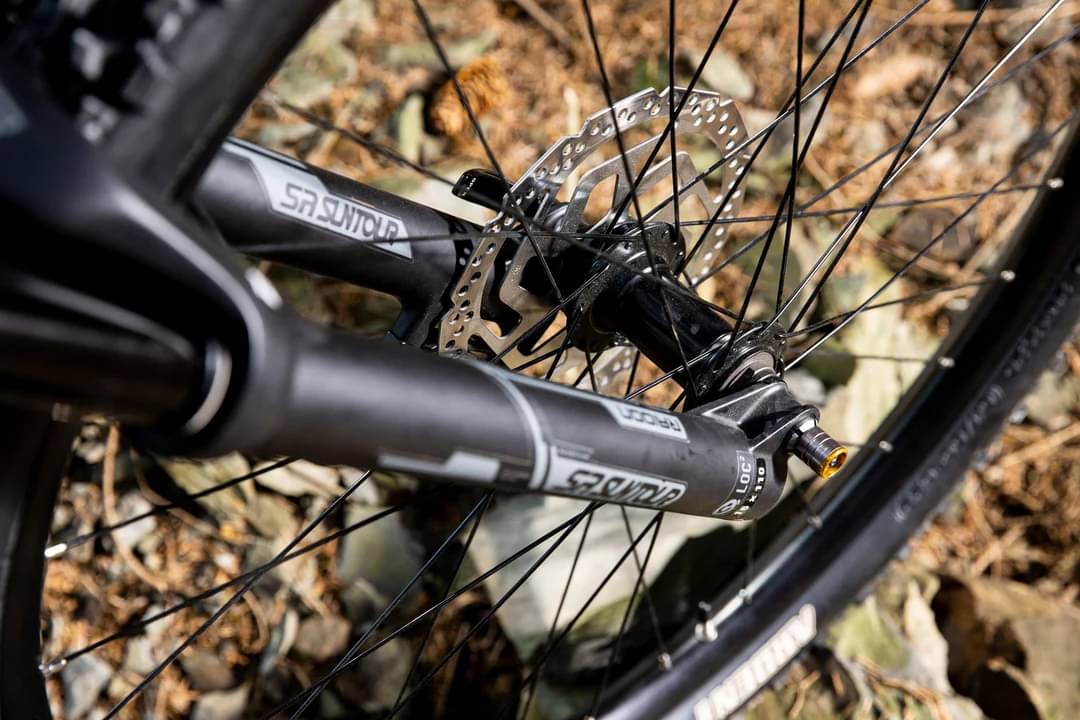

SR Suntour SF19 Raidon32. 120 mm travel. Boost 15x110 mm
Drivetrain
Rear Derailleur

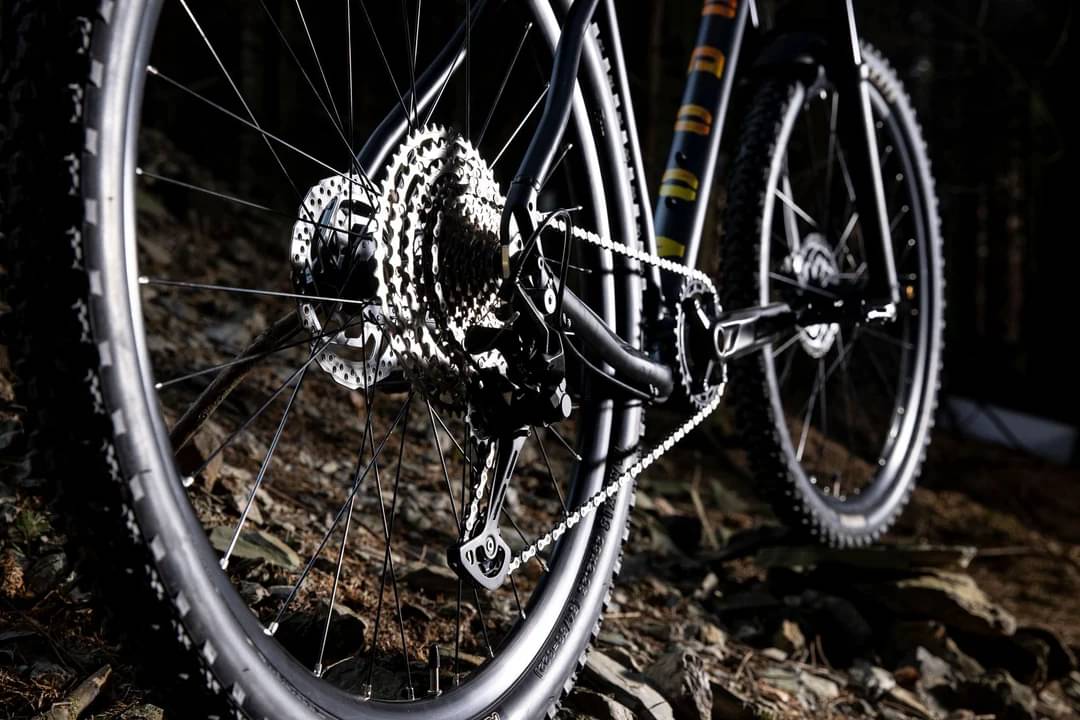

Shimano Deore RD-M5100SGS
Front Derailleur
n/a
Shift Levers
Shimano Deore SL-M5100-R
Cassette
Shimano Deore CS-M5100-11. 11 speed. 11-51t
Crank
Shimano Deore FC-M5100-1. 1x 32t. 170 mm (S, M, L); 175 mm (XL)
Bottom Bracket
Shimano BSA
Chain
KMC X11-1
Pedals
FPD NWL-221. Aluminium alloy. Flat with retention pins
Wheels
Front Hub
Aluminium alloy, 15x110, 32H, 6 bolts (F). Aluminium alloy, QR141, 32H, 6 bolts (R)
Rear Hub
Aluminium alloy, 15x110, 32H, 6 bolts (F). Aluminium alloy, QR141, 32H, 6 bolts (R)
Rims
622/29" aluminium alloy, double wall. 32H. Tubeless compatible. 24 mm inner width, 22 mm height
Spokes
Stainless steel

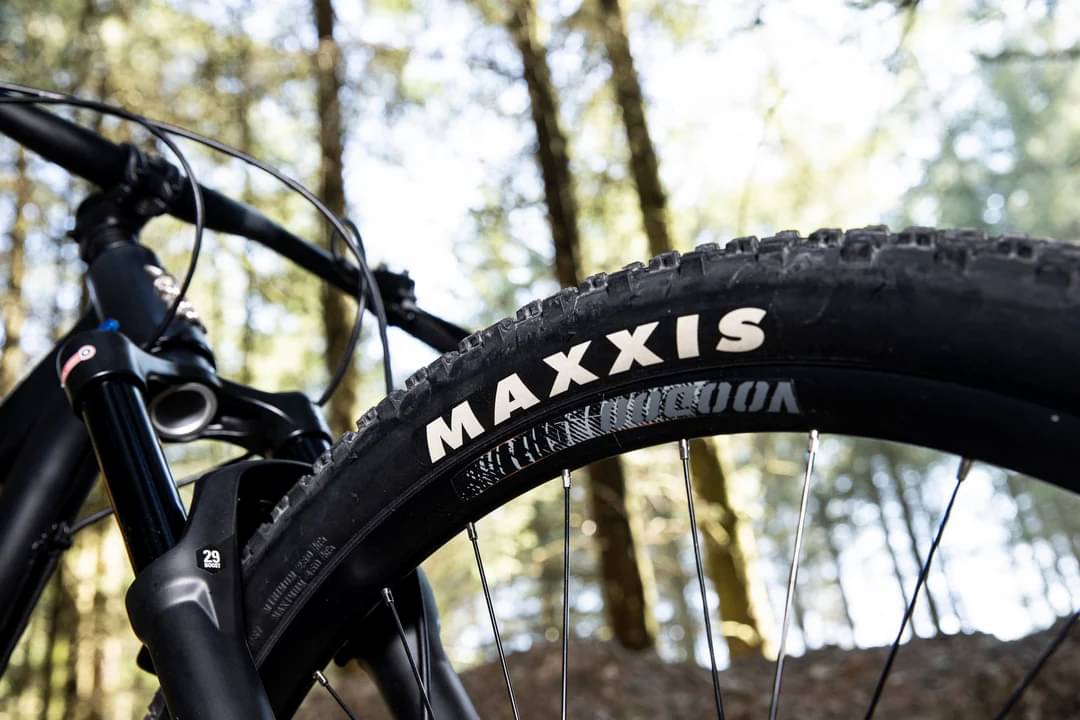

Tires
Maxxis Ardent 29x2.25. Foldable. 60TPI
Brakes
Brakes
Shimano BR-MT200. Hydraulic brake
Brake Levers
Shimano BL-MT200. Hydraulic brake
Cockpit
Stem
Aluminium alloy, ?31.8 mm, 45 mm, 3deg
Handlebar
Aluminium alloy, ?31.8 mm, 20 mm rise, 6deg. 760 mm width (S). 780 mm width (M, L, XL)
Grips
Velo, lock-on, black
Headset
Tapered 1-1/8 - 1-1/2. Internal
Seat
Saddle
WTB Volt Medium. Steel rails
Seatpost
Aluminium alloy, ?31.6 mm. 350 mm length (S). 400 mm length (M, L, XL)
Fit data

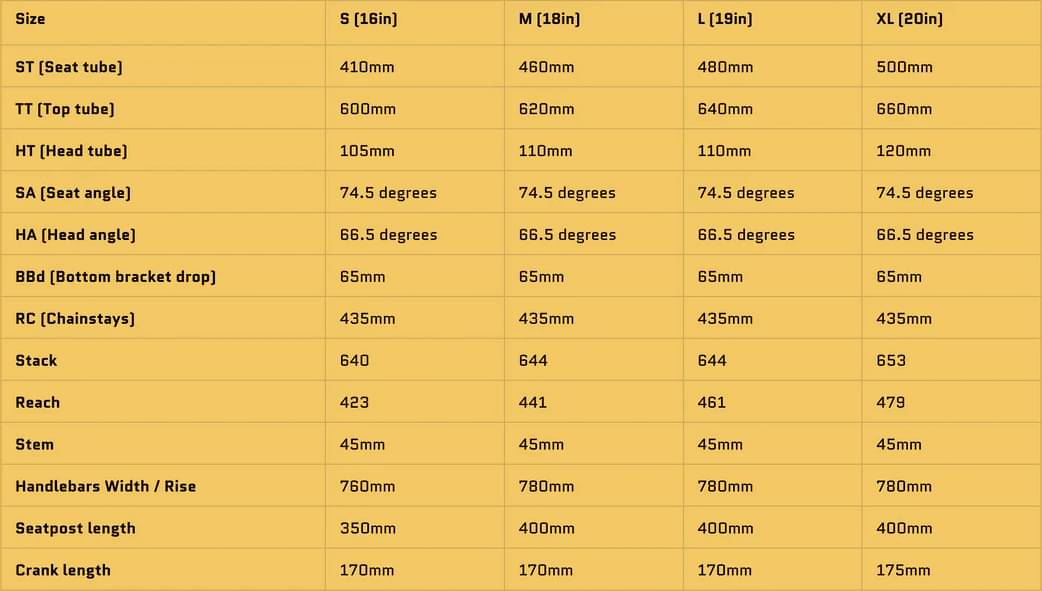

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 175 cm | 180 cm | 185 cm | 193 cm |
