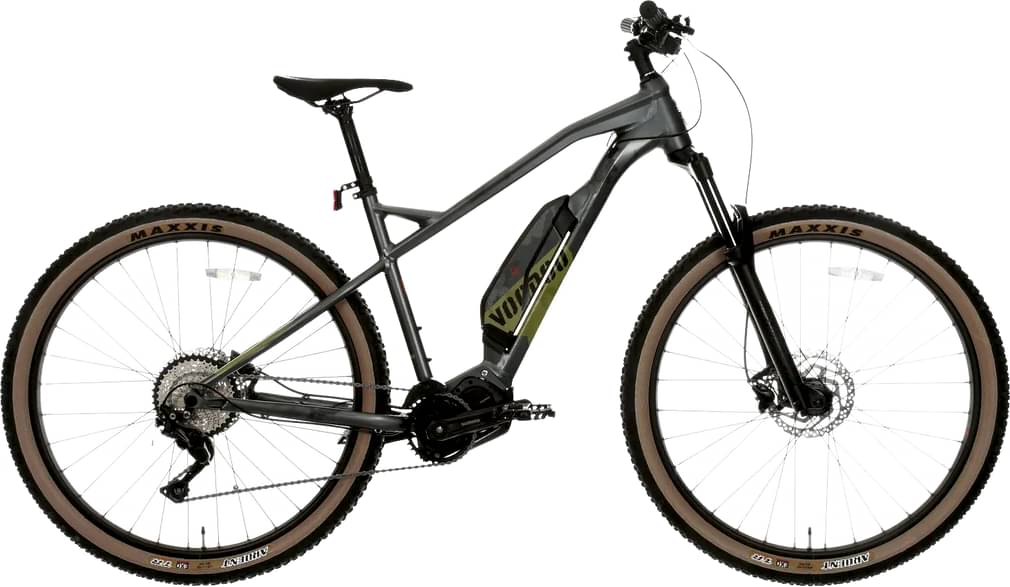

Voodoo BIZANGO-E 2024
2024 E-bike
Estimate price |
1,020$
Weight | 24.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Fork RockShox Judy Silver TK
-
Groupset Deore -
Suspension Hardtail -
Motor Shimano mid-drive -
Battery Shimano Steps BT-E8014 - 418Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 177cm
MD
172cm - 185cm
LG
180cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components

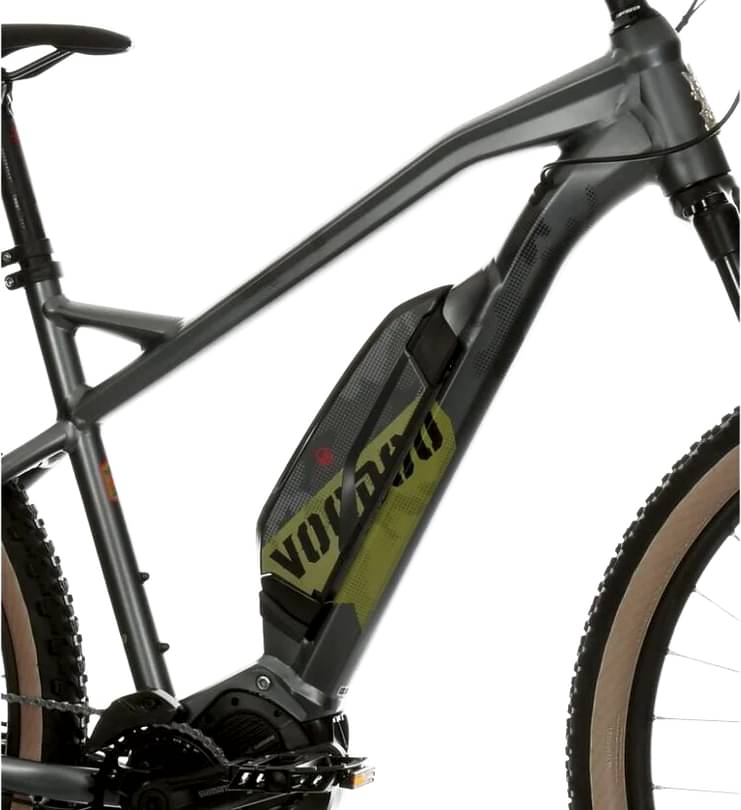

Frame
Frame
6061 Alloy with internal dropper routing and alloy head badge
Suspension Fork
Rockshock Judy Silver TK 29"x 1 15X110MM Axle Solo Air - 130mm Travel

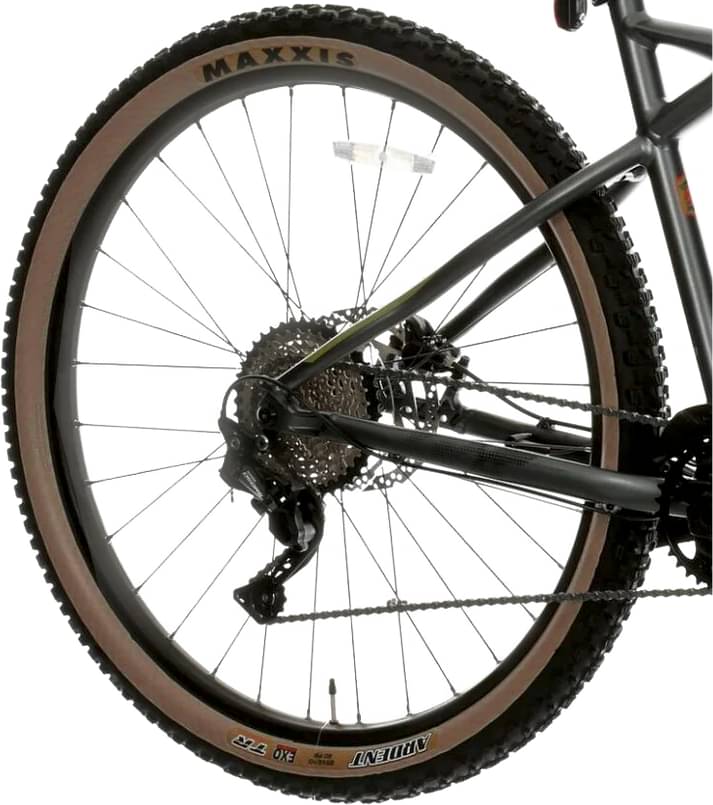

Drivetrain
Rear Derailleur
SHIMANO DEORE - Rear Derailleur - Medium Cage - SHIMANO SHADOW RD+ - 10-speed
Shift Levers
Shimano Deore SLM6000
Cassette
Shimano CSHG500 11-42T
Crank
Suntour - Double Chain Guard - 42T - Alloy
Bottom Bracket
Sealed
Chain
KMC X10 Anti Rust
Pedals
9/16 Wellgo MTB Pedals with Replaceable Pins
Wheels
Rims
Maxle
Tires
29" Maxxis Ardent Skinwall
Brakes
Brakes
Rear: Shimano Hydraulic BL-M315

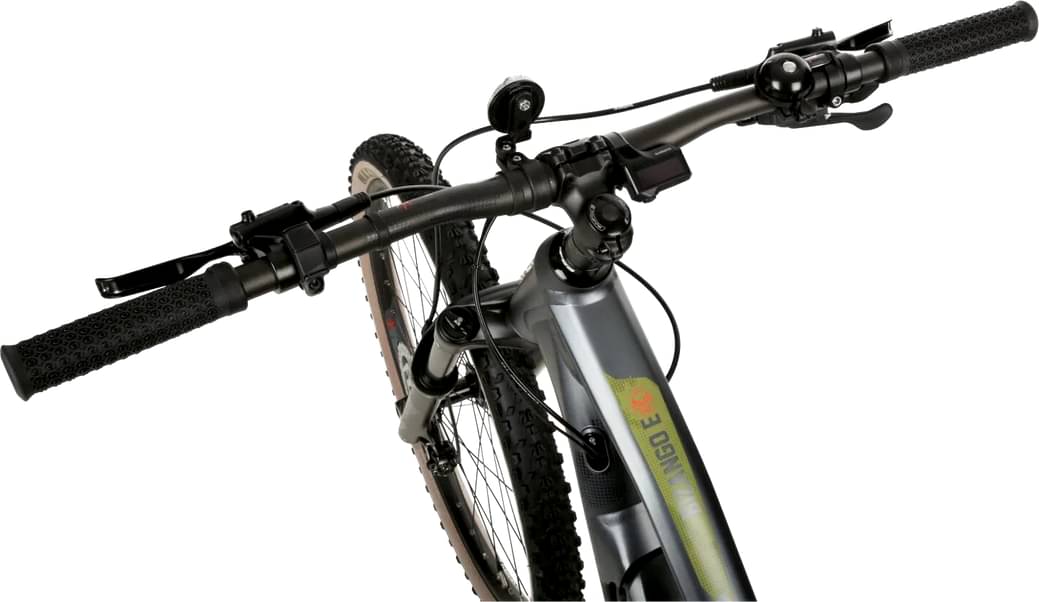

Cockpit
Stem
Alloy AS-M03 - 31.8mm
Seat

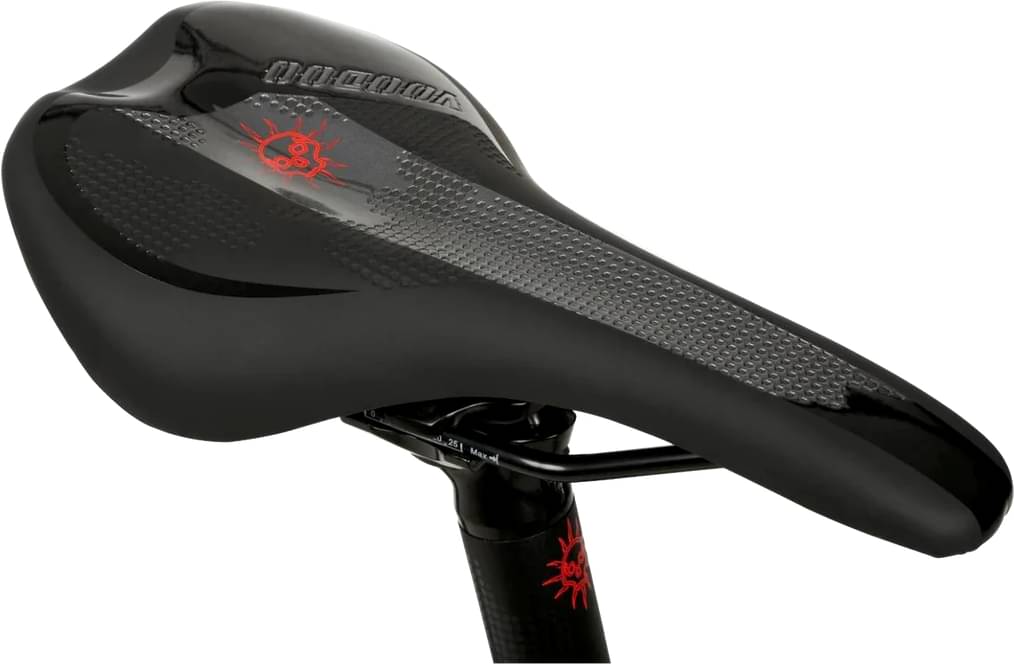

Saddle
Velo High Density MTB Saddle
Seatpost
KALLOY SP-DC1 D:31.6mm, L:350mm
Motor & Battery

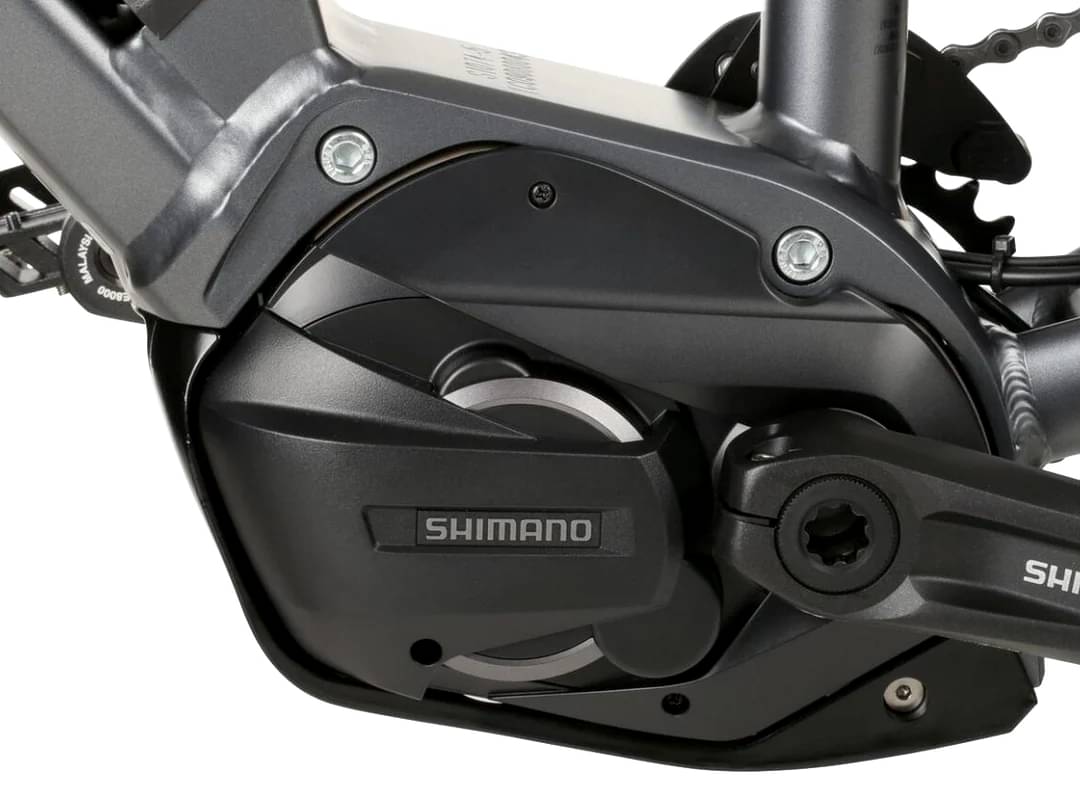

Motor
Shimano Steps Mid Drive Motor

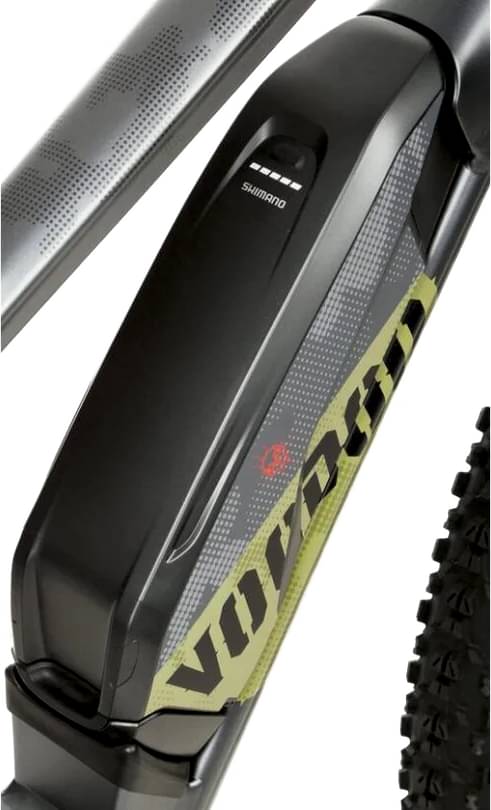

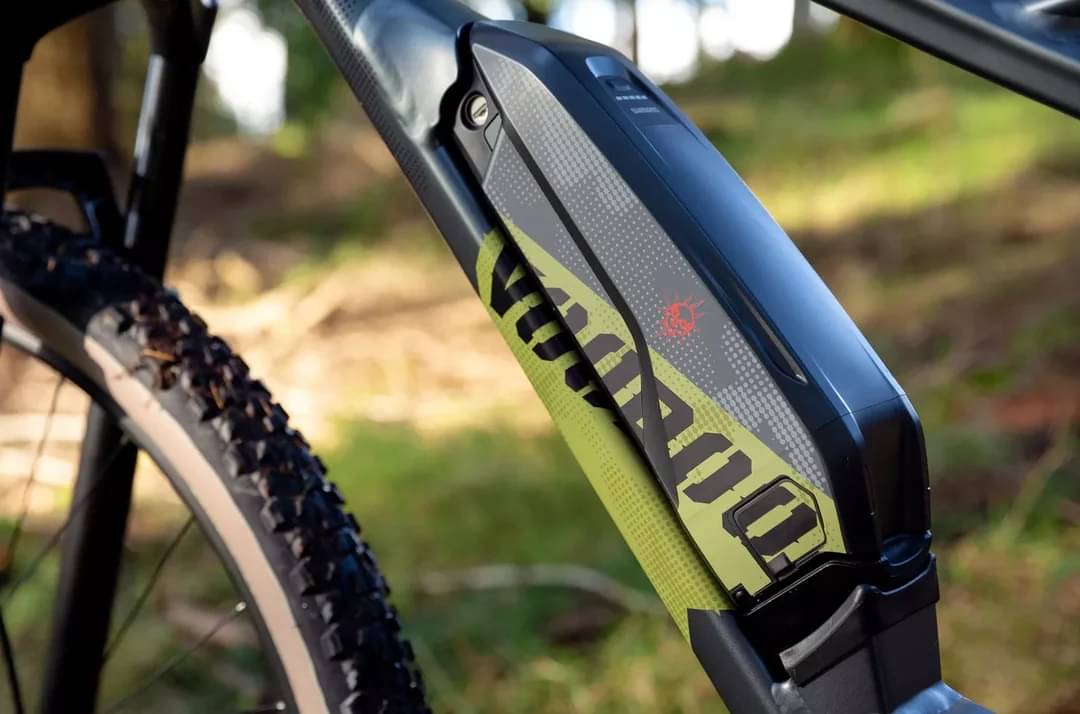

Battery
Shimano Steps BT-E8014 - 418Wh
Fit data

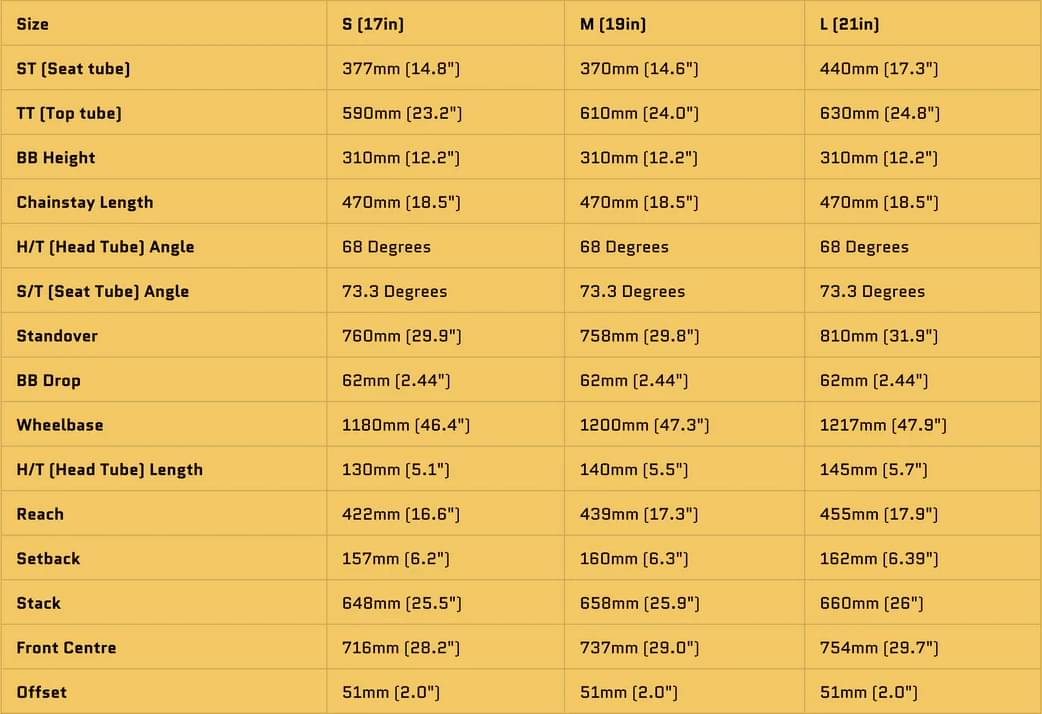

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 172 cm | 180 cm |
| Rider Max Height | 177 cm | 185 cm | 190 cm |
