Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Fork RockShox Psylo
-
Groupset CUES -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano 36v, 14Ah, 504Wh -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hardtail MTB, alloy 6061

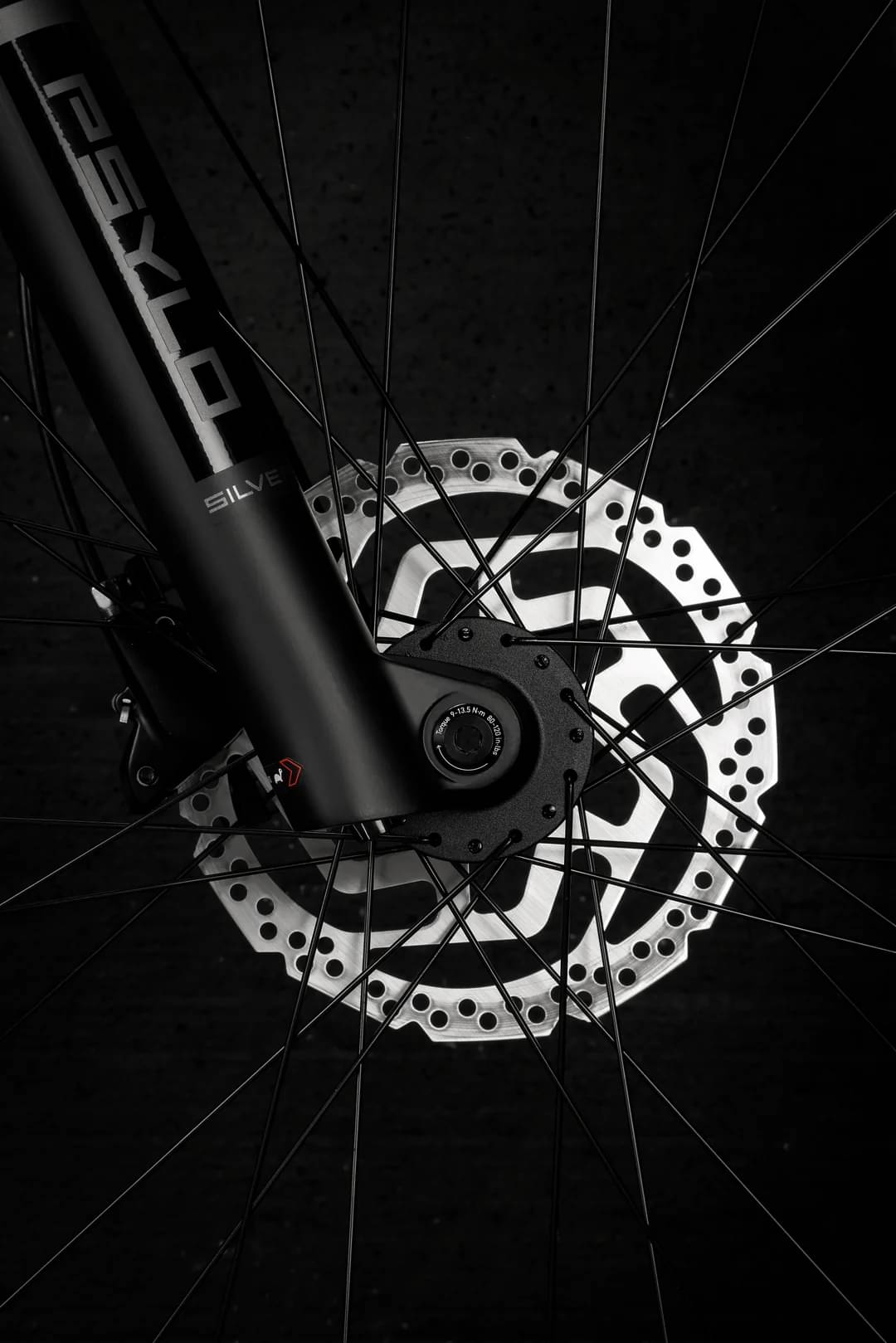

Suspension Fork
RockShox Psylo Silver R with 140mm travel
Drivetrain
Shift Levers
Shimano CUES SL-U6000, 10 speed
Cassette
Shimano CUES CS-LG300, 11-48T, 10 speed
Crank
Shimano FC-EM600 160mm crank arm, Shimano SM-CRE70-B 34T chain ring
Chain
KMC eGlide EPT, 10 speed
Pedals
Voodoo, alloy cage pedal
Wheels
Rims
Front: Alloy, double wall, 32H, tubeless compatible, 15mm thru-axle, Rear: Alloy, double wall, 32H, tubeless compatible, 12mm thru-axle
Tires
Maxxis Forekaster, 29"x2.35", wire bead
Brakes
Brakes
Front: Shimano BR-MT200, hydraulic disc, 180mm disc rotor, Rear: Shimano BR-MT200, hydraulic disc, 180mm disc rotor
Cockpit
Stem
Voodoo alloy, 45mm
Handlebar
Voodoo alloy, 31.8mm x 780mm
Grips
Voodoo, lock-on
Headset
FSA No.57-HBS 200, integrated 1-1/8" - 1.5"
Seat
Saddle
WTB Volt Medium
Seatpost
Dropper post with 125mm travel (S), 150mm travel (M, L, XL)
Motor & Battery

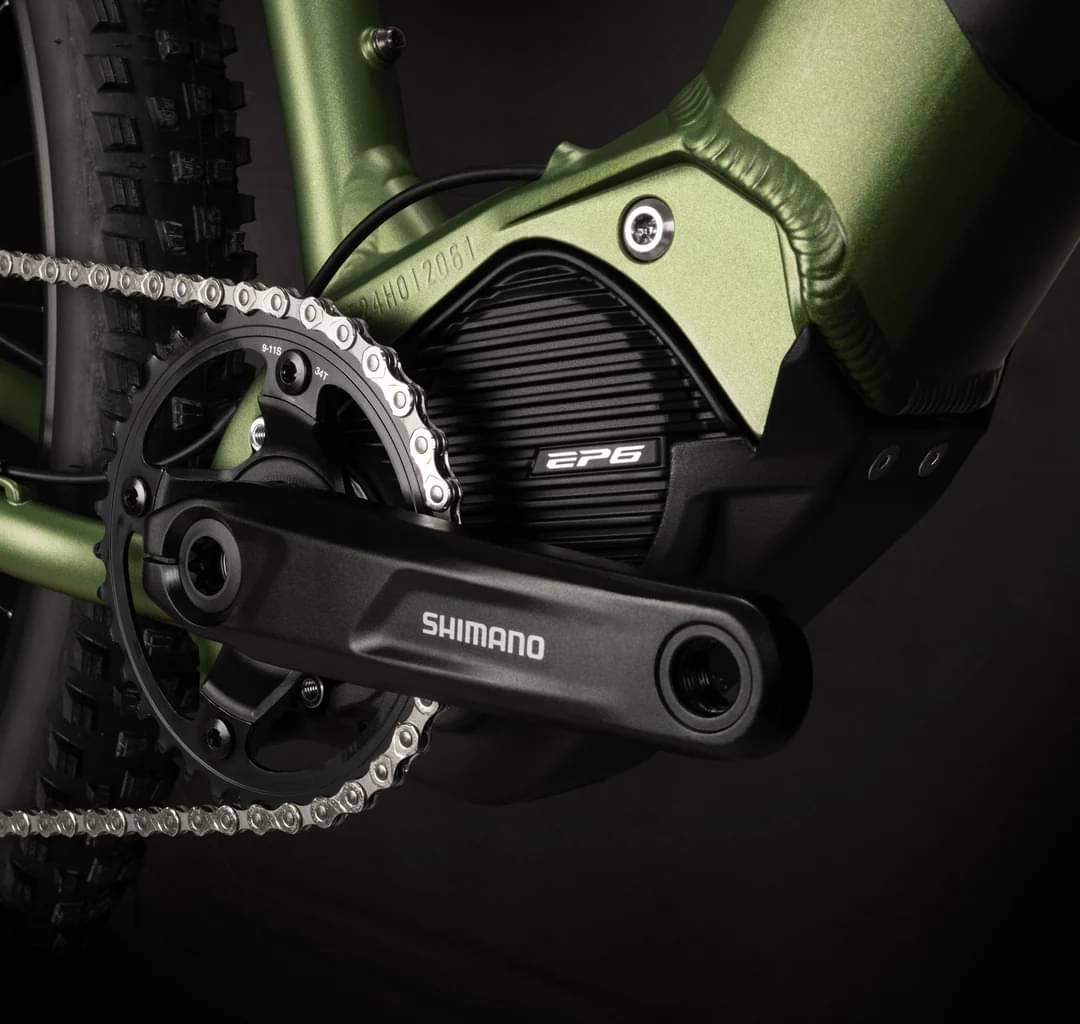

Motor
Shimano EP6 mid-drive, 250w, 85Nm
Battery
Shimano 36v, 14Ah, 504Wh
Charger
Manufacturer supplied
Fit data

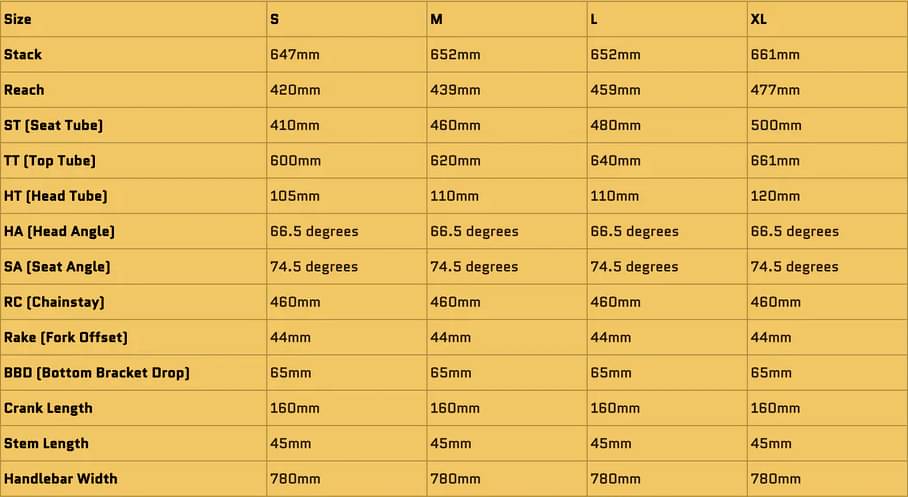

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
