Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Fork RockShox 35 Gold RL
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 175cm
MD
172cm - 180cm
LG
178cm - 185cm
XL
183cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

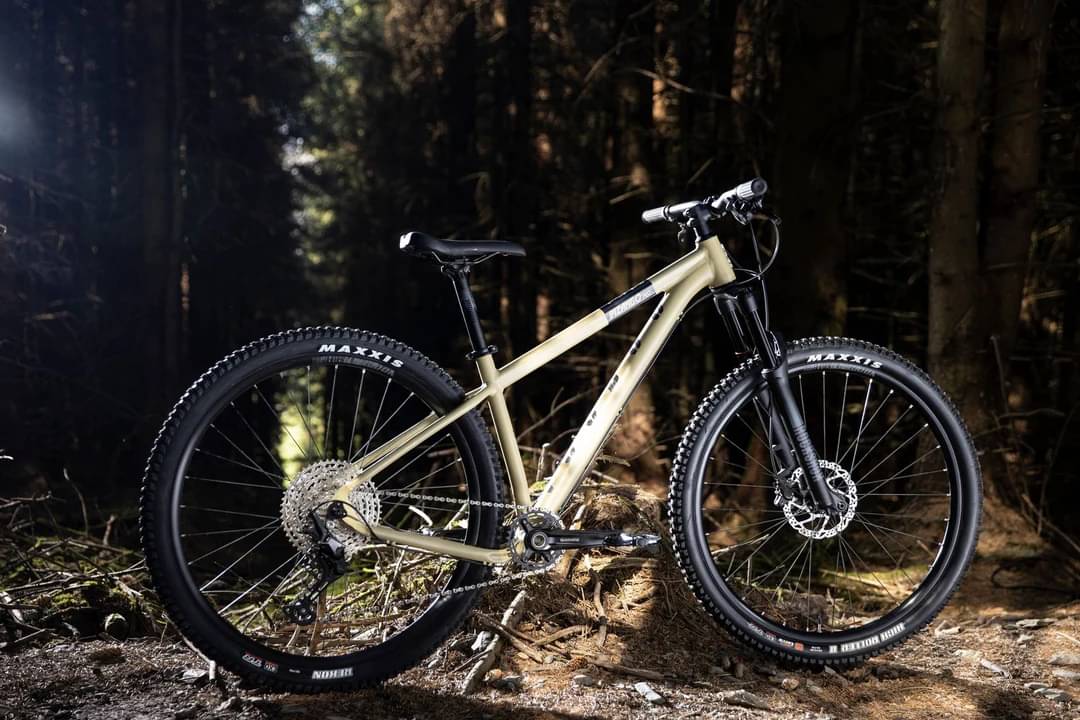

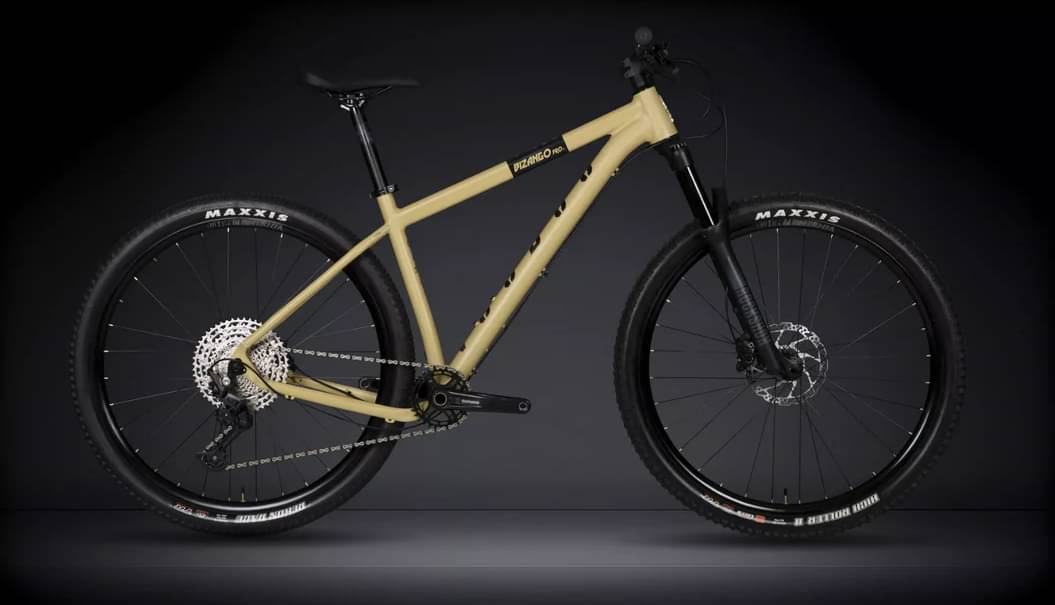

Bizango Pro 29" hardtail MTB. Material: aluminium alloy. BSA bottom bracket. Thru-axle 148 mm boost dropout. Smooth welding

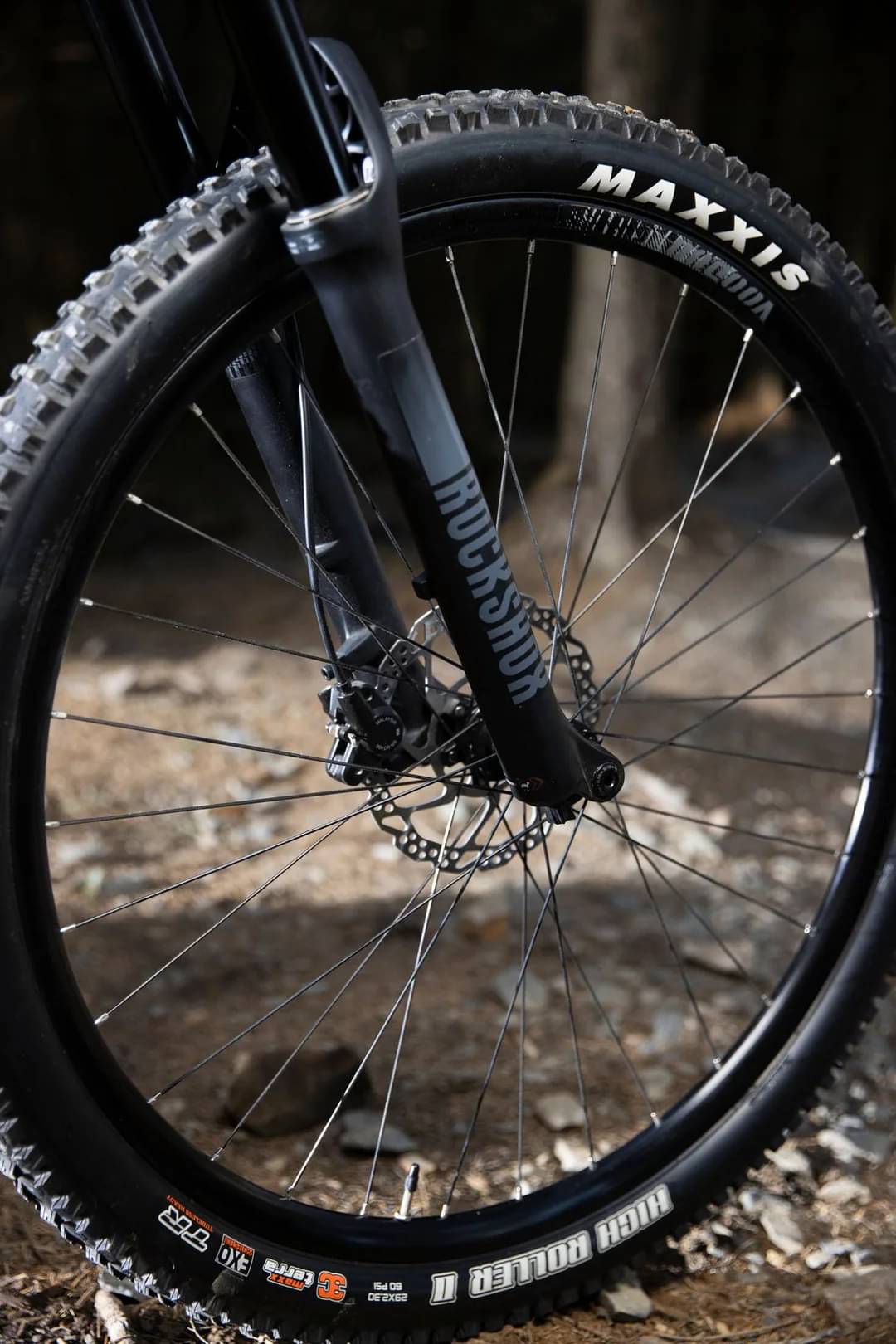

Suspension Fork
RockShox FS-35 Gold RL-A2. 130 mm travel. Boost 15x110 mm

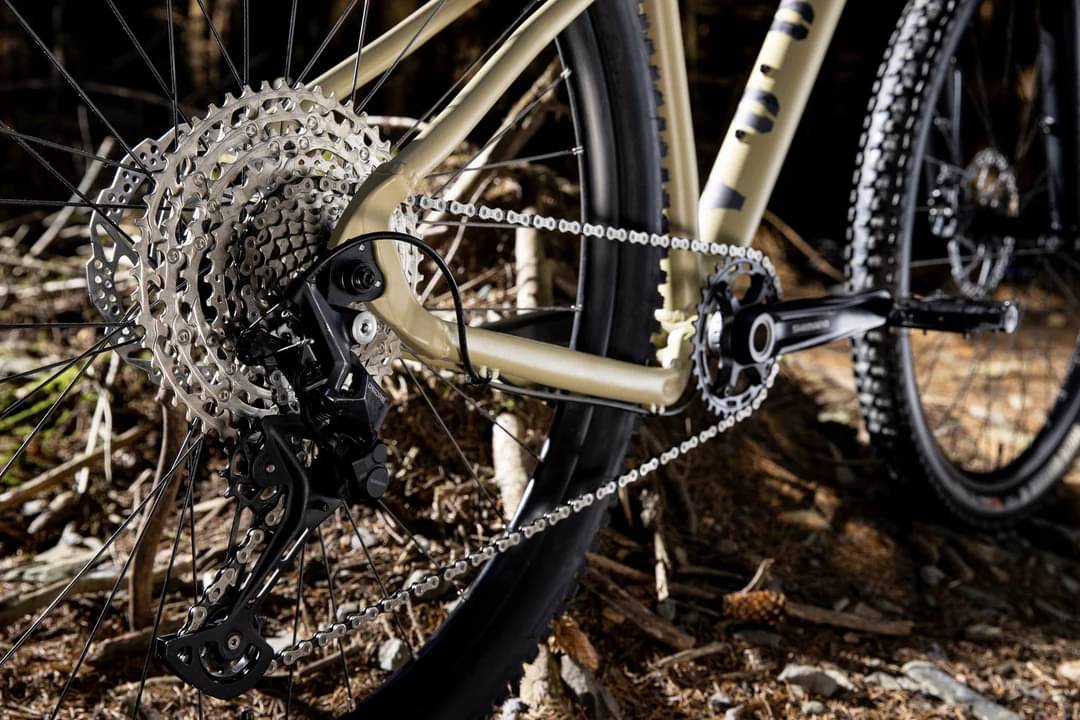

Drivetrain
Rear Derailleur
Shimano Deore RD-M6100-SGS
Front Derailleur
n/a
Shift Levers
Shimano Deore SL-M6100-R
Cassette
Shimano Deore CS-M6100-12. 12 speed. 10-51t
Crank
Shimano Deore FC-MT510-1. 1x 32t. 170 mm (S, M, L); 175 mm (XL)
Bottom Bracket
Shimano BSA
Chain
KMC X12
Pedals
FPD NWL-221. Aluminium alloy. Flat with retention pins
Wheels
Front Hub
Shimano HB-MT410, 15x110, 32H, Center Lock (F) Shimano FH-MT410, 12x148, 32H, Center Lock (R)
Rear Hub
Shimano HB-MT410, 15x110, 32H, Center Lock (F) Shimano FH-MT410, 12x148, 32H, Center Lock (R)
Rims
622/29" aluminium alloy, double wall. 32H. Tubeless compatible. 24 mm inner width, 22 mm height
Spokes
Stainless steel
Tires
Maxxis High Roller 29x2.3. Foldable. 60TPI (F). Maxxis Rekon 29x2.25. Foldable. 60TPI (R)
Brakes
Brakes
Shimano BR-MT401. Hydraulic brake
Brake Levers
Shimano BL-MT401. Hydraulic brake

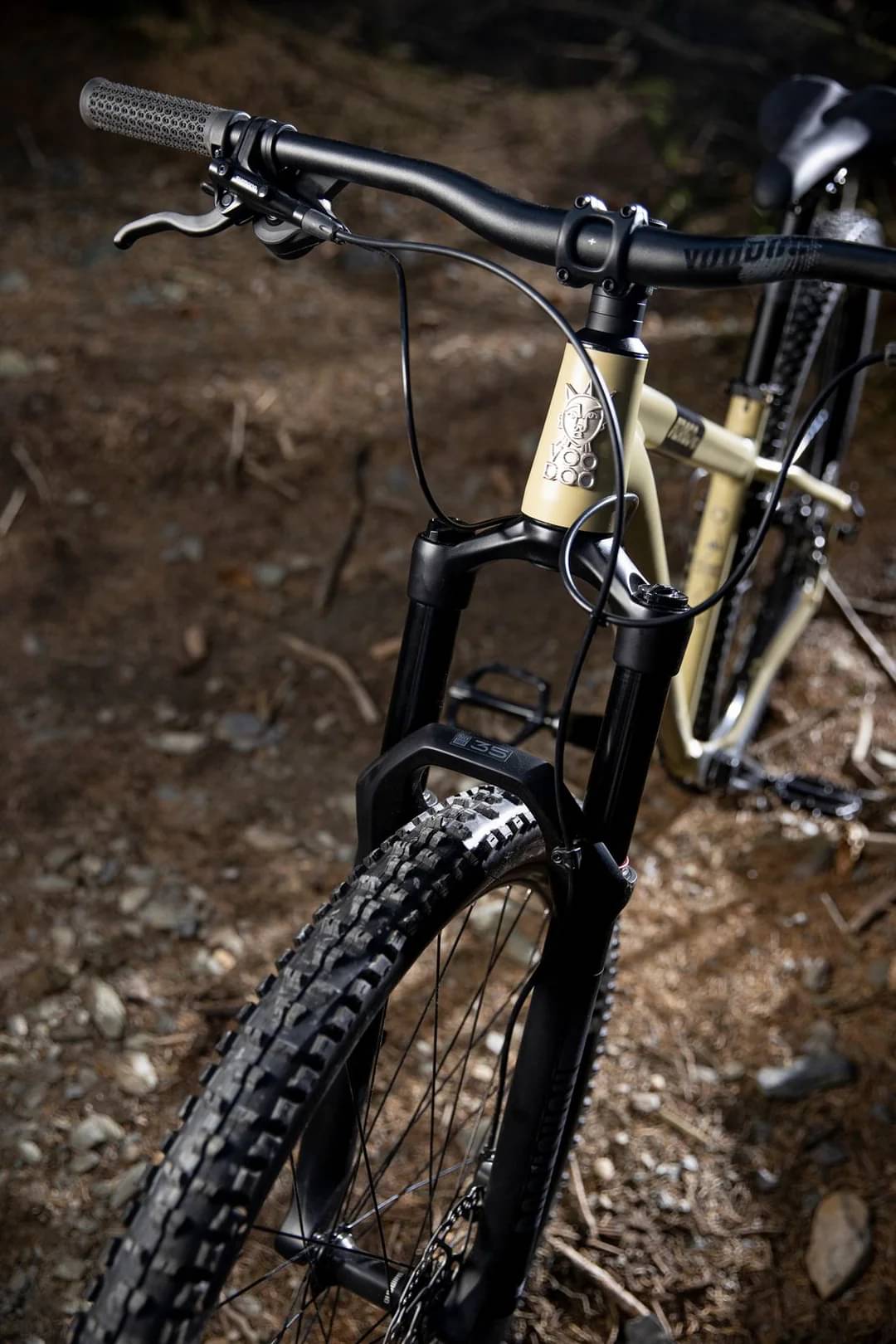

Cockpit
Stem
Aluminium alloy, ?31.8 mm, 45 mm, 3deg
Handlebar
Aluminium alloy, ?31.8 mm, 20 mm rise, 6deg. 760 mm width (S). 780 mm width (M, L, XL)
Grips
Velo, lock-on, black
Headset
Tapered 1-1/8 - 1-1/2. Internal
Seat

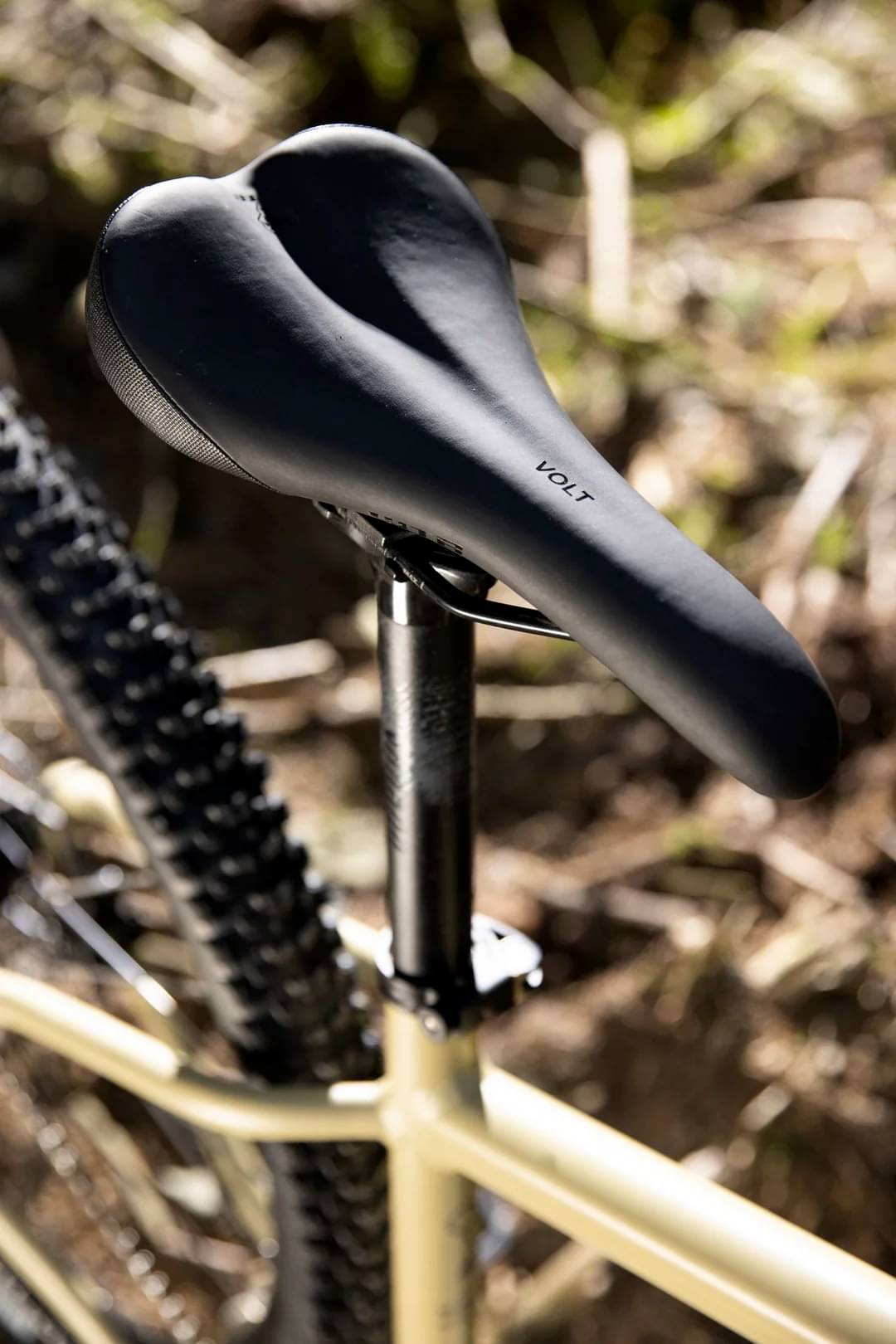

Saddle
WTB Volt Medium. Steel rails
Seatpost
Aluminium alloy, ?31.6 mm. 350 mm length (S). 400 mm length (M, L, XL)
Fit data

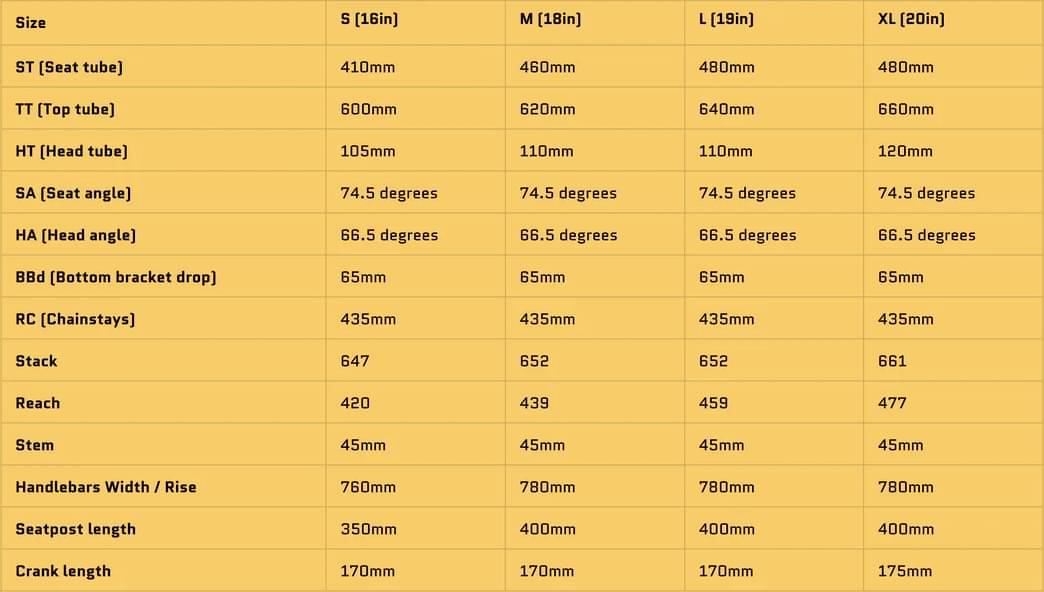

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 175 cm | 180 cm | 185 cm | 193 cm |
