Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Fork RockShox Psylo
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy
Suspension Fork
RockShox Psylo Gold RC, 130mm travel
Drivetrain

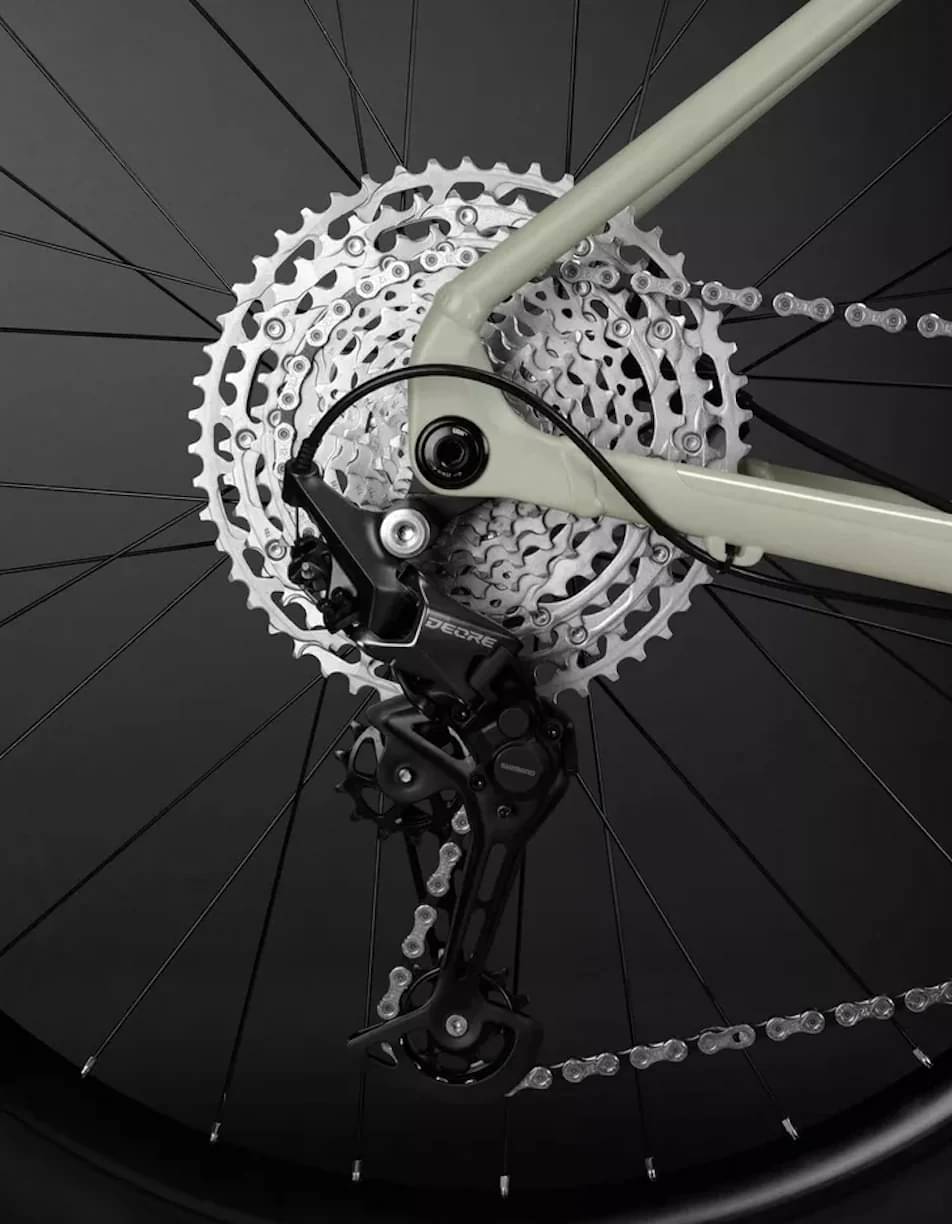

Rear Derailleur
Shimano Deore RD-M6100-SGS Shadow+, UDH hanger
Shift Levers
Shimano Deore SL-M6100, 12 speed
Cassette
Shimano Deore CS-M6100, 12 speed, 10-51T

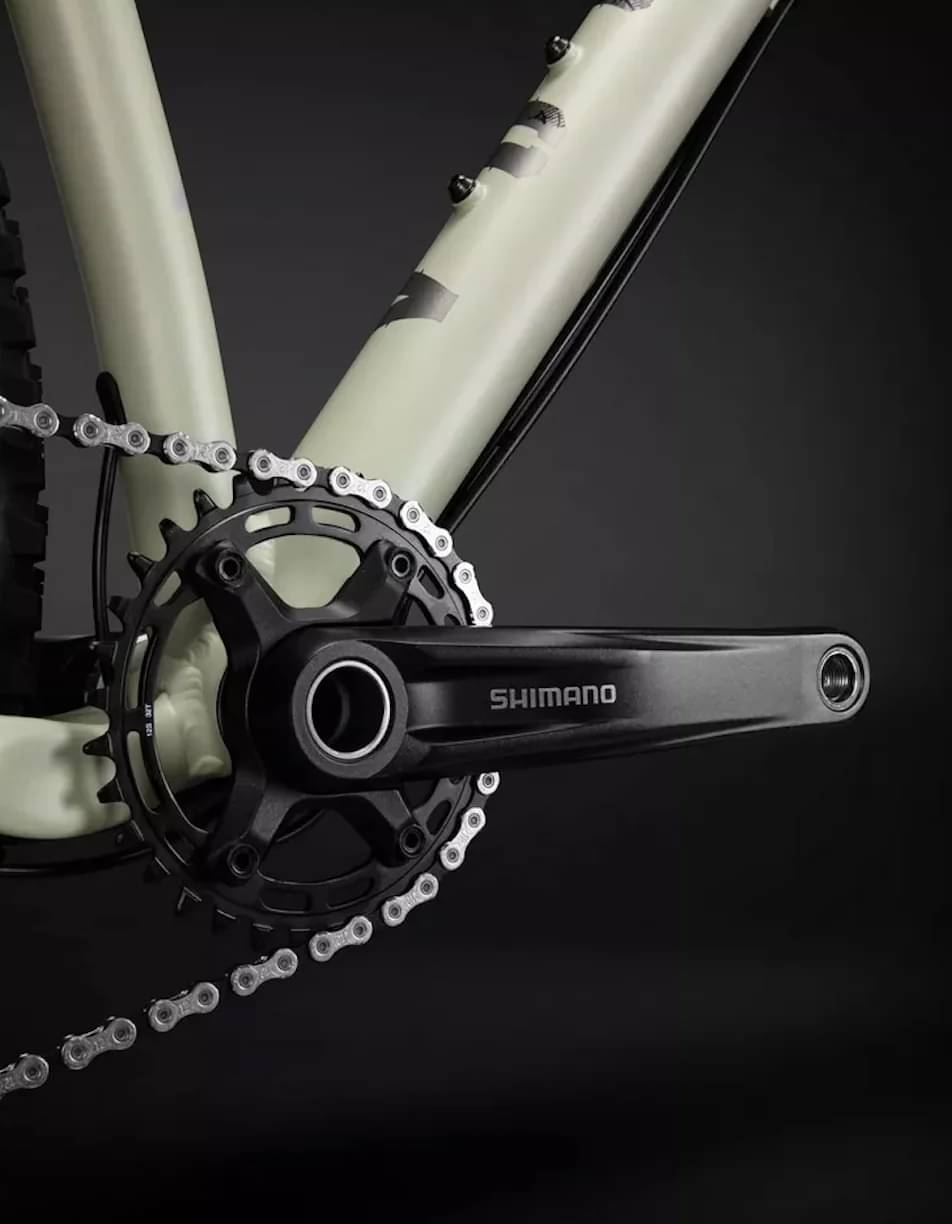

Crank
Shimano Deore FC-MT510, 32T, 170mm (S), 175mm (M, L, XL)
Bottom Bracket
Shimano BB-MT501
Chain
KMC X12, 12 speed
Pedals
Voodoo alloy, cage
Wheels
Rims
Front: Alloy 29", double wall, tubeless compatible, 15mm thru-axle, Rear: Alloy 29", double wall, tubeless compatible, 12mm thru-axle
Tires
Maxxis Forekaster, dual compound, EXO protect, tubeless ready, 29"x2.4"
Brakes
Brakes
Front: Shimano BR-MT401, 180mm disc rotor, Rear: Shimano BR-MT401, 160mm disc rotor
Cockpit
Stem
Voodoo alloy, 45mm
Handlebar
Voodoo alloy, 760mm (S), 780mm (M, L, XL)
Grips
Voodoo, lock-on
Headset
Integrated 1 1/8" - 1.5"
Seat
Saddle
WTB Volt Medium
Seatpost
X-Fusion Manic dropper post, 31.6mm x 429mm, 150mm travel
Fit data

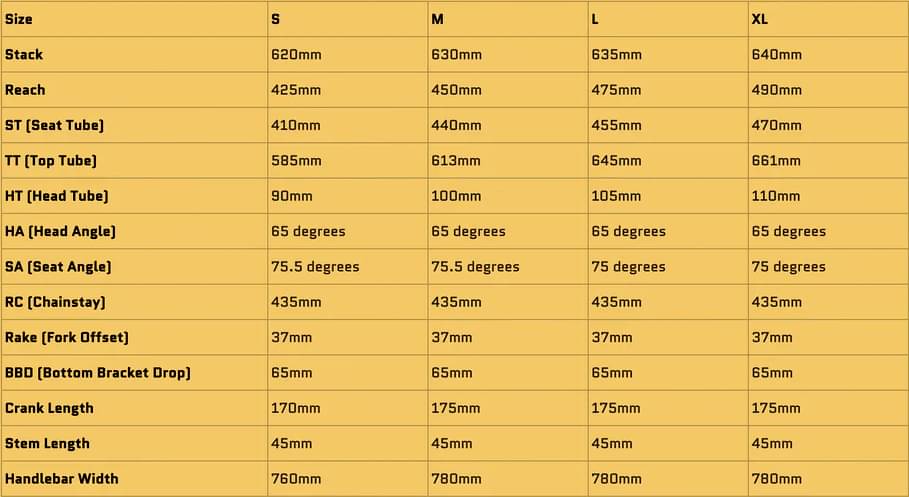

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
