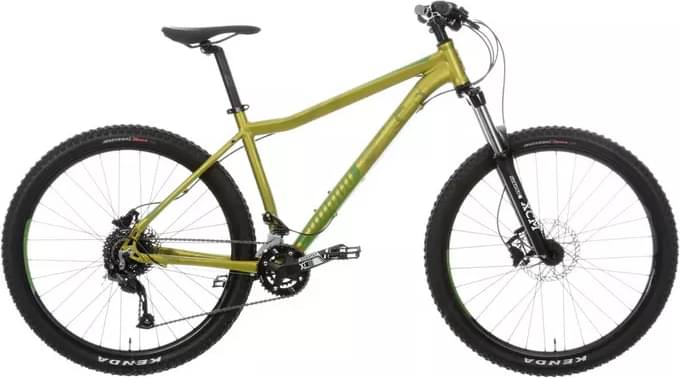

Voodoo Braag Limited Edition Mens Mountain Bike 2020
2020 Mountain
Estimate price |
677$
Weight | 15.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Fork SunTour XCM HLO -
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Suntour XCM DS HLO, 1 1/8" steerer
Drivetrain
Rear Derailleur
Shimano Altus Shadow, 9 speed
Front Derailleur
Shimano, front pull, direct mount
Cassette
Shimano HG2000, 9 speed, 11-36t
Crank
Suntour XCM, 36/22t (S - 170mm, M/L - 175mm)
Bottom Bracket
FSA BB-7420, 73x122.5mm, square taperq
Chain
KMC 9 speed
Pedals
Flat Wellgo Alloy, 9/16"
Wheels
Front Hub
Alloy, quick release 9x100mm
Rear Hub
Alloy, boost 141 QR, 8/9/10 speed freehub
Rims
27.5" Alloy, black, 32H
Tires
Kenda K-1150, 60TPI
Brakes
Brakes
Clarks M1, 180mm rotor
Cockpit
Handlebar
Voodoo Alloy, 31.8mm clamp
Grips
Black, lock-on
Headset
1-1/8" semi-integrated, 44mm upper and lower
Seat
Seatpost
Voodoo Alloy 31.6mm, 35mm Q/R seat clamp
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm | 308 mm |
| Top Tube Length | 588 mm | 613 mm | 633 mm | 648 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 460 mm | 495 mm | 560 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 115 mm | 120 mm | 135 mm | 150 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm | 47 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Braag Limited Edition Mens Mountain Bike completes the Voodoo Braag model. 4 bikes variations carry this model name so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 608$. Comparing this to the average Crosscountry bike price, we see that the price is 213.32% smaller.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 15.1 kg (33.29 lbs), Voodoo bike is much heavier than average. To sum up, it’s 21.77% heavier than the average weight of Crosscountry bikes.
Overview of components
Fork
The SunTour XCM HLO is included from the factory. It has a travel distance of mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on Braag Limited Edition Mens Mountain Bike are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Braag Limited Edition Mens Mountain Bike comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
