Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Fork RockShox Psylo
-
Groupset CUES -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano 36v, 14Ah, 504Wh -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full suspension, alloy 6061
Suspension Fork
RockShox Psylo Silver R, 140mm travel

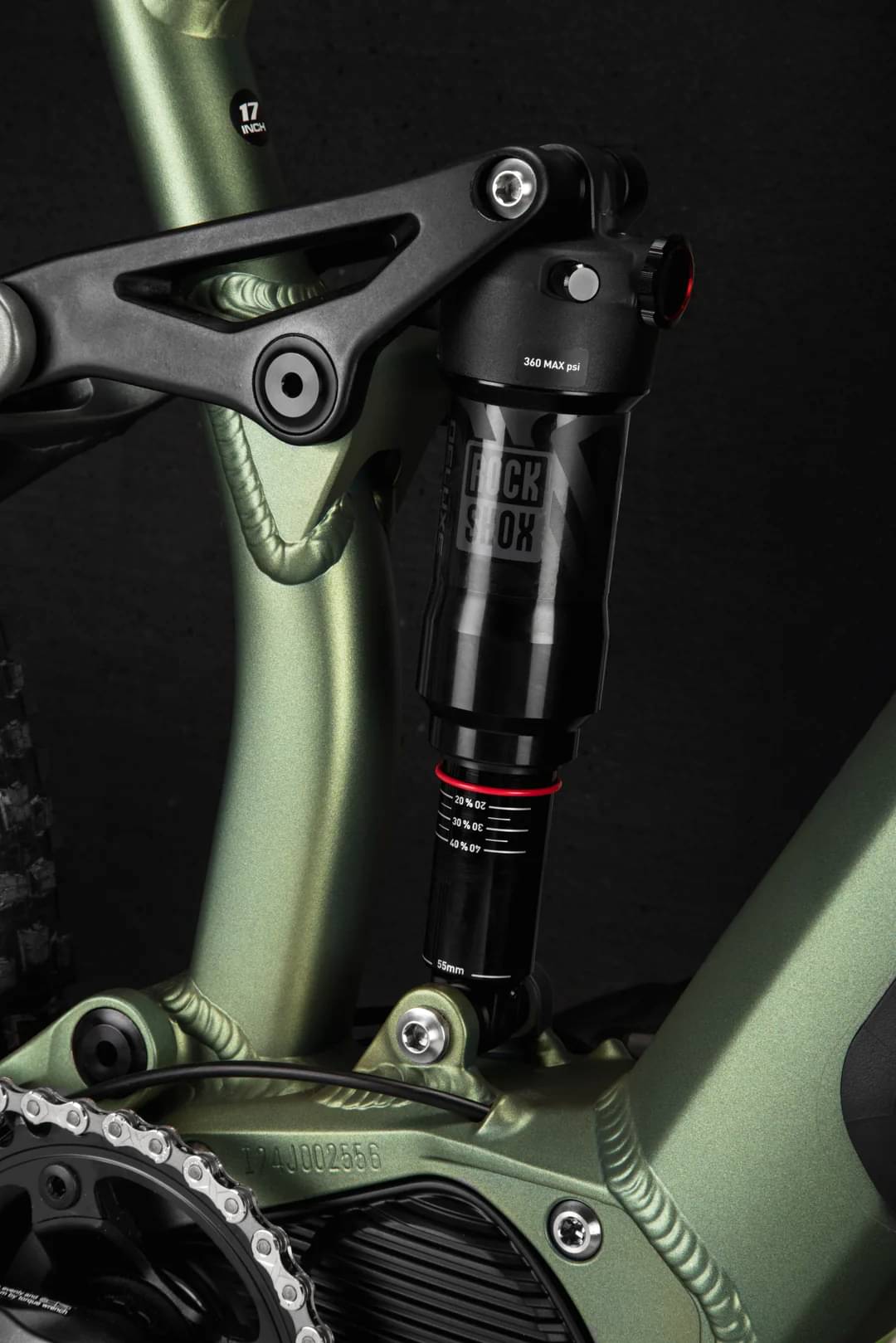

Rear Shock
RockShox Deluxe Select
Drivetrain

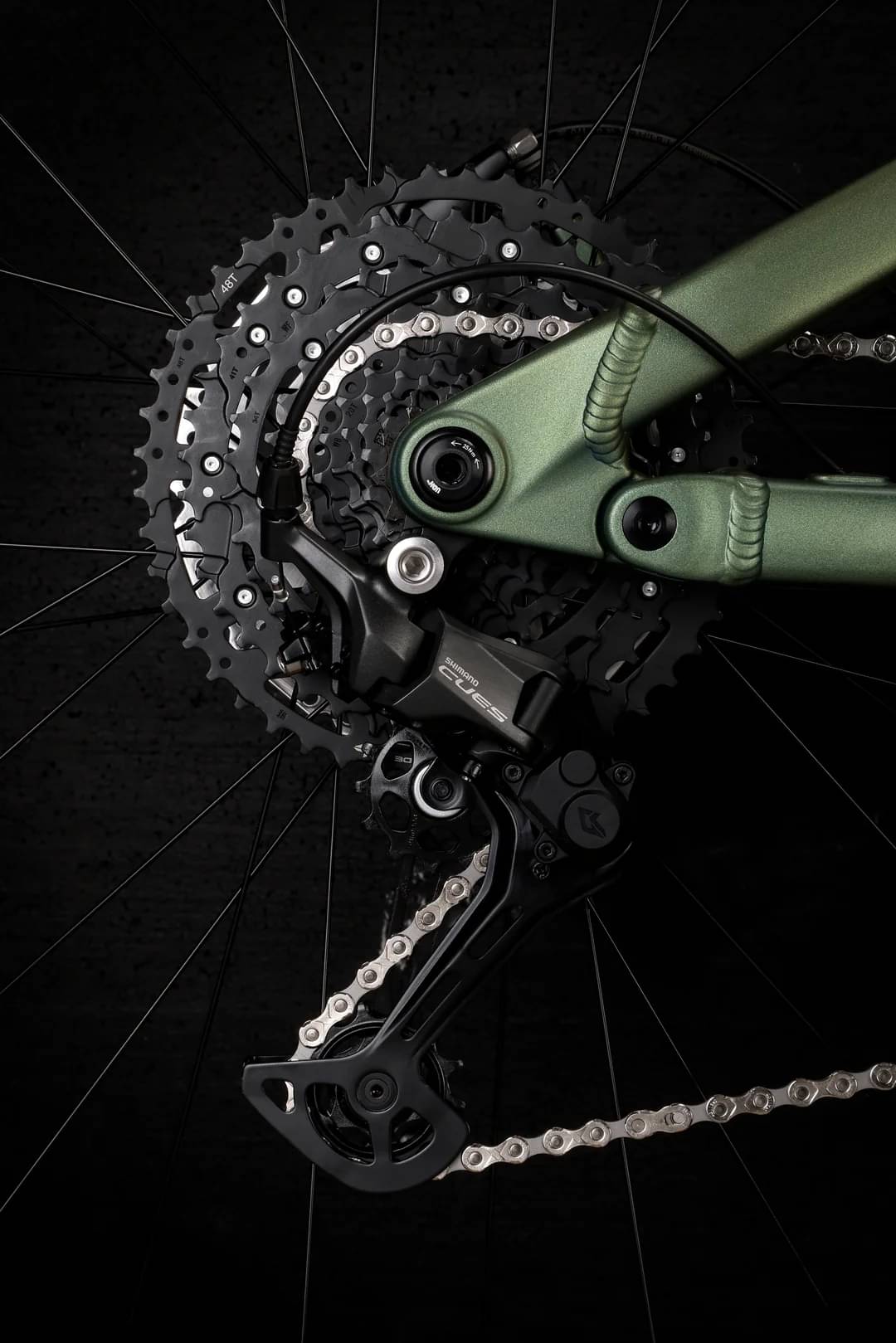

Rear Derailleur
Shimano CUES RD-U6000-GS, Shadow+, UDH hanger
Shift Levers
Shimano CUES SL-U6000, 10 speed
Cassette
Shimano CUES CS-LG300, 11-48T, 10 speed
Crank
Shimano FC-EM600 160mm crank arm, Shimano SM-CRE70-B 34T chain ring
Chain
KMC eGlide EPT, 10 speed
Pedals
Voodoo, alloy cage
Wheels
Rims
Front: Alloy, double wall, 32H, tubeless compatible, 15mm thru-axle, Rear: Alloy, double wall, 32H, tubeless compatible, 12mm thru-axle
Tires
Maxxis Forekaster, 29"x2.35", wire bead
Brakes
Brakes
Front: Shimano BR-MT200, hydraulic disc, 180mm disc rotor, Rear: Shimano BR-MT200, hydraulic disc, 180mm disc rotor
Cockpit
Stem
Voodoo alloy, 45mm
Handlebar
Voodoo alloy, 31.8mm x 780mm
Grips
Voodoo, lock-on
Headset
FSA No.57-HBS 200, integrated 1-1/8" - 1.5"
Seat
Saddle
WTB Volt Medium
Seatpost
X-Fusion Manic dropper post, 150mm travel
Motor & Battery

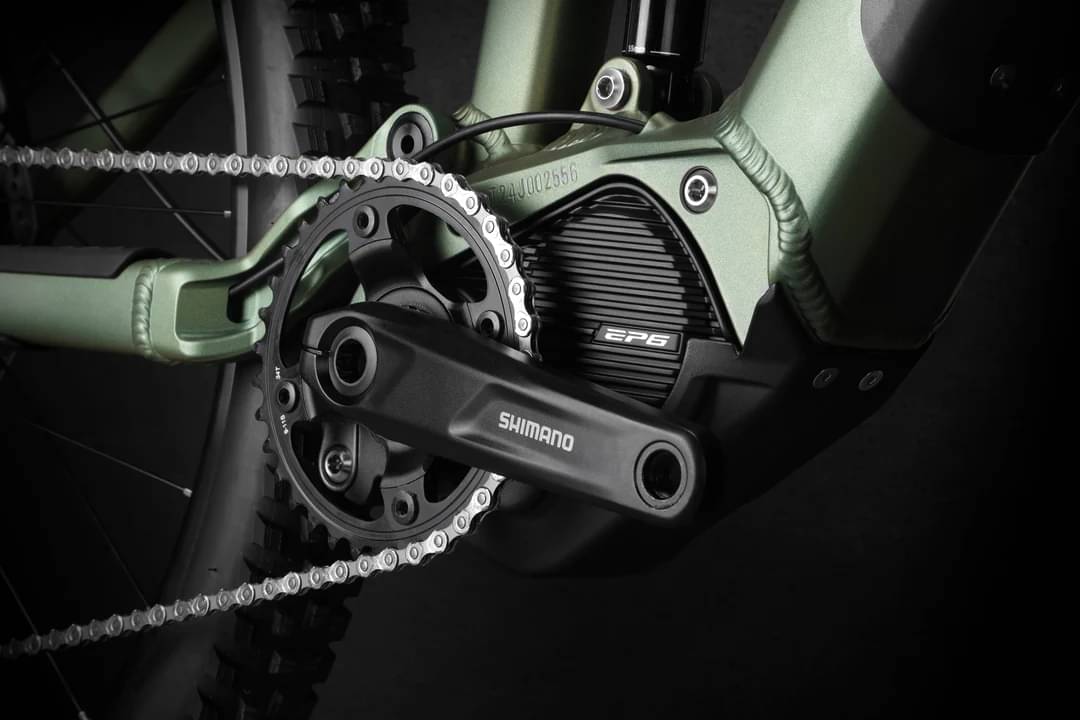

Motor
Shimano EP6 mid-drive, 250w, 85Nm
Battery
Shimano 36v, 14Ah, 504Wh
Charger
Manufacturer supplied
Fit data

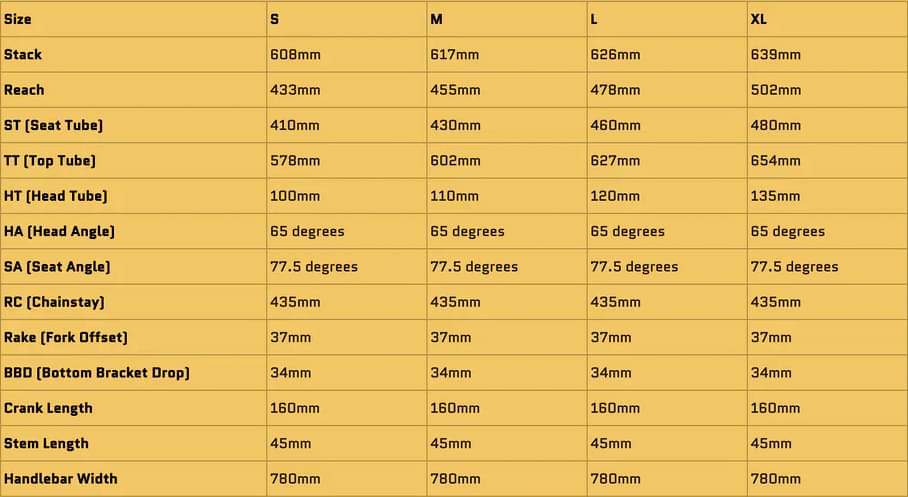

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
