Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Fork RockShox Pike
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 172cm
MD
168cm - 177cm
LG
175cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy
Suspension Fork
RockShox Pike with 140mm travel

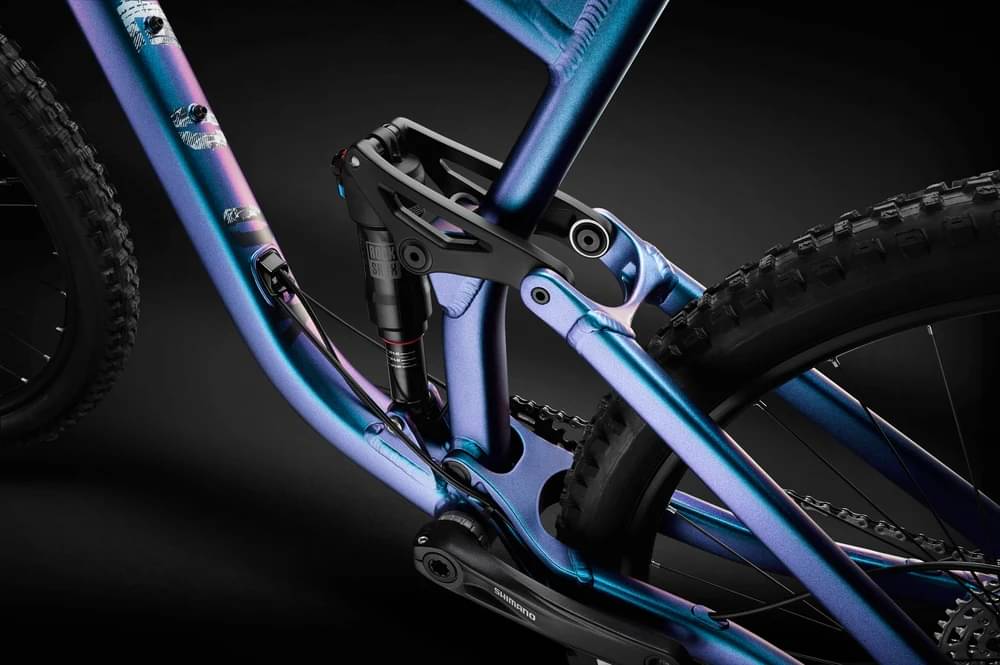

Rear Shock
Rockshox Deluxe Select+
Drivetrain
Rear Derailleur
Shimano Deore RD-M6100, Shadow+, UDH hanger
Shift Levers
Shimano Deore SL-M6100-R, 12 speed
Cassette
Shimano Deore CS-M6100, 12 speed, 10-51T
Crank
Shimano FC-MT510-1, 32T, 170mm
Bottom Bracket
Shimano Deore SM-BB52
Chain
KMC X12, 12 speed
Pedals
Voodoo alloy, cage
Wheels
Rims
Front: WTB alloy 29", double wall, 32H, tubeless ready, 15mm thru-axle, Rear: WTB alloy 29", double wall, 32H, tubeless ready, 12mm thru-axle
Tires
Tubeless ready, Maxxis Minion DHR II, 29x2.4" (front), Maxxis Dissector, 29x2.4" (rear)
Brakes
Brakes
Front: Shimano BR-MT420/BL-MT401, hydraulic, 180mm disc rotor, Rear: Shimano BR-MT420/BL-MT401, hydraulic, 180mm disc rotor
Cockpit
Stem
Voodoo alloy, 31.8mm x 45mm, 3 degree rise
Handlebar
Voodoo alloy, 31.8mm x 780mm
Grips
Velo VLG-1661D2, black, lock-on
Headset
1-1/8" - 1.5" semi-integrated, sealed cartridge
Seat
Saddle
WTB Volt Medium with gel inserts
Seatpost
Tranz-X dropper post with 125mm travel (S), 150mm travel (M, L)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 168 cm | 175 cm |
| Rider Max Height | 172 cm | 177 cm | 185 cm |
