Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RockShox SID Ultimate
-
Groupset X01 Eagle, X01 Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Rock Shox SID Ultimate 120mm Boost; 51mm offset :
Drivetrain

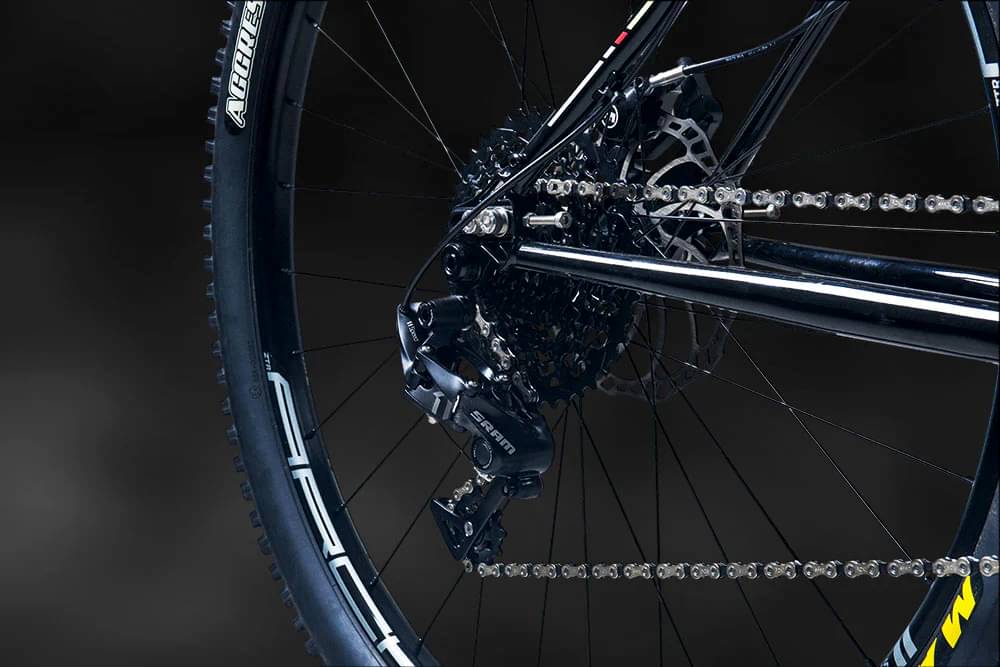

Rear Derailleur
SRAM AXS X01 - 12-speed EAGLE Rear, BLACK
Front Derailleur
n/a
Shift Levers
SRAM AXS X01 - 12-speed Eagle Rear, Right-hand
Cassette
SRAM XG-1295 12-speed EAGLE, 10-52t

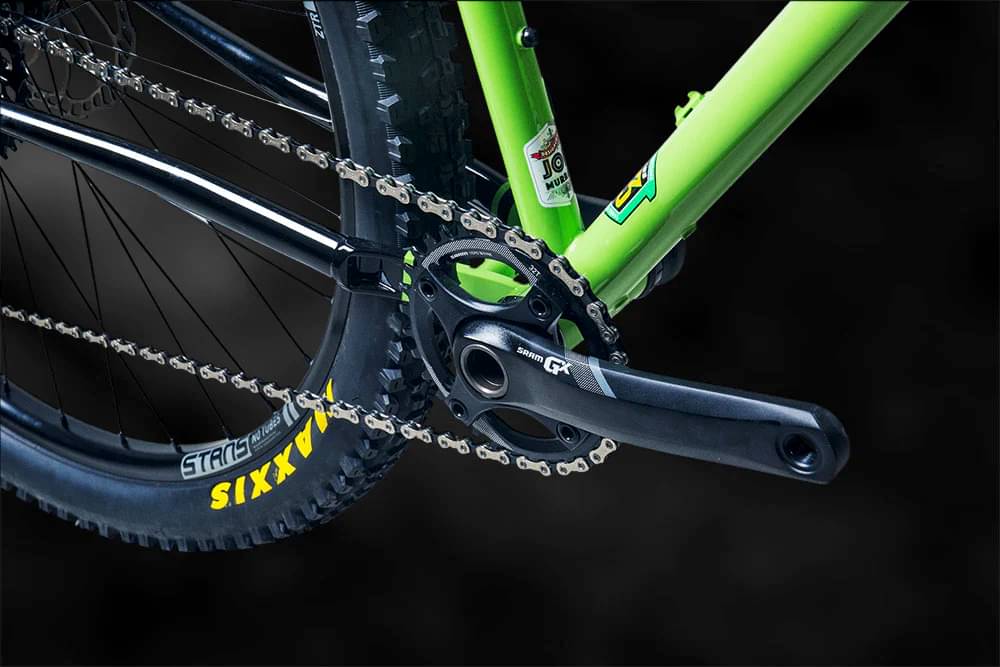

Crank
FC X01 EAGLE B148 DUB 175 LNRPLR 32
Bottom Bracket
Truvativ/SRAM DUB BSA MTB73 : BB DUB BSA 73 MTB
Chain
SRAM X01 Eagle 12-speed, 114 links
Pedals
Wellgo LU-895DU Mountain Bike Pedals
Wheels
Tires
Maxxis Rekon Front 29: X 2.6", EXO/TR; Agressor Rear 29" X 2.5", EXO/TR
Brakes
Brakes
SRAM G2 Ult : DB-G2 ULT DFB FRT 20P 900 : DB G2 ULT DFB RER 20P 1500
Cockpit
Stem
Race Face Turbine R Basic (Size will change between 50, 60 & 70mm)
Handlebar
HANDLEBAR,NEXT R,35,20MM RISER, green/black, 800mm
Headset
FSA Sealed 1-1/8 ACB Top, 1.5" ACB Btm (for 46/56mm Head Tubes ), alloy crown race (H2166B) Orbit C-40-ACB
Seat
Saddle
WTB Volt Pro 142 with Cromo Rails
Seatpost
KS LEV CI Dropper Seatpost - 27.2mm, 120mm travel, Black
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 195 cm |
