Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RockShox SID Select
-
Groupset X01, X01 Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Rock Shox SID Select 120mm Boost; 51mm offset, 29/27.5+" Tapered
Drivetrain

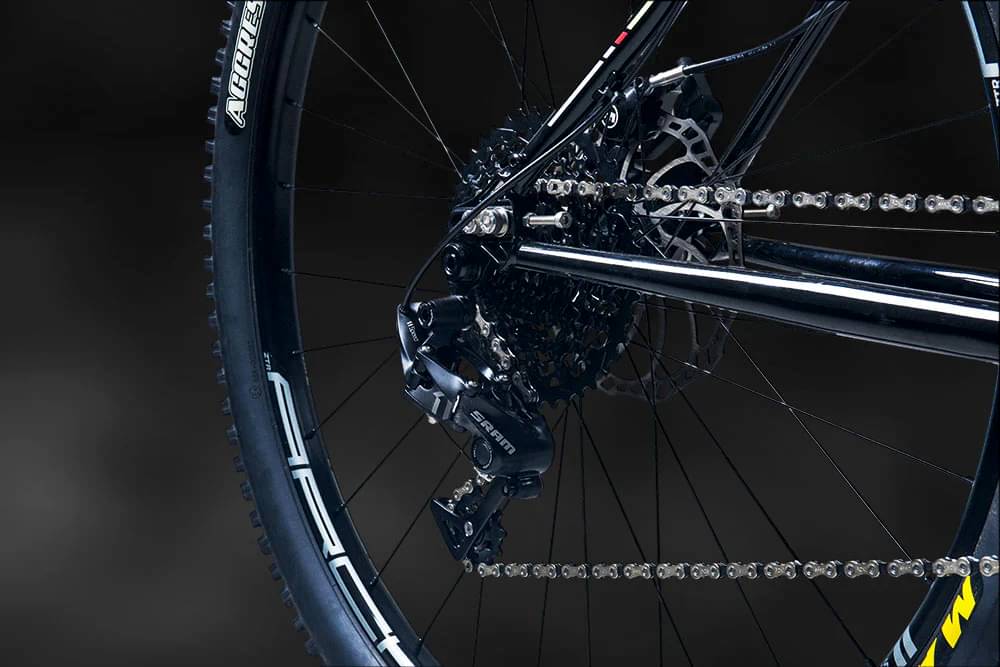

Rear Derailleur
SRAM X01 - 12-speed EAGLE Rear, BLACK
Front Derailleur
n/a
Shift Levers
SL X01 EAGLE TRIGGER LUNAR
Cassette
SRAM XG-1295 12-speed EAGLE, 10-52t

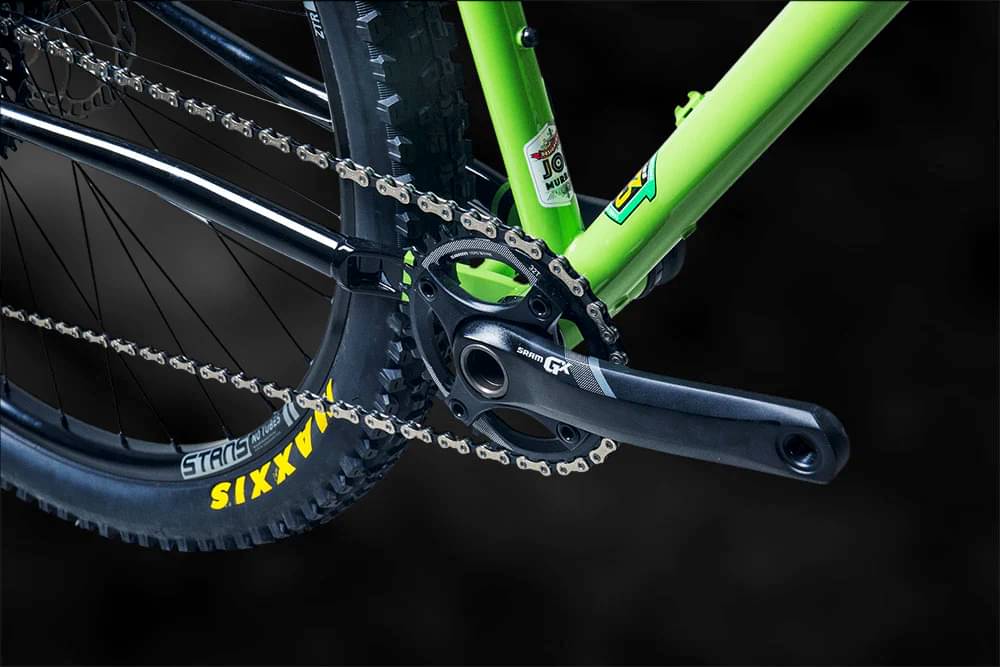

Crank
FC STYLO C EAGLE B148 DUB 175 BLK 32
Bottom Bracket
Truvativ/SRAM DUB BSA MTB73 : BB DUB BSA 73 MTB
Chain
SRAM X01 Eagle 12-speed, 114 links
Pedals
Wellgo LU-895DU Mountain Bike Pedals
Wheels
Tires
Maxxis Rekon Front 29: X 2.6", EXO/TR; Agressor Rear 29" X 2.5", EXO/TR
Brakes
Brakes
SRAM G2 RSC : DB-G2RSC DFB FRT 20P 900 : DB G2RSC DFB RER 20P 1500
Cockpit
Stem
Race Face Turbine Basic (Size will change between 50, 60 & 70mm)
Handlebar
Race Face HANDLEBAR,RIDE,35,10MM RISER, 760MM

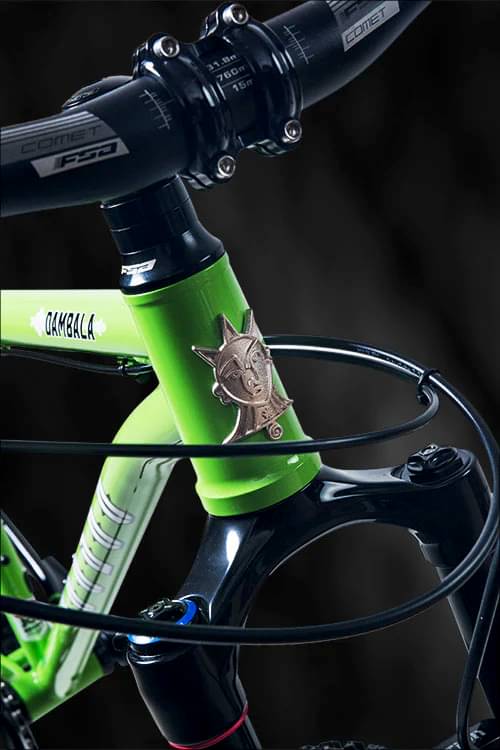

Headset
FSA Sealed 1-1/8 ACB Top, 1.5" ACB Btm (for 46/56mm Head Tubes ), alloy crown race (H2166B) Orbit C-40-ACB
Seat
Saddle
WTB Volt Race 142 with Cromo Rails
Seatpost
LEV 272 X 120mm Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 195 cm |
