Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Travel Front 120mm -
Fork RockShox Reba
-
Groupset NX Eagle -
Suspension Hardtail -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
150cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Dambala 29"/27.5+ hardtail MTB. Material: Reynolds 853 steel. BSA bottom bracket. Thru-axle 142 mm sliding adjustable dropout
Suspension Fork
RockShox REBA Motion Control RL Crown Adjust. 120 mm travel. Boost 15x110 mm
Drivetrain

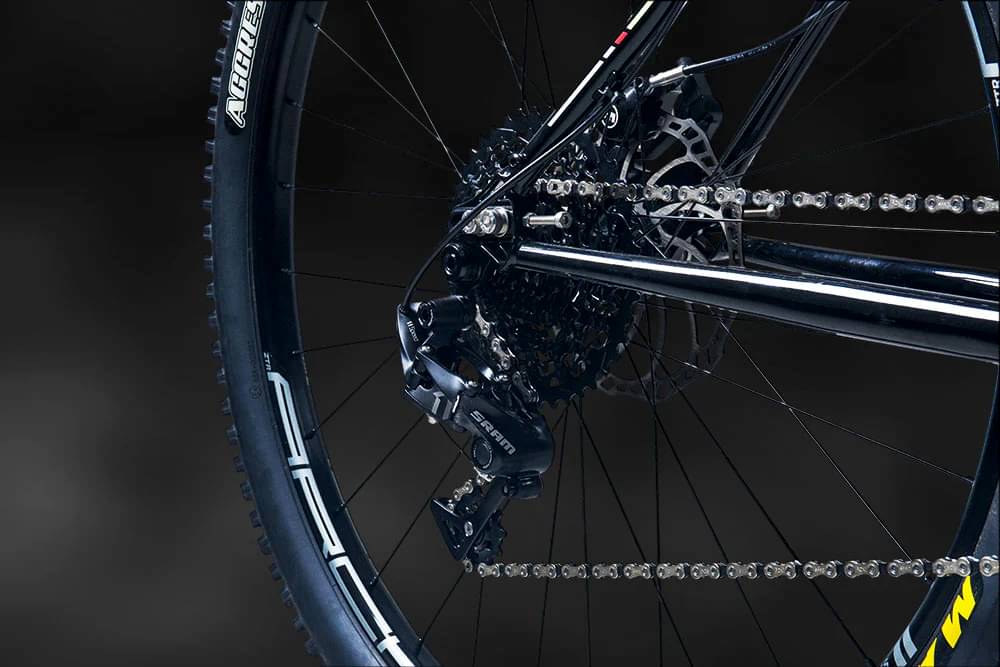

Rear Derailleur
SRAM NX Eagle
Front Derailleur
n/a
Shift Levers
SRAM NX Eagle
Cassette
SRAM PG1230. 12 speed. 11-50t

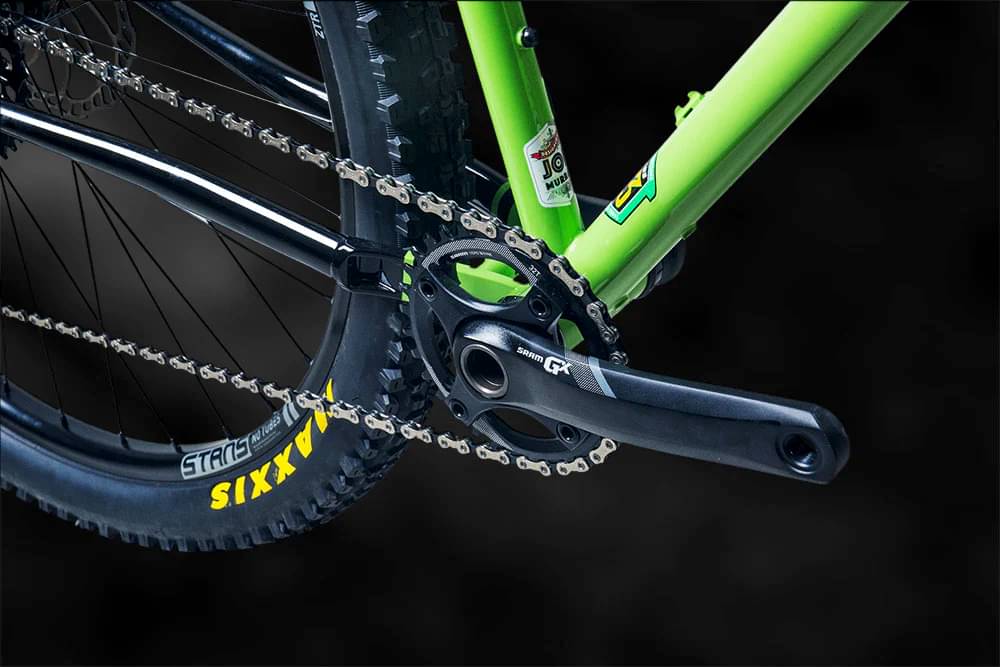

Crank
SRAM NX Eagle DUB. 1x 32t. 165 mm (15,17); 170 mm (18.5,20)
Bottom Bracket
SRAM DUB BSA
Chain
SRAM NX
Wheels
Rims
WTB Speedterra 29”. 15x110/12x142. 28H. Rim inner width: 30/25mm (F/R).
Tires
Maxxis Rekon Race 29x2.35 front, 29x2.25 rear. EXO/TR
Brakes
Brakes
SRAM G2 R
Brake Levers
SRAM G2 R
Cockpit
Stem
Race Face Aeffect 35. 60 mm (15,17); 70 mm (18.5,20)
Handlebar
Race Face Aeffect 35, 10mm rise, 760mm
Grips
Race Face Lock on Half Nelson Black
Headset
FSA. Tapered 1-1/8 - 1-1/2. Internal
Seat
Saddle
WTB Volt Medium. Cromoly SL Fusion Form
Seatpost
Race Face Turbine, ?27.2mm Length: 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 150 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 195 cm |
