Bike details
Overview
Key information split into simple groups.

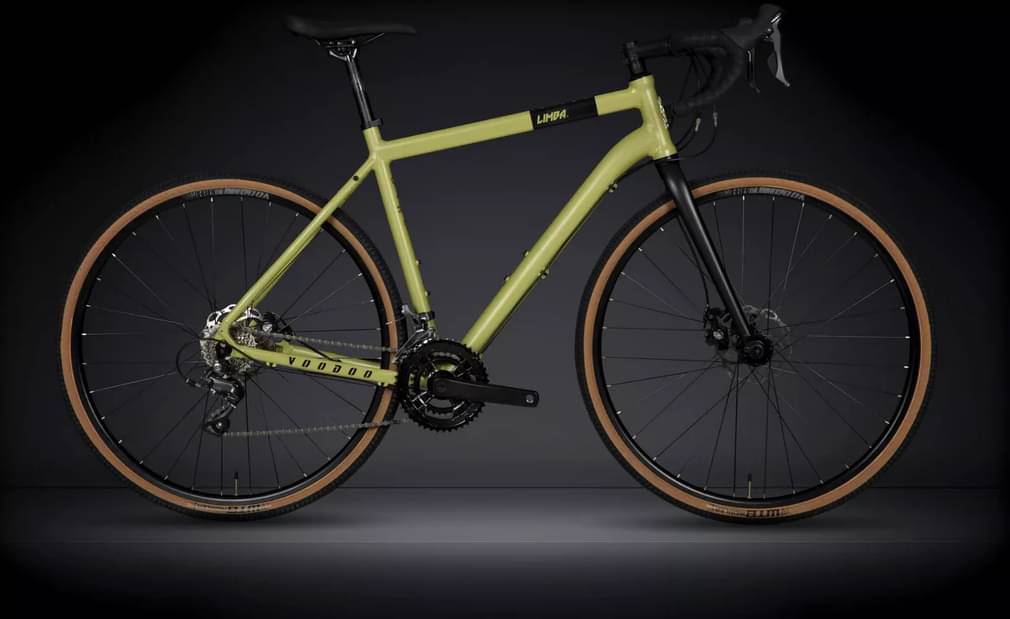

Bike summary
-
-
Frame Aluminum -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
160cm - 172cm
MD
170cm - 180cm
LG
177cm - 188cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

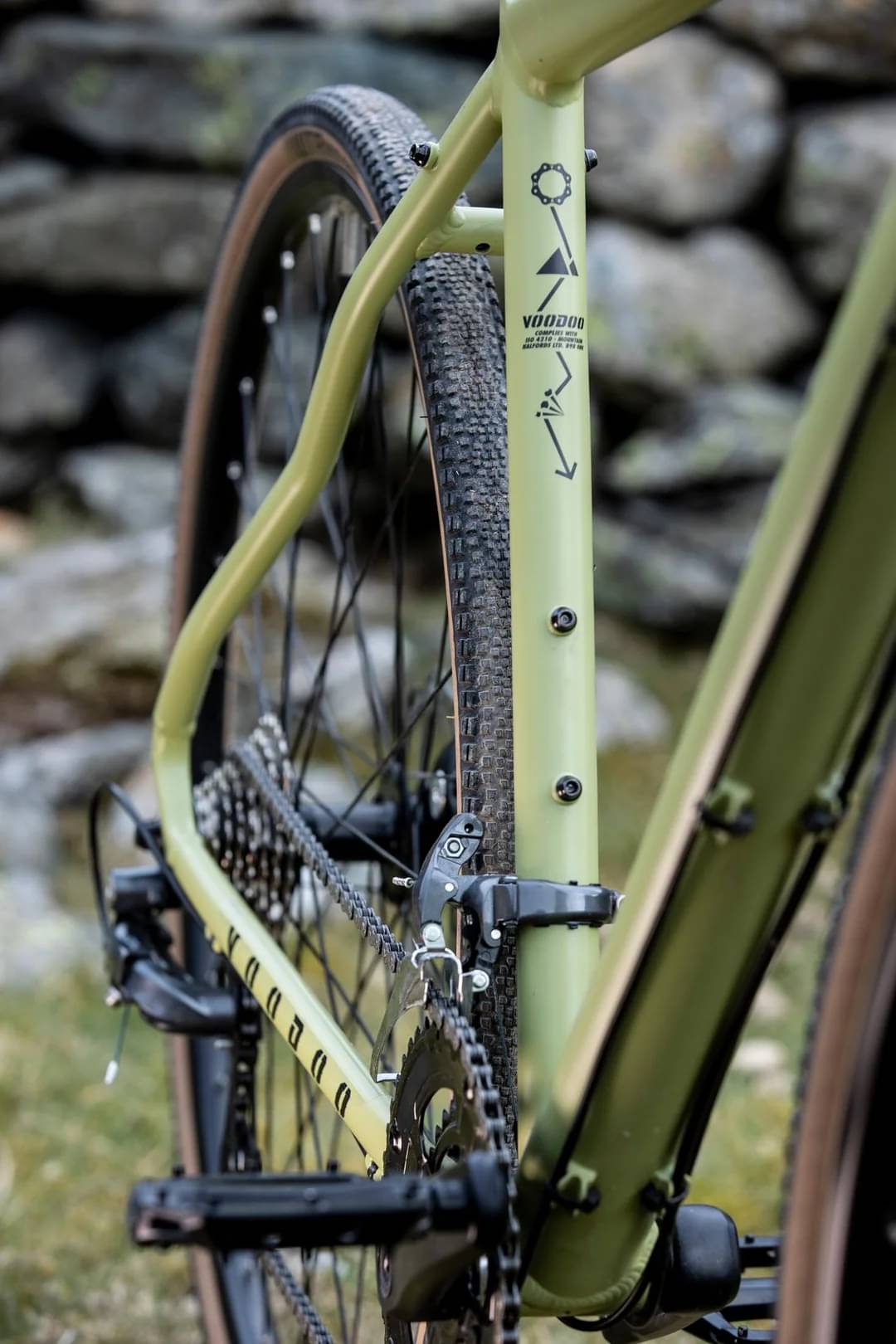

Limba 700C gravel. Material: aluminium alloy. BSA bottom bracket. QR 135 mm dropout. Smooth welding
Suspension Fork
Steel, 700C. Fender eyelets
Drivetrain

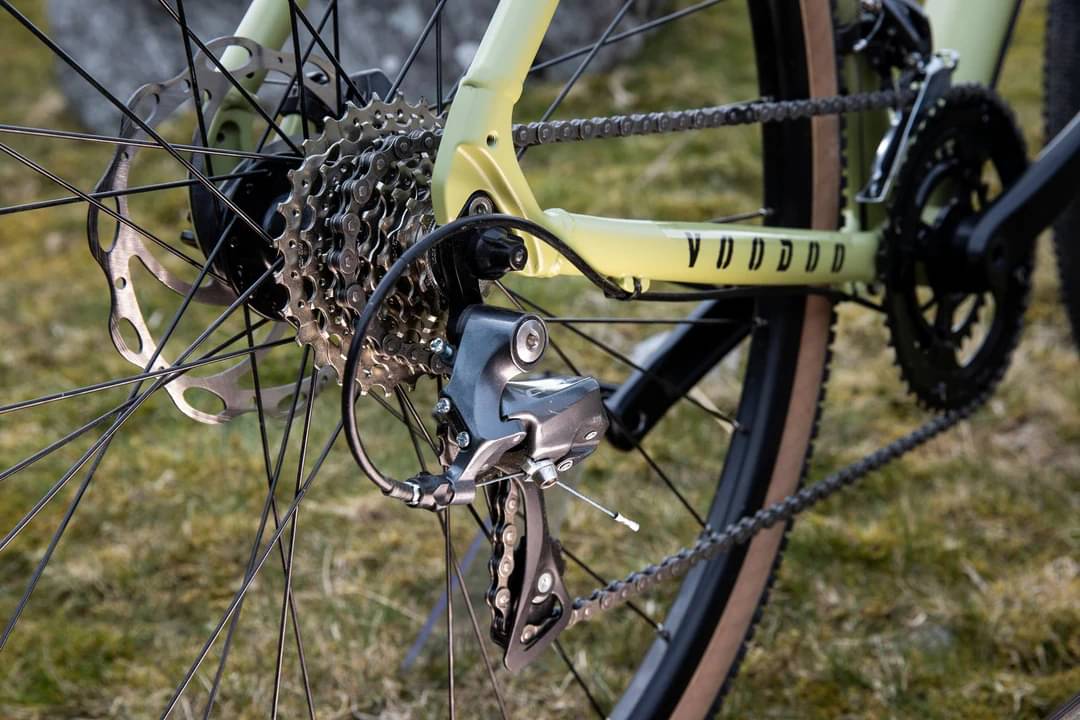

Rear Derailleur
Shimano Claris RD-R2000-SS
Front Derailleur
Shimano Claris FD-R2000-F
Shift Levers
Shimano Claris ST-R2000
Cassette
Shimano CS-HG500-8. 8 speed. 11-28t
Crank
Forged alloy. 2x 46-30t. 170 mm (S, M); 175 mm (L, XL)
Bottom Bracket
BSA
Chain
KMC Z8.3
Pedals
FPD NWL-221. Aluminium alloy. Flat with retention pins
Wheels
Front Hub
Aluminium alloy, 15x100, 32H, 6 bolts (F). Aluminium alloy, QR135, 32H, 6 bolts (R)
Rear Hub
Aluminium alloy, 15x100, 32H, 6 bolts (F). Aluminium alloy, QR135, 32H, 6 bolts (R)
Rims
622/700C aluminium alloy, double wall. 32H. 18 mm inner width, 18 mm height
Spokes
Steel
Tires

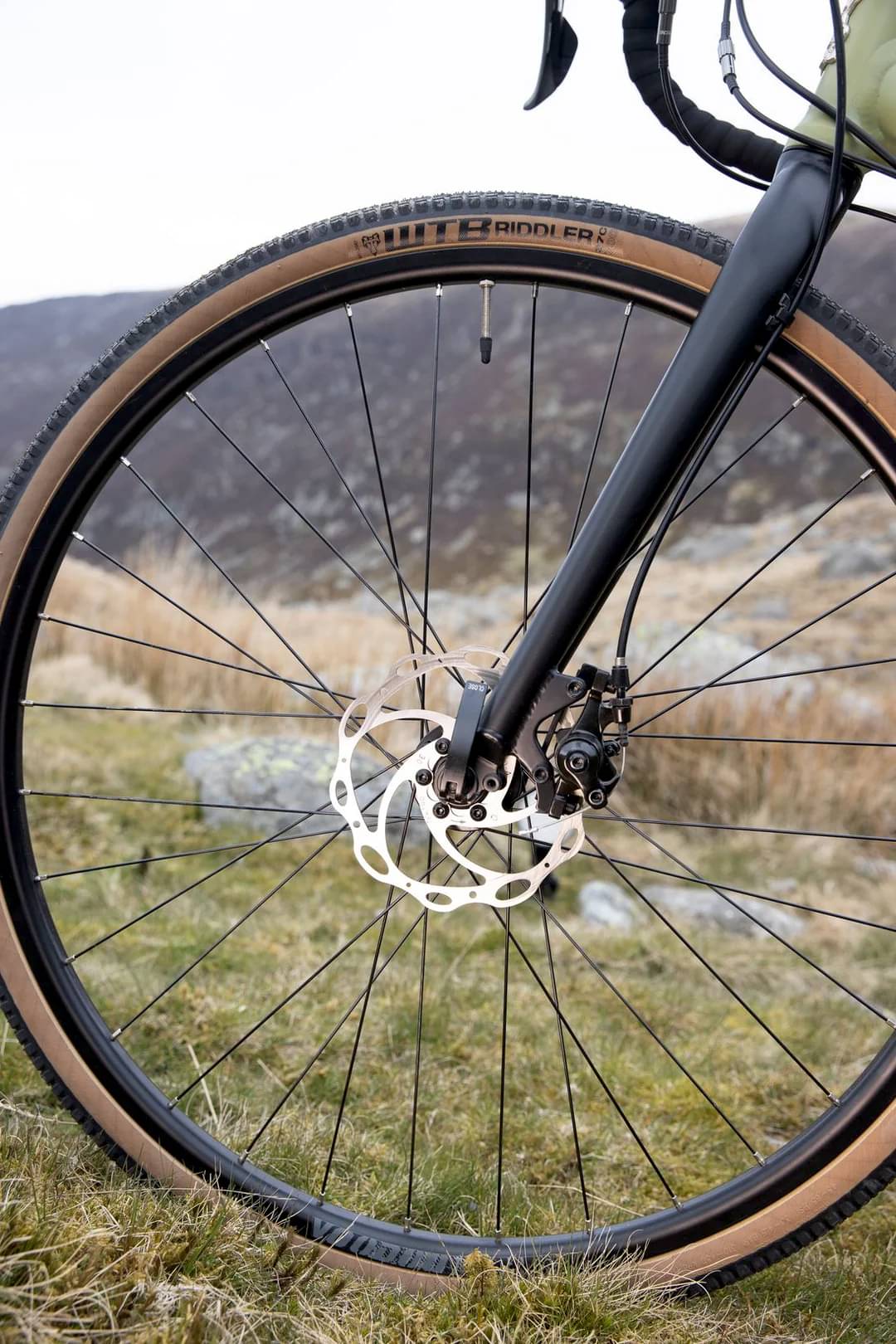

WTB Riddler 700x37C. 30TPI
Brakes
Brakes

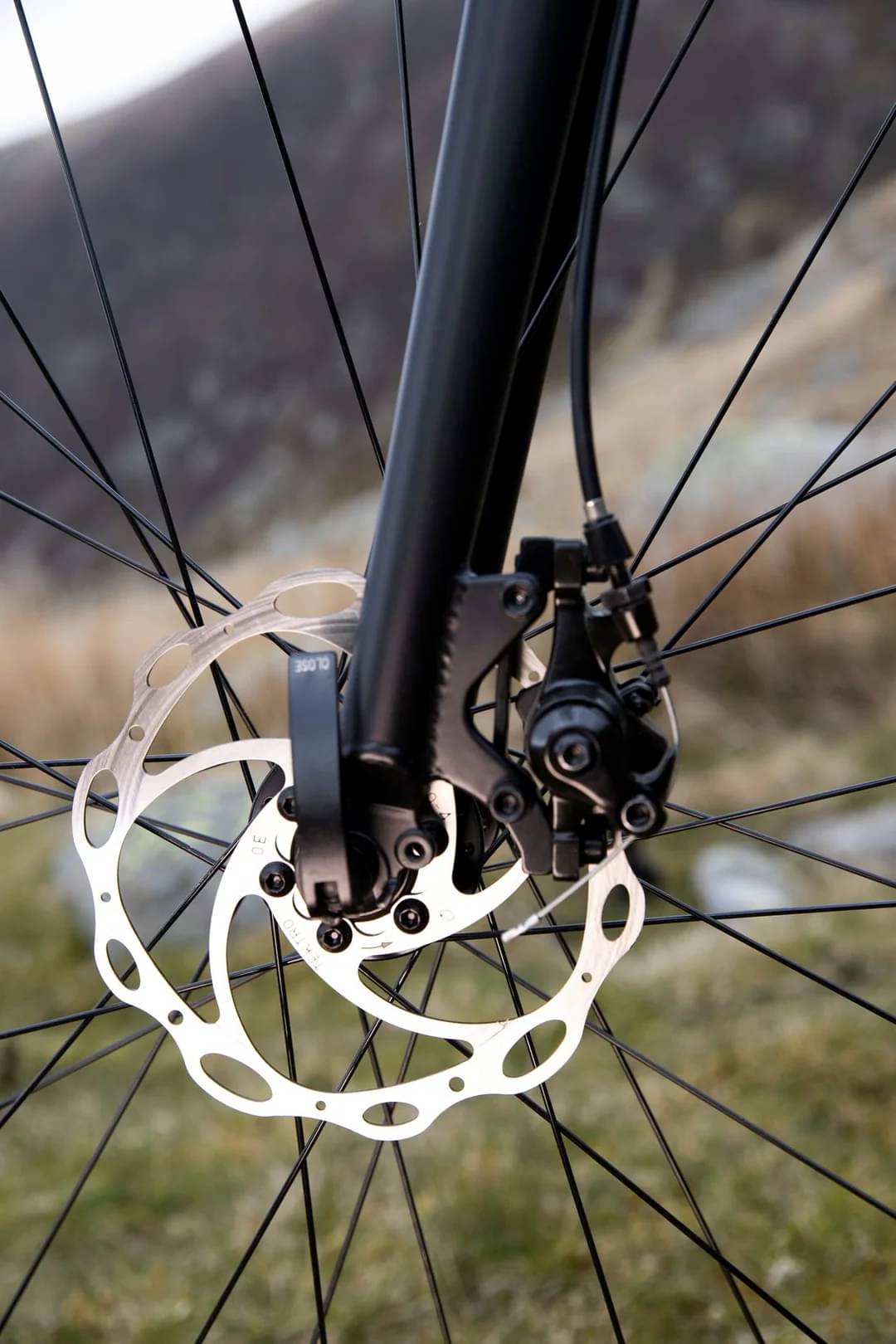

Tektro MD-C400
Brake Levers
Shimano Claris ST-R2000
Cockpit
Stem
Aluminium alloy, ?31.8 mm, 7deg. 80 mm (S, M). 90 mm (L, XL)
Handlebar
Aluminium alloy, ?31.8 mm, 128 mm drop, 16deg flare. 400 mm width (S). 420 mm width (M, L). 440 mm width (XL)
Headset
Threadless semi-integrated 1-1/8"
Seat
Saddle
WTB Volt Medium. Steel rails
Seatpost
Aluminium alloy, ?27.2 mm. 300 mm length (S). 350 mm length (M, L). 400 mm length (XL)
Fit data

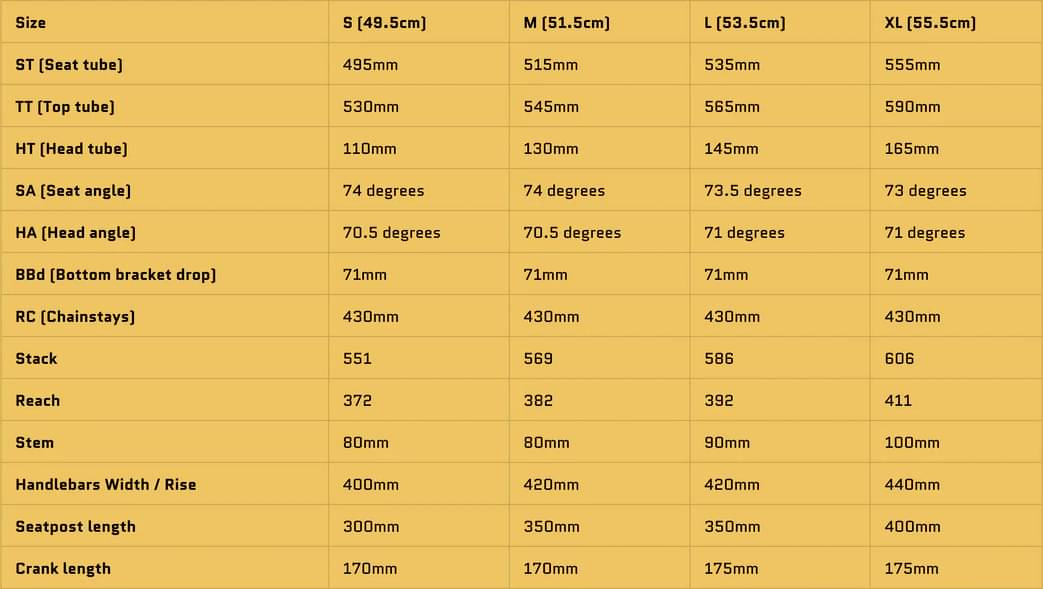

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 170 cm | 177 cm | 185 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 195 cm |
