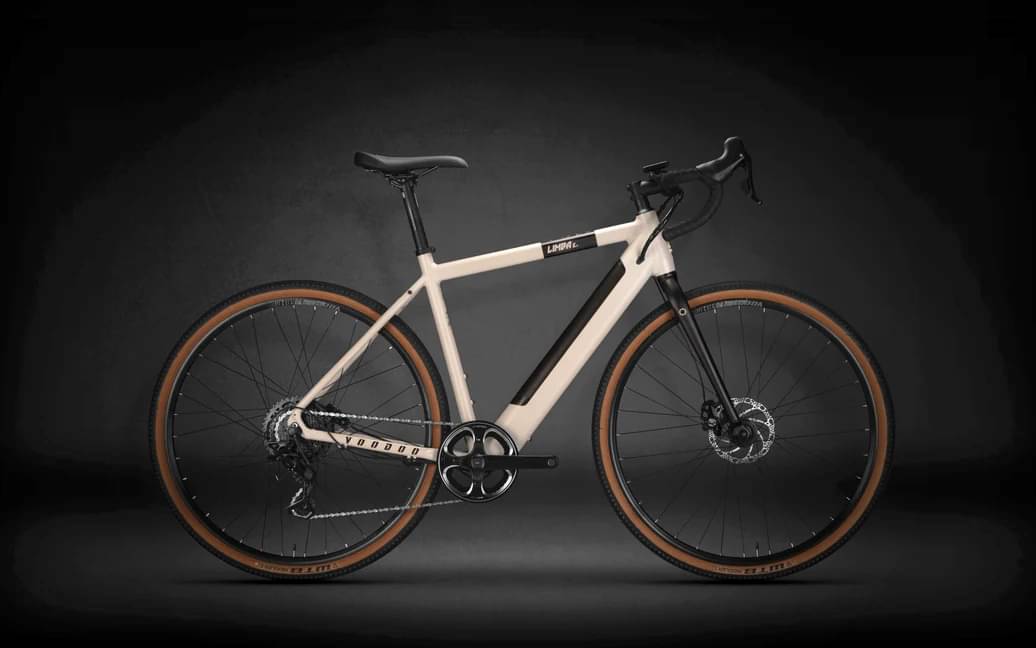

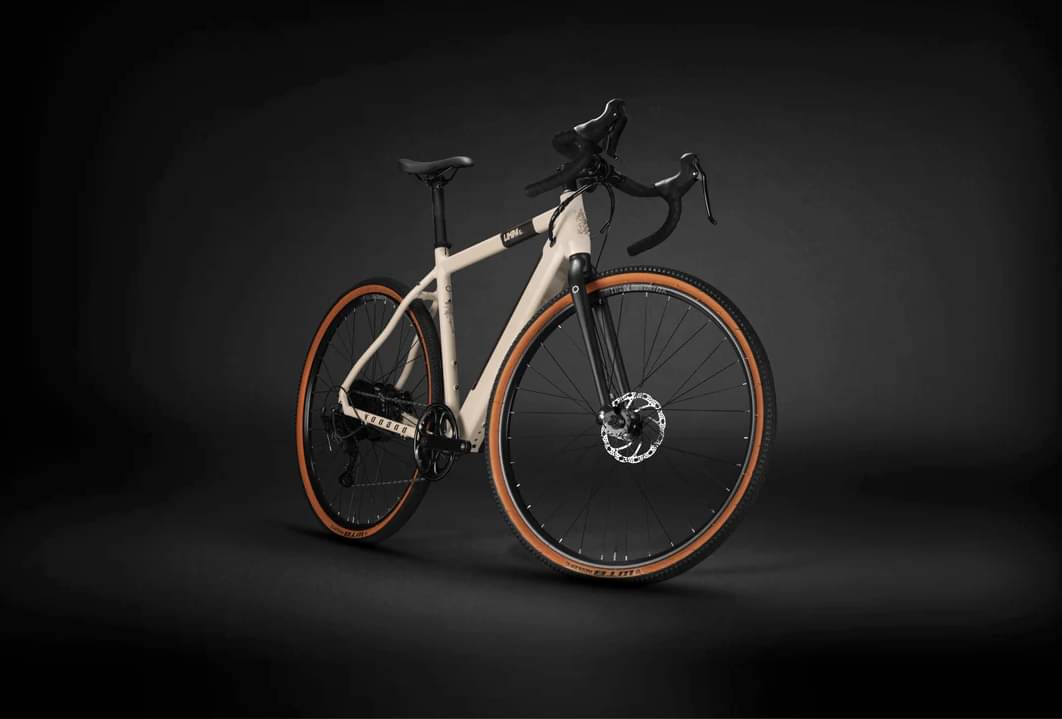

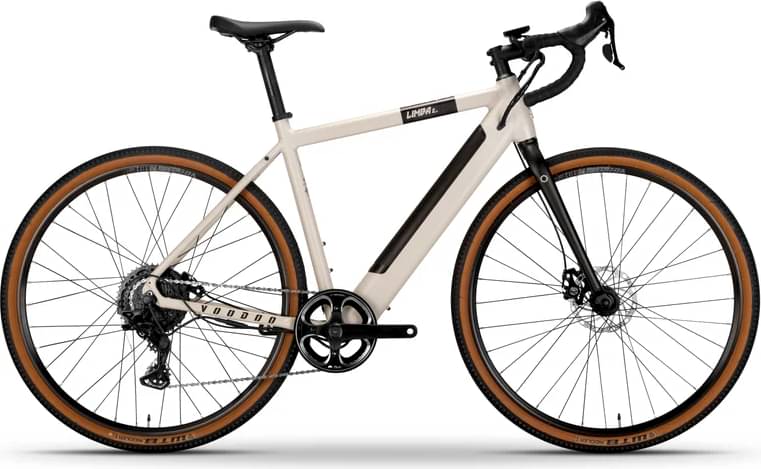

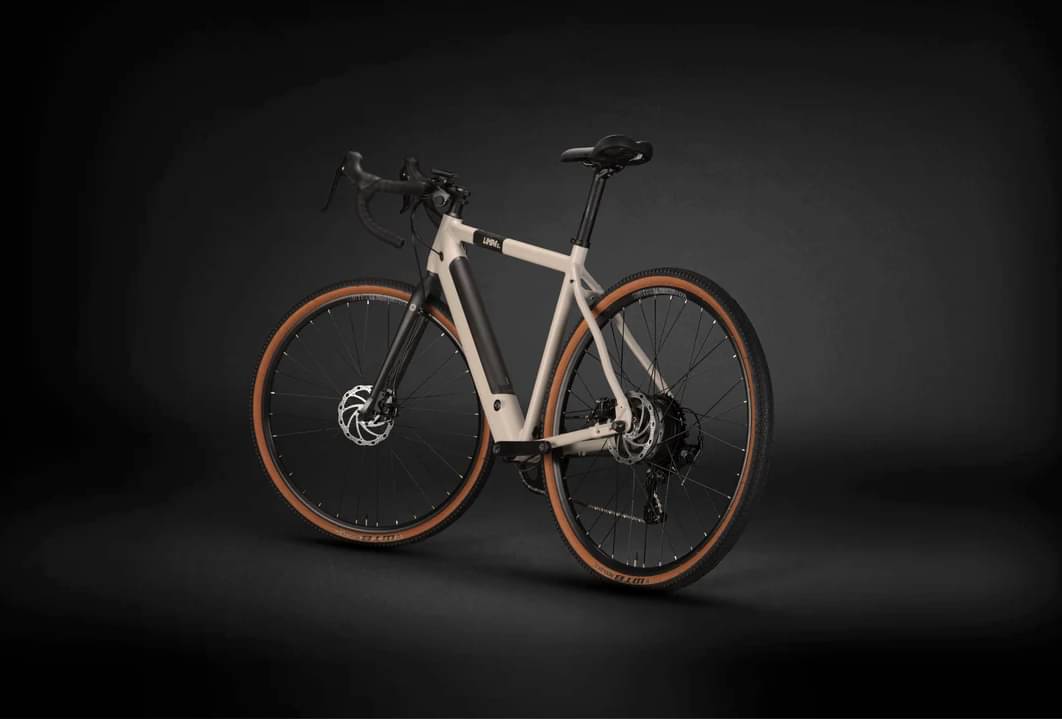

Voodoo LIMBA E 2025
2025 E-bike
Estimate price |
2,200$
Weight | 23 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Sword -
Suspension Rigid -
Motor Bafang 250W 45Nm hub-drive -
Battery Bafang 36v, 10.5Ah, 378Wh -
Drivetrain 1 × 9 -
Brakes Tektro Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Adventure, alloy 6061
Suspension Fork
Rigid, alloy
Drivetrain
Rear Derailleur
microSHIFT RD-G7900M

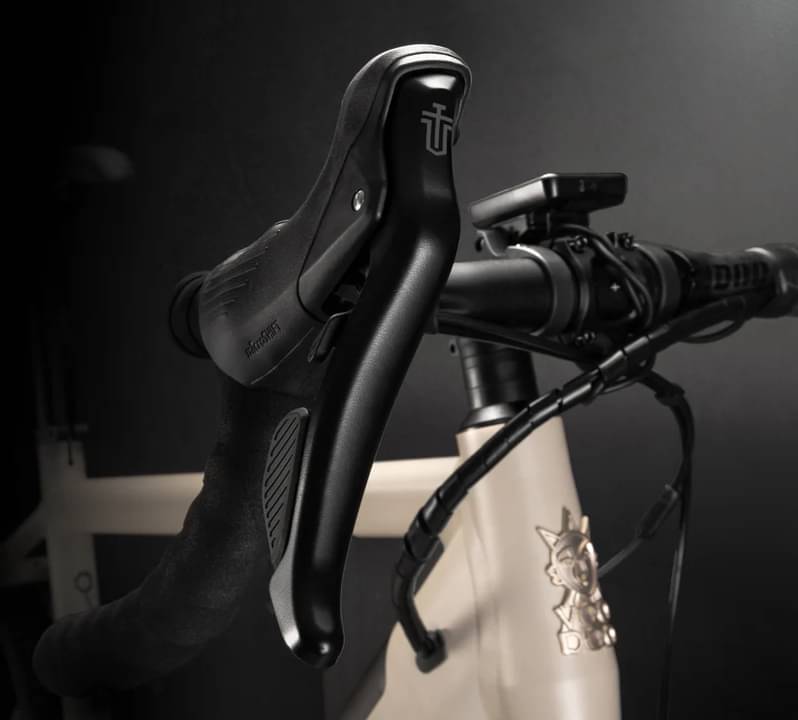

Shift Levers
microSHIFT Sword Black, 9 speed
Cassette
microSHIFT CS-H093, 11-42T, 9 speed
Crank
Prowheel, 42T, 170mm
Bottom Bracket
Bafang dual-sided torque sensor
Chain
KMC X9, 9 speed
Pedals
Alloy, cage
Wheels
Rims
Front: Alloy, double wall, disc hub, 32H, Rear: Alloy, double wall, Bafang RM-G020-250 motor
Tires
WTB Riddler, 700x45c
Brakes
Brakes
Front: Tektro MD-C400, mechanical disc, 160mm disc rotor, Rear: Tektro MD-C400, mechanical disc, 160mm disc rotor
Cockpit
Stem
Alloy, 80mm (S,M) / 90mm (L) / 100mm (XL)
Handlebar
Alloy, 400mm (S) / 420mm (M,L) / 440mm (XL), 16-degree flare
Grips
Velo black bar tape
Headset
Semi-integrated 1-1/8"
Seat
Saddle
WTB Volt Medium
Seatpost
Alloy, 27.2mm x 350mm
Motor & Battery
Motor
Bafang RM-G020, rear hub, 250w, 45Nm
Battery
Bafang 36v, 10.5Ah, 378Wh
Charger
Manufacturer supplied
