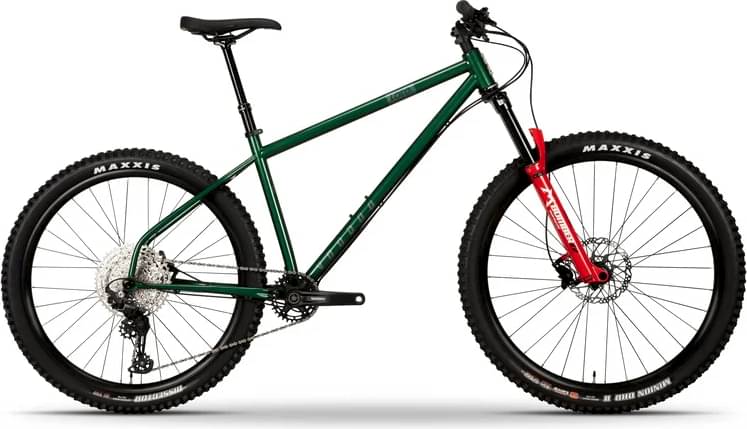

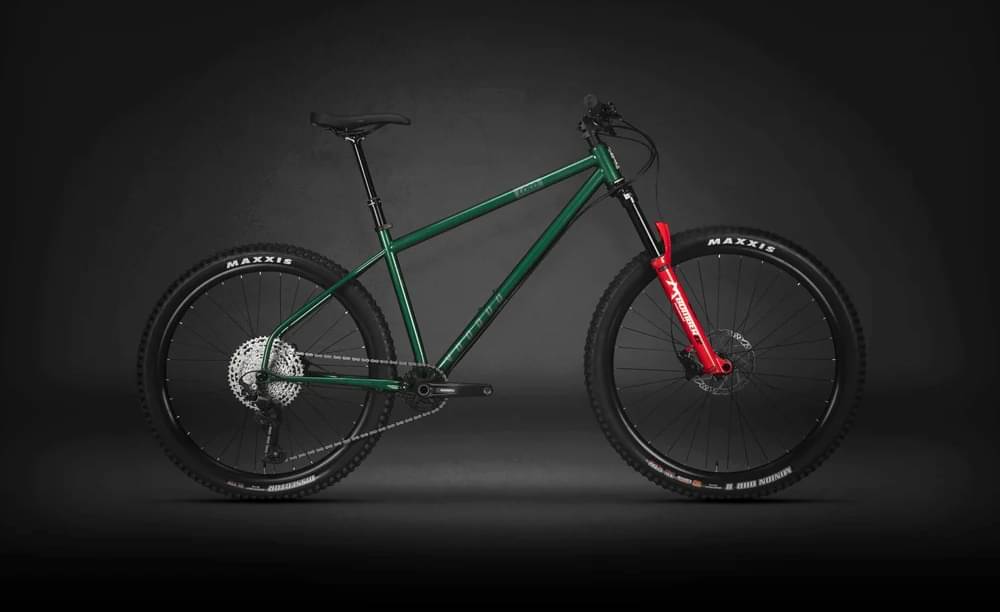

Voodoo LOCO 2025
2025 Mountain
Estimate price |
1,635$
Weight | 16.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Travel Front 140mm -
Fork Marzocchi Bomber Z2
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
MD
168cm - 177cm
LG
175cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Steel, designed for strength and flexibility on rough terrain
Suspension Fork
Marzocchi Bomber Z2, 140mm travel
Drivetrain
Rear Derailleur
Shimano Deore RD-M6100 SGS Shadow+
Shift Levers
Shimano SL-M6100, 12 speed
Cassette
Shimano Deore CS-M6100, 10-51T, 12 speed
Crank
Shimano FC-MT511-1, 32T, 170mm
Bottom Bracket
Shimano BB-MT501
Chain
KMC X12
Pedals
Alloy, cage
Wheels
Rims
Front: 29" alloy, double wall, 32H, tubeless compatible, 15x110mm thru-axle, Rear: 27.5" alloy, double wall, 32H, tubeless compatible, 12x148mm thru-axle
Tires
Maxxis Minion DHR II EXO, 29"x2.4", tubeless ready (front) / Maxxis Dissector EXO, 27.5"x2.4", tubeless ready (rear)
Brakes
Brakes
Front: Shimano BR-MT420 hydraulic, 180mm disc rotor, Rear: Shimano BR-MT420 hydraulic, 180mm disc rotor
Cockpit
Stem
Voodoo Alloy, 45mm, 3 degree rise
Handlebar
Voodoo Alloy, 780mm, 6 degree backsweep
Grips
Voodoo, lock-on
Headset
FSA Orbit ITA B (No.10/7B/44)
Seat
Saddle
WTB Volt Medium
Seatpost
Dropper post with 170mm travel, cable actuated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 29" | 29" |
| Rider Min Height | 168 cm | 175 cm |
| Rider Max Height | 177 cm | 185 cm |
