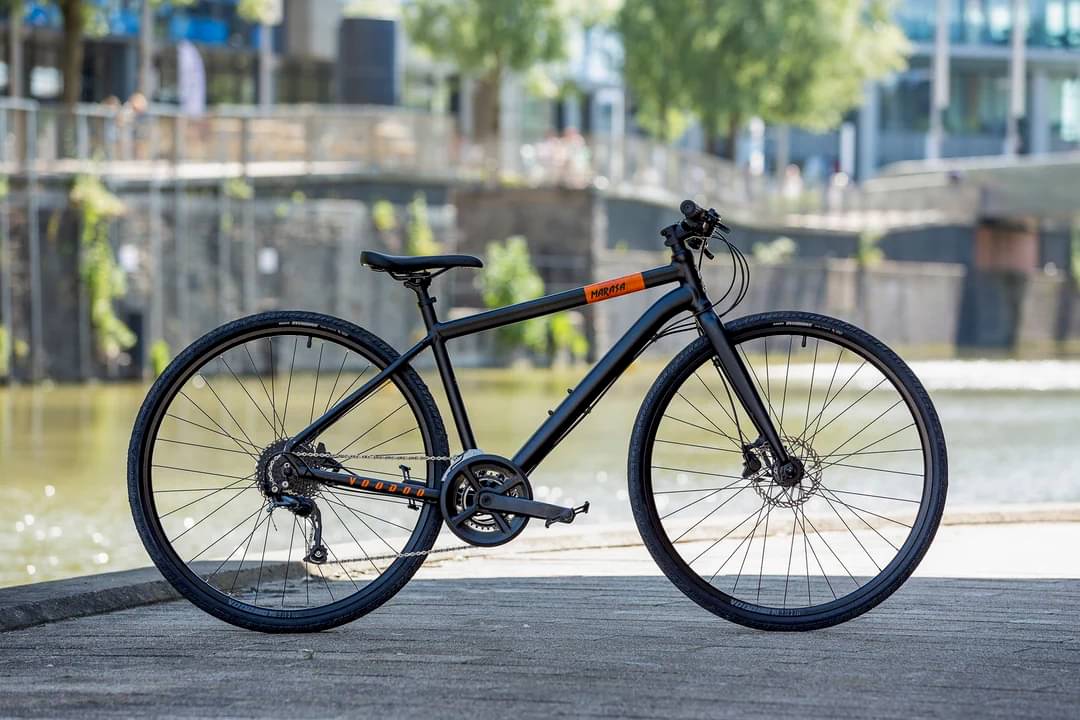

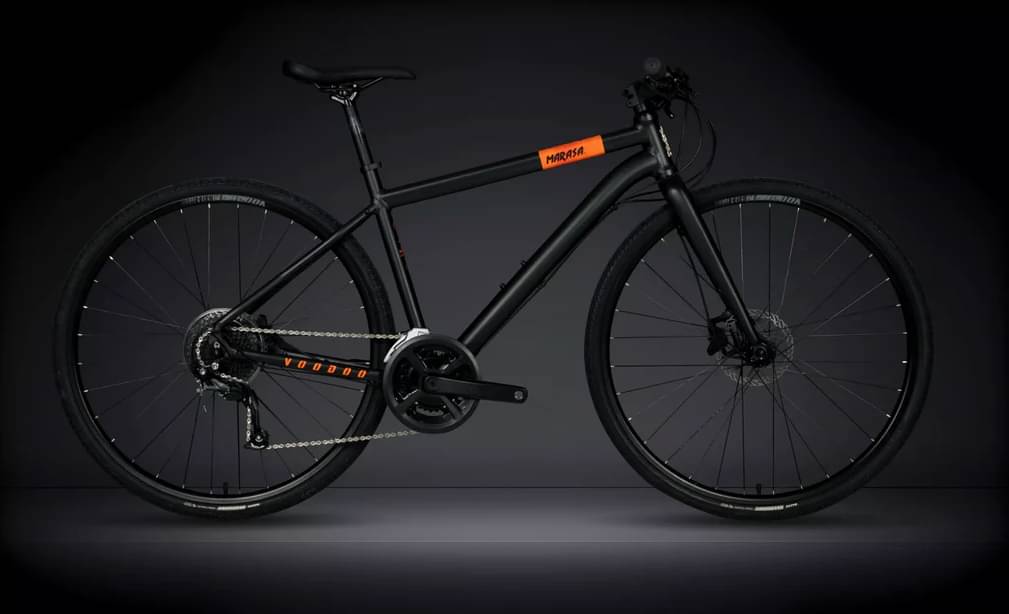

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Altus -
Suspension Rigid -
Brakes Mechanical Disc
Sizing
Recommended size guide.
MD
173cm - 185cm
LG
180cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components

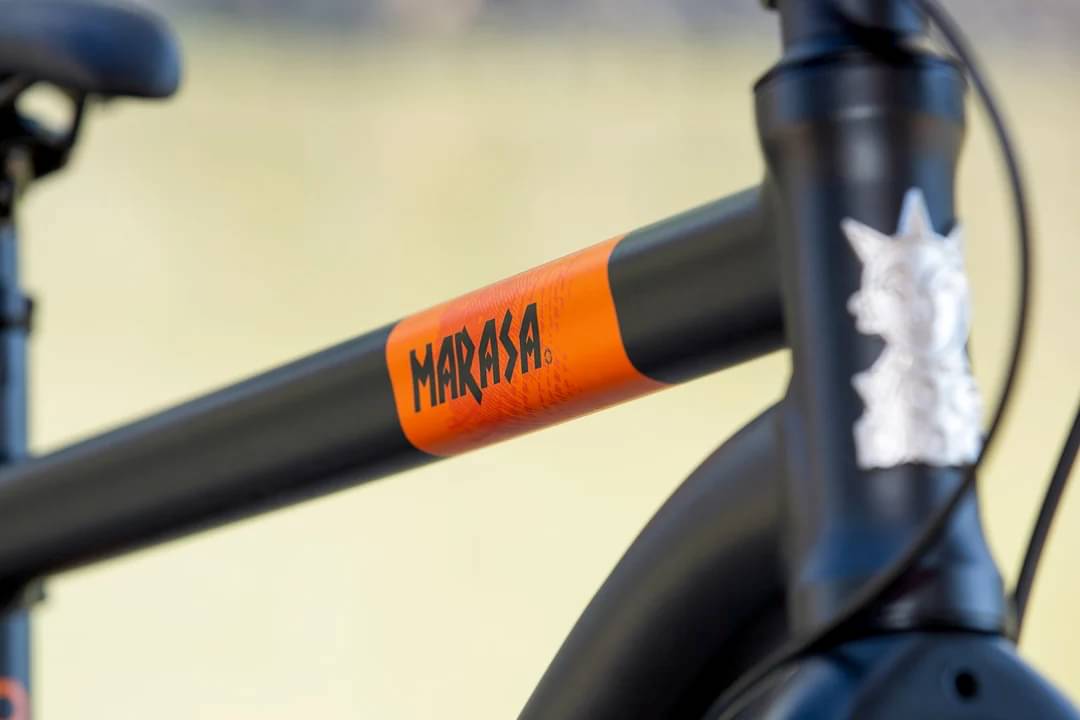

Frame
Suspension Fork
Voodoo Alloy
Drivetrain
Rear Derailleur
Shimano Altus, 9 speed, 44/48T, CL: 50MM
Front Derailleur
Shimano Altus, 9 speed
Cassette
Shimano, 9 Speed, 11-36T
Crank
9 speed, (S/M - 170mm, L/XL - 175mm)
Bottom Bracket
Thread BC; 1.37 x 24T
Chain
KMC X9, 1/2'X11/128', 12000 links
Wheels
Front Hub
Alloy disc, boost 111mm
Rear Hub
Alloy disc, 6 bolts,10mm, boost 148.5 through-axle
Rims
700c Alloy, black, 32H

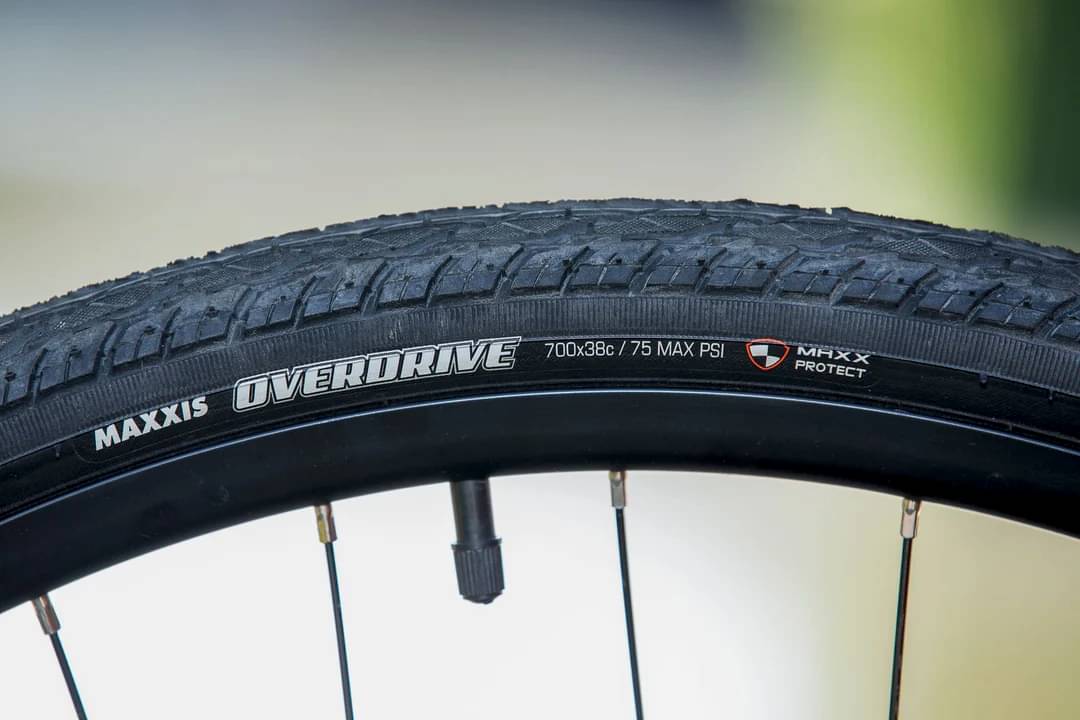

Tires
Maxxis Overdrive, 27TPI, 700c x 38
Brakes
Brakes
Front: Clark Clout, 160mm rotor, Rear: Clarks Clout, 160mm rotor
Cockpit
Handlebar
Voodoo Alloy, rise (S/M -660mm, L/XL - 680mm), 20mm, 10deg, 31.8mm
Grips
Black, lock-on
Headset
1 1/8" to 1.5" Tapered 44mm upper and 56mm lower
Seat
Seatpost
Voodoo Alloy 27.2mm (S/M- 350mm, L/XL - 400mm)
Fit data

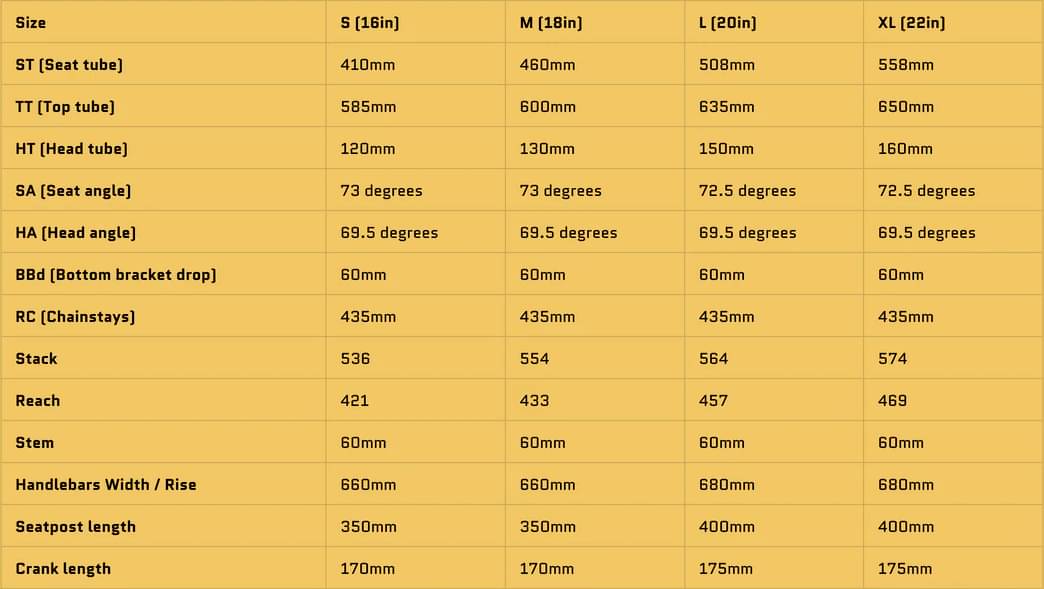

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 700 | 700 |
| Rider Min Height | 173 cm | 180 cm |
| Rider Max Height | 185 cm | 191 cm |
