Bike details
Overview
Key information split into simple groups.

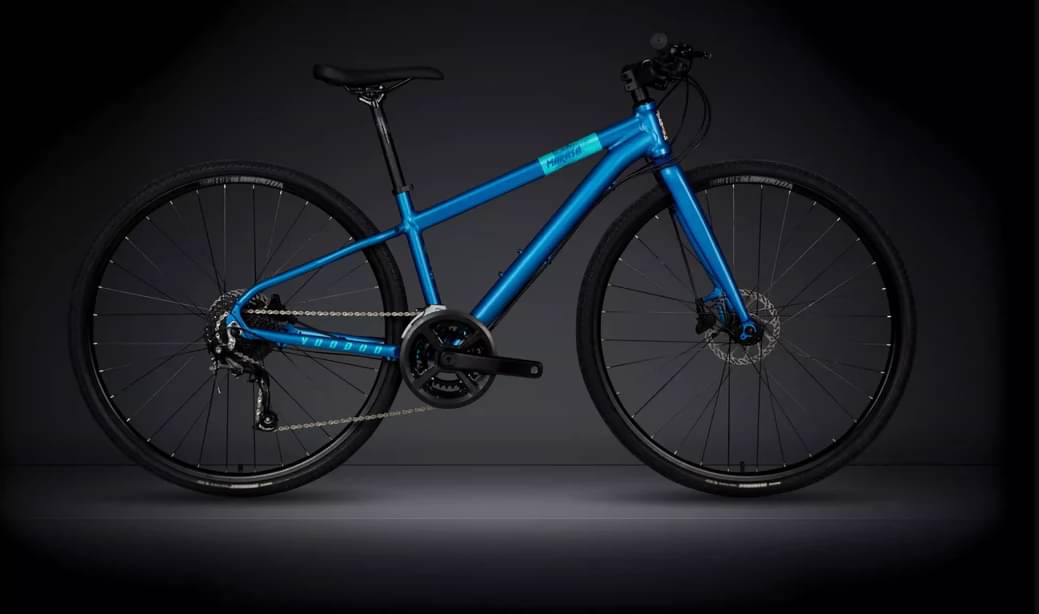

Bike summary
-
-
Frame Aluminum -
Groupset Altus, Acera -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 178cm
LG
173cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components

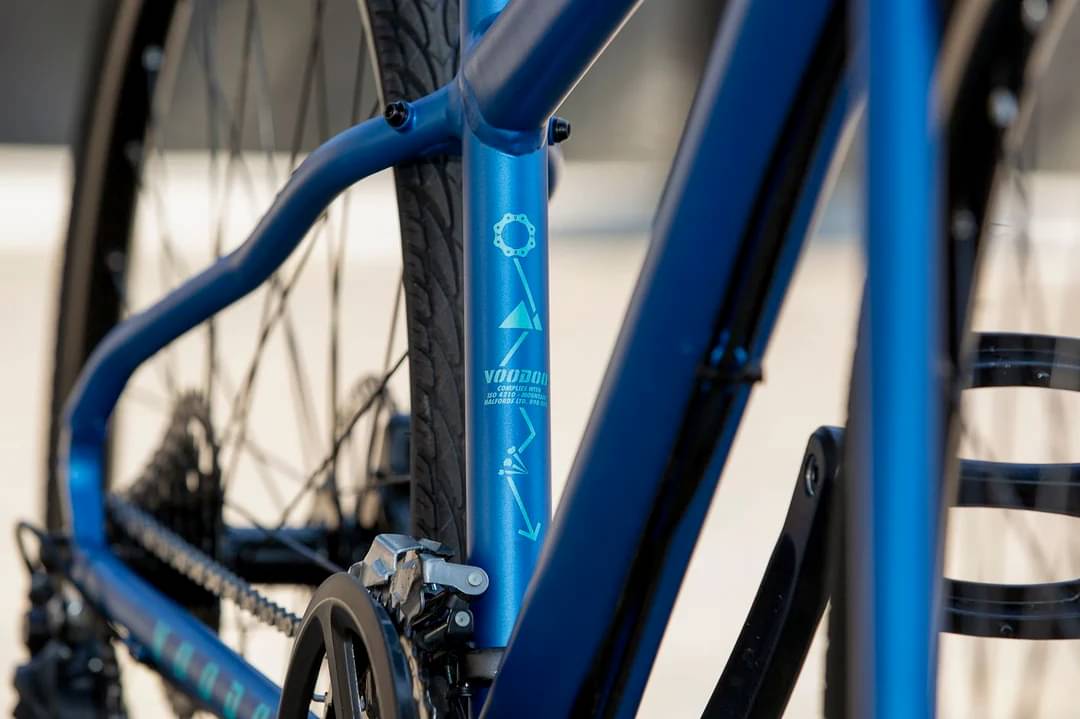

Frame

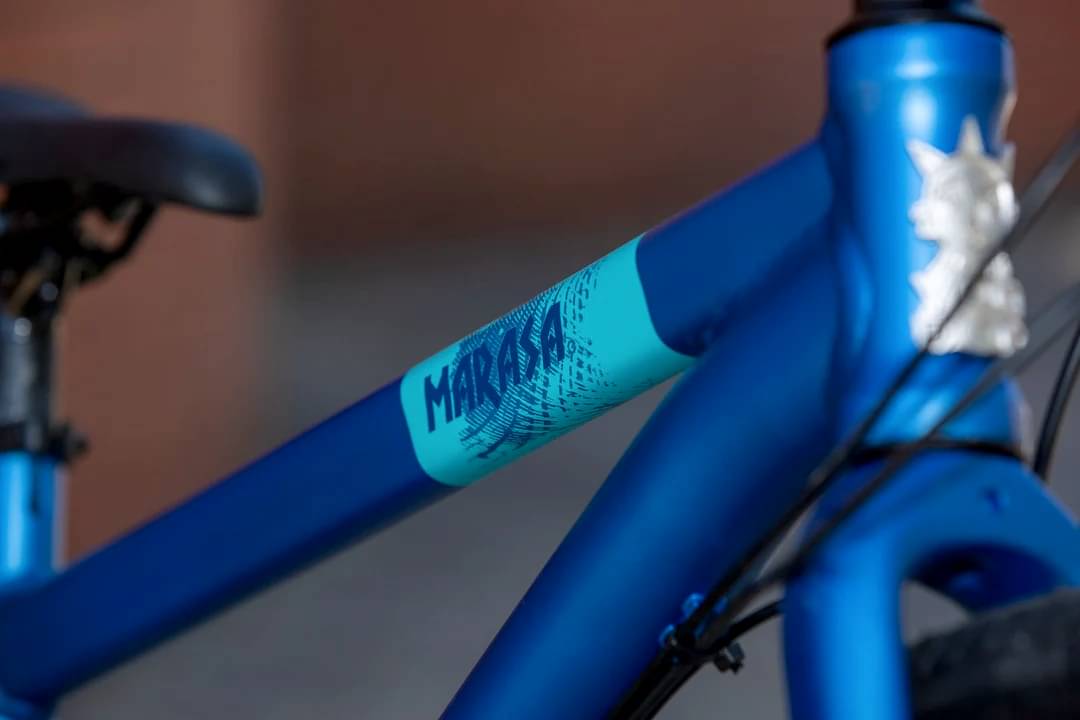

Frame
Marasa 700C hybrid hardtail for small riders. Material: aluminium alloy. BSA bottom bracket. QR 135 mm dropout
Suspension Fork
Alloy, 700C, post-mount brake
Drivetrain

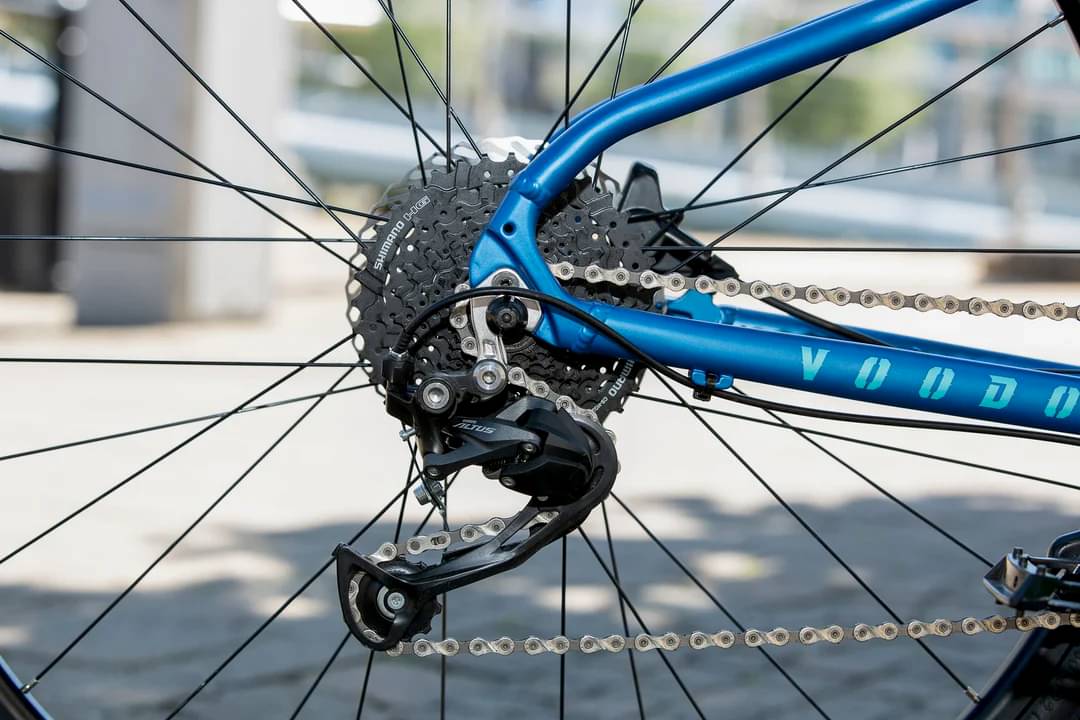

Rear Derailleur
Shimano Altus RD-M2000-SGS
Front Derailleur
Shimano Acera FD-T3000-2-TS3
Shift Levers
Shimano Altus SL-M2010-2L & SL-M2010-9R
Cassette
Shimano Alivio CS-HG200-9. 9 speed. 11-36t

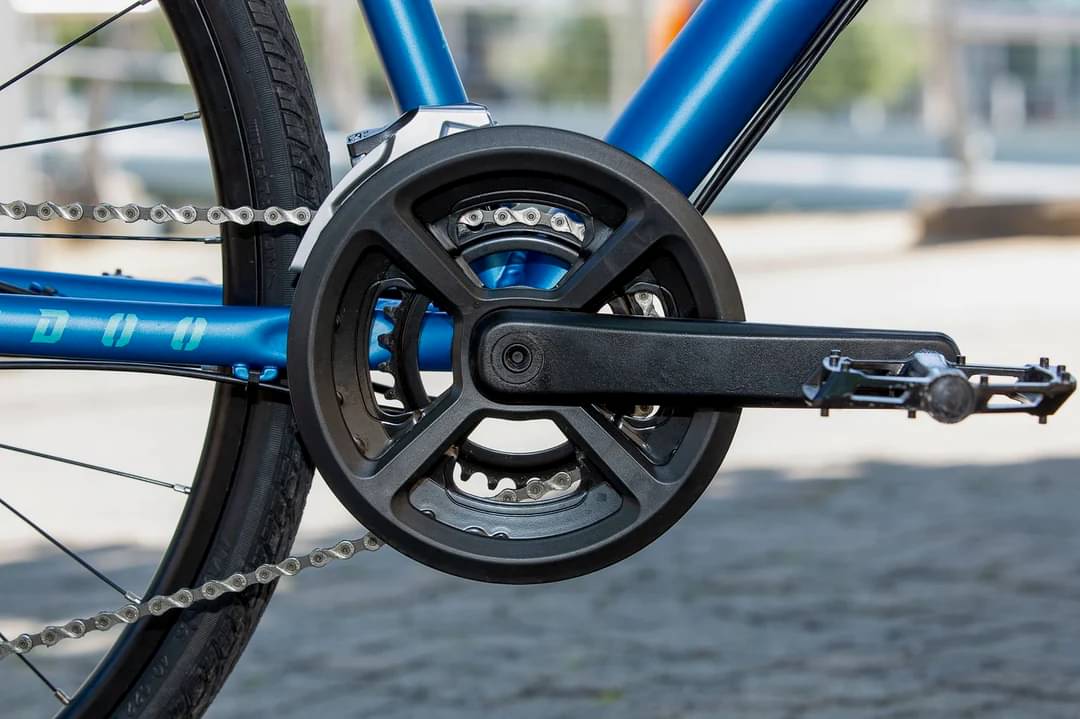

Crank
Forged alloy. 2x 46-30t. 165 mm (S, M); 170 mm (L)
Bottom Bracket
BSA
Chain
KMC X9
Pedals
FPD NWL-221. Aluminium alloy. Flat with retention pins
Wheels
Front Hub
Aluminium alloy, 15x100, 32H, 6 bolts (F). Aluminium alloy, QR135, 32H, 6 bolts (R)
Rear Hub
Aluminium alloy, 15x100, 32H, 6 bolts (F). Aluminium alloy, QR135, 32H, 6 bolts (R)
Rims
622/700C aluminium alloy, double wall. 32H. 18 mm inner width, 18 mm height
Spokes
Steel

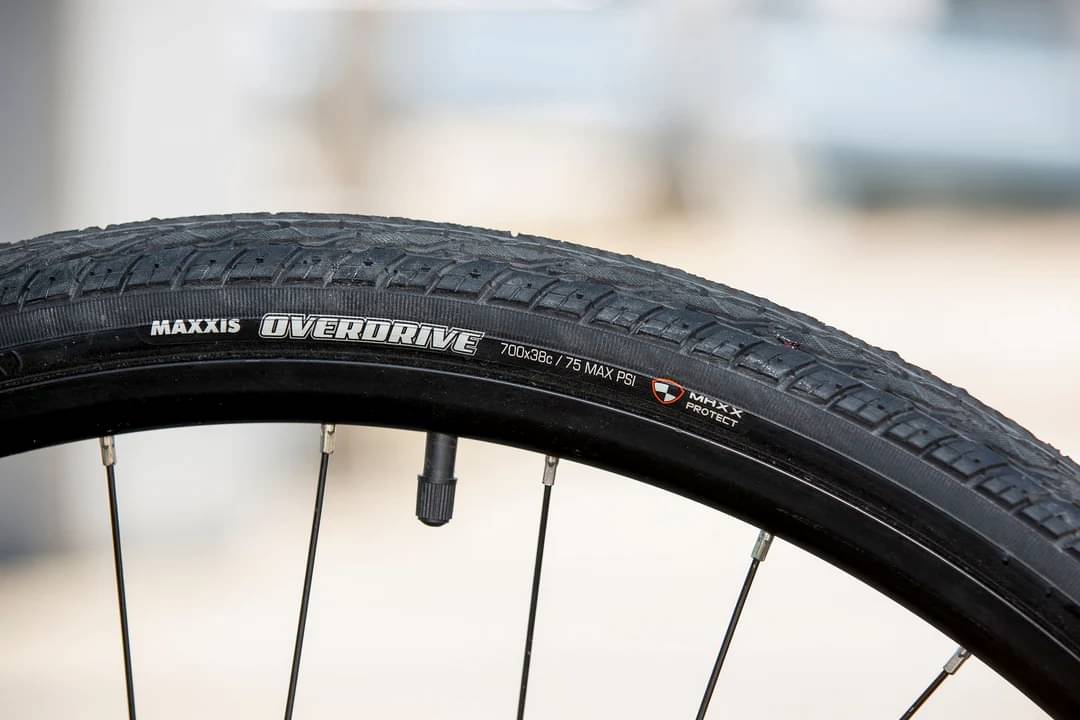

Tires
Maxxis Overdrive 700x38C. 27TPI

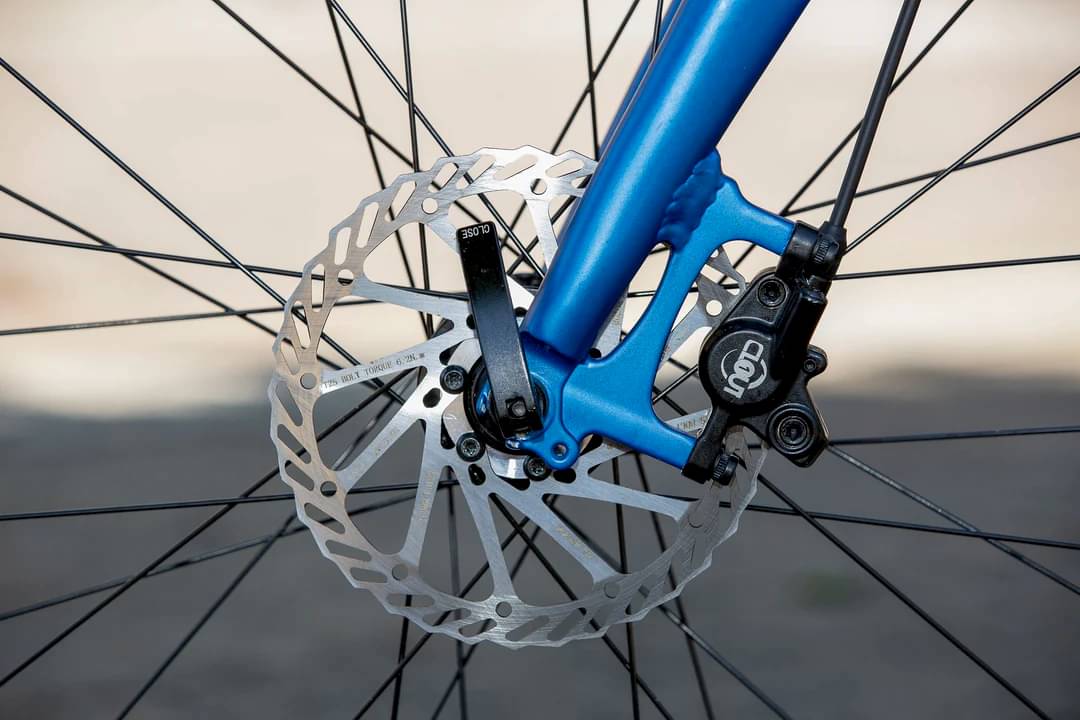

Brakes
Brakes
Clarks Clout. Hydraulic brake

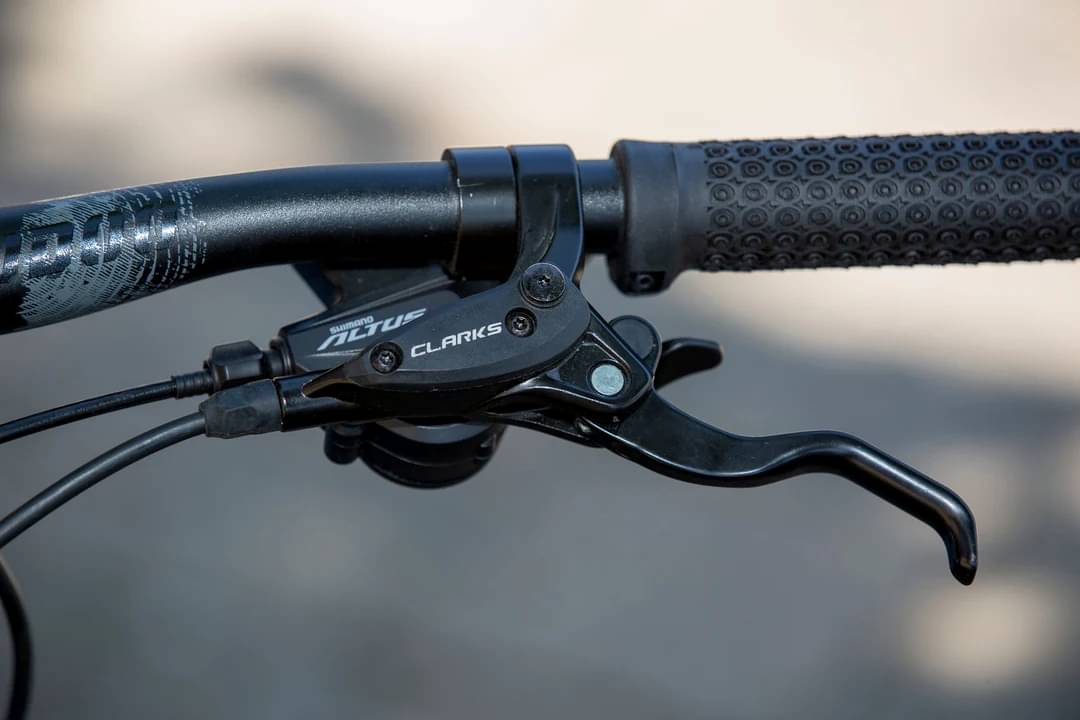

Brake Levers
Clarks Clout. Hydraulic brake
Cockpit
Stem
Aluminium alloy, ?31.8 mm, 60 mm, 3deg
Handlebar
Aluminium alloy, ?31.8 mm, 20 mm rise, 10deg. 640 mm width (S, M). 660 mm width (L)
Grips
Velo, lock-on, black

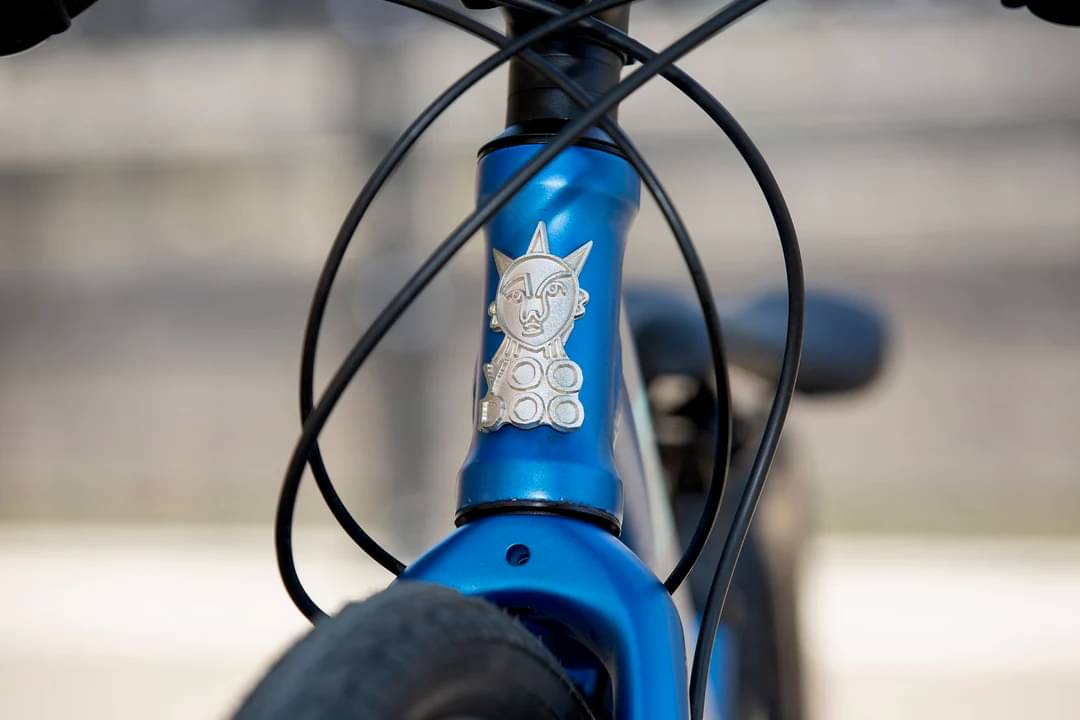

Headset
Threadless semi-integrated 1-1/8"
Seat

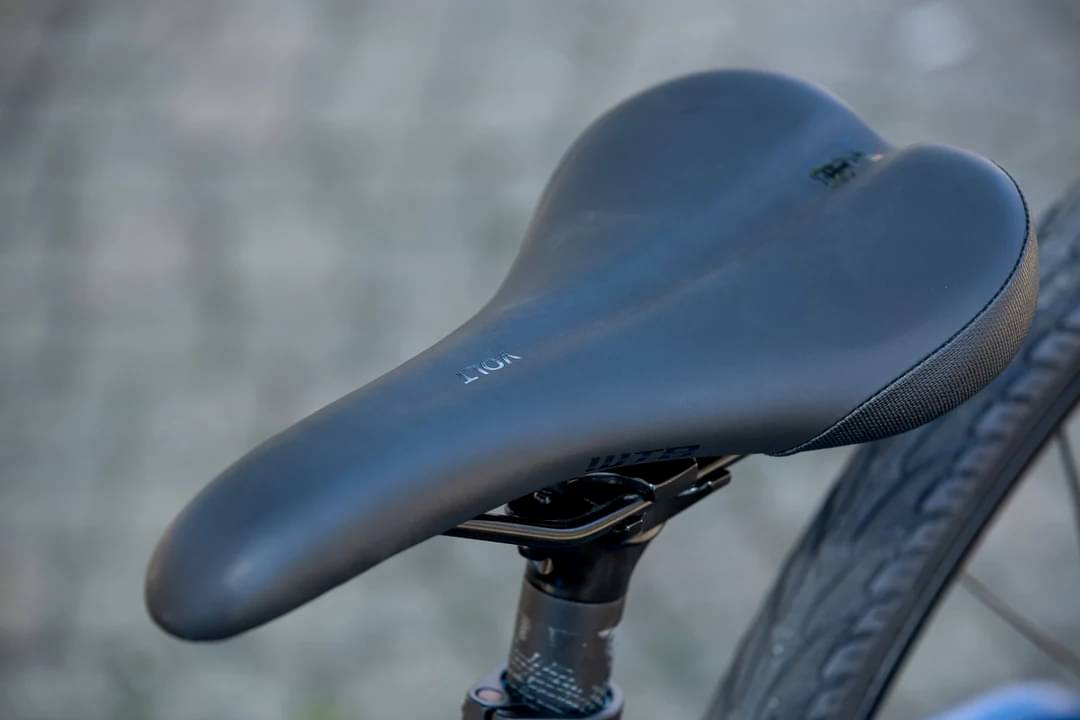

Saddle
WTB Volt Wide. Steel rails
Seatpost
Aluminium alloy, ?27.2 mm. 300 mm length (S, M). 350 mm length (L)
Fit data

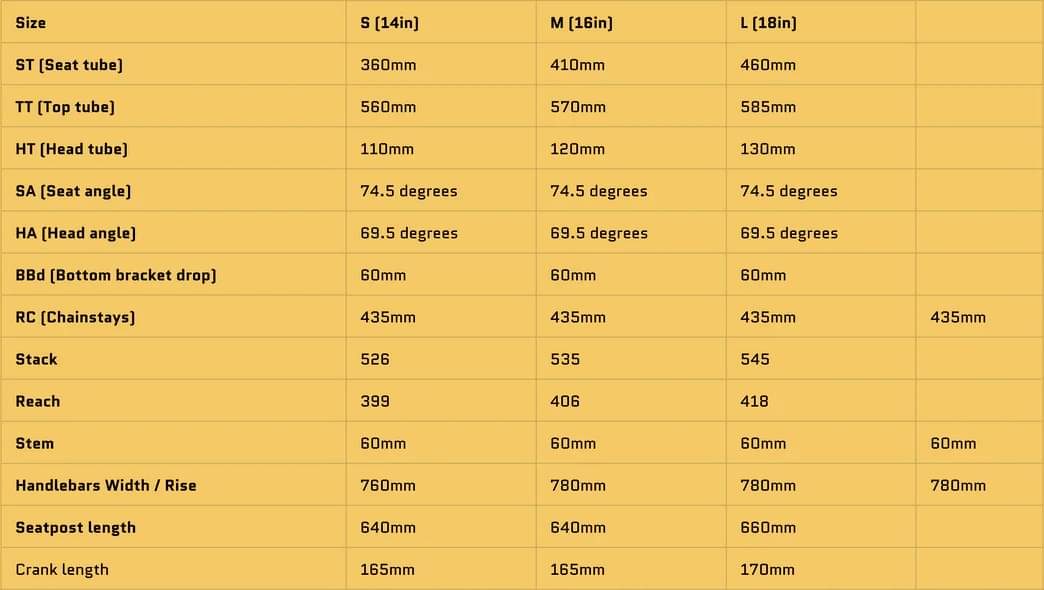

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 700 | 700 |
| Rider Min Height | 165 cm | 173 cm |
| Rider Max Height | 178 cm | 185 cm |
