Bike details
Overview
Key information split into simple groups.

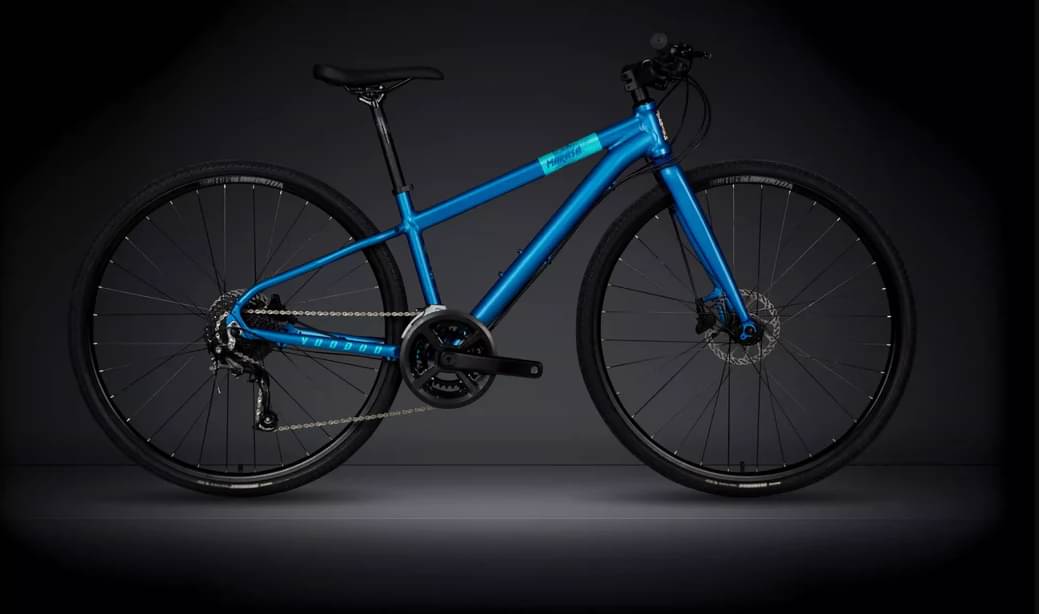

Bike summary
-
-
Frame Aluminum -
Groupset Altus -
Suspension Rigid -
Brakes Mechanical Disc
Sizing
Recommended size guide.
MD
165cm - 178cm
LG
173cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components

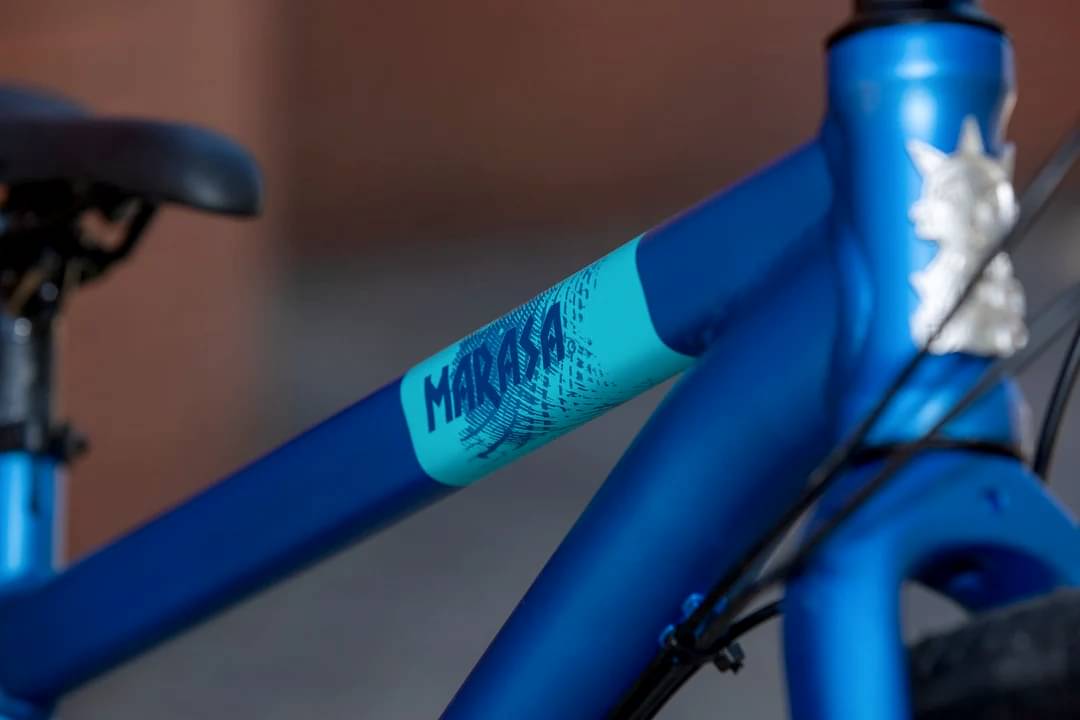

Frame
Suspension Fork
700c Disc
Drivetrain

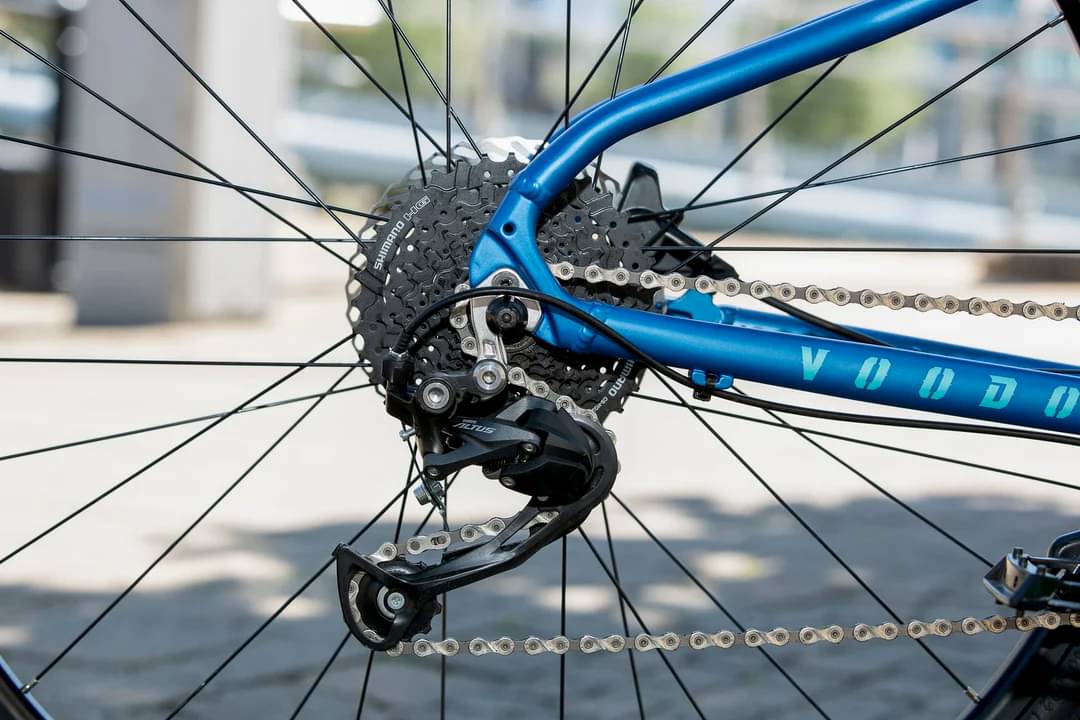

Rear Derailleur
Shimano Altus 9 speed

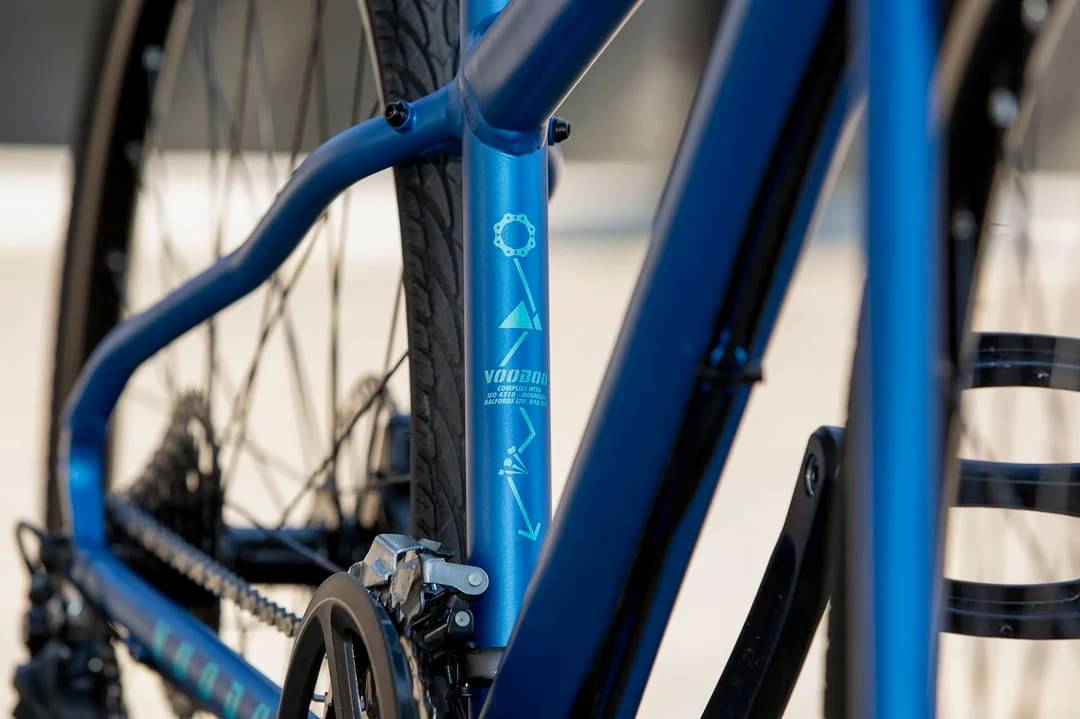

Front Derailleur
Shimano Altus 44/48T
Cassette
Shimano, 2 x 9 speed, 11-36T

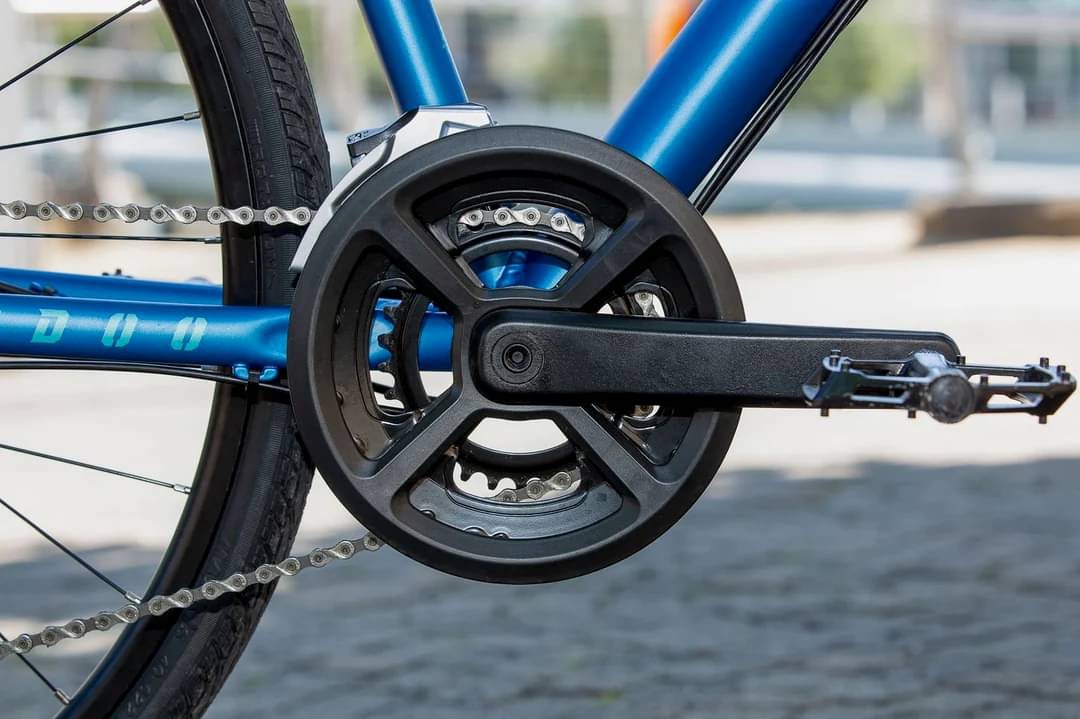

Crank
9 speed, (S/M - 165mm, L - 170mm)
Bottom Bracket
Thread BC; 1.37 x 24T
Chain
KMC X9, 1/2'X11/128', 12000 links
Wheels
Front Hub
Alloy, boost 112mm
Rear Hub
Alloy, boost 148 through-axle
Rims
29" Alloy, black, 32H
Tires

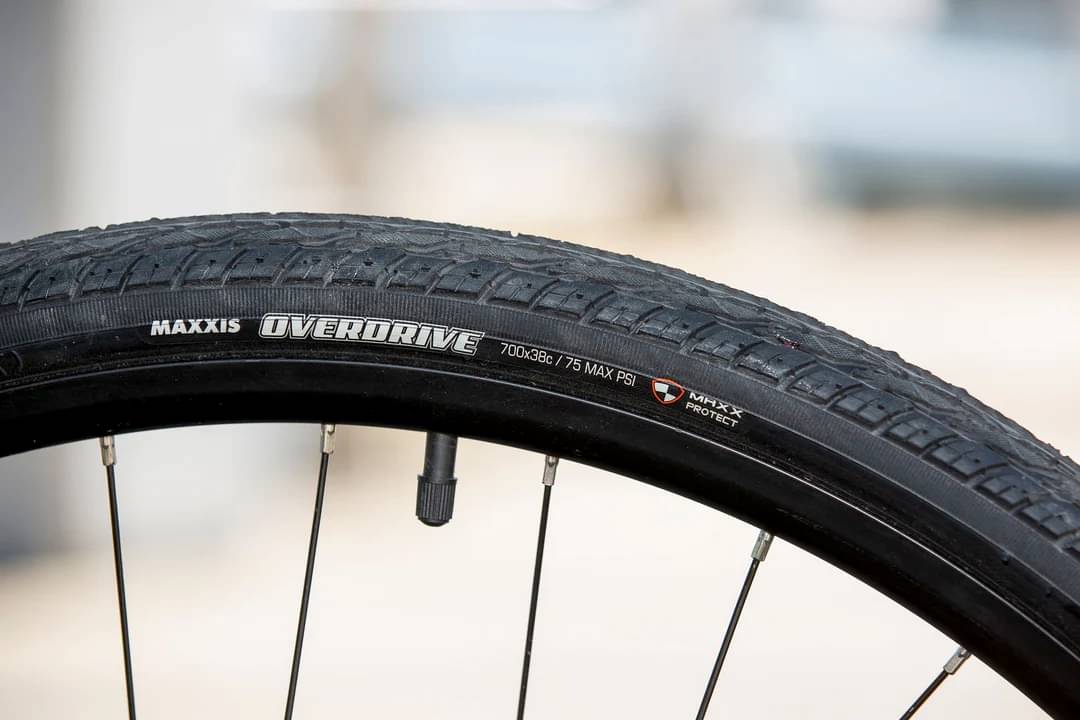

Maxxis Overdrive, 27TPI, 700c x 38
Brakes
Brakes

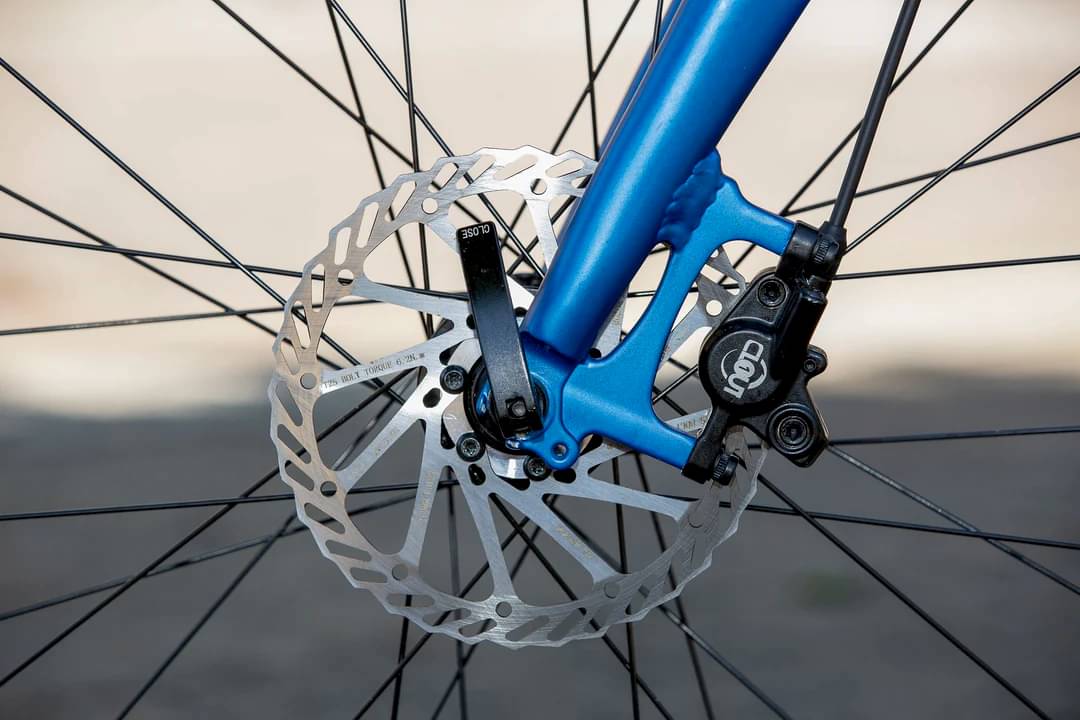

Front: Clarks Clout, 160mm rotor, Rear: Clarks Clout, 160mm rotor
Cockpit
Handlebar
Voodoo alloy, rise (S/M - 640mm, L-660mm), 20mm,10deg, 31.8mm

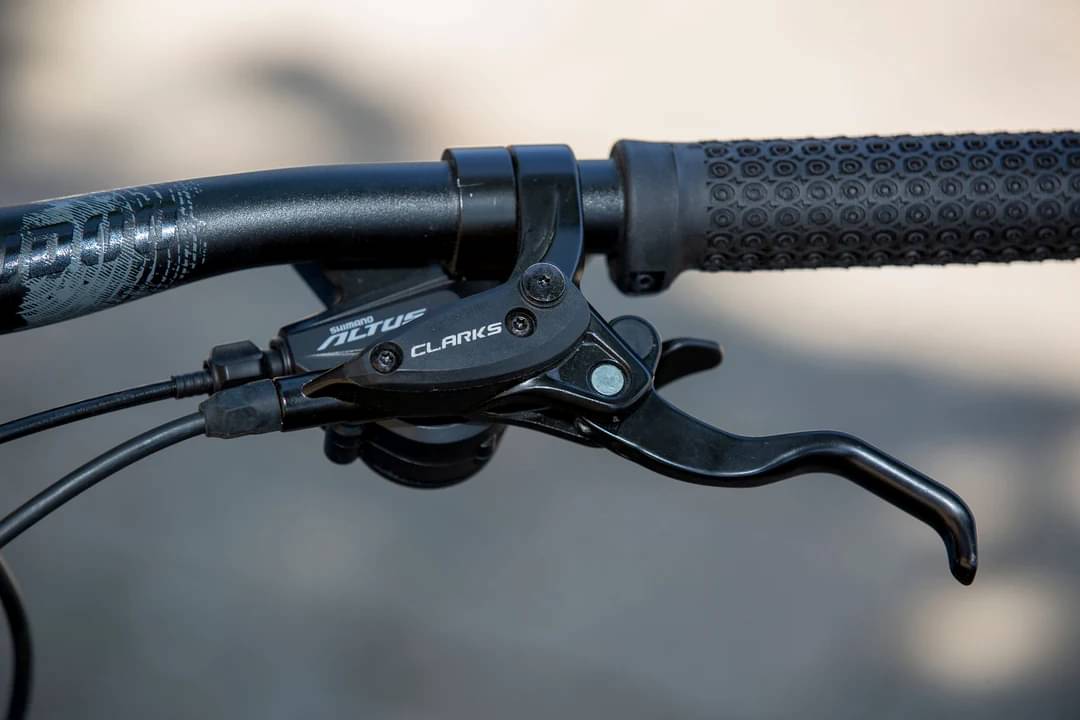

Grips
Black, lock-on

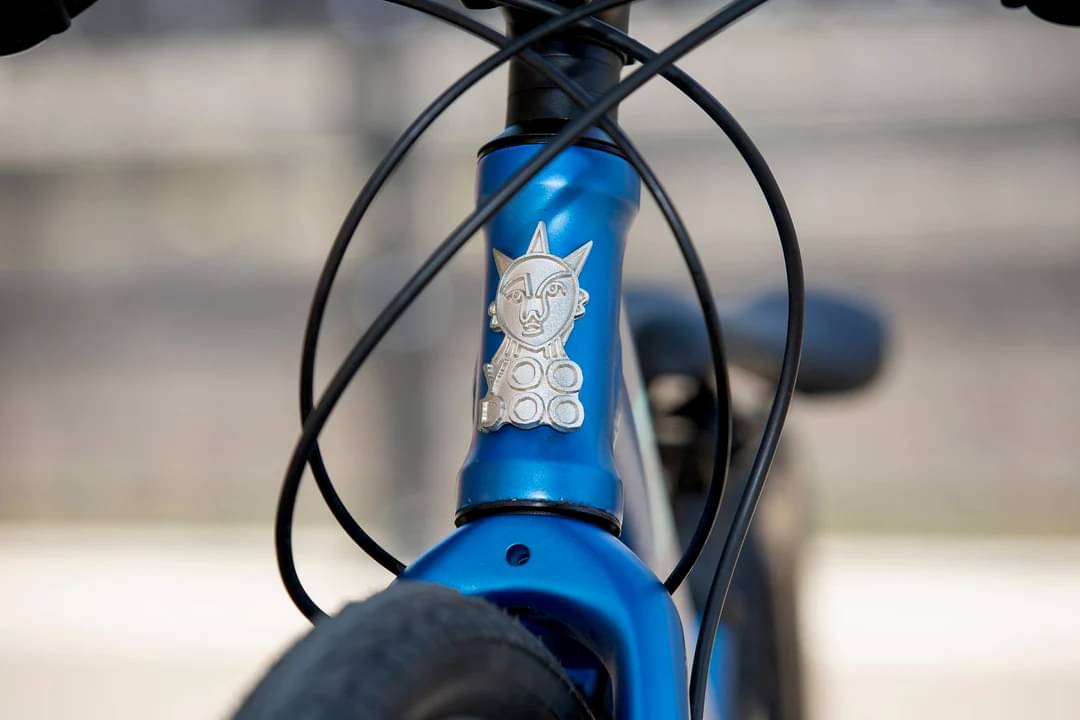

Headset
1 1/8" to 1.5" Tapered 44mm upper and 56mm lower

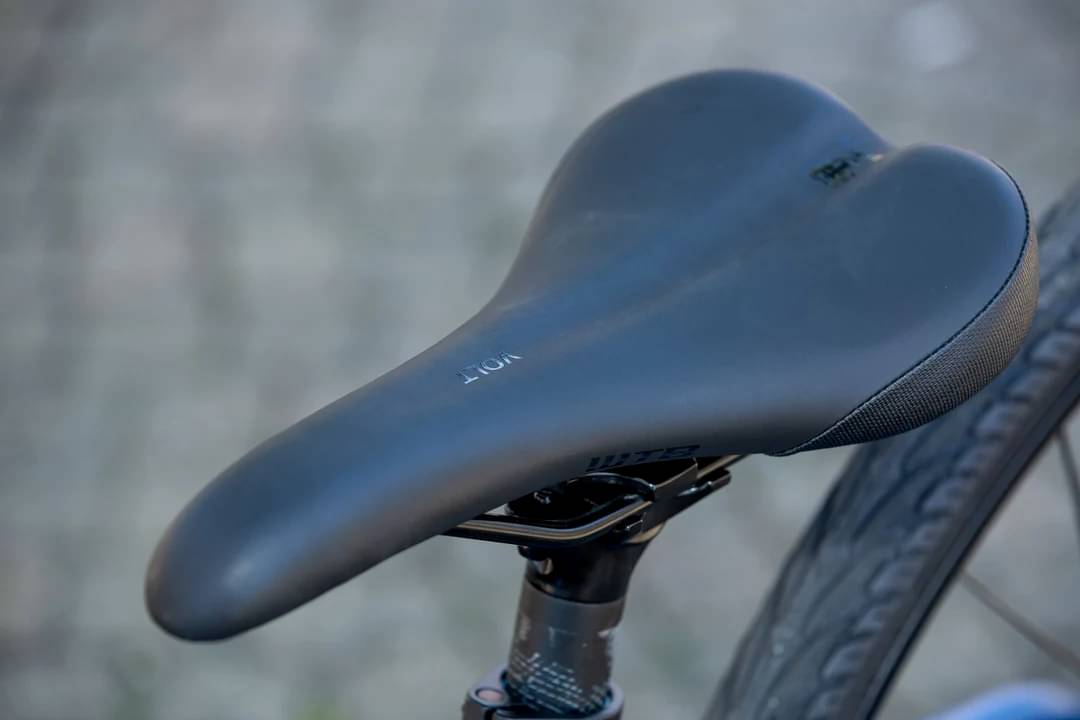

Seat
Seatpost
Voodoo Alloy 27.2mm (S/M- 300mm, L- 350mm)
Fit data

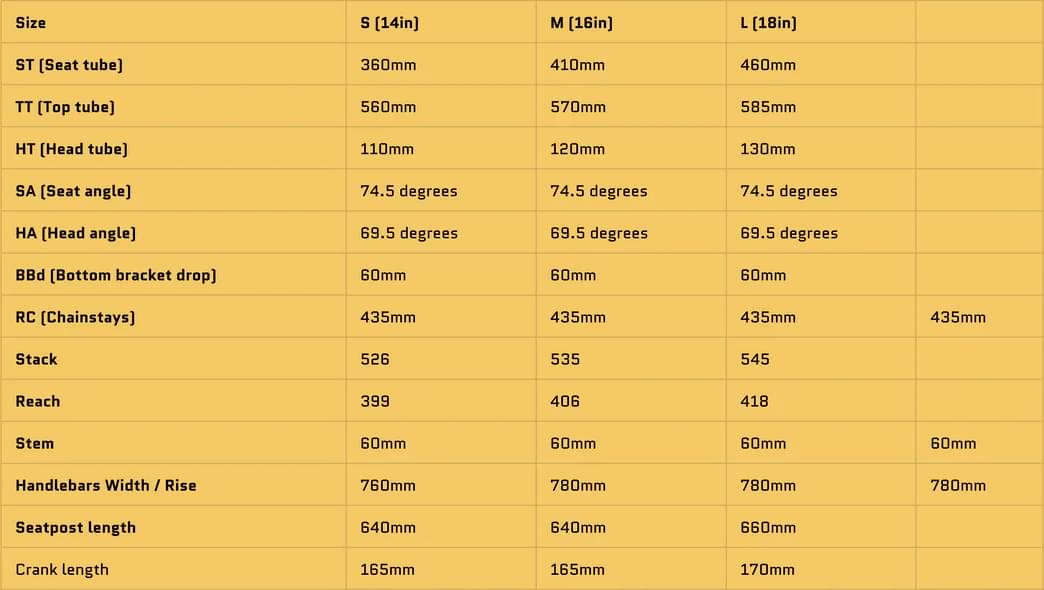

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Wheels | 700 | 700 |
| Rider Min Height | 165 cm | 173 cm |
| Rider Max Height | 178 cm | 185 cm |
