Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
700C, Threadless,28(1-1/8"), offset 50
Drivetrain
Rear Derailleur
Shimano RD-R3000 (Sora), 9 speed
Front Derailleur
Shimano FD-R3000 (Sora), 9 speed
Cassette
Shimano, 9 speed, 11-34t
Crank
Steel black 48/32T (S/M - 170mm, L/XL - 175mm)
Bottom Bracket
Thread bc 37X24T
Chain
KMC X9, 9 speed, 1/2'X11/128'
Wheels
Front Hub
Alloy, disc brake, boost 112mm
Rear Hub
Alloy, boost 148 through-axle
Rims
700c, Alloy, double wall, 32H
Tires
Maxxis Ardent, 60TPI, folding bead
Brakes
Brakes
Front: Tektro, MD-C400 (Mira), rotor 160mm, Rear: Tektro, MD-C400 (Mira), rotor 160mm
Cockpit
Handlebar
Voodoo Alloy butted, (S-width : 400mm, M/L-width:420mm, XL-width:440mm),
Grips
Black, lock-on
Headset
Steel, threadless, semi-integrated, 44/44,1-1/8"
Seat
Seatpost
Voodoo Alloy 27.2, (S - 300mm), (M/L - 350mm), (XL - 400mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.49 mm | 1.48 mm |
| Bottom Bracket Height | 278 mm | 278 mm | 278 mm | 278 mm |
| Stack | 540 mm | 559 mm | 574 mm | 591 mm |
| Reach | 366 mm | 376 mm | 386 mm | 400 mm |
| Top Tube Length | 523 mm | 538 mm | 558 mm | 583 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 495 mm | 515 mm | 535 mm | 555 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 125 mm | 145 mm | 160 mm | 180 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 71 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

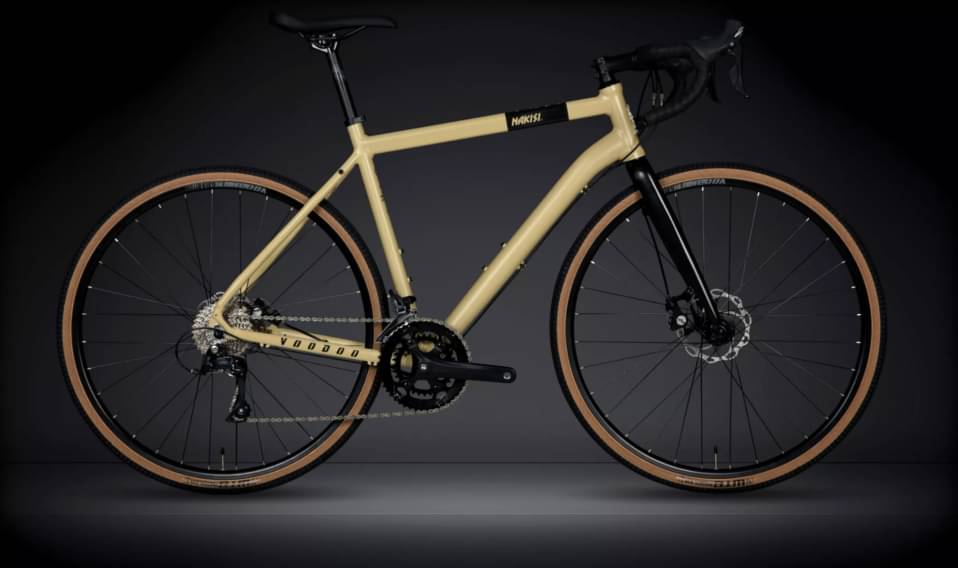

NAKISI belongs to the Voodoo Nakisi model. Voodoo released 4 bikes variations of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Voodoo NAKISI price was 850$. If we compare this with the average Gravel bike cost we notice that the price is 189.65% smaller.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on NAKISI are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The NAKISI comes with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
NAKISI comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
