Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
700C, Threadless,28(1-1/8"), offset 50
Drivetrain
Rear Derailleur
Shimano RD-R3000 (Sora), 9 speed
Front Derailleur
Shimano FD-R3000 (Sora), 9 speed
Cassette
Shimano, 9 speed, 11-34t
Crank
Steel black 48/32T (S/M - 170mm, L/XL - 175mm)
Bottom Bracket
Thread bc 37X24T
Chain
KMC X9, 9 speed, 1/2'X11/128'
Wheels
Front Hub
Alloy, disc brake, boost 112mm
Rear Hub
Alloy, boost 148 through-axle
Rims
700c, Alloy, double wall, 32H
Tires
Maxxis Ardent, 60TPI, folding bead
Brakes
Brakes
Front: Tektro, MD-C400 (Mira), rotor 160mm, Rear: Tektro, MD-C400 (Mira), rotor 160mm
Cockpit
Handlebar
Voodoo Alloy butted, (S-width : 400mm, M/L-width:420mm, XL-width:440mm),
Grips
Black, lock-on
Headset
Steel, threadless, semi-integrated, 44/44,1-1/8"
Seat
Seatpost
Voodoo Alloy 27.2, (S - 300mm), (M/L - 350mm), (XL - 400mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.49 mm | 1.48 mm |
| Bottom Bracket Height | 278 mm | 278 mm | 278 mm | 278 mm |
| Stack | 540 mm | 559 mm | 574 mm | 591 mm |
| Reach | 366 mm | 376 mm | 386 mm | 400 mm |
| Top Tube Length | 523 mm | 538 mm | 558 mm | 583 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 495 mm | 515 mm | 535 mm | 555 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 125 mm | 145 mm | 160 mm | 180 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 71 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

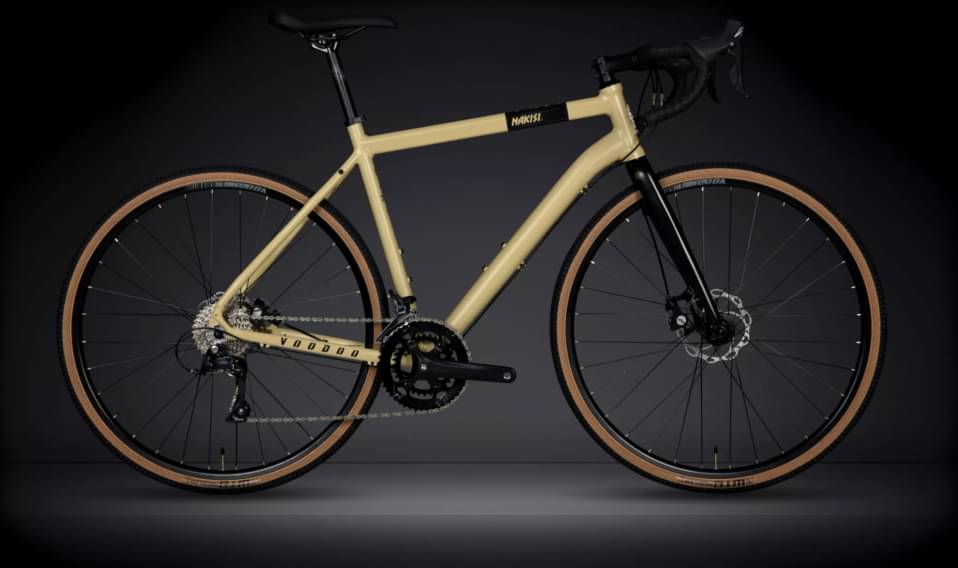

NAKISI is a Voodoo Nakisi model. Voodoo launched 4 bikes of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 850$. If we compare this with the average Gravel bike cost we notice that the price is 189.65% smaller.
Overview of components
Fork material
NAKISI has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Voodoo NAKISI 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The NAKISI has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
