Bike details
Overview
Key information split into simple groups.

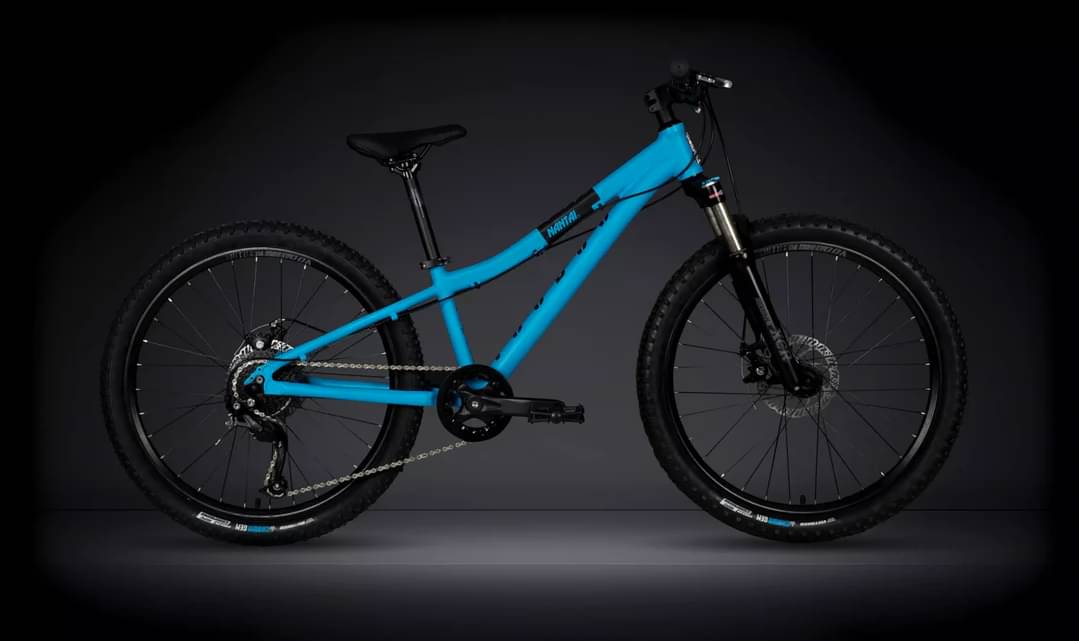

Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour XCR
-
Groupset Altus -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

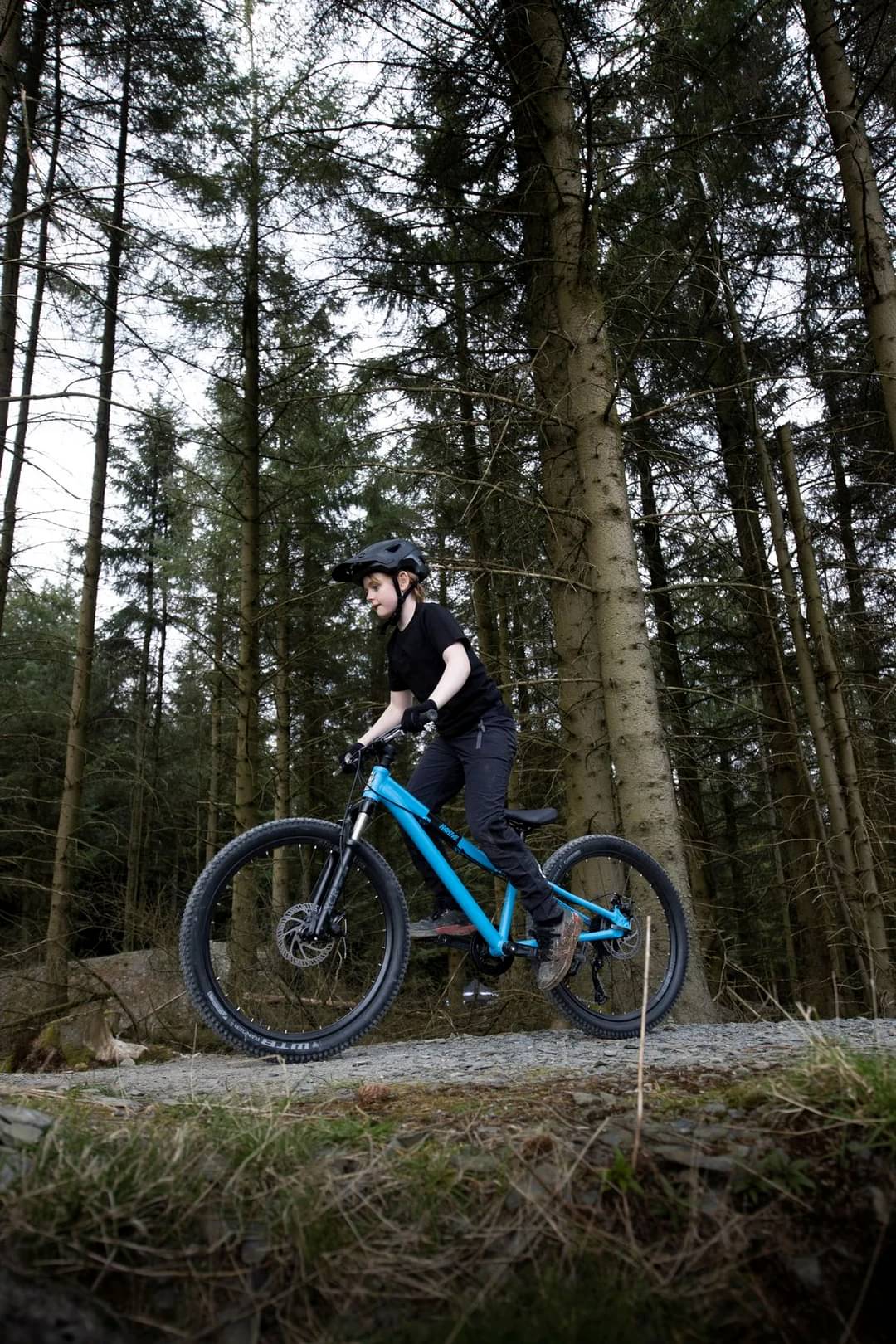

Nantai 24" hardtail MTB for 8-11 years old kids. Material: aluminium alloy. BSA bottom bracket. QR 135 mm dropout. Smooth welding

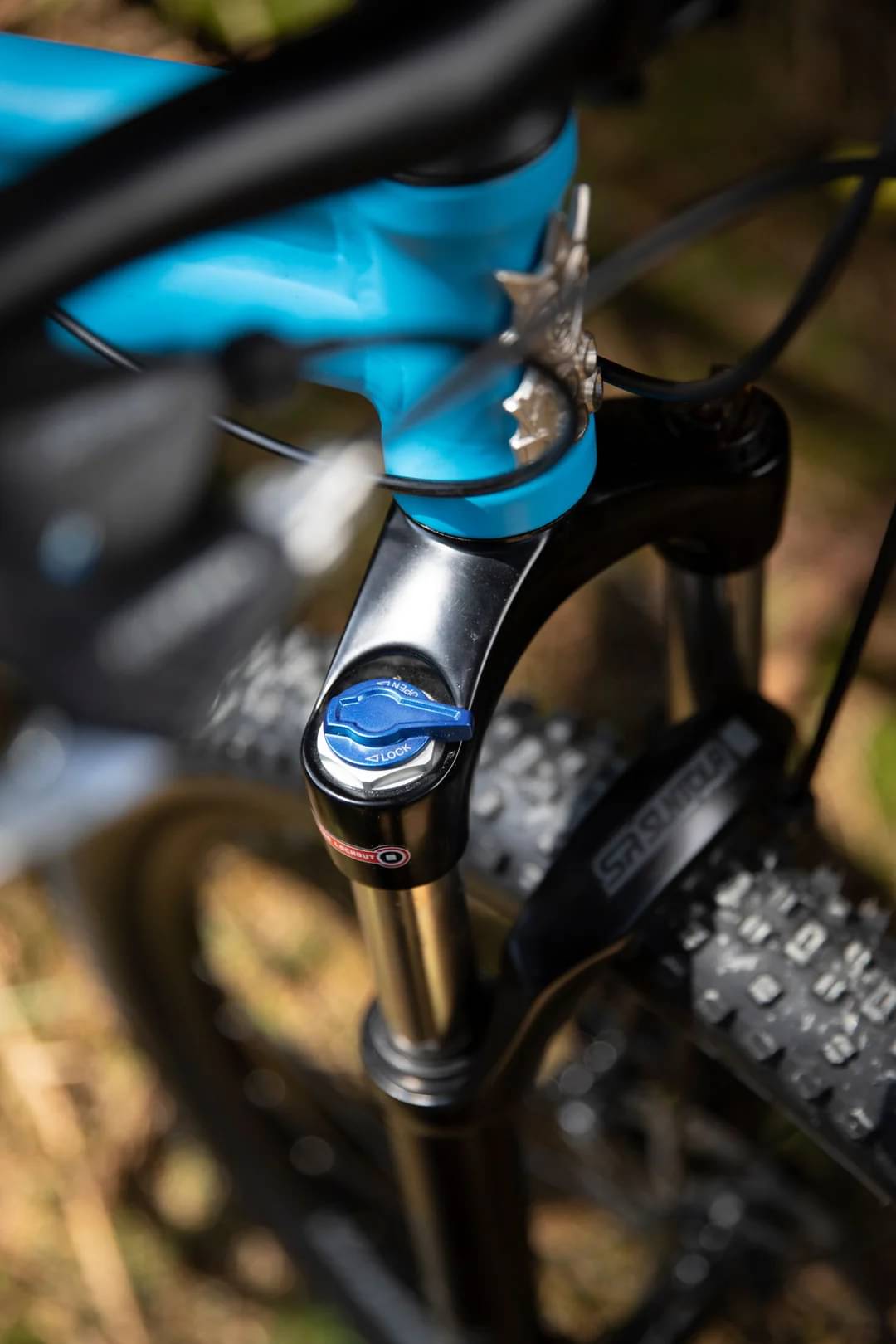

Suspension Fork
SR Suntour SF16-XCR. 80 mm travel. QR100
Drivetrain
Rear Derailleur

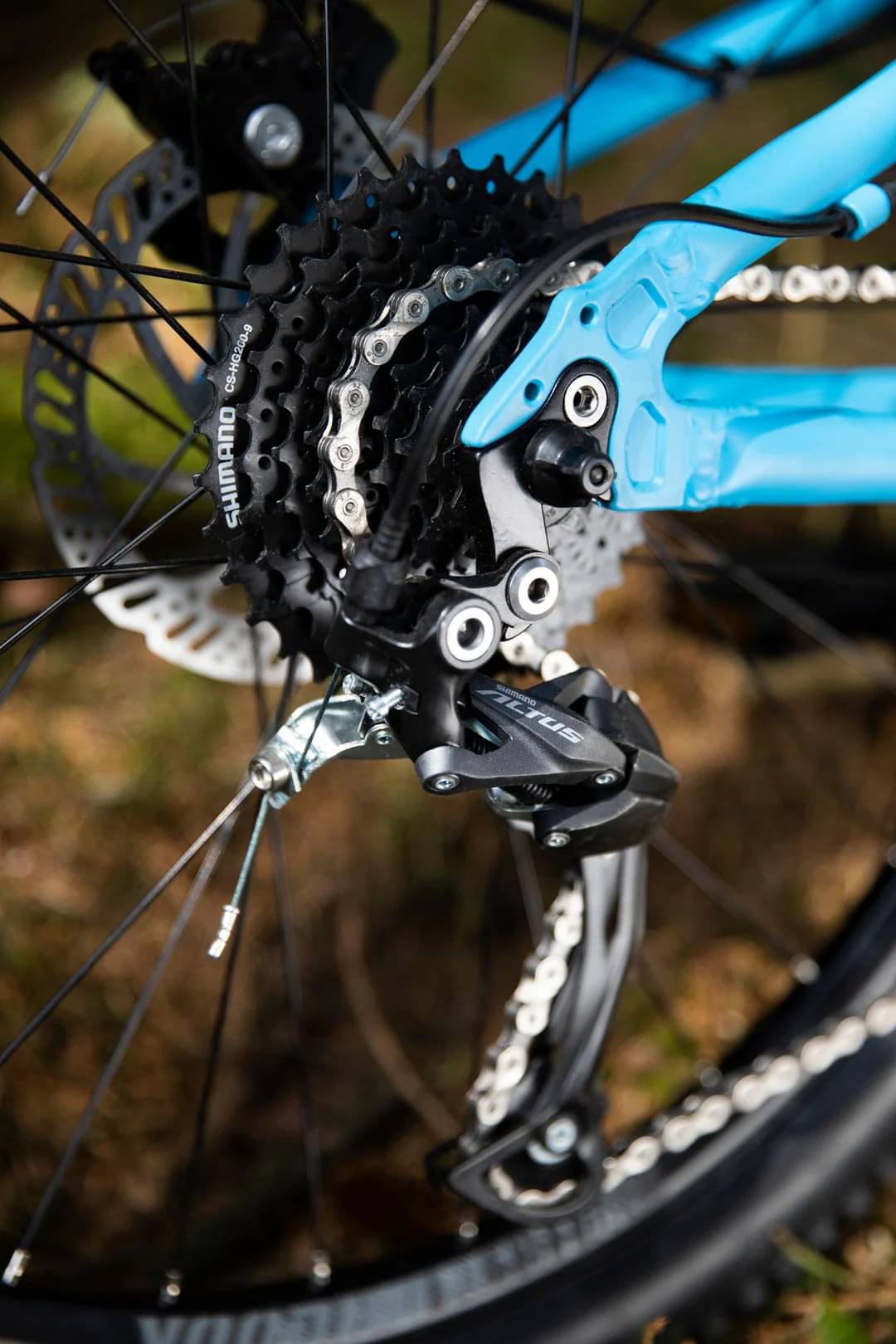

Shimano Altus RD-M2000-SGS
Front Derailleur
n/a
Shift Levers
Shimano Altus SL-M2010-9R
Cassette
Shimano CS-HG200-9. 9 speed. 11-34t
Crank
Forged alloy. 1x 32t. 152 mm crank length
Bottom Bracket
BSA
Chain
KMC X9
Pedals
FPD NW-303. One piece nylon+fiber body. Flat with retention pins
Wheels
Front Hub
Aluminium alloy, 15x100, 32H, 6 bolts (F) Aluminium alloy, QR135, 32H, 6 bolts (R)
Rear Hub
Aluminium alloy, 15x100, 32H, 6 bolts (F) Aluminium alloy, QR135, 32H, 6 bolts (R)
Rims
24" (507 mm) aluminium alloy, double wall. 32H. 21 mm inner width, 20 mm height
Spokes
Steel

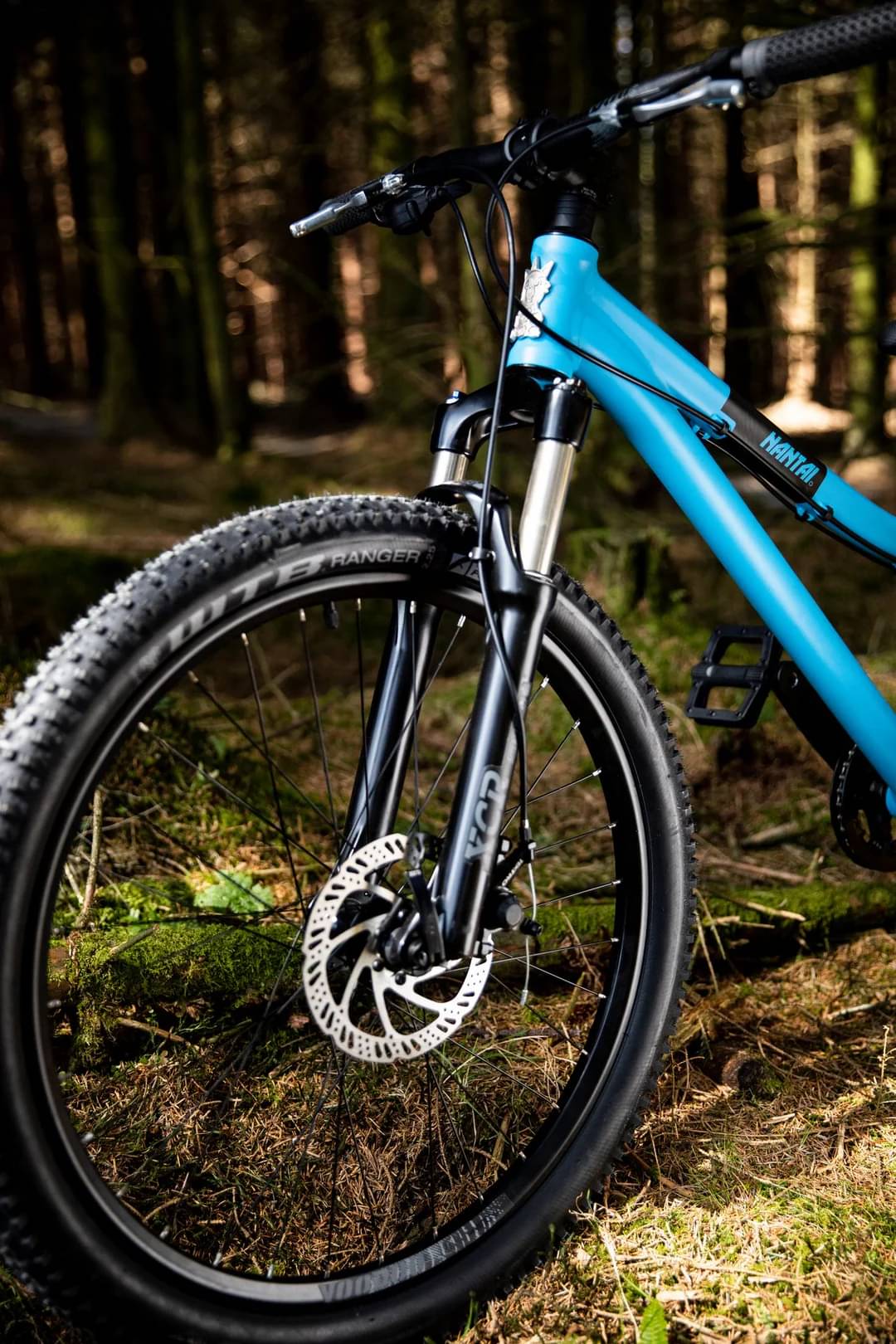

Tires
WTB Ranger 24x2.25, foldable, 60TPI
Brakes
Brakes
Tektro MD-M280
Brake Levers
Tektro RS360A

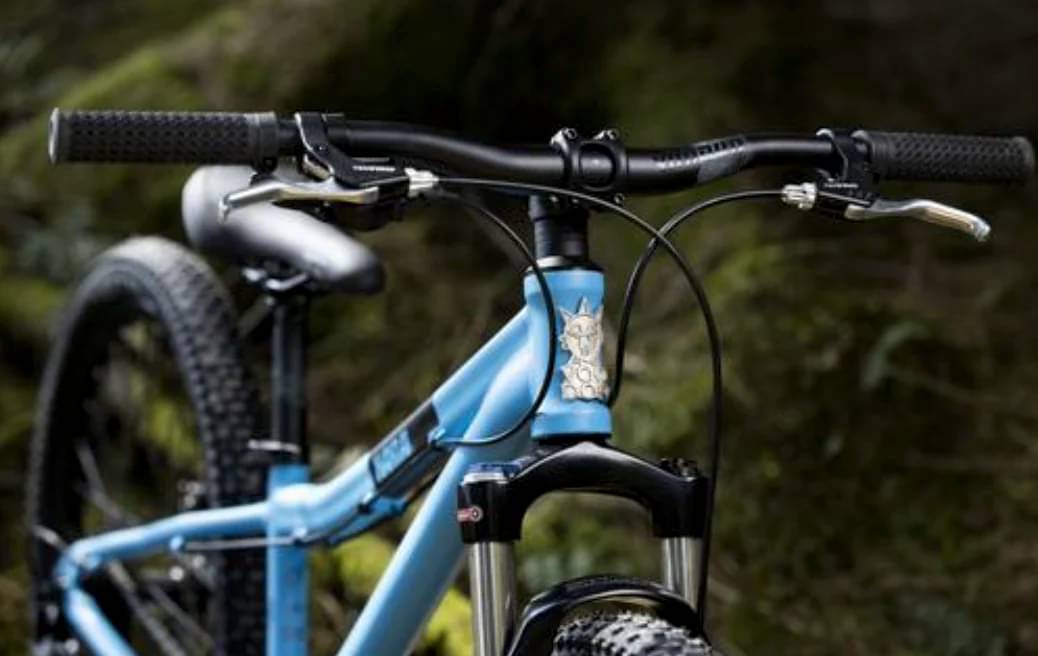

Cockpit
Stem
Aluminium alloy, ?31.8 mm, 45 mm, 3deg
Handlebar
Aluminium alloy, ?31.8 mm, 20 mm rise, 10deg, 660 mm width
Grips
Velo, lock-on, black
Headset
Threadless semi-integrated 1-1/8"
Seat
Saddle
Voodoo JR. Steel rails
Seatpost
Aluminium alloy, ?27.2 mm. 300 mm length
Fit data

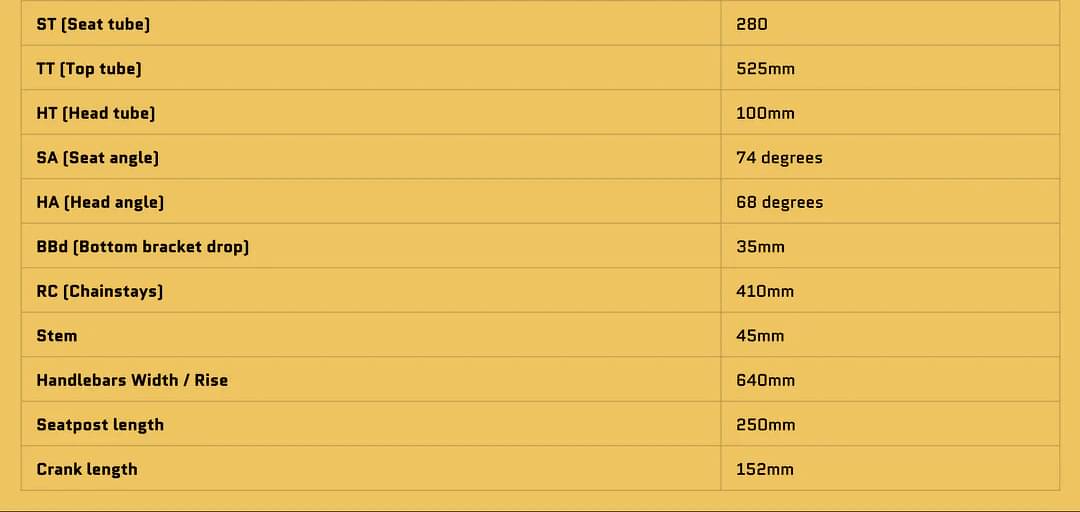

Geometry
Numbers for sizing and ride feel.
| Size | 16" | 20" | 24" | 26" | BMX Bikes |
|---|---|---|---|---|---|
| Wheels | 24" | 24" | 24" | 24" | 24" |
