Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCR
-
Groupset Altus -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame

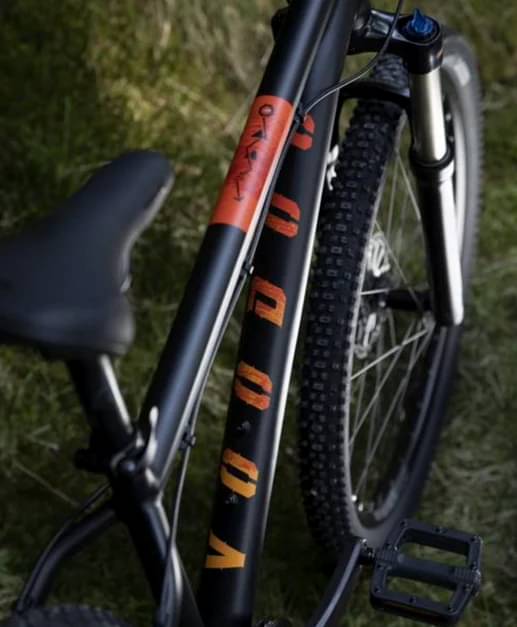

Frame

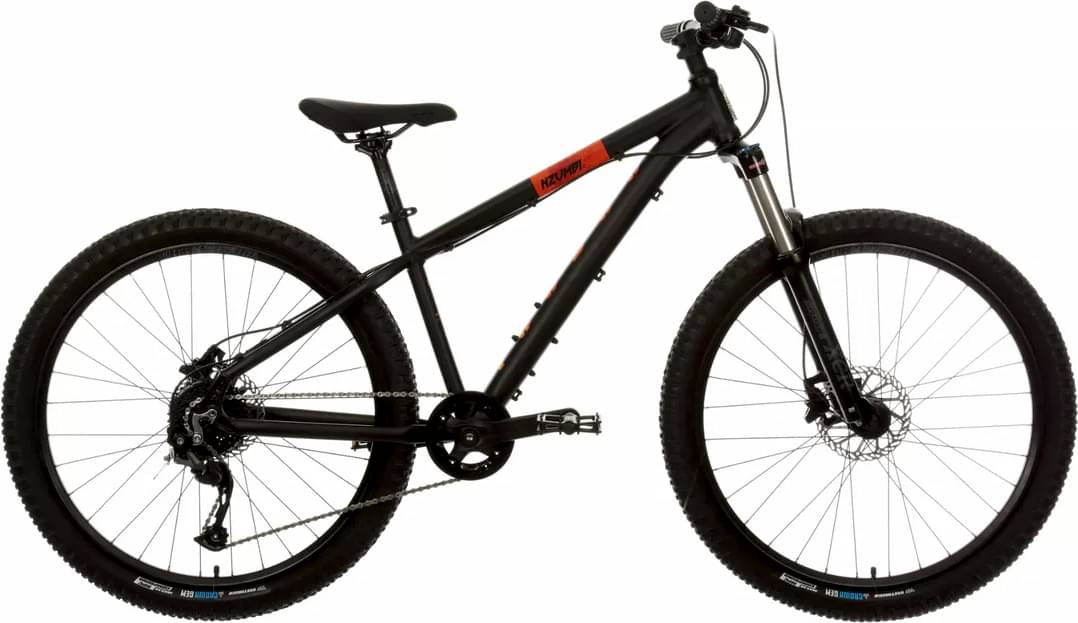

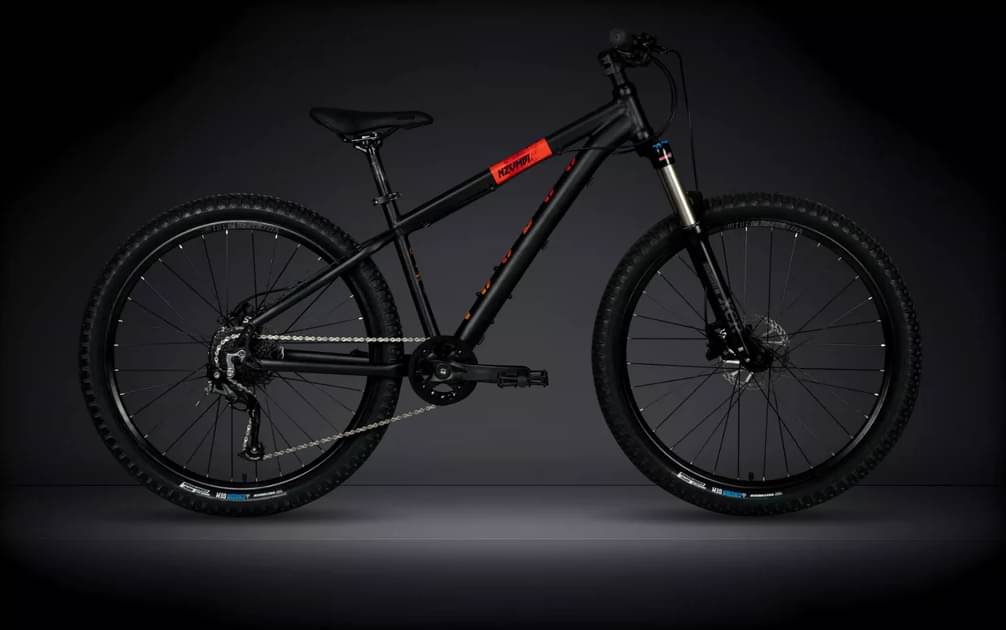

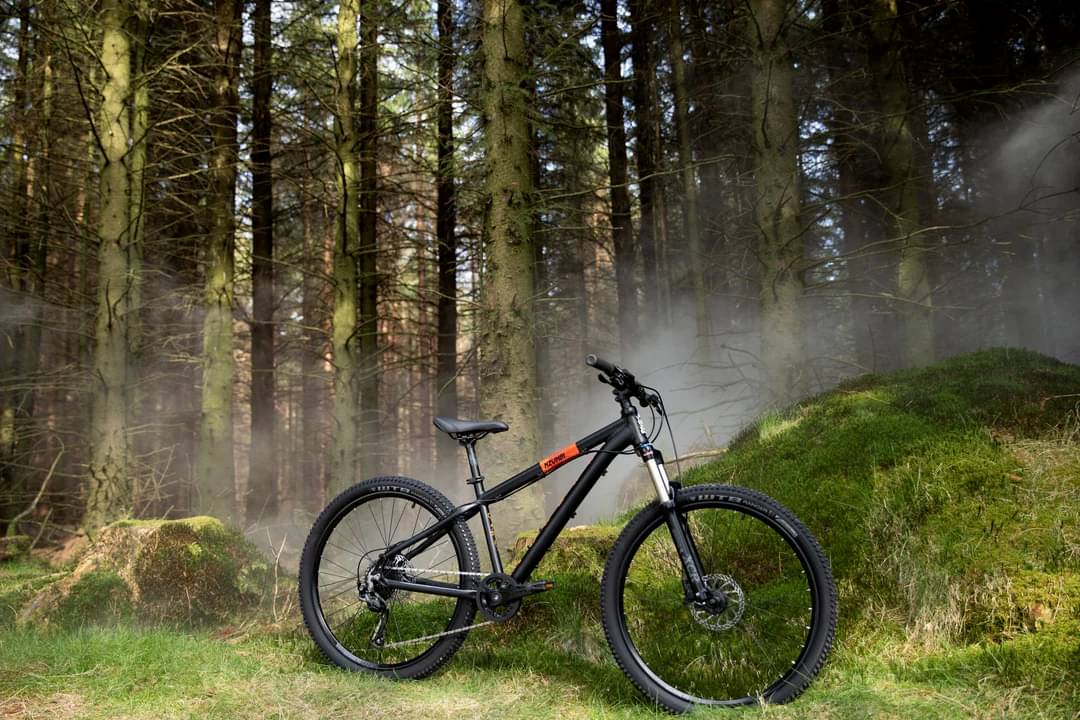

Nzumbi 26" hardtail MTB for 9+ years old kids. Material: aluminium alloy. BSA bottom bracket. QR 135 mm dropout. Smooth welding

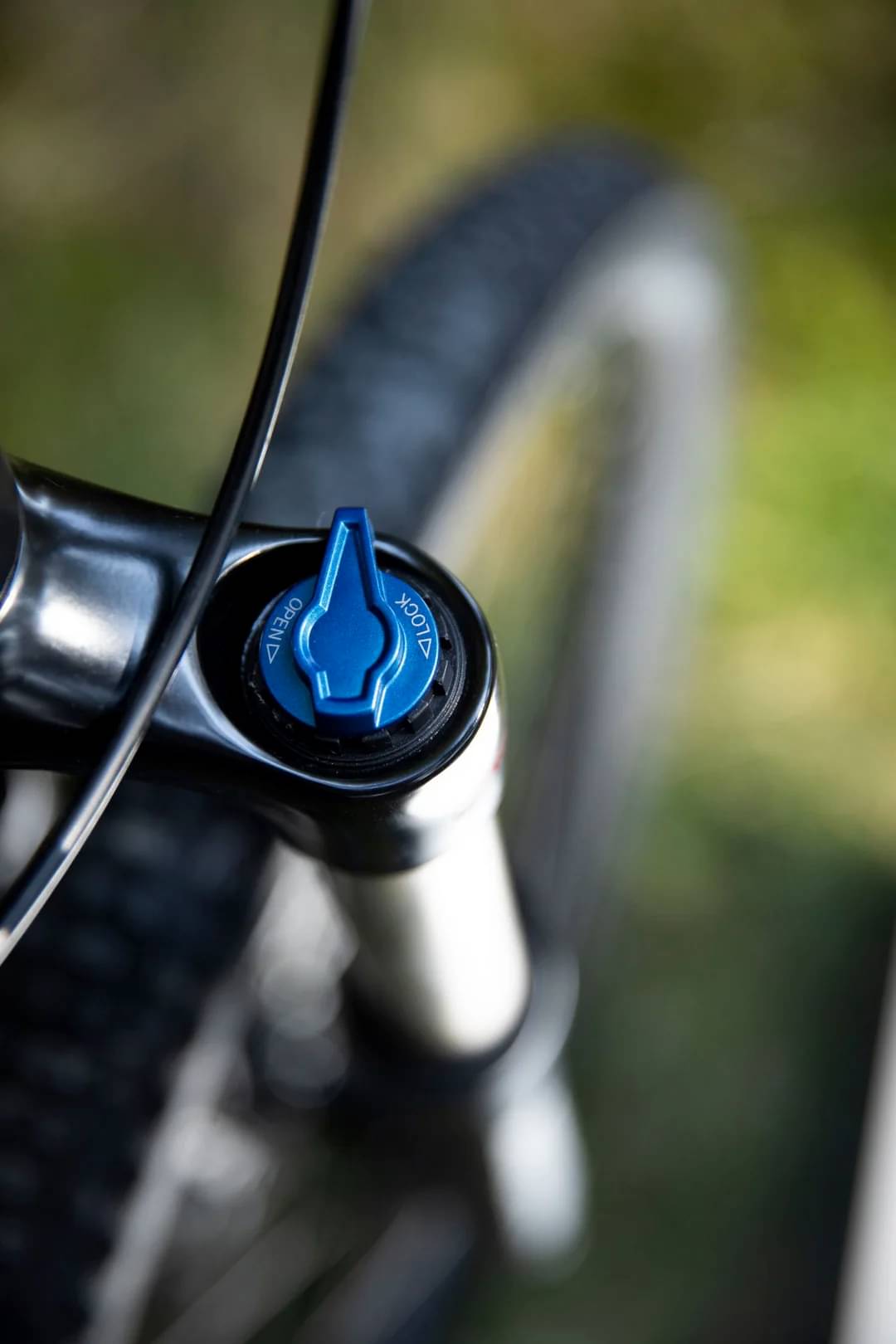

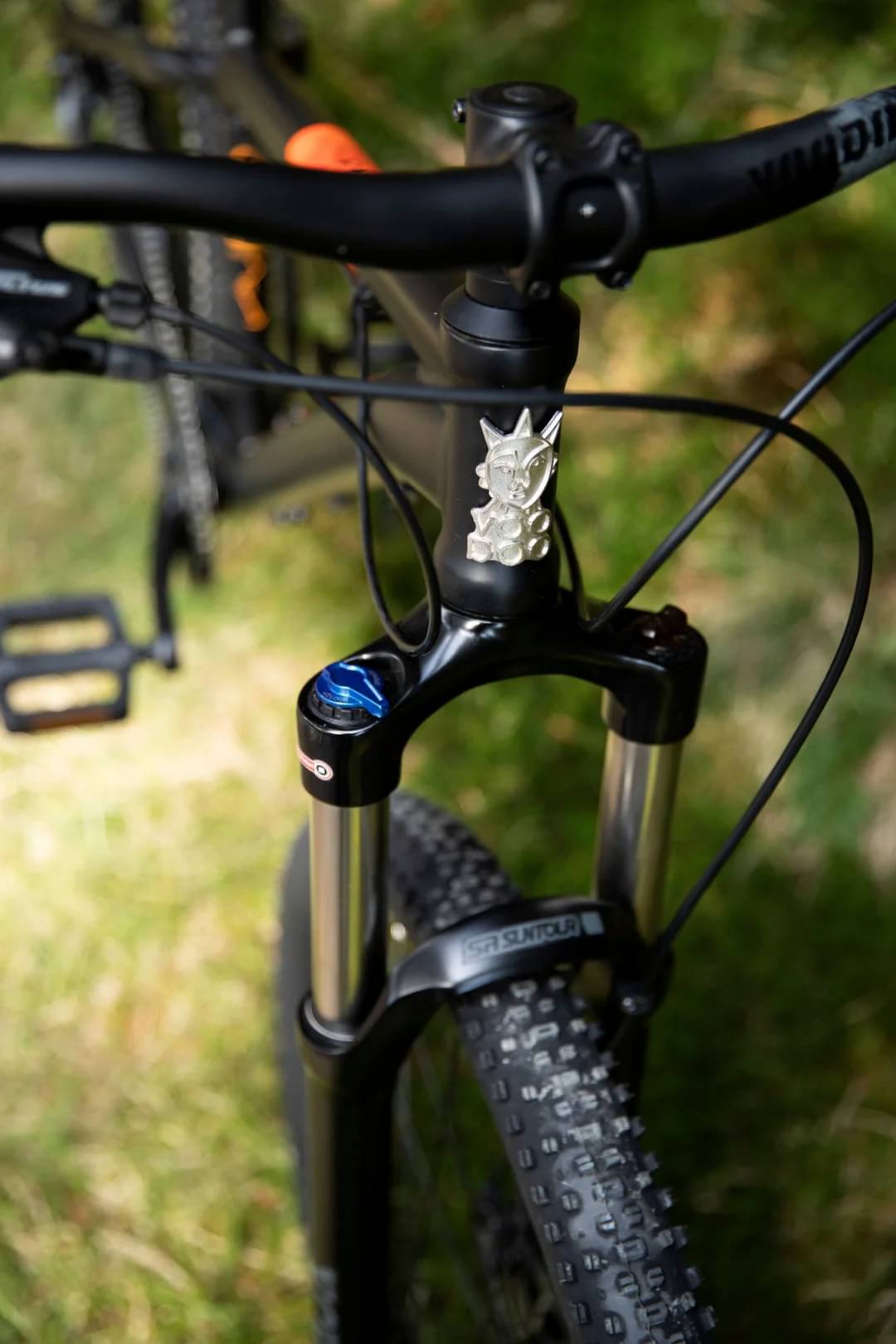

Suspension Fork
SR Suntour SF14-XCR32. 120 mm travel. QR100

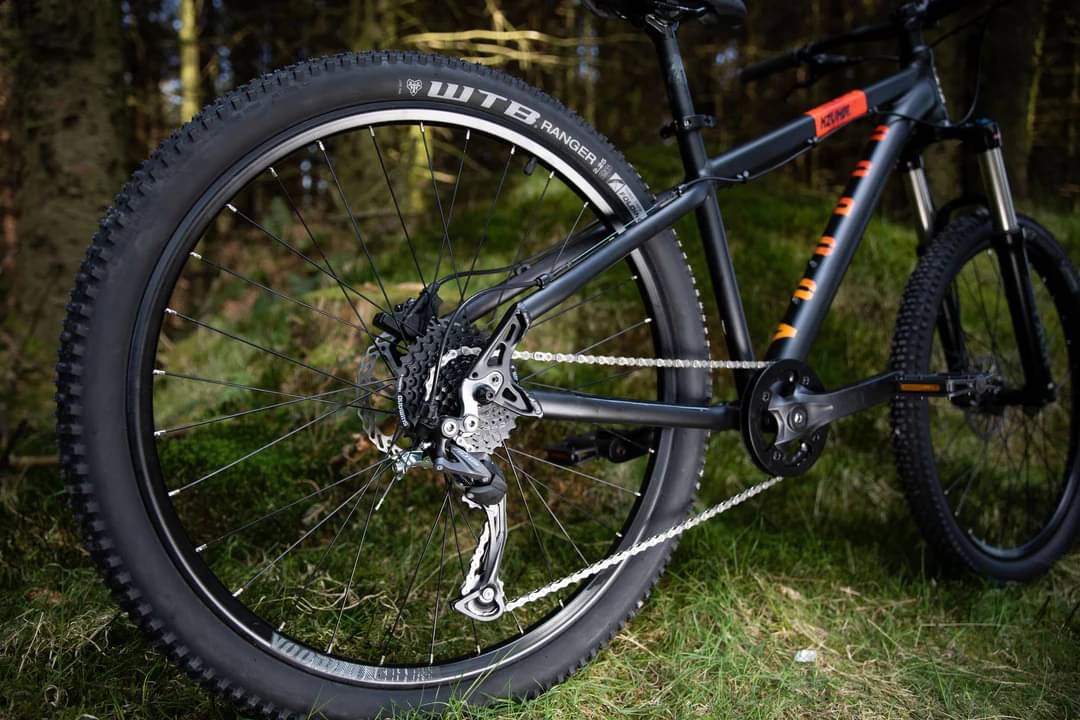

Drivetrain
Rear Derailleur
Shimano Altus RD-M2000-SGS
Front Derailleur
n/a
Shift Levers
Shimano Altus SL-M2010-9R
Cassette
Shimano CS-HG200-9. 9 speed. 11-34t
Crank
Forged alloy. 1x 32t. 165 mm crank length
Bottom Bracket
BSA
Chain
KMC X9
Pedals
FPD NW-303. One piece nylon+fiber body. Flat with retention pins
Wheels

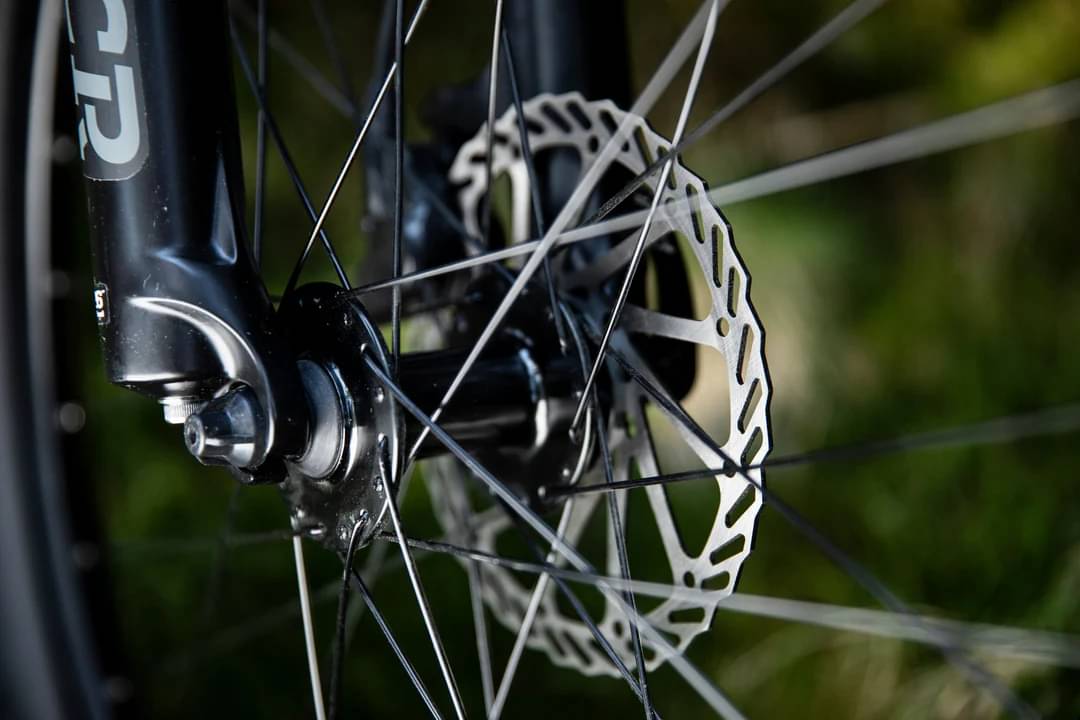

Front Hub
Aluminium alloy, 15x100, 32H, 6 bolts (F) Aluminium alloy, QR135, 32H, 6 bolts (R)
Rear Hub
Aluminium alloy, 15x100, 32H, 6 bolts (F) Aluminium alloy, QR135, 32H, 6 bolts (R)
Rims
26" (559 mm) aluminium alloy, double wall. 32H. 21 mm inner width, 20 mm height
Spokes
Steel
Tires
WTB Ranger 26x2.25, foldable, 60TPI
Brakes
Brakes
Clarks Clout. Hydraulic Brake.
Brake Levers
Clarks Clout. Hydraulic Brake.
Cockpit
Stem
Aluminium alloy, ?31.8 mm, 45 mm, 3deg
Handlebar
Aluminium alloy, ?31.8 mm, 20 mm rise, 6deg, 700 mm width
Grips
Velo, lock-on, black
Headset
Threadless semi-integrated 1-1/8"
Seat
Saddle
Voodoo JR. Steel rails
Seatpost
Aluminium alloy, ?27.2 mm. 350 mm length
Fit data

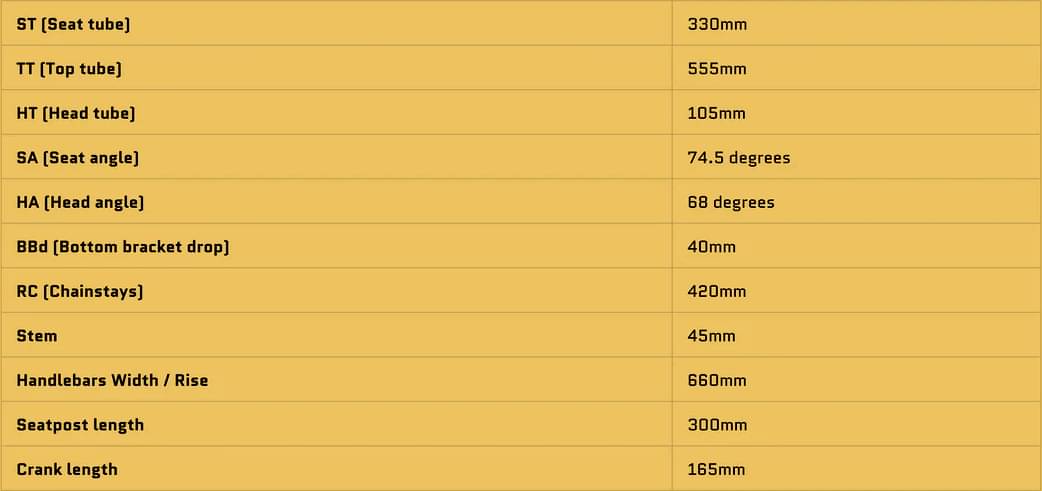

Geometry
Numbers for sizing and ride feel.
| Size | 16" | 20" | 24" | 26" | BMX Bikes |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
