Bike details
Overview
Key information split into simple groups.

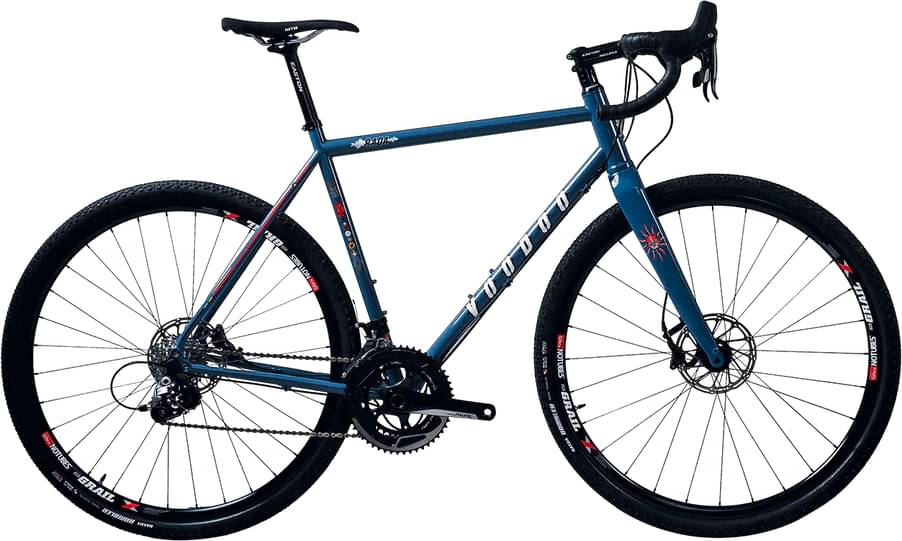

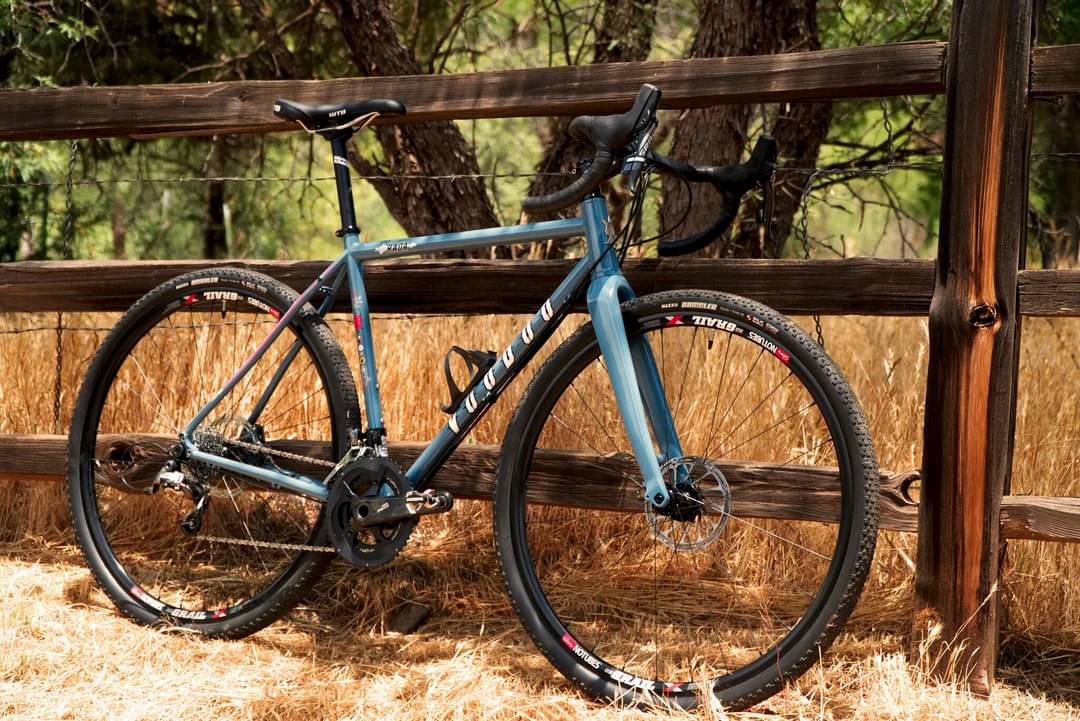

Bike summary
-
-
Frame Aluminum -
Groupset Force -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
50cm
142cm - 158cm
52cm
156cm - 168cm
54cm
166cm - 178cm
56cm
176cm - 191cm
58cm
189cm - 199cm
60cm
197cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Carbon Disc 700c Tapered; 396mm A to C; 100mm X 12mm Thru-Axle
Drivetrain

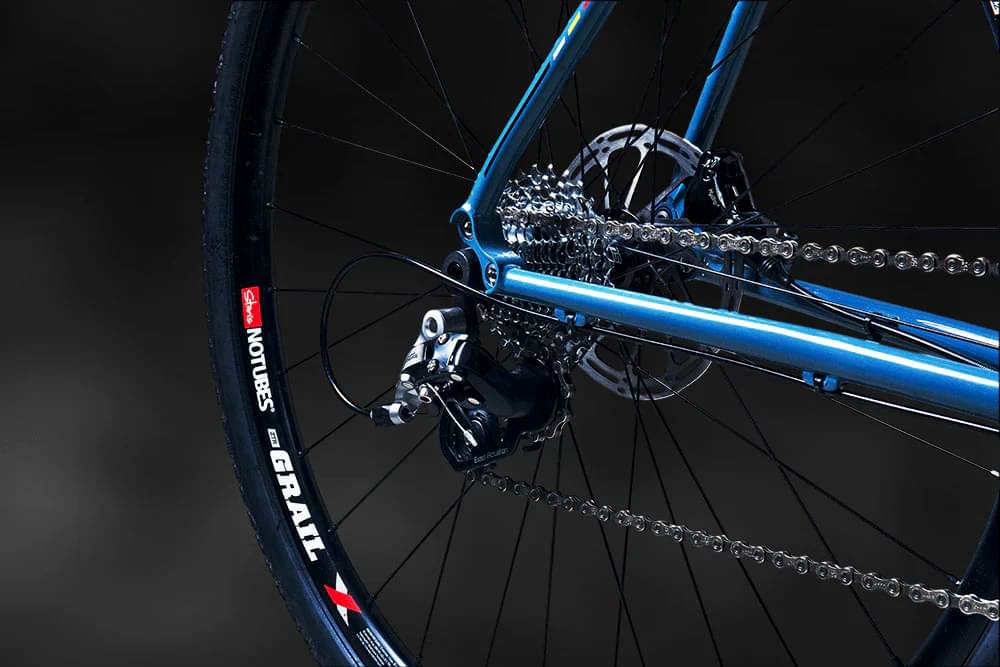

Rear Derailleur
RD RD FORCE1 LONG CAGE
Front Derailleur
n/a
Shift Levers
DB HRD FRC CX1 ICJ FRONT/LEFT DIR 900mm hose; SB Force Hydraulic Disc, rear caliper, right control, rear shifter,Flat Mount Rear, 1750mm hose, In-Line Connectamajig
Cassette
SRAM PG-1170, 11-32 11-speed
Crank
FC FORCE1 24MM 1725 XSYNC 38
Bottom Bracket
Truvativ/SRAM DUB Threaded BSA 68mm Road
Chain
SRAM PC1170 11-speed, 116 links
Pedals
Wellgo C172DU Road/Hybrid pedal
Wheels
Tires
WTB Raddler 700 X 44 Tan Sidewall, Distance+ Compound, Supple Tubeless Casing, TCS Aramid Bead
Brakes
Brakes
SRAM FORCE 22 - Included above
Cockpit
Stem
Easton EA70 31.8mm Clamp 0 deg 80, 90, 100, 110
Handlebar
Easton EA70 AX 31.8mm Clamp 42, 44, 46 cm

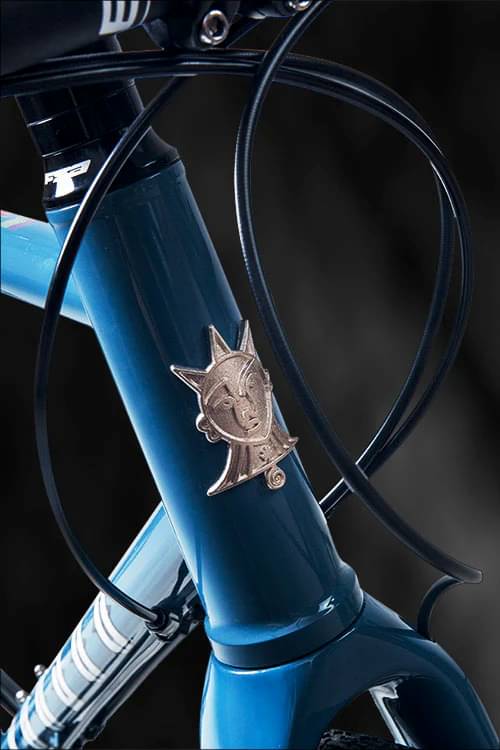

Headset
FSA Sealed 1-1/8 ACB Top, 1.5" ACB Btm (for 46/56mm Head Tubes ), alloy crown race (H2166B) Orbit C-40-ACB
Seat
Saddle
WTB SL8 TEAM with Ti Rails
Seatpost
EA70 SP 0MM 400 27.2 OE
Fit data

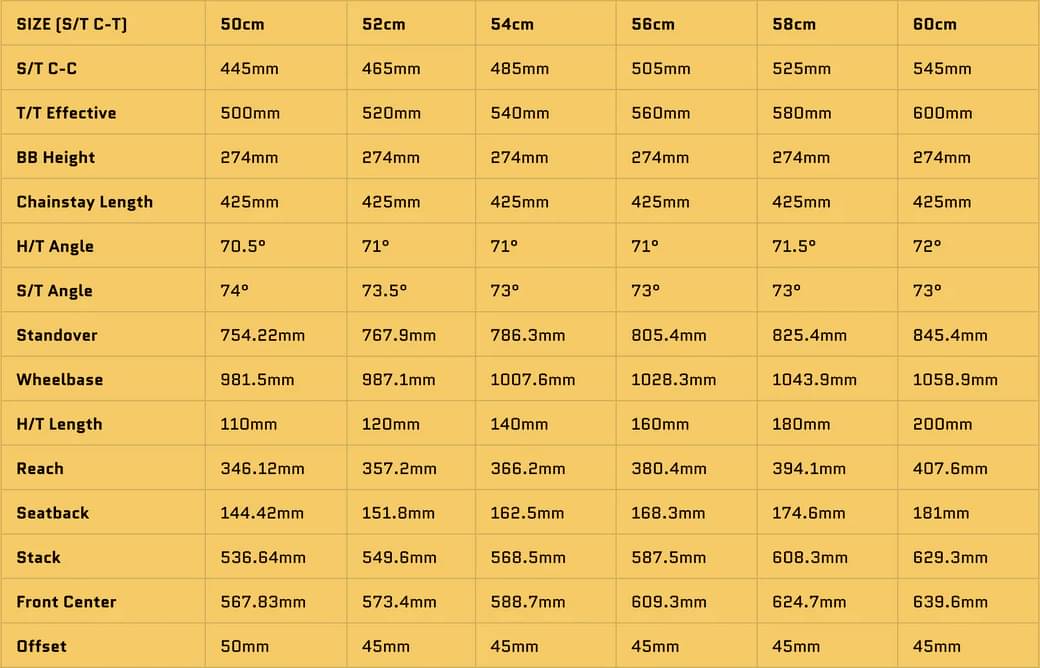

Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 142 cm | 156 cm | 166 cm | 176 cm | 189 cm | 197 cm |
| Rider Max Height | 158 cm | 168 cm | 178 cm | 191 cm | 199 cm | 205 cm |
