Voodoo ZOBOP 2025
2025 Mountain
Estimate price |
2,388$
Weight | 15 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Fork RockShox Psylo
-
Groupset CUES -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full suspension, 6061 alloy
Suspension Fork
RockShox Psylo Silver R with 160mm travel
Rear Shock
RockShox Deluxe Select+
Drivetrain
Rear Derailleur
Shimano CUES RD-U6000-GS, Shadow+, UDH hanger
Shift Levers
Shimano CUES SL-U6000-10R, 10 speed
Cassette
Shimano CUES CS-LG300, 10 speed, 11-48T
Crank
Prowheel Charm, 32T, 170mm
Bottom Bracket
Prowheel PW-BB73+
Chain
KMC eGlide, 10 speed
Pedals
Voodoo alloy, cage
Wheels
Rims
Front: WTB alloy rims, 29”, double wall, tubeless ready, 15mm thru-axle, Rear: WTB alloy rims, 27.5”, double wall, tubeless ready, 12mm thru-axle
Tires
Tubeless ready, Maxxis Assegai EXO, 29x2.5" (front); Maxxis Dissector EXO, 27.5x2.4" (rear)
Brakes
Brakes
Front: Shimano BR-MT201, hydraulic, 180mm disc rotor, Rear: Shimano BR-MT201, hydraulic, 180mm disc rotor
Cockpit
Stem
Voodoo alloy, 31.8mm bore, 45mm length, 3 degree rise
Handlebar
Voodoo alloy, 31.8mm bore, 780mm width, 30mm rise
Grips
Voodoo, black, lock-on
Headset
1-1/8" - 1.5" semi-integrated, sealed cartridge
Seat
Saddle
WTB Volt Medium with gel inserts
Seatpost
X-Fusion Manic dropper post with 150mm travel (S, M, L); 170mm travel (XL)
Fit data

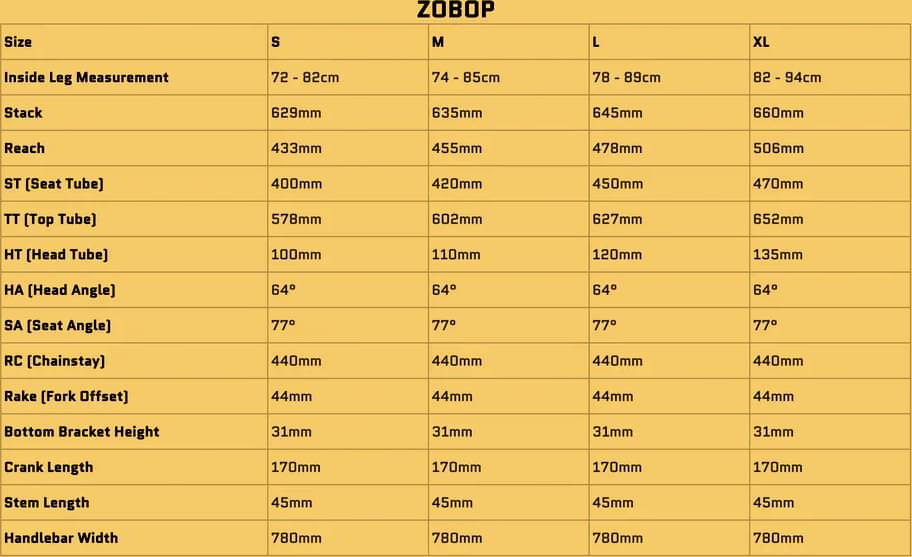

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
