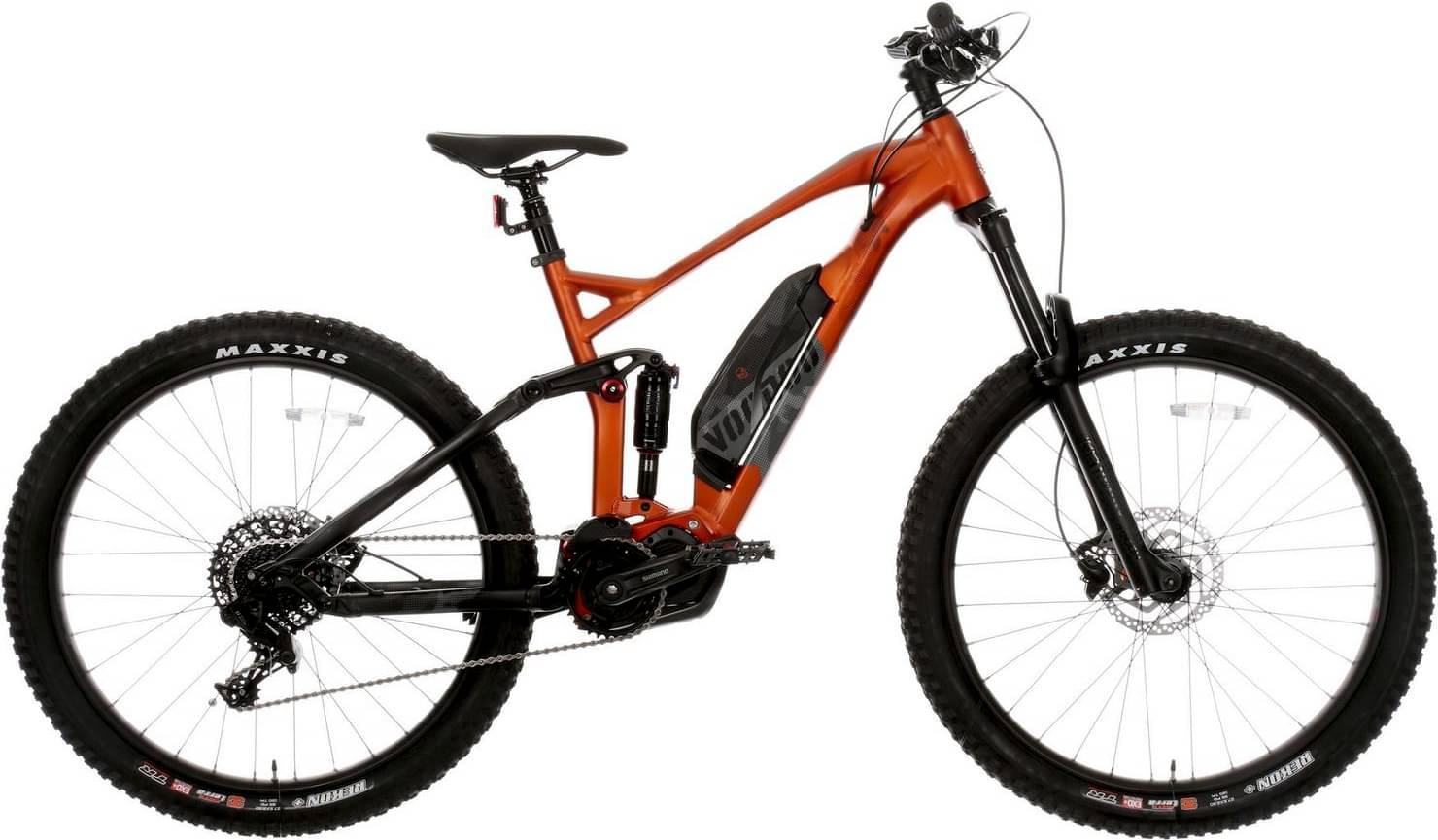

Voodoo ZOBOP-E 2023
2023 E-bike
Estimate price |
4,075$
Weight | 24.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Fork RockShox Recon Silver RL
-
Groupset NX -
Suspension Hardtail -
Motor Shimano mid-drive -
Battery Shimano Steps BT-E8010 – 504Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Full Suspension, lightweight alloy
Suspension Fork
Rockshox Recon RL – Diffusion Black - 150mm Travel
Drivetrain
Rear Derailleur
SRAM RD NX 1x11 Speed Long Cage
Shift Levers
SRAM SL NX 11 Speed Trigger
Cassette
SRAM PG-1130 11-42T
Crank
170mm
Bottom Bracket
Shimano Steps FC-E8000
Chain
KMC X11et
Pedals
9/16 Wellgo MTB Pedals with Replaceable Pins
Wheels
Front Hub
Formula DC-511 Disc - 32H
Rear Hub
Formula DC-1248 Disc - 32H
Rims
Downhill Double Wall Alloy 32 Holes
Tires
Maxxis Rekon 27.5 x 2.8+
Brakes
Brakes
Hydraulic disc brakes for firm stopping power with 180mm rotors
Cockpit
Stem
Alloy AS-M03 - 31.8mm
Handlebar
Matt Black Alloy - Width: 740mm, Reach: 15mm, Clamp: 31.8mm
Grips
MTB Lock On Grips
Headset
FSA No.57
Seat
Saddle
Velo High Density MTB Saddle
Seatpost
Tranzx Dropper Seatpost JD-YSP22 (125mm travel 30.9mm diameter)
Motor & Battery
Motor
Shimano Steps Mid Drive Motor
Battery
Shimano Steps BT-E8010 – 504Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm |
| Top Tube Length | 588 mm | 613 mm | 633 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 460 mm | 495 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 115 mm | 120 mm | 135 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
ZOBOP-E completes the Voodoo E Zobop E model. 2 e-bikes variations carry this model name so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2023 and its price was 4075$. If we compare this with the average Enduro e-bike cost we notice that the price is 17.42% smaller.
Enduro e-bikes average weight
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
ZOBOP-E weighs 24.5 kg (54.01 lbs) and is slightly heavier than the average. In conclusion, the average Enduro e-bike weighs 4.61% less than ZOBOP-E.
ZOBOP-E components
Fork
This e-bike has the RockShox Recon Silver RL fork installed. The fork’s travel is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When leaving the production line, the ZOBOP-E model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Voodoo ZOBOP-E has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
ZOBOP-E comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
