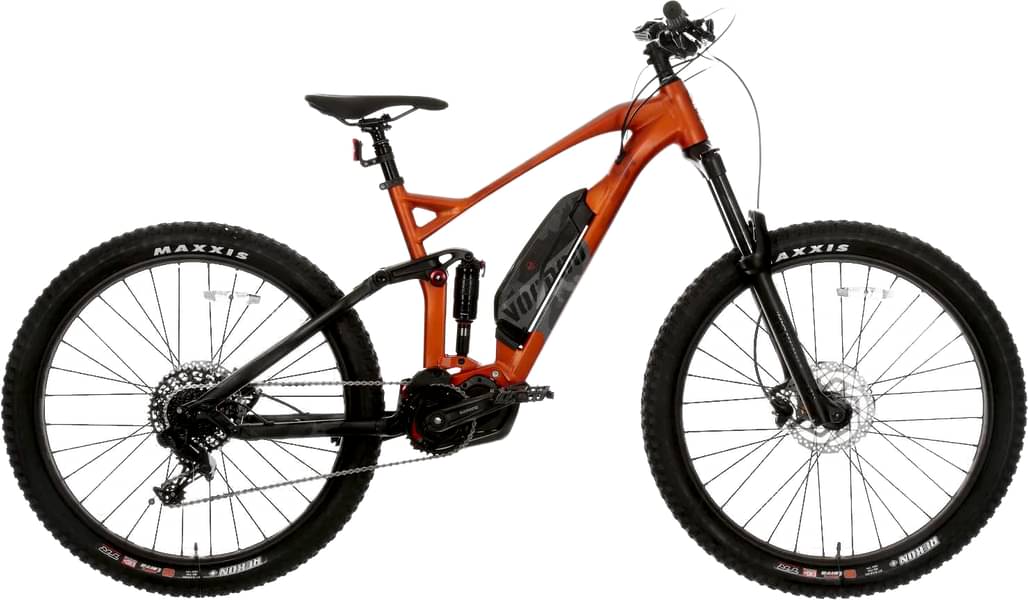

Voodoo ZOBOP-E 2024
2024 E-bike
Estimate price |
1,020$
Weight | 24.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Fork RockShox Recon Silver RL
-
Groupset NX -
Suspension Hardtail -
Motor Shimano mid-drive -
Battery Shimano Steps BT-E8010 – 504Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 175cm
MD
172cm - 180cm
LG
178cm - 185cm
XL
183cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components

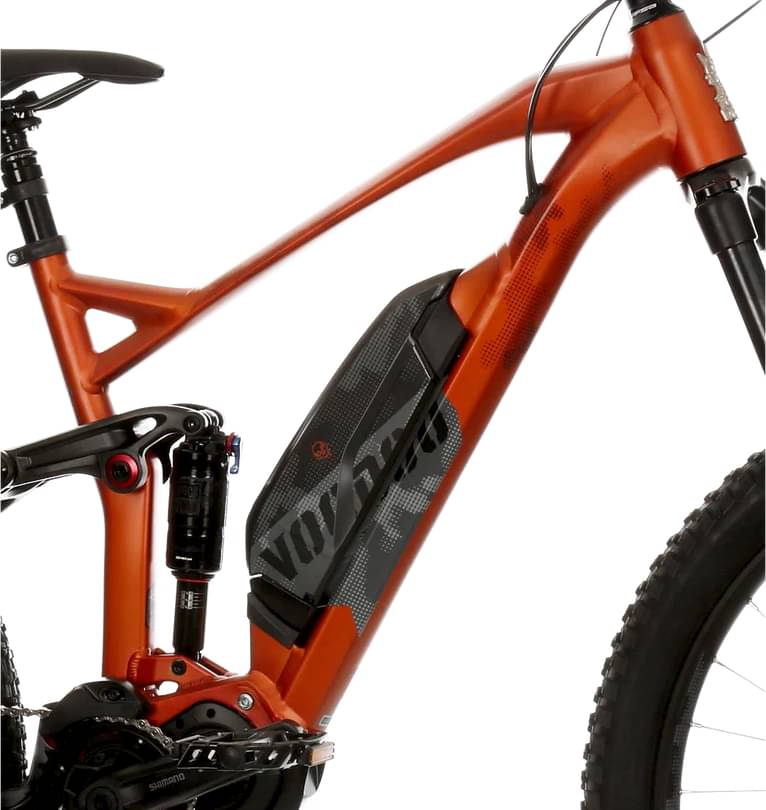

Frame
Frame
?Hardtail, lightweight alloy
Suspension Fork
Rockshox Recon RL – Diffusion Black - 150mm Travel
Drivetrain
Rear Derailleur
SRAM RD NX 1x11 Speed Long Cage
Shift Levers
SRAM SL NX 11 Speed Trigger
Cassette
SRAM PG-1130 11-42T
Crank
170mm
Bottom Bracket
Shimano Steps FC-E8000
Chain
KMC X11et
Pedals
9/16 Wellgo MTB Pedals with Replaceable Pins
Wheels
Front Hub
Formula DC-511 Disc - 32H
Rear Hub
Formula DC-1248 Disc - 32H
Rims
Downhill Double Wall Alloy 32 Holes
Tires
Maxxis Rekon 27.5 x 2.8+
Brakes
Brakes
Tektro Hydraulic Disc / 180mm Rotor (HD-285)

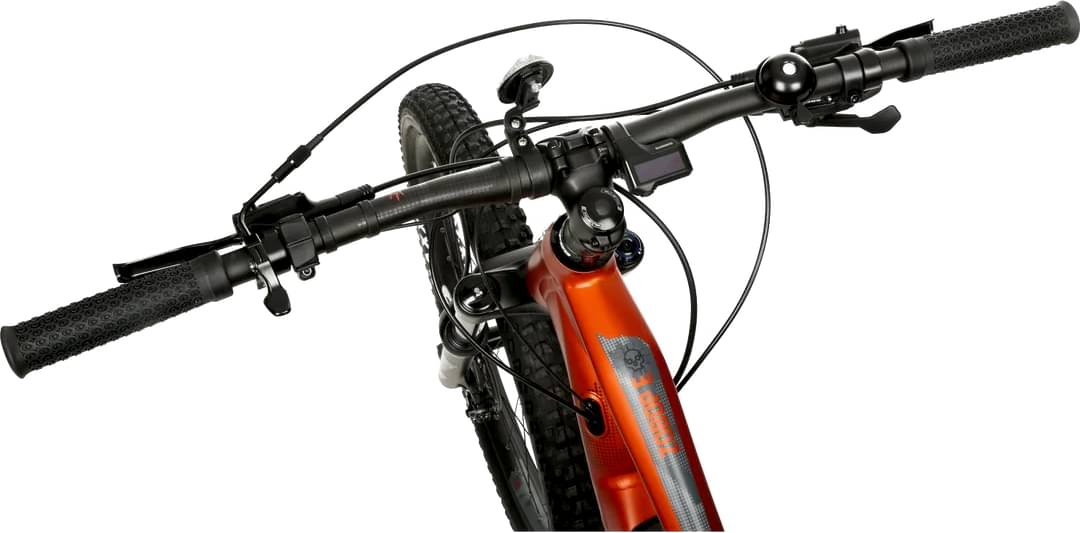

Cockpit
Stem
Alloy AS-M03 - 31.8mm
Handlebar
Matt Black Alloy - Width: 740mm, Reach: 15mm, Clamp: 31.8mm
Grips
MTB Lock On Grips
Headset
FSA No.57
Seat

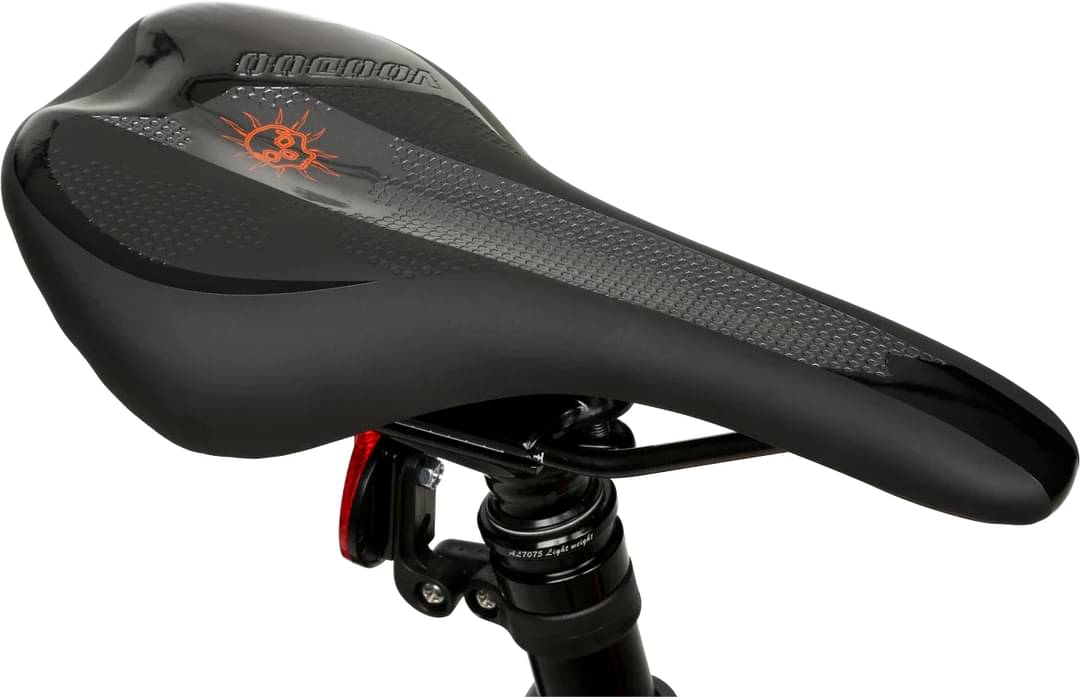

Saddle
Velo High Density MTB Saddle
Seatpost
Tranzx Dropper Seatpost JD-YSP22 (125mm travel 30.9mm diameter)
Motor & Battery

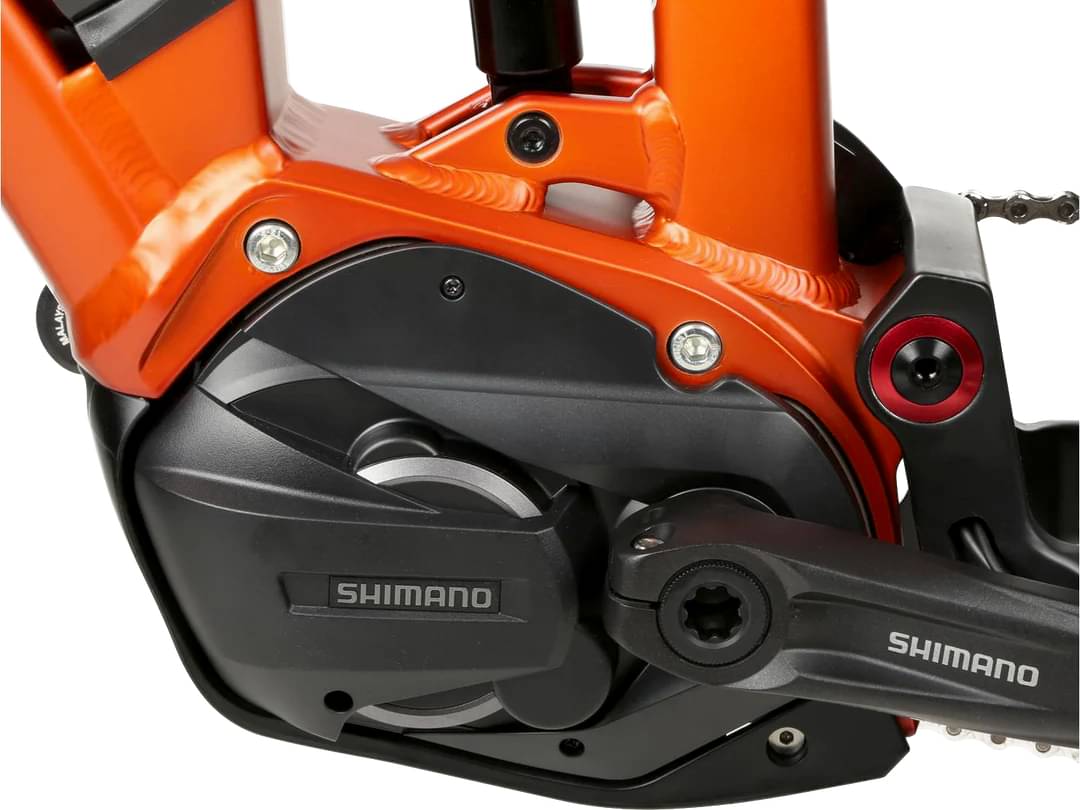

Motor
Shimano Steps Mid Drive Motor

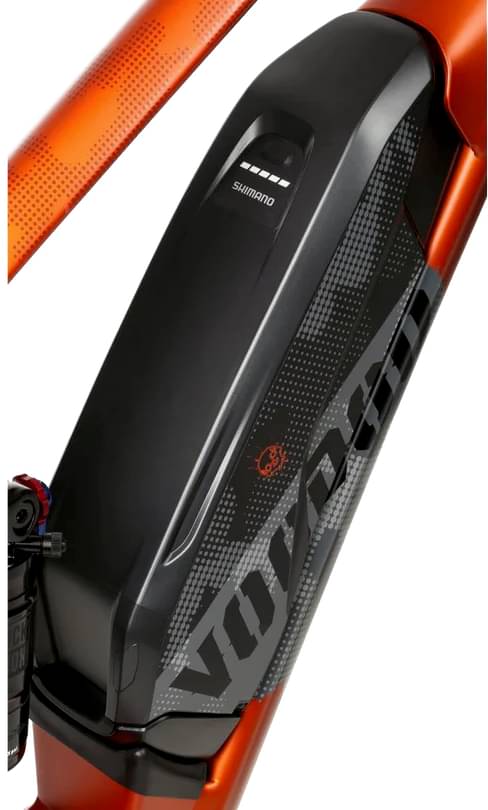

Battery
Shimano Steps BT-E8010 – 504Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 165 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 175 cm | 180 cm | 185 cm | 193 cm |
