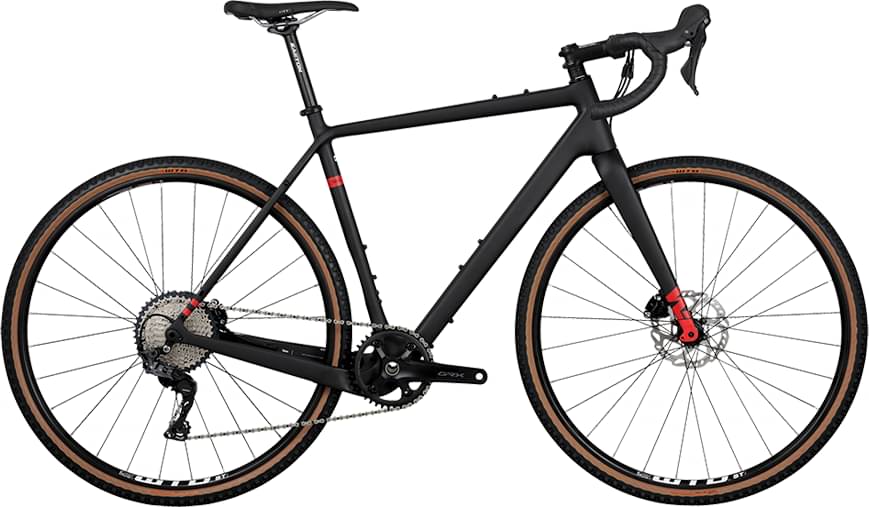

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
WHITE GX CF (12x142mm)
Suspension Fork
WHITE GX CF (12x100mm)
Drivetrain
Rear Derailleur
Shimano GRX RD-RX812
Shift Levers
Shimano GRX ST-RX600-R
Cassette
Shimano SLX CS-M7000-11, 11-42T
Crank
Shimano GRX FC-RX600-1, 40T (170mm=S/52cm, 172.5mm=M/54cm-L/56cm, 175mm=XL/58cm)
Chain
KMC X11 NPBK
Wheels
Front Hub
Shimano HB-RS470
Rear Hub
Shimano FH-RS470
Rims
WTB ST i23 TCS 2.0 28h
Tires
WTB Riddler 700x40C DNA TCS
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Easton EA50 31.8mm
Handlebar
Easton EA50 AX (420mm=S/52cm, 440mm=M/54cm-L/56cm, 460mm=XL/58cm)
Grips
WHITE ControlGrip tape
Headset
FSA NO.42/48/ACB
Seat
Saddle
WTB SL8 142 Race
Seatpost
Easton EA50 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.512 mm | 1.511 mm | 1.53 mm | 1.546 mm | mm |
| Bottom Bracket Height | 282 mm | 282 mm | 282 mm | 282 mm | mm |
| Stack | 567 mm | 568 mm | 589 mm | 609 mm | mm |
| Reach | 375 mm | 376 mm | 385 mm | 394 mm | mm |
| Top Tube Length | 535 mm | 550 mm | 565 mm | 580 mm | mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° | 73 ° | ° |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | ° |
| Head Tube Length | 140 mm | 150 mm | 170 mm | 190 mm | mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | mm |
| Standover Height | 786 mm | 803 mm | 823 mm | 841 mm | mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
