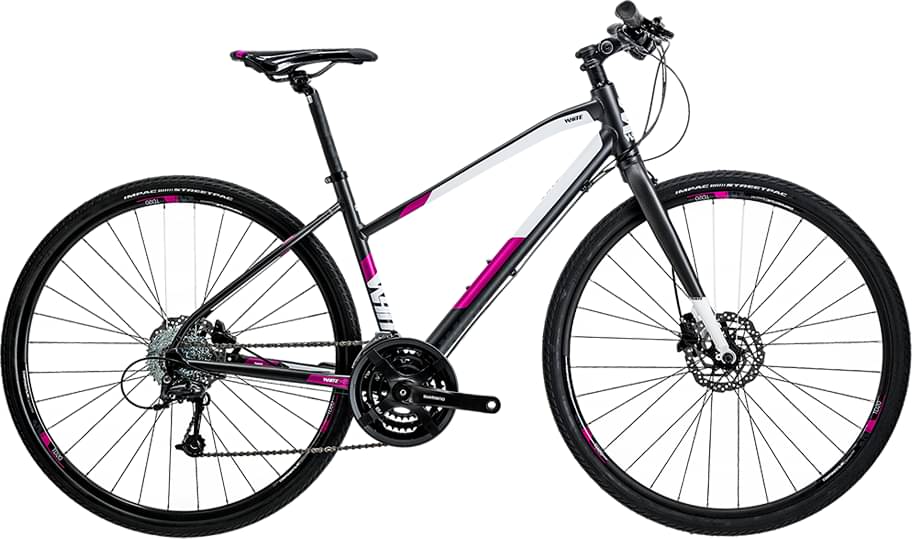

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore, Tourney -
Suspension Rigid -
Drivetrain 3 × 8 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
WHITE SC AL R Ane
Suspension Fork
WHITE SC ST
Drivetrain
Rear Derailleur
Shimano Deore RD-M591-SGS
Front Derailleur
Shimano FD-TY710-TS3
Shift Levers
Shimano SL-M315-L/8R
Cassette
SunRace CSM55, 11-32T
Crank
Shimano FC-TY501, 48/38/28T (170mm S-M)
Chain
KMC X8 NPGY
Wheels
Front Hub
Shimano HB-TX505
Rear Hub
Shimano FH-TX505
Rims
WHITE TD20 32h
Tires
Impac Streetpac 700x40C
Brakes
Brakes
Shimano BL-MT200/BR-MT200
Cockpit
Stem
WHITE ControlStem Adjustable 31.8mm
Handlebar
WHITE ControlBar Lite 660mm
Grips
WHITE ControlGrip Ergo lock-on
Headset
FSA NO.10
Seat
Saddle
WHITE ControlSeat Comp
Seatpost
WHITE ControlPost Comp 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.491 mm | 1.506 mm | mm | mm | mm |
| Stack | 574 mm | 595 mm | mm | mm | mm |
| Reach | 385 mm | 395 mm | mm | mm | mm |
| Top Tube Length | 560 mm | 577 mm | mm | mm | mm |
| Seat Tube Angle | 73 ° | 73 ° | ° | ° | ° |
| Head Tube Angle | 70 ° | 70.5 ° | ° | ° | ° |
| Head Tube Length | 140 mm | 160 mm | mm | mm | mm |
| Chainstay Length | 440 mm | 440 mm | mm | mm | mm |
| Bottom Bracket Drop | 60 mm | 60 mm | mm | mm | mm |
| Standover Height | 695 mm | 735 mm | mm | mm | mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
