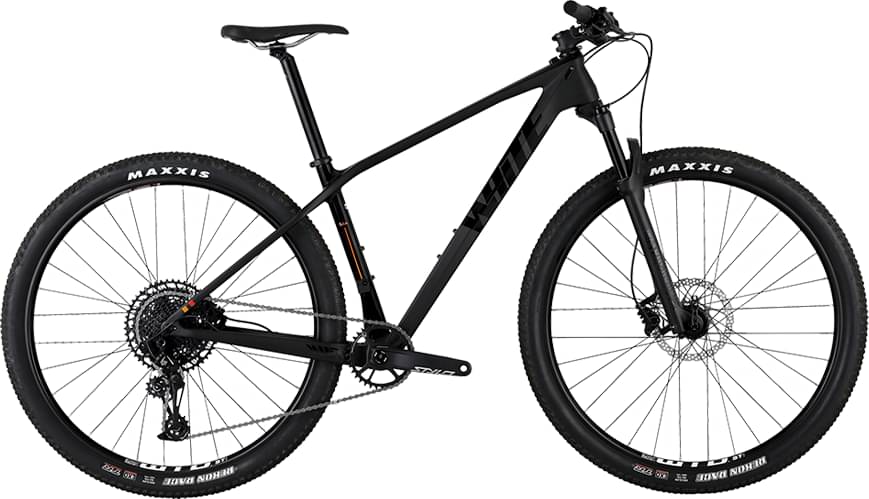

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork RockShox Judy Gold RL
-
Groupset NX Eagle, Truvativ Stylo -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
WHITE XC CF 29 (12x148mm)
Suspension Fork
Rock Shox Judy Gold RL 100mm w/ OneLoc remote
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle Trigger
Cassette
SRAM PG-1230, 11-50T
Crank
Truvativ Stylo 6K DUB, 34T
Chain
SRAM NX Eagle
Wheels
Front Hub
Formula DC-711
Rear Hub
Formula DHT 148S
Rims
WTB ST i23 TCS 2.0 32h
Tires
Maxxis Recon Race 29x2.25 120TPI EXO/TR
Brakes
Brakes
Shimano BL-MT501/BR-MT500
Cockpit
Stem
WHITE ControlStem Race 31.8mm
Handlebar
WHITE ControlBar Race 740mm
Grips
WHITE ControlGrip Pro lock-on
Headset
FSA NO.42/48/ACB
Seat
Saddle
WTB SL8 142 Race
Seatpost
WHITE ControlPost Pro 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.585 mm | 1.52 mm | 1.471 mm | mm | mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | mm | mm |
| Stack | 631 mm | 634 mm | 643 mm | mm | mm |
| Reach | 398 mm | 417 mm | 437 mm | mm | mm |
| Top Tube Length | 599 mm | 619 mm | 642 mm | mm | mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° | ° | ° |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | ° | ° |
| Head Tube Length | 110 mm | 110 mm | 120 mm | mm | mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | mm | mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | mm | mm |
| Standover Height | 776 mm | 807 mm | 834 mm | mm | mm |
| Front Travel | 100 mm | 100 mm | 100 mm | mm | mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
