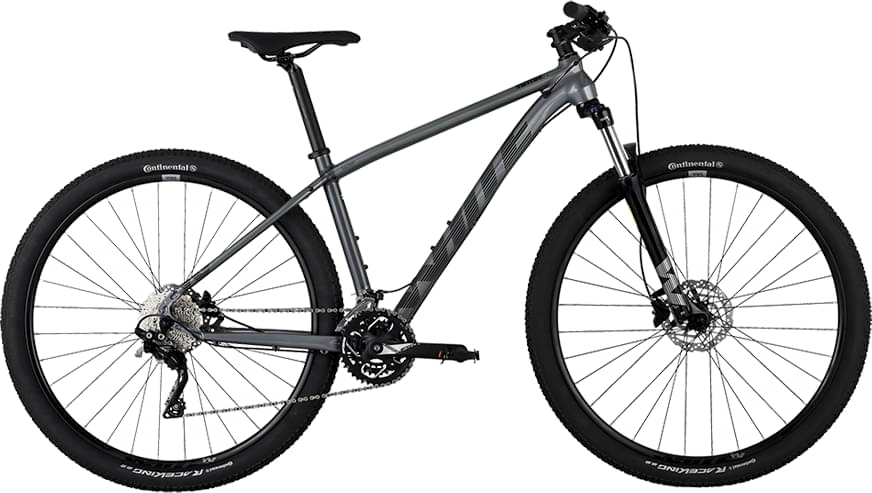

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
WHITE XC AL 29
Suspension Fork
SR Suntour XCM HLO 100mm
Drivetrain
Rear Derailleur
Shimano XT RD-M781-SGS
Front Derailleur
Shimano Deore FD-M6020-L
Shift Levers
Shimano Deore SL-M6000-L/R
Cassette
SunRace CSMS1, 11-34T
Crank
FSA Alpha Drive 3x, 40/30/22T
Chain
KMC X10 NPBK
Wheels
Front Hub
Shimano HB-TX505
Rear Hub
Shimano FH-TX505
Rims
WHITE MD20 32h
Tires
Continental Race King 29x2.2 60TPI
Brakes
Brakes
Shimano BL-MT200/BR-MT200
Cockpit
Stem
WHITE ControlStem Pro 31.8mm
Handlebar
WHITE ControlBar Lite 720mm
Grips
WHITE ControlGrip Comp lock-on
Headset
FSA NO.42/ACB
Seat
Saddle
WHITE ControlSeat Comp
Seatpost
WHITE ControlPost Comp 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.475 mm | 1.428 mm | 1.385 mm | mm | mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | mm | mm |
| Stack | 612 mm | 621 mm | 630 mm | mm | mm |
| Reach | 415 mm | 435 mm | 455 mm | mm | mm |
| Top Tube Length | 594 mm | 616 mm | 639 mm | mm | mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | ° | ° |
| Head Tube Angle | 69.3 ° | 69.3 ° | 69.3 ° | ° | ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | mm | mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | mm | mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | mm | mm |
| Standover Height | 771 mm | 809 mm | 844 mm | mm | mm |
| Front Travel | 100 mm | 100 mm | 100 mm | mm | mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
