Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RockShox 35 Gold RL
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Headtube, Internal Cable Routing with BBX, Chainstay Post Mount Dropouts and 12mm X 148mm Boost Dropouts
Suspension Fork
RockShox 35 Gold RL 29", 120mm Travel, 44mm Offset, DebonAir, Fast Black Coating, Adjustable Compression and Rebound, Tapered Steerer, 110mm x 15mm Boost, Maxle Lite
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore RD-M6100 SGS, Shadow Plus, 12 Speed
Front Derailleur
N/A
Shift Levers
Shimano Deore M6100, I-spec EV, 12 Speed
Cassette
Shimano CS-M6100, 10-51, 12 Speed
Crank
Shimano FC-M6100, 32T, 170mm, 12 Speed
Bottom Bracket
BSA Shimano Hollowtech 2, 73mm
Chain
Shimano CN-M6100, 12 Speed
Pedals
Fibre Reinforced Composite Platform
Wheels
Front Hub
Shimano MT410-B, Cartridge Bearings, centre lock, 15mm x 110mm Boost Through Axle, 32 Hole
Rear Hub
Shimano MT410-B, Cartridge Bearings, centre lock, 12mm x 148mm Boost Through Axle, 32 Hole
Rims
WTB ST i27 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
Spokes
DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
Tires
Maxxis High Roller II TR 29"x 2.3" 60TPI, EXO Sidewall Protection, 3C Maxx Terra, Front, Maxxis Forekaster TR 29" x 2.35" 60TPI, EXO Sidewall Protection, Dual Compound, Rear
Brakes
Brakes
Shimano M6120, 4 Piston, 180mm Disc
Brake Levers
Shimano BL-M6100, I-Spec EV
Cockpit
Stem
Whyte Alloy, 40mm Extension
Handlebar
Whyte 6061 Alloy, 15mm Rise, 31.8mm, 780mm Wide
Grips
Whyte Lock-on V Grip
Headset
FSA No. 57B Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Caged Bearings
Seat
Saddle
Whyte Custom, Triple Panel Design
Seatpost
Whyte drop.it II Adjust, 30.9mm, S 120-150mm Travel, M/L/XL 140-170mm Travel, Shimano MT500 I-spec EV Remote Lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.33 mm | 1.3 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm |
| Stack | 633.5 mm | 637.5 mm | 651.5 mm |
| Reach | 453.5 mm | 478.5 mm | 501.5 mm |
| Top Tube Length | 632.5 mm | 656.5 mm | 683.5 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 444.5 mm | 495.7 mm | 533.4 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 115 mm | 120 mm | 135 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1208 mm | 1233 mm | 1263 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 74 mm |
| Standover Height | 798 mm | 812 mm | 576 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

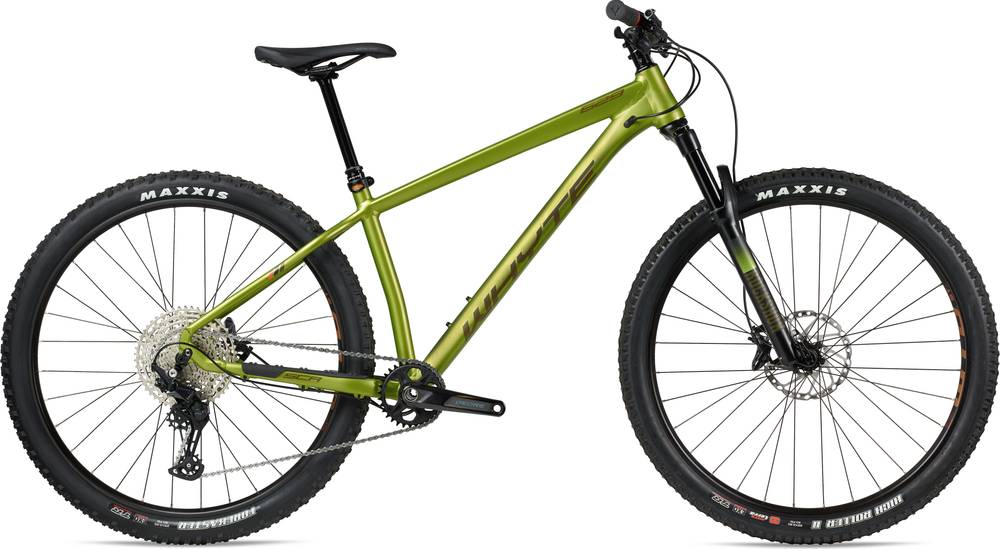

629 v3 is part of the Whyte 629 model. Whyte launched 8 bikes of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2021 for 2068$. Comparing the average cost of a Trail bike to this one, you will see that 629 v3 price is 33.56% lower.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
629 v3 components
Fork
The RockShox 35 Gold RL is included from the factory. It has a travel distance of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the 629 v3 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The 629 v3 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Whyte 629 v3 bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Whyte 629 v3 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
