Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Fork Fox Performance Float 34
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX Float Performance 34, GRIP 3-position damper, tapered steerer, black coating, 110x15mm Boost E-thru axle
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, MMX Clamp, 12-speed
Cassette
SRAM XG-1275 Eagle, 10-50 tooth, 12-speed
Crank
SRAM GX Eagle, Boost
Bottom Bracket
SRAM GXP, 73mm
Chain
SRAM GX Eagle, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Front: alloy, double sealed cartridge bearing, 32 hole, 110x15mm Boost, Rear: Hope Pro 4, stainless steel bearings, XD driver, 32 hole, 148x12mm Boost
Rear Hub
Front: alloy, double sealed cartridge bearing, 32 hole, 110x15mm Boost, Rear: Hope Pro 4, stainless steel bearings, XD driver, 32 hole, 148x12mm Boost
Rims
WTB STp i35, TCS System, sleeve joint, tubeless ready
Spokes
WTB 2.0mm, black Sandvik stainless steel, brass nipples
Tires
Front: Maxxis High Roller II TR, 120tpi, 3C (Maxx Terra) folding bead, EXO sidewall protection, 27.5" x 2.8", Rear: Maxxis Rekon TR, 60tpi, Dual TLR, folding bead, EXO sidewall protection, 27.5" x 2.8"
Brakes
Brakes
SRAM Guide R, 4-piston, 180mm front rotor, 160mm rear rotor (200mm front and 180mm rear rotors on XL)
Brake Levers
SRAM Guide R, MMX Matchmaker clamp
Cockpit
Stem
Whyte Gravity, 40mm length (S/M), 50mm length (L/XL)
Handlebar
Whyte Custom 6061 alloy, low rise, 760mm width (30mm rise and 780mm width on XL)
Grips
Whyte lock-on V
Headset
FSA No. 57E Orbit ZS, lower sealed cartridge bearings
Seat
Saddle
Whyte Custom, triple panel design
Seatpost
Whyte drop.it, 150mm travel, 420mm length, Paddle remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.43 mm | 1.4 mm | 1.37 mm |
| Bottom Bracket Height | 297.5 mm | 297.5 mm | 297.5 mm | 297.5 mm |
| Stack | 614.6 mm | 623.5 mm | 632.6 mm | 641.7 mm |
| Reach | 420.6 mm | 436.5 mm | 452.2 mm | 467.9 mm |
| Top Tube Length | 611.4 mm | 629.7 mm | 648.4 mm | 666.8 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 408.4 mm | 433.8 mm | 459.2 mm | 484.6 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1158 mm | 1178 mm | 1198 mm | 1218 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 779 mm | 784 mm | 810 mm | 816 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

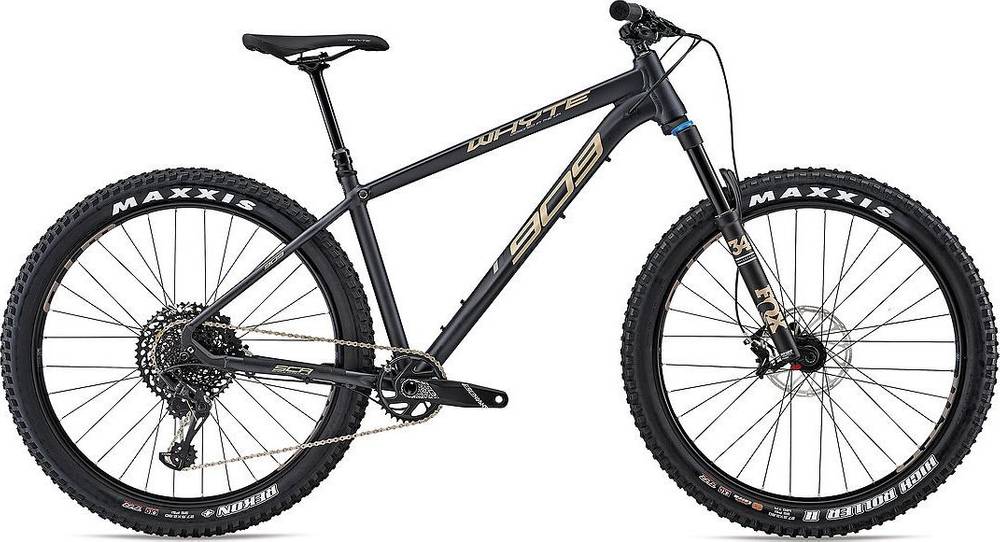

909 is a Whyte 909 model. There are 8 bikes that carry this model name.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 12.8 kg (28.22 lbs), the 909 model is slightly lighter than average. In other words, this model is 1.41% lighter than the average Trail bike.
Overview of components
Fork
The 909 comes factory-installed with the Fox Performance Float 34 fork. This has a travel range of 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When it comes to wheels, the 909 bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Whyte 909 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Whyte 909 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
