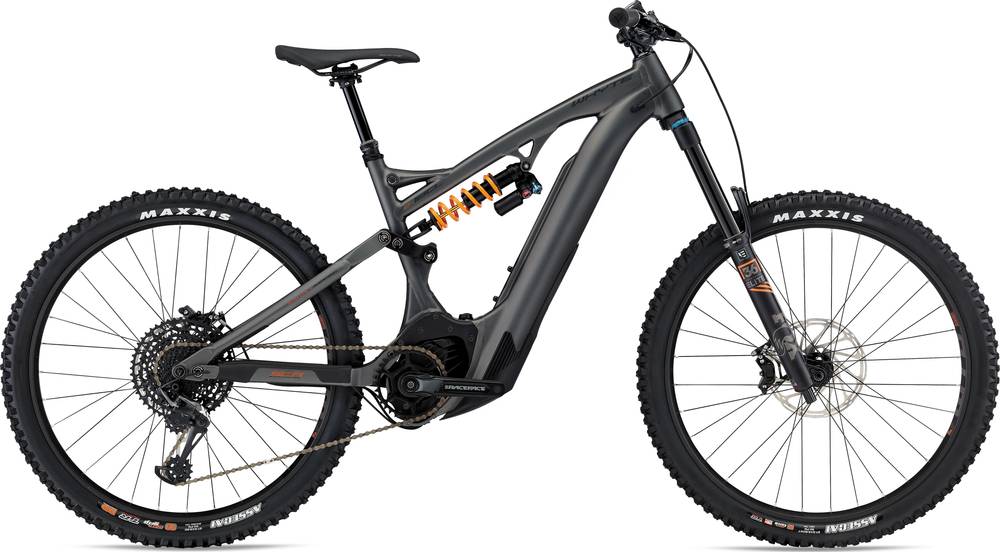

Whyte E-180 RS v1 2020
2020 E-bike
Estimate price |
7,791$
Weight | 24.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 180mm -
Fork Fox Performance Elite Float 36
-
Groupset X01 Eagle, Race Face -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch 625 Wh internal PowerTube, Reaches full charge in 8.8 hours with supplied 2A Compact Charger, (or only 3.7 hours with optional aftermarket Fast Charger) -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal BBX Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts
Suspension Fork
Fox Performance Elite 36 27.5", 180mm Travel, 44mm Offset with Grip 2 Damper and custom tune, Tapered Steerer, Black Coating, 110mm x 15mm Boost, E-Thru Axle
Rear Shock
Fox Float DHX-2, Factory,independently adjustable Compression and Rebound damping, Super-Light Steel spring
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12 Speed
Front Derailleur
N/A
Shift Levers
SRAM X01-E Eagle, Single Click, MMX, 12 Speed
Cassette
SRAM PG-1230 Eagle, 11-50, 12 Speed
Crank
Raceface Affect E-Bike, 165mm, ISIS with X-SYNC Direct Mount 34T for Bosch Gen 4, Black
Bottom Bracket
N/A
Chain
SRAM Eagle, 12 Speed
Pedals
None
Wheels
Front Hub
Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Through Axle, 31mm Torque Caps, 32 Hole
Rear Hub
Alloy, E-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Through Axle, 32 Hole
Rims
WTB KOM Trail i30 TCS 2.0 System, Sleeved Joint, Super Tough Construction, Tubeless Ready, 32 Hole
Spokes
DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
Tires
Maxxis Assigai WT, TR, 27.5" x 2.5" 120TPI, EXO + Sidewall Protection, 3C Maxx Terra, Dual Compound, Folding Bead, Front, Maxxis Assigai WT, TR, 27.5" x 2.5" 120TPI, Double Down casing, 3C Maxx Terra, Dual Compound, Rear
Brakes
Brakes
SRAM Code RSC, 4 Pot with Sintered Metal Pads, 200mm Rotor
Brake Levers
SRAM Code RSC, MMX
Cockpit
Stem
RaceFace Atlas, 35mm Bar Bore, 35mm Extension
Handlebar
RaceFace Turbine R, 20mm Rise, 35mm Bar Bore, 800mm Wide
Grips
Whyte Lock-on V Grip
Headset
FSA No. 57E Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Seat
Saddle
Whyte Custom, Triple Panel Design
Seatpost
Crank Bro High-Line 3, 30.9mm, M/L 150mm Travel, High-Line Ball Socket Remote Lever
Motor & Battery
Motor
Bosch Performance Line CX 2020 (Gen 4), 75 Nm max Torque, 250 W nominal power, 2.79 kg 4 Power settings including progressive eMTB mode which automatically adjusts the support
Battery
Bosch 625 Wh internal PowerTube, Reaches full charge in 8.8 hours with supplied 2A Compact Charger, (or only 3.7 hours with optional aftermarket Fast Charger)
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.32 mm |
| Bottom Bracket Height | 330 mm | 330 mm |
| Stack | 624.1 mm | 633 mm |
| Reach | 452.8 mm | 477.8 mm |
| Top Tube Length | 602.8 mm | 630.8 mm |
| Seat Tube Angle | 75.5 ° | 75.3 ° |
| Seat Tube Length | 431.8 mm | 457.2 mm |
| Head Tube Angle | 64 ° | 64 ° |
| Head Tube Length | 120 mm | 130 mm |
| Chainstay Length | 441 mm | 441 mm |
| Wheelbase | 1239 mm | 1268 mm |
| Bottom Bracket Drop | 25 mm | 25 mm |
| Standover Height | 825 mm | 825 mm |
| Wheels | 27" | 27" |
About this model
E-180 RS v1 belongs to the Whyte E E 180 model. 11 e-bikes variations carry this model name so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro e-bikes
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2020 and its price was 6994$. Doing a quick comparison, we notice that E-180 RS v1 price is 46.17% more expensive than the average cost of an Enduro e-bike.
Average weight for Enduro e-bikes
The average weight for Enduro e-bikes is 23.42 kg (51.63 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 24.8 kg (54.67 lbs), the E-180 RS v1 model is a bit heavier than average. In short, the average Enduro e-bike weight is 5.89% lower than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
E-180 RS v1 components
Fork
The E-180 RS v1 comes factory-installed with the Fox Performance Elite Float 36 fork. This has a travel range of 180mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The E-180 RS v1 2020 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
