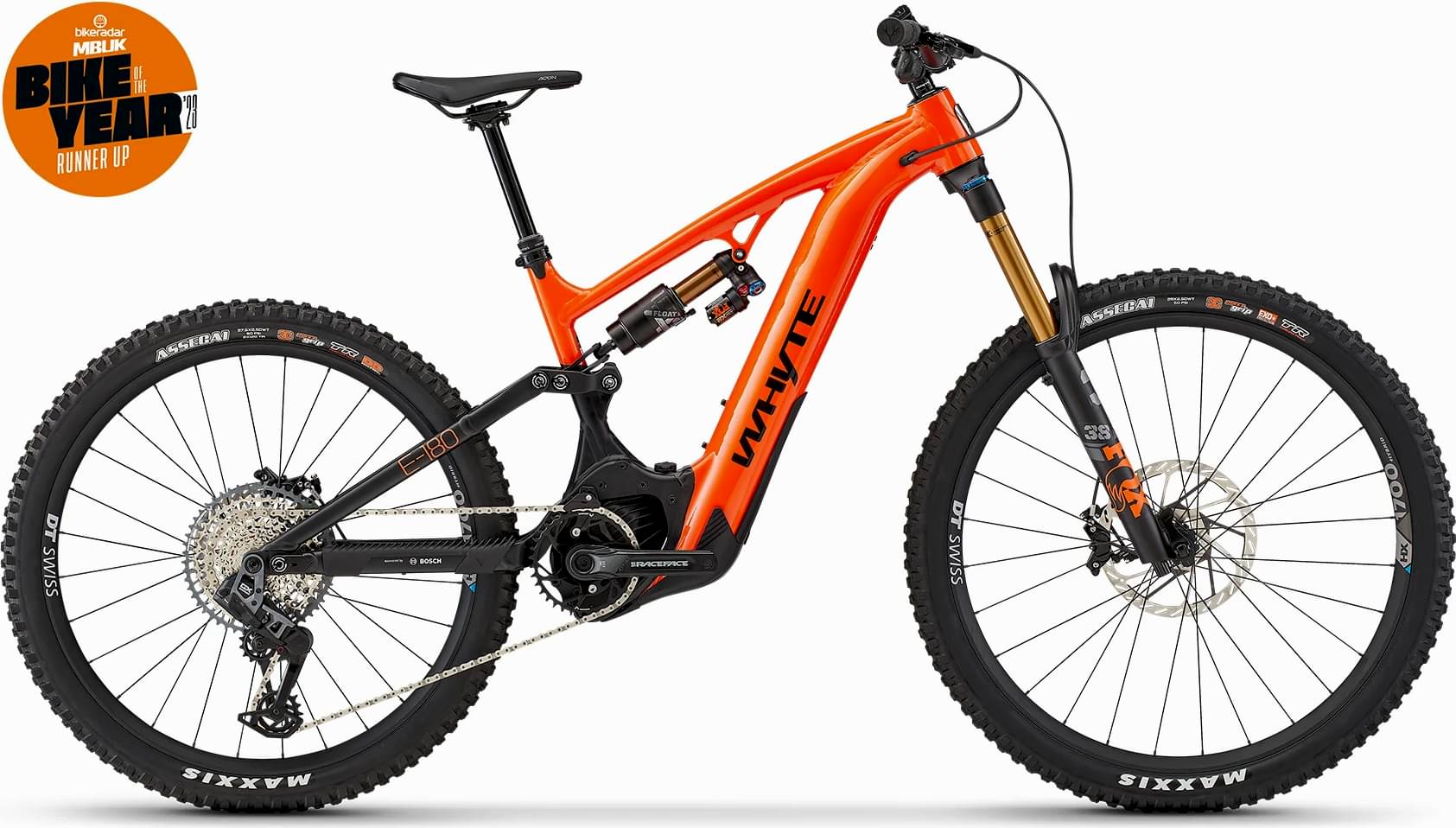

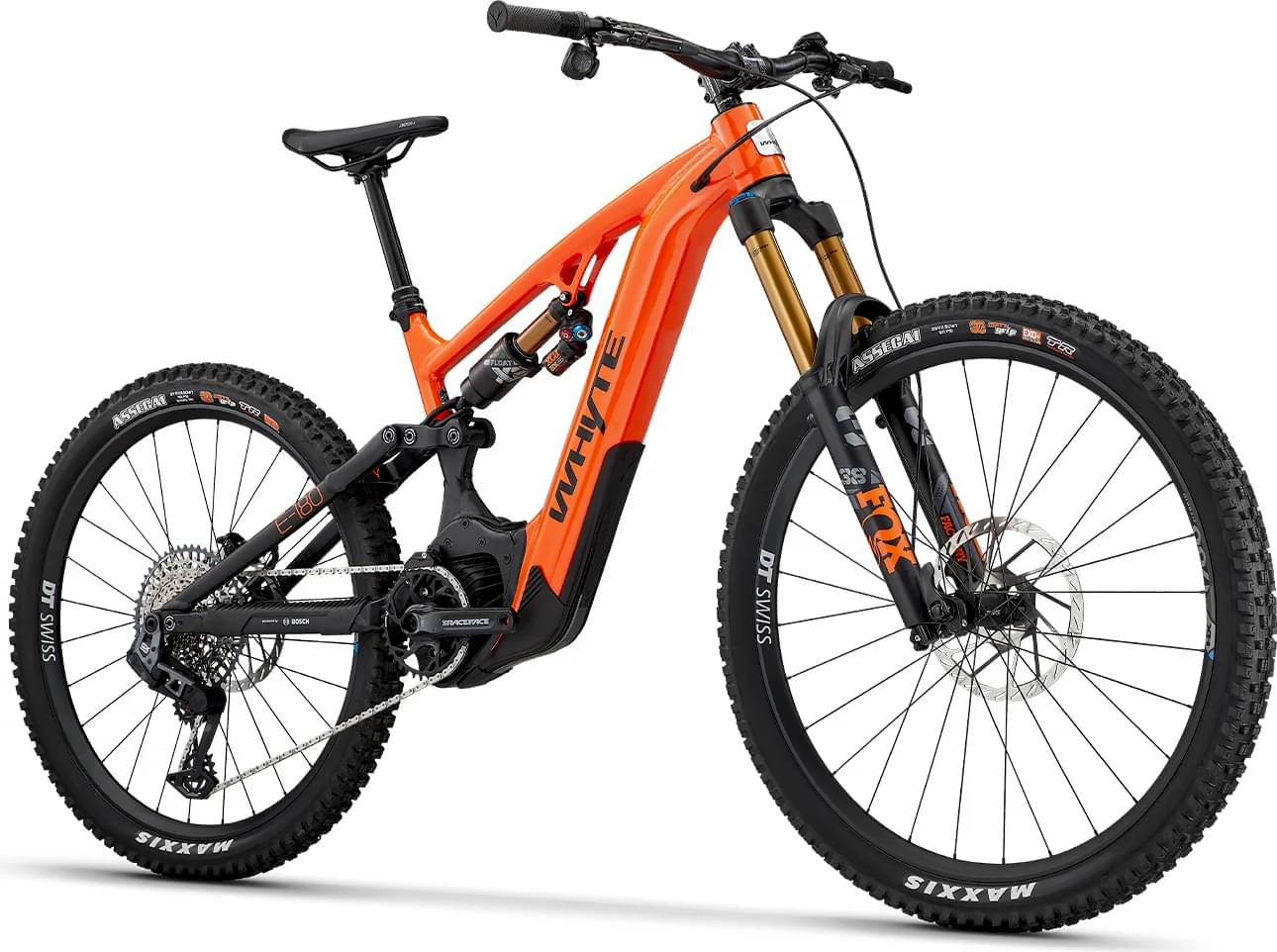

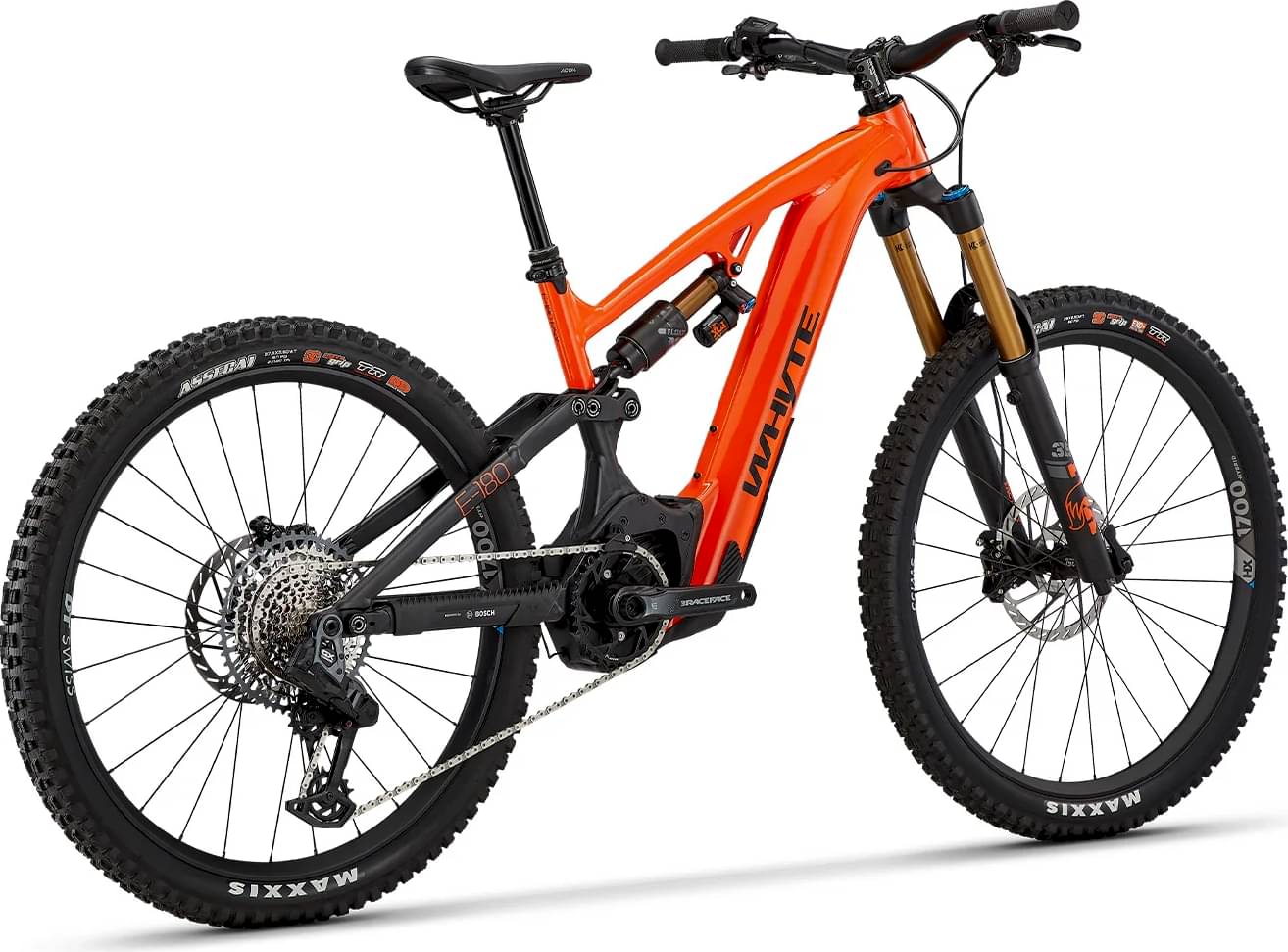

Whyte E-180 RSX super 2025
2025 E-bike
Estimate price |
7,451$
Weight | 26.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 180mm -
Fork Fox Factory Float 38
-
Groupset Eagle AXS, GX Eagle Transmission -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750Wh internal, perfectly integrated into the frame with an intuitive lockable mechanism for easy removal. Reaches full charge in less than six hours, and just over two hours for half charge. -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Code RSC Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing, Shape.it Link and 12mm X 148mm Boost Dropouts
Suspension Fork
Fox Float 38, Factory 29", 180mm Travel, 44mm Offset with Grip 2 Damper and custom tune, Tapered Steerer, Kashima Coating, 110mm x 15mm Boost, E-Thru Axle
Rear Shock
Fox Float X2, Factory, independently adjustable Compression and Rebound damping, Kashima coating
Drivetrain
Rear Derailleur
SRAM GX AXS T-Type 12 Speed
Front Derailleur
N/A
Shift Levers
SRAM AXS Pod, 2 Button MMX, 12 Speed
Cassette
SRAM XS-1275 T-Type Eagle, 10-52, 12 Speed
Crank
Race Face Affect E-Bike, 165mm, ISIS with T-Type Direct Mount 36T for Bosch Performance Line CX, Black
Bottom Bracket
N/A
Chain
SRAM GX T-Type Eagle, 12 Speed
Pedals
None
Wheels
Front Hub
DT Swiss Hybrid HX1700, 30mm wide rim, 15 x 110mm Boost
Rear Hub
DT Swiss Hybrid HX1700, 30mm wide rim, 12 x 148mm Boost, SRAM XD Steel
Rims
DT Swiss Hybrid HX1700
Spokes
DT Swiss
Tires
Maxxis Assigai WT, TR, 29" x 2.5" 120TPI, EXO + Sidewall Protection, 3C MaxxGrip, Dual Compound, Folding Bead, Front, Maxxis Assigai WT, TR, 27.5" x 2.5" 120TPI, Double Down Casing, 3C MaxxGrip, Dual Compound, Rear
Brakes
Brakes
SRAM Code RSC, 4 Piston with Sintered Metal Pads, 220mm Disc
Brake Levers
SRAM Code RSC, MMX
Cockpit
Stem
Race Face Atlas, 35mm Bar Bore, 35mm Extension
Handlebar
Race Face Turbine R, 35mm Rise, 35mm Bar Bore, 800mm Wide
Grips
Whyte Lock-on Enduro Grip
Headset
FSA No. 55/35 Orbit 1.5 ZS, 1.8" Lower and 1 1/8" Upper Sealed Cartridge Bearings
Seat
Saddle
Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
Seatpost
Crank Bro High-Line 3, 30.9mm, M/L 150mm Travel, XL 170mm Travel, High-Line Ball Socket Remote Lever
Motor & Battery
Motor
Bosch Performance Line CX (Smart System) drive unit with 85Nm maximum torque, 250W nominal power. Features four power settings including Tour+, that allows riders to focus on riding whilst being economical on power usage, and eMTB mode which automatically adjusts the motor's level of support to the terrain as you ride.
Battery
Bosch PowerTube 750Wh internal, perfectly integrated into the frame with an intuitive lockable mechanism for easy removal. Reaches full charge in less than six hours, and just over two hours for half charge.
Charger
4A Compact Charger (230V)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.388 mm | 1.336 mm | 1.291 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm |
| Stack | 631.5 mm | 645.1 mm | 658.6 mm |
| Reach | 455 mm | 483 mm | 510 mm |
| Seat Tube Angle | 75.4 ° | 75.2 ° | 75 ° |
| Seat Tube Length | 420 mm | 445 mm | 470 mm |
| Head Tube Angle | 63.2 ° | 63.2 ° | 63.2 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1255 mm | 1290 mm | 1324 mm |
| Standover Height | 769 mm | 770 mm | 772 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
