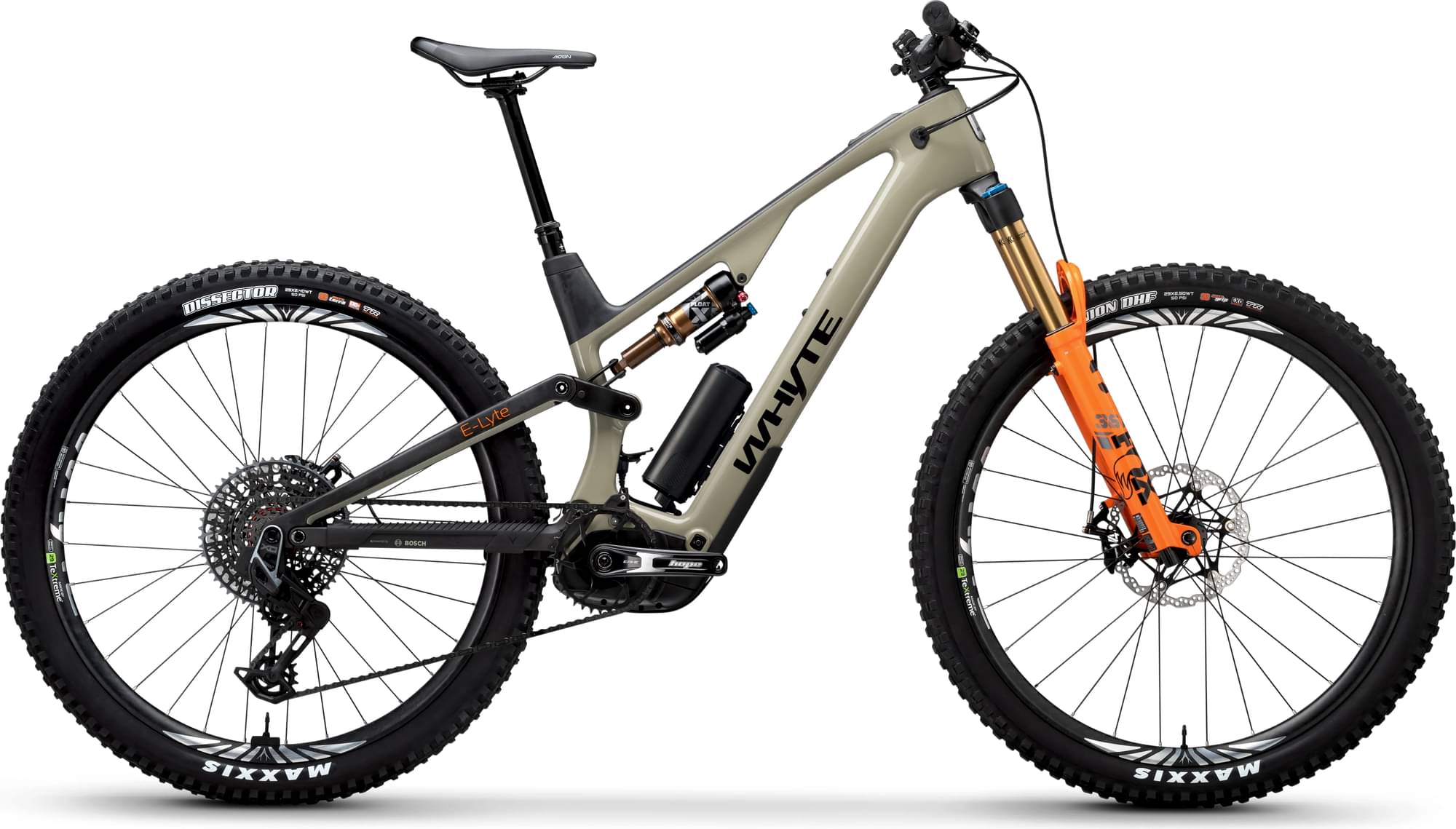

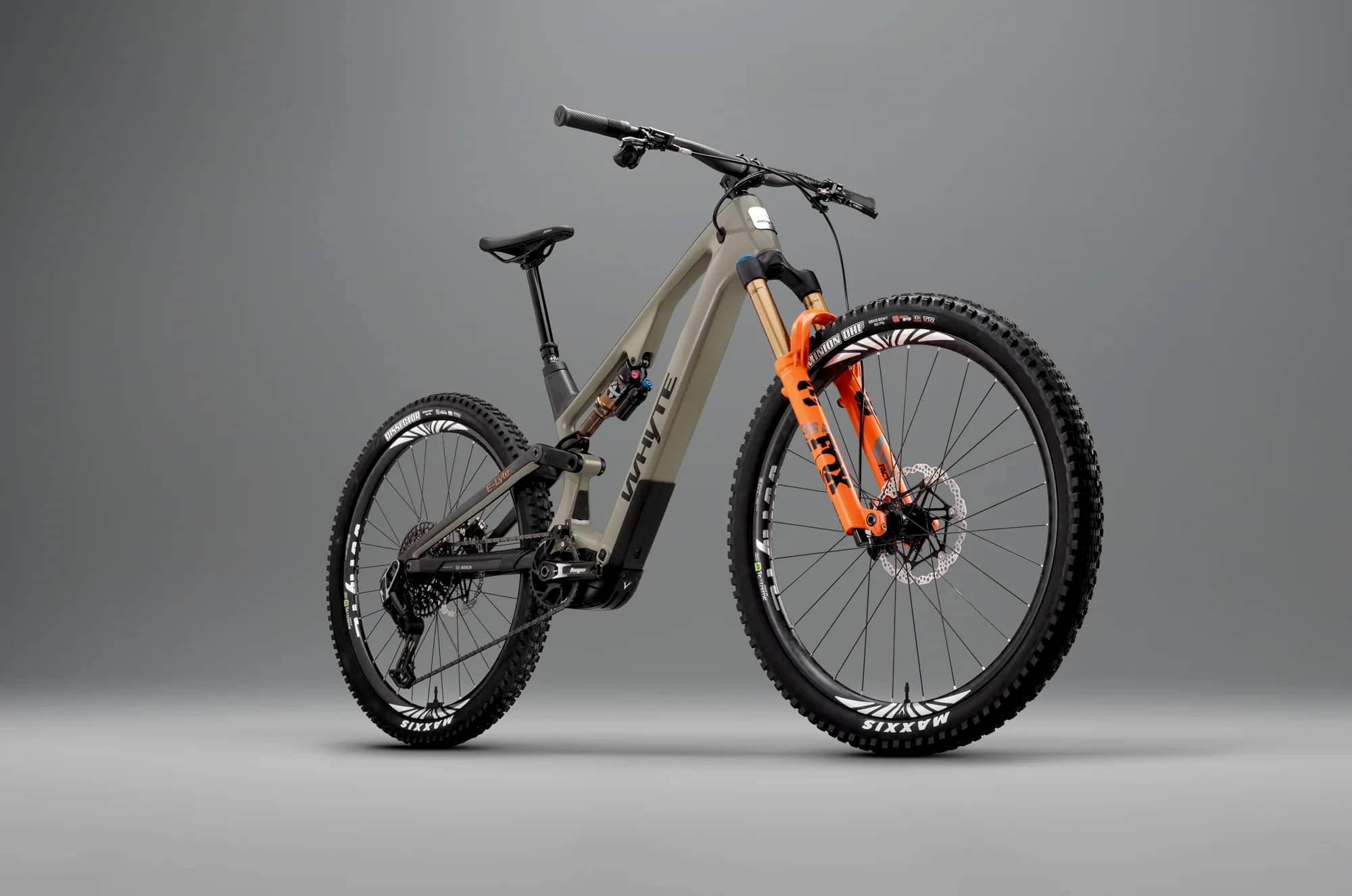

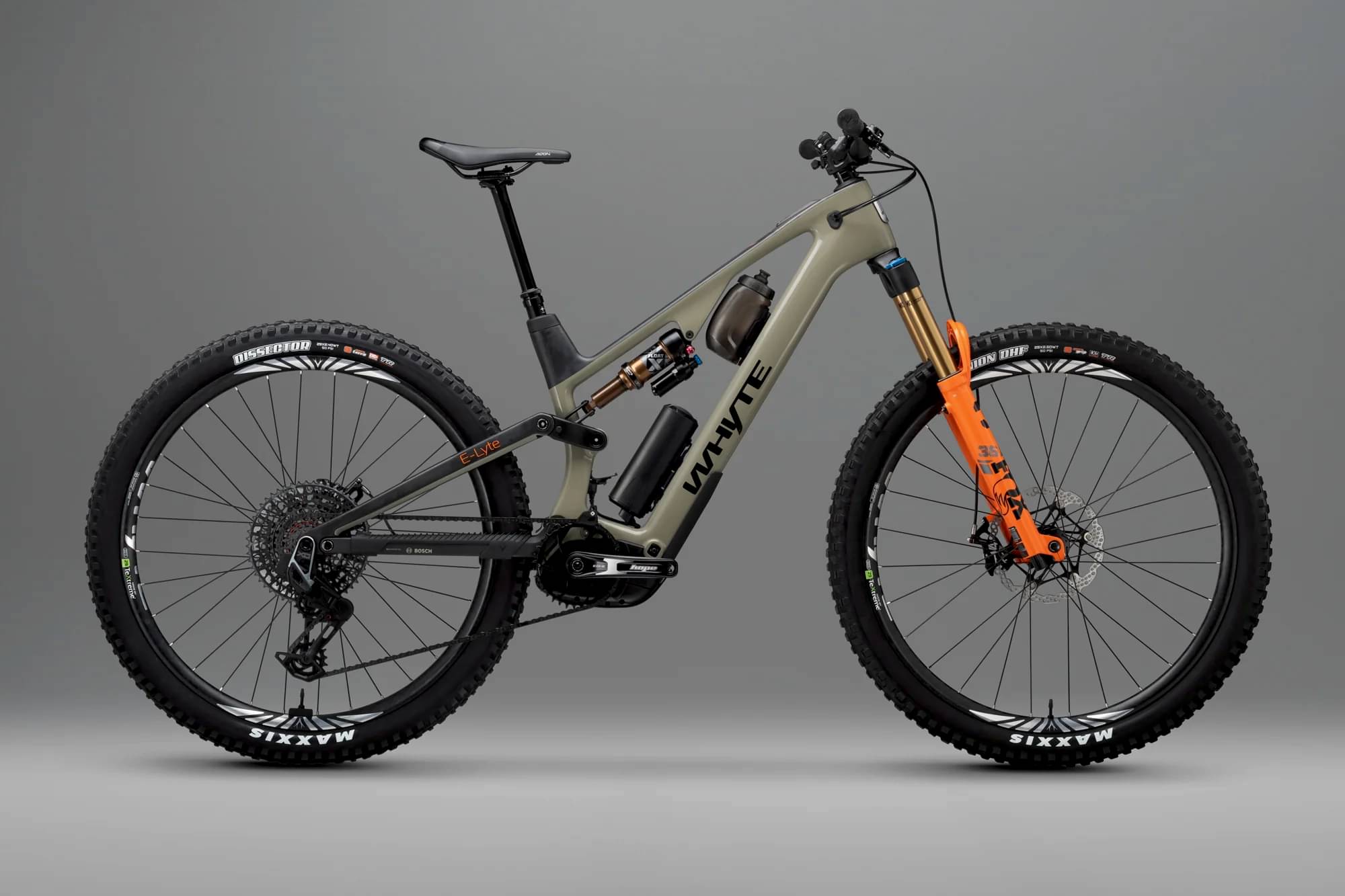

Whyte ELyte 150 Works 2024
2024 E-bike
Estimate price |
13,547$
Weight | 19.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Fork Fox Factory Float 36
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
Suspension Fork
Fox Float 36 Factory 29in, 150mm travel, 44mm offset, Grip2 damper, tapered steerer, 110m x 15mm Kabolt axle

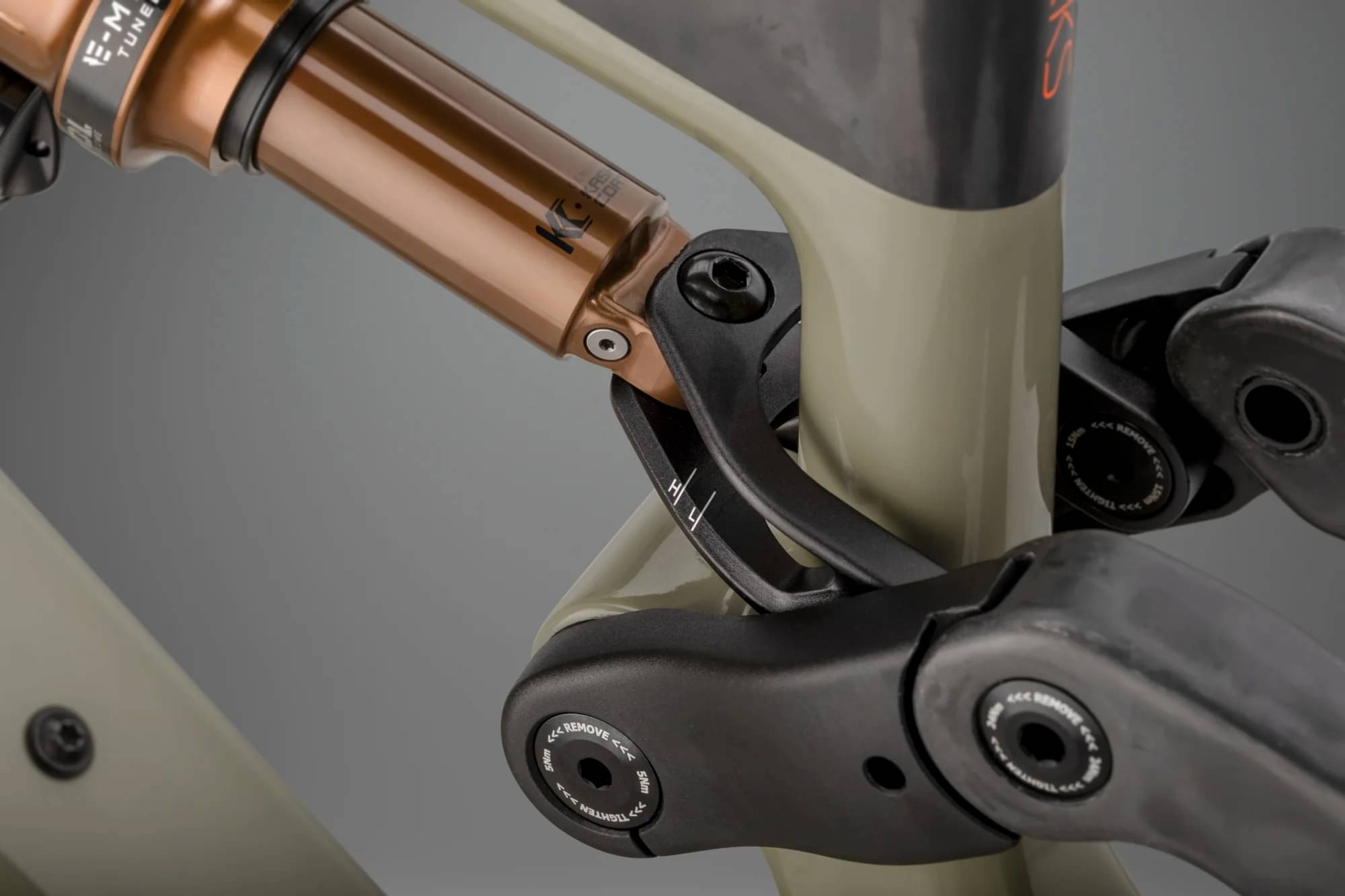

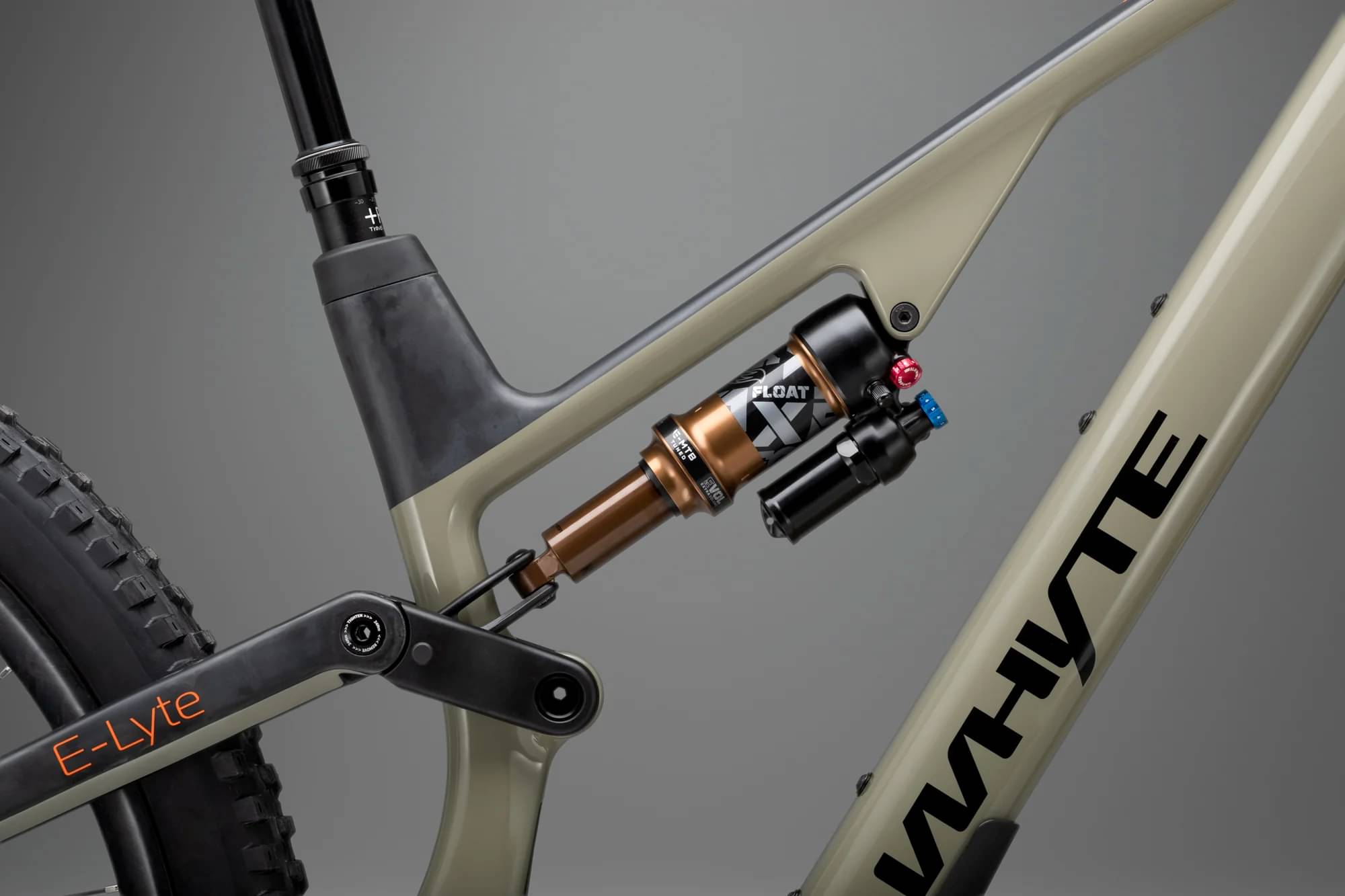

Rear Shock
Fox Float X Factory Series, EVOL, lock out, 210mm x 50mm

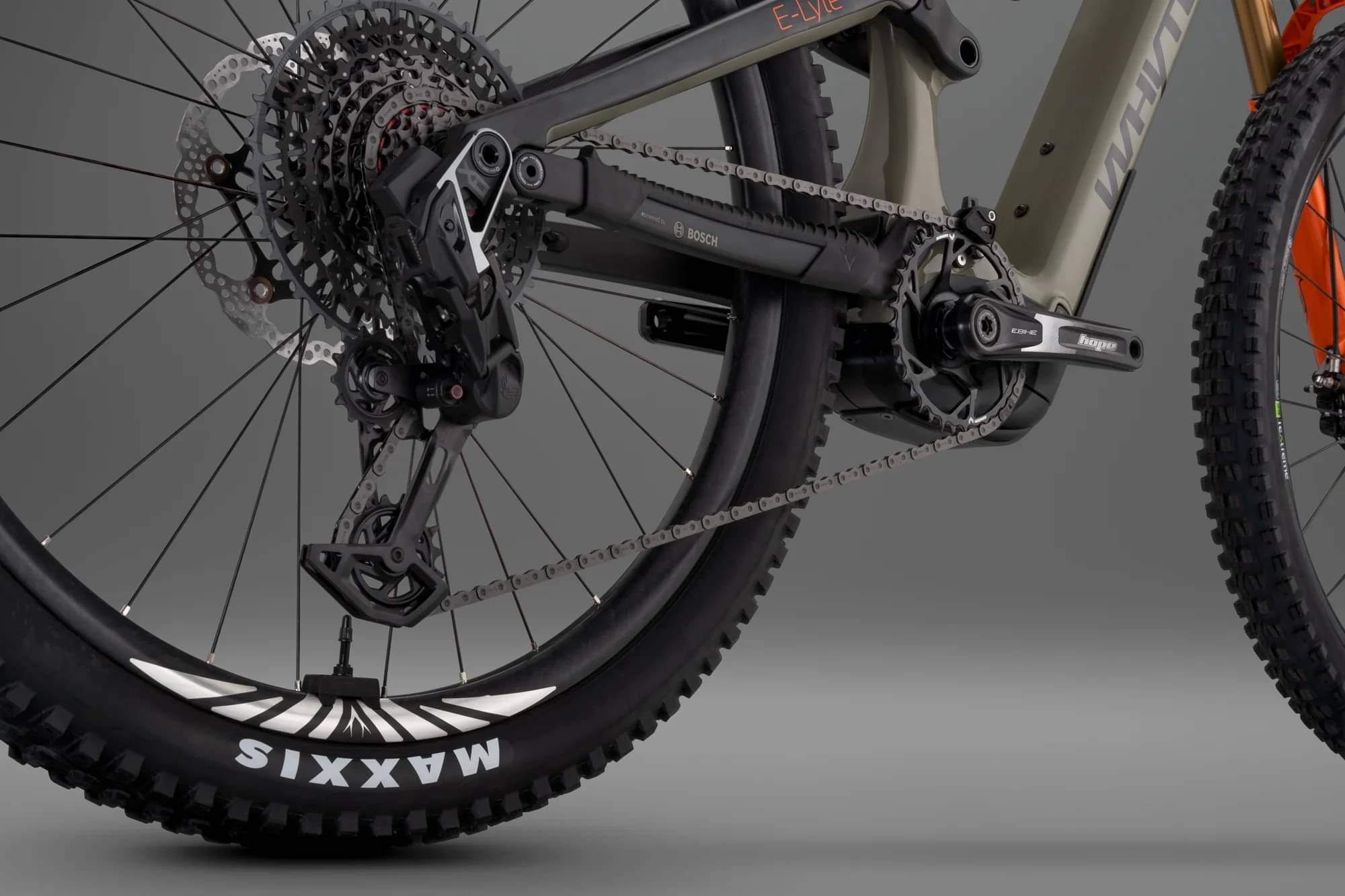

Drivetrain
Rear Derailleur
SRAM XO T-Type AXS, 12 speed
Front Derailleur
N/A
Shift Levers
SRAM AXS Pod, right, MMX, 12 speed
Cassette
SRAM XS 1295, T-Type, 10-52T, 12 speed
Crank
Hope E-Bike Cranks, 155mm length, Bosch mounting, 36T chainring T-type
Bottom Bracket
N/A
Chain
SRAM XO T-Type, 12 speed
Pedals
Fibre reinforced composite platform
Wheels
Front Hub
Hope Pro 5, six bolt, 15mm x 110mm Boost spacing, 28 hole
Rear Hub
Hope Pro 5, six bolt, 12mm x 148mm Boost spacing, XD driver, 32 hole
Rims
Whyte TeXtreme Innegra infused, carbon Trail rims, 28 hole front, 32 hole rear
Spokes
DT Swiss New Champion 2.0mm, black stainless, brass nipples
Tires
Maxxis Minion DHF, EXO TR MaxxGripp 29in x 2.5in front; Maxxis Dissector, EXO+ TR MaxxTerra 29in x 2.4in, rear

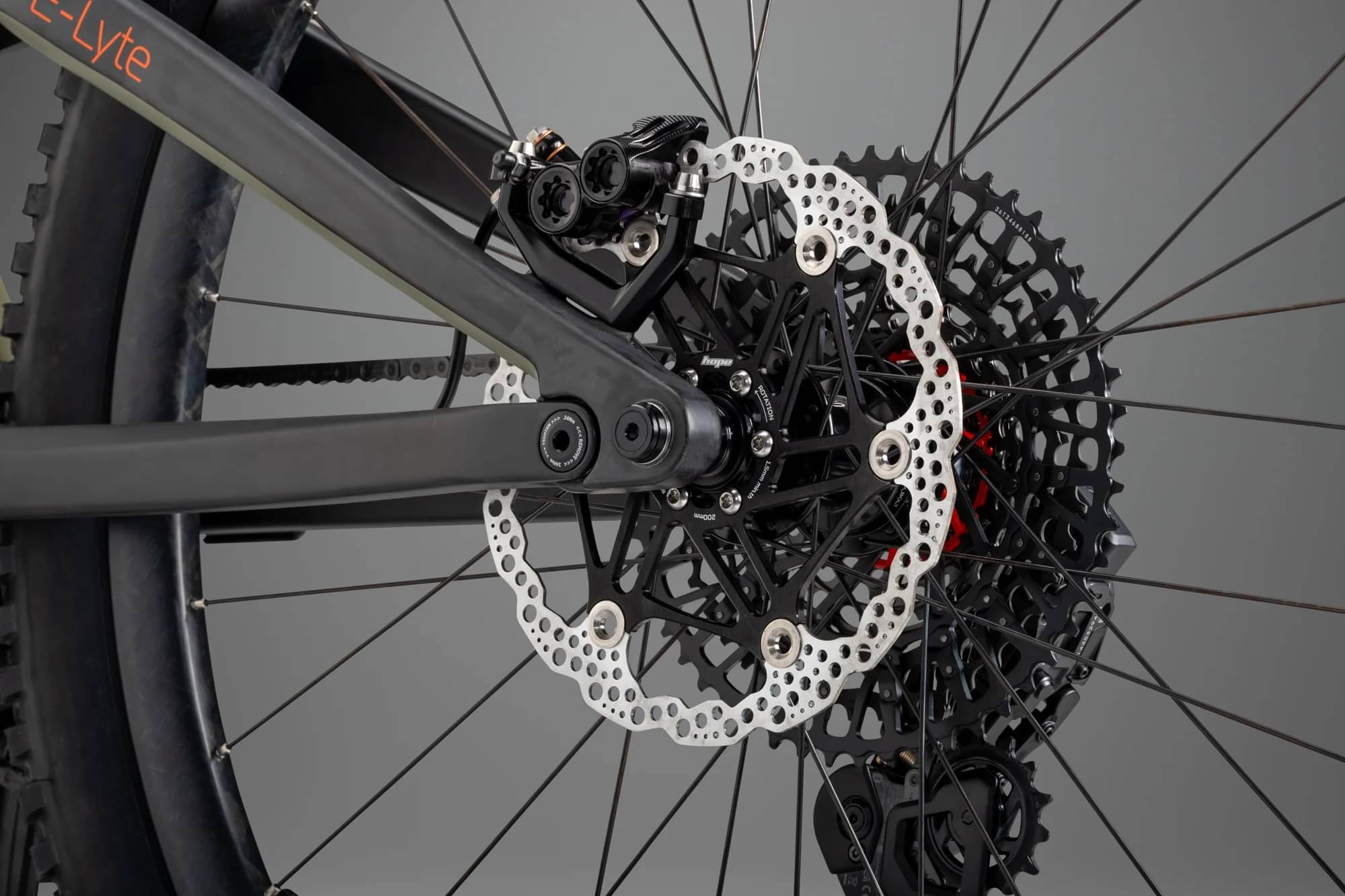

Brakes
Brakes
Hope Tech4 V4, four piston hydraulic, 200mm diameter floating disc rotor

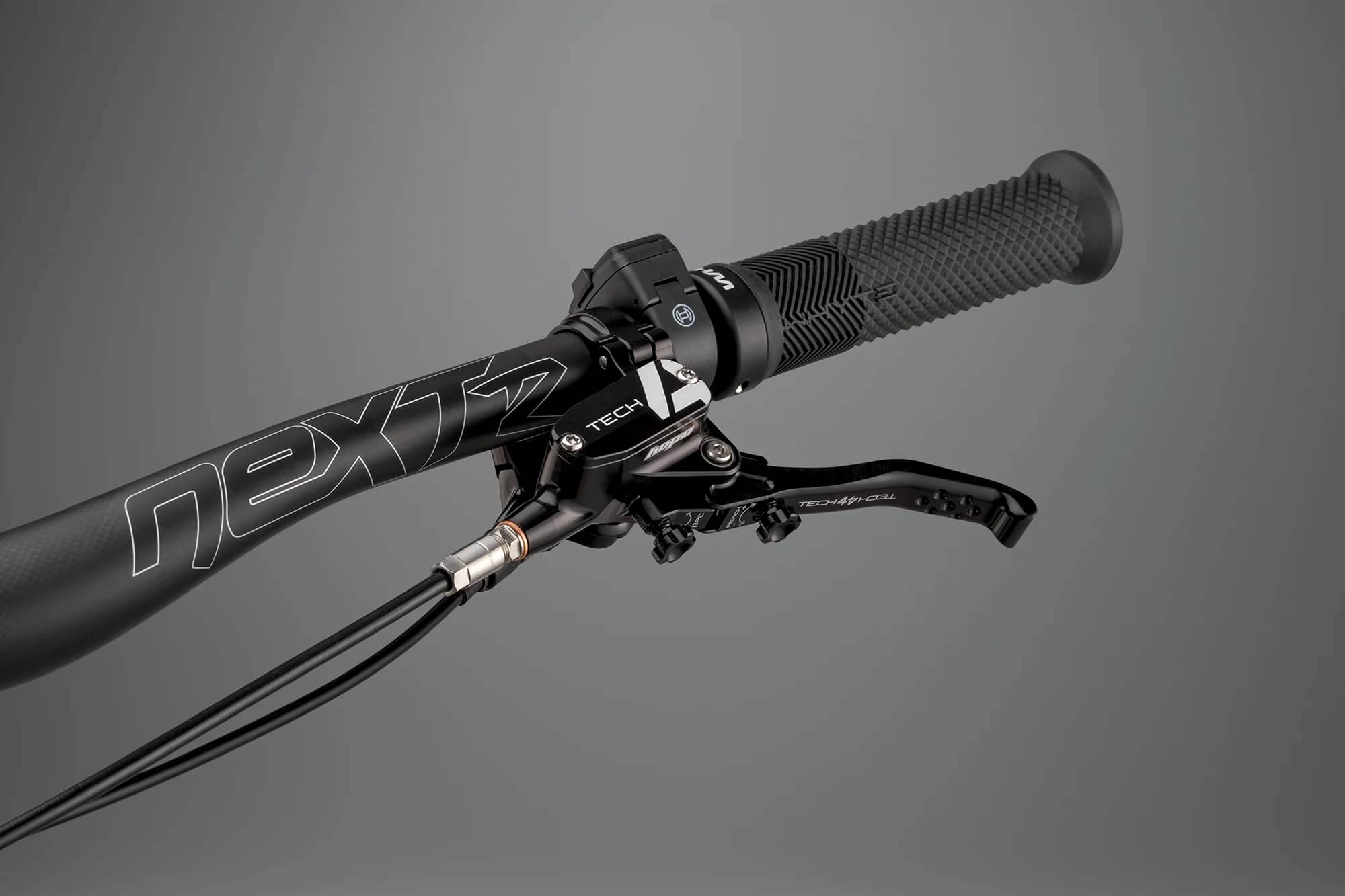

Brake Levers
Hope Tech 4
Cockpit
Stem
Whyte Trail full CNC, 32mm extension, 35mm bar bore

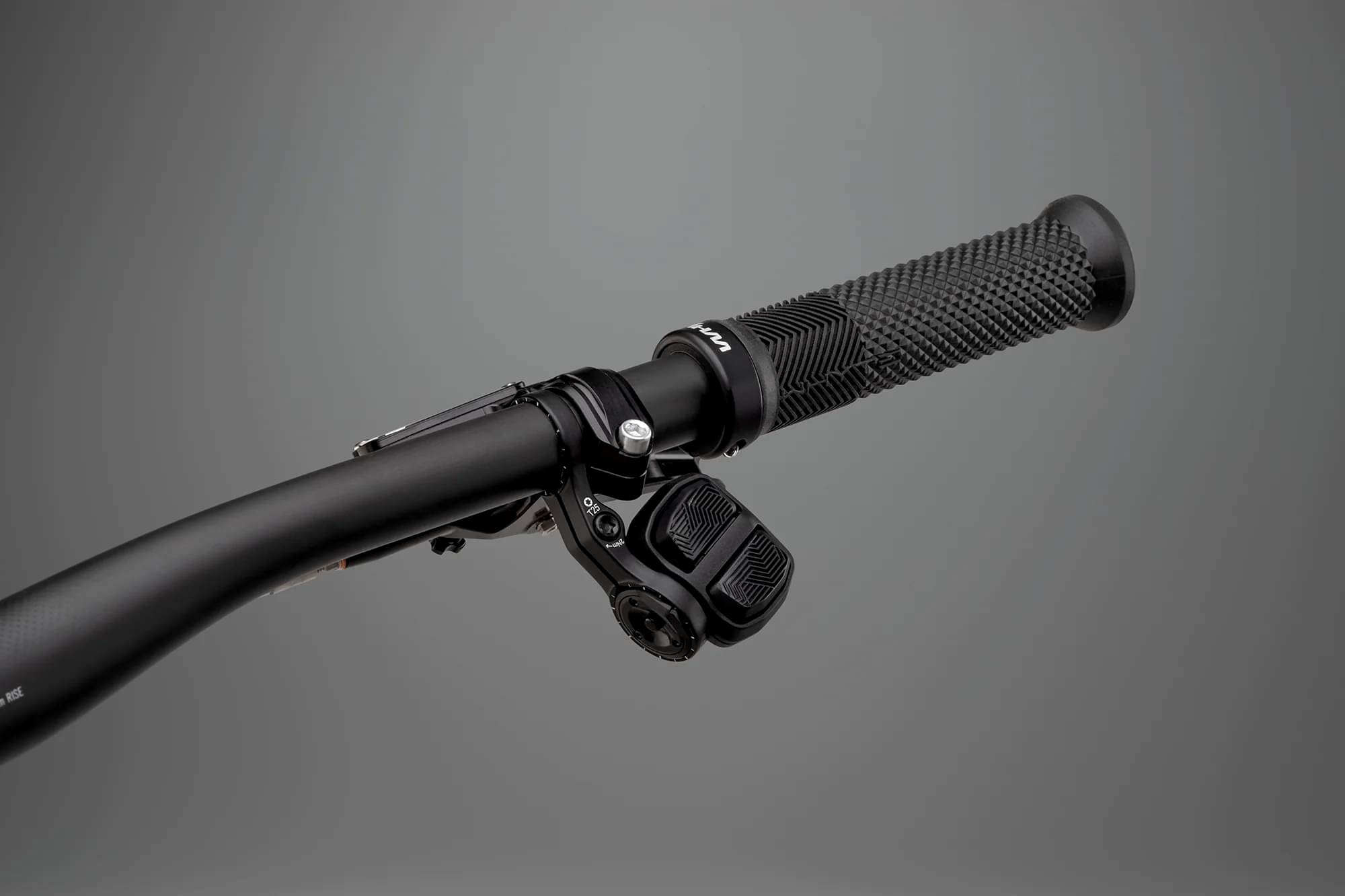

Handlebar
Race Face Next R Carbon, 20mm rise, 35mm bar bore, 800mm width
Grips
Whyte Enduro lock-on
Headset
FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) catridge bearings, with side entry internal routing
Seat
Saddle
Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
Seatpost
Whyte drop.it II Adjust, 30.9mm (sizes S/M 140-170mm travel; sizes L/XL 170-200mm travel), MMX Paddle remote lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.459 mm | 1.405 mm | 1.356 mm | 1.311 mm |
| Bottom Bracket Height | 341.9 mm | 341.9 mm | 341.9 mm | 341.9 mm |
| Front Center | 763 mm | 794 mm | 824 mm | 854 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 129 mm | 129 mm | 129 mm | 129 mm |
| Stack | 628.7 mm | 640.5 mm | 652.3 mm | 663.2 mm |
| Reach | 431 mm | 456 mm | 481 mm | 506 mm |
| Seat Tube Angle | 77.5 ° | 77.3 ° | 77.1 ° | 76.9 ° |
| Seat Tube Length | 395 mm | 420 mm | 445 mm | 470 mm |
| Head Tube Angle | 64.6 ° | 64.6 ° | 64.6 ° | 64.6 ° |
| Head Tube Length | 114 mm | 127 mm | 140 mm | 152 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1211 mm | 1242 mm | 1272 mm | 1302 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 741 mm | 741 mm | 741 mm | 741 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
