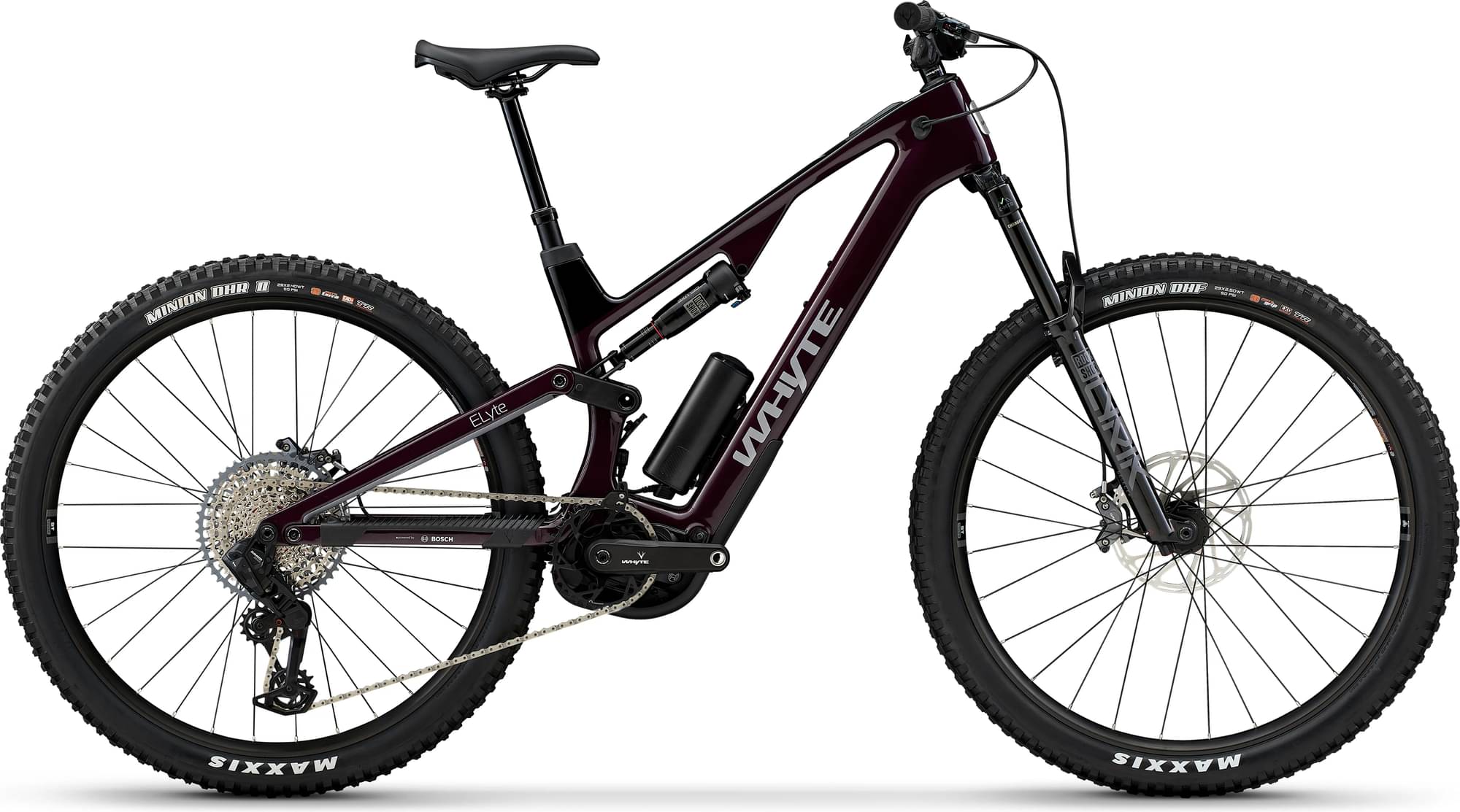

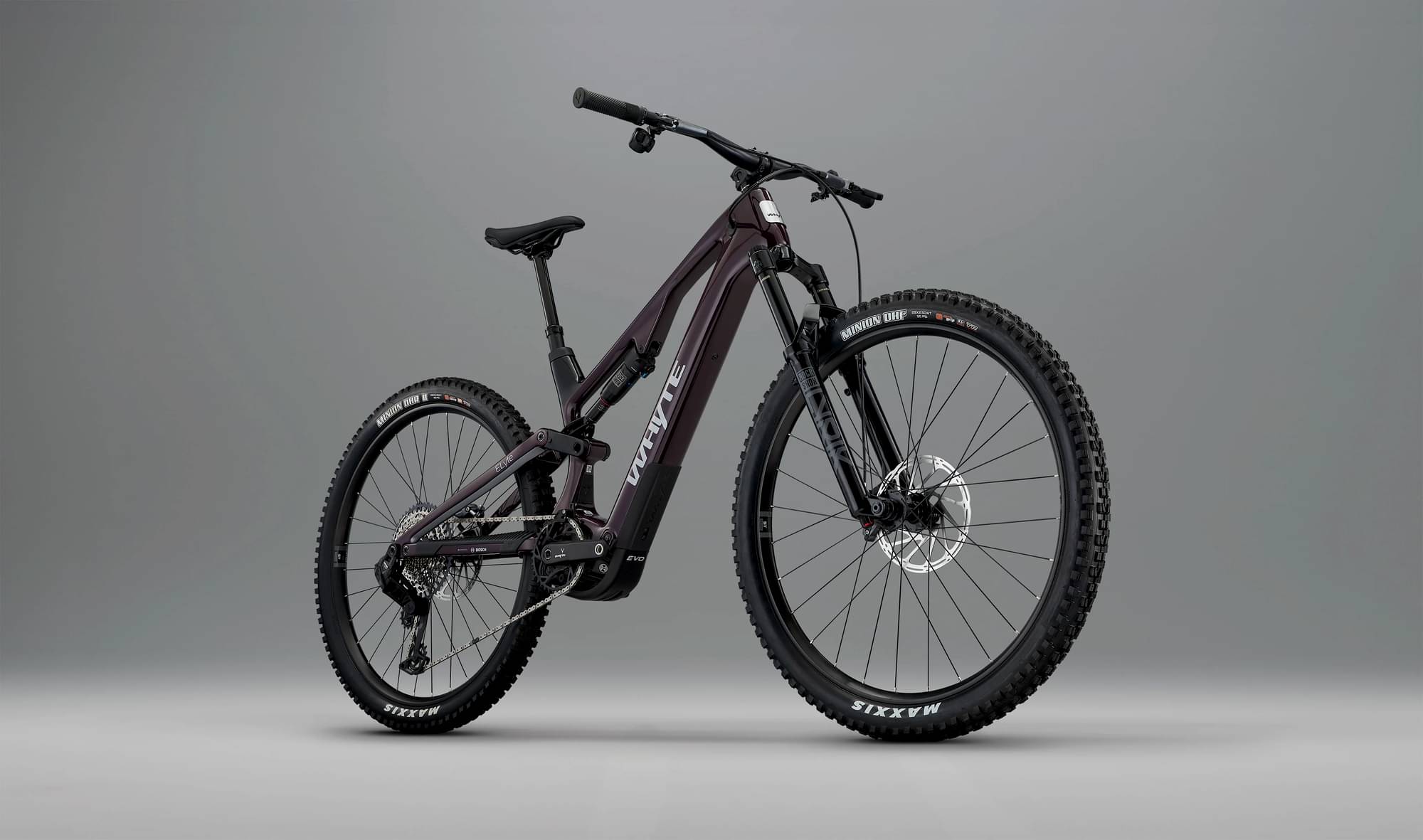

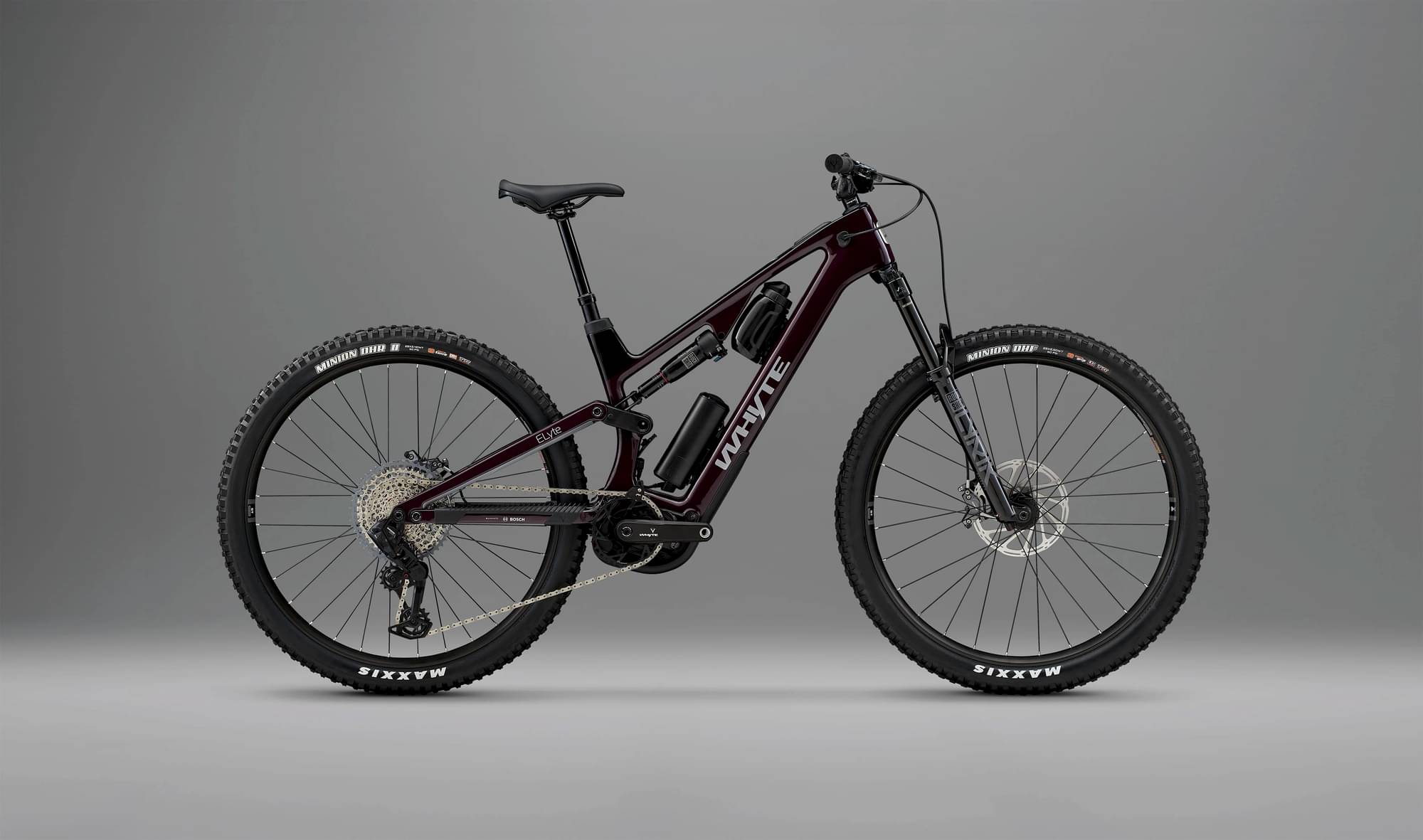

Whyte ELyte EVO RS 2025
2025 E-bike
Estimate price |
9,823$
Weight | 20.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Fork RockShox Lyrik Select+
-
Groupset Eagle AXS, S1000 Eagle Transmission -
Suspension Full -
Motor hub-drive -
Drivetrain 1 × 12 Electronic -
Brakes SRAM Code Bronze Stealth Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
Suspension Fork
RockShox Lyrik Select+, 150mm travel, DebonAir+, Charger 3.1 Damper, Fast Black coating, tapered steerer, 110 x 15mm Boost

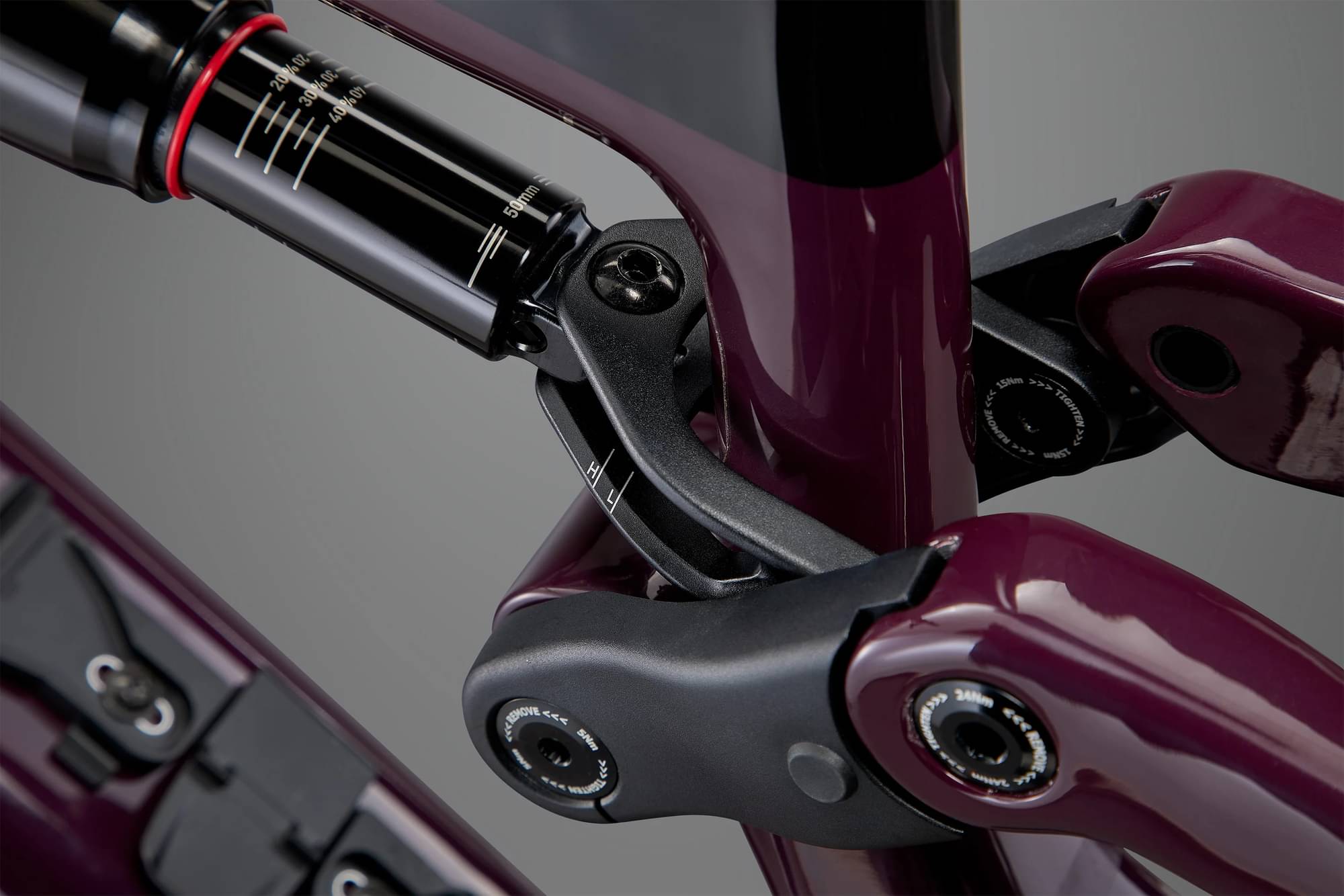

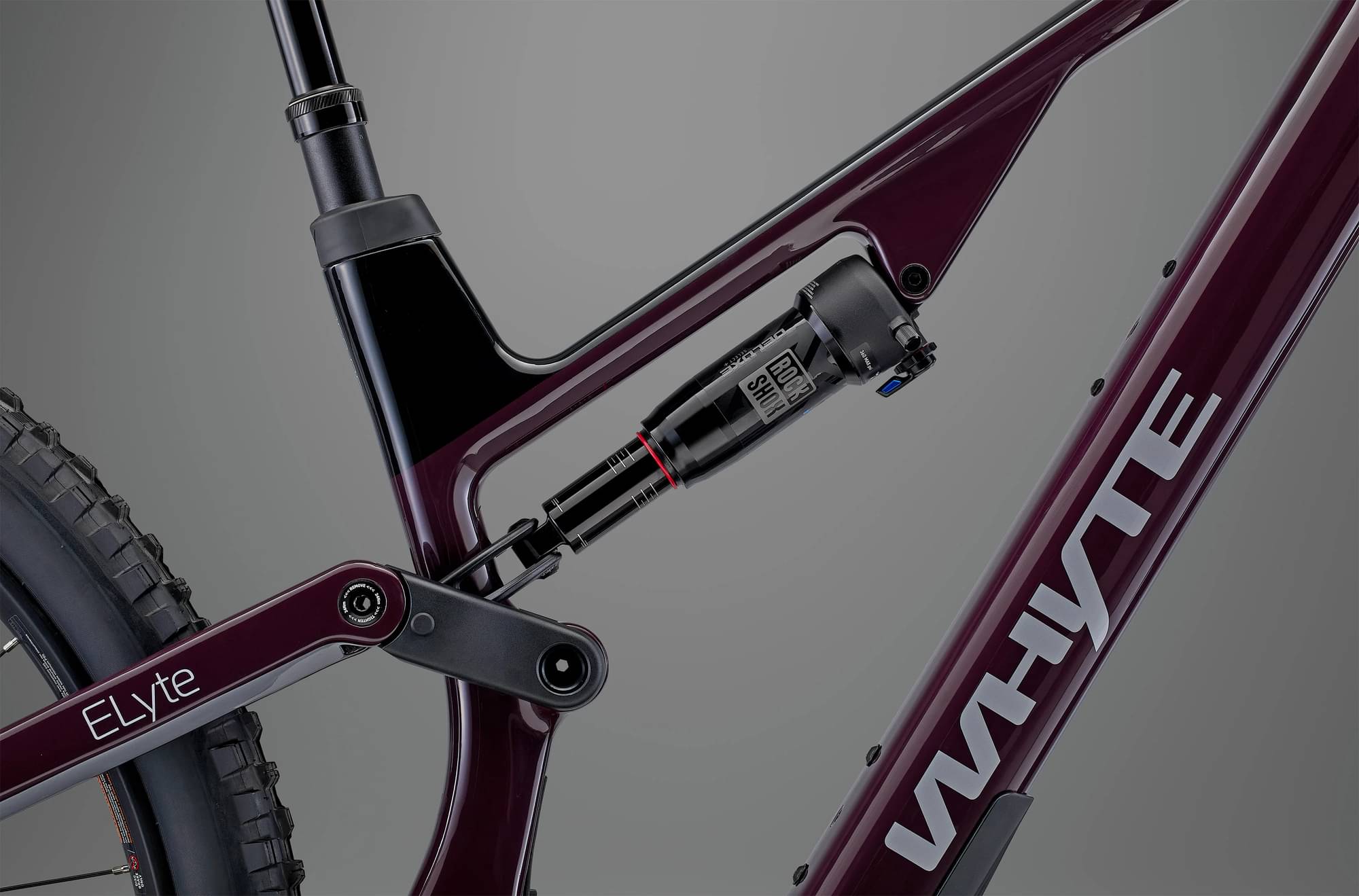

Rear Shock
RockShox Deluxe Select + RT, DebonAir, Fast Black coating, adjustable rebound and two position compression adjustment, custom tuned for Whyte

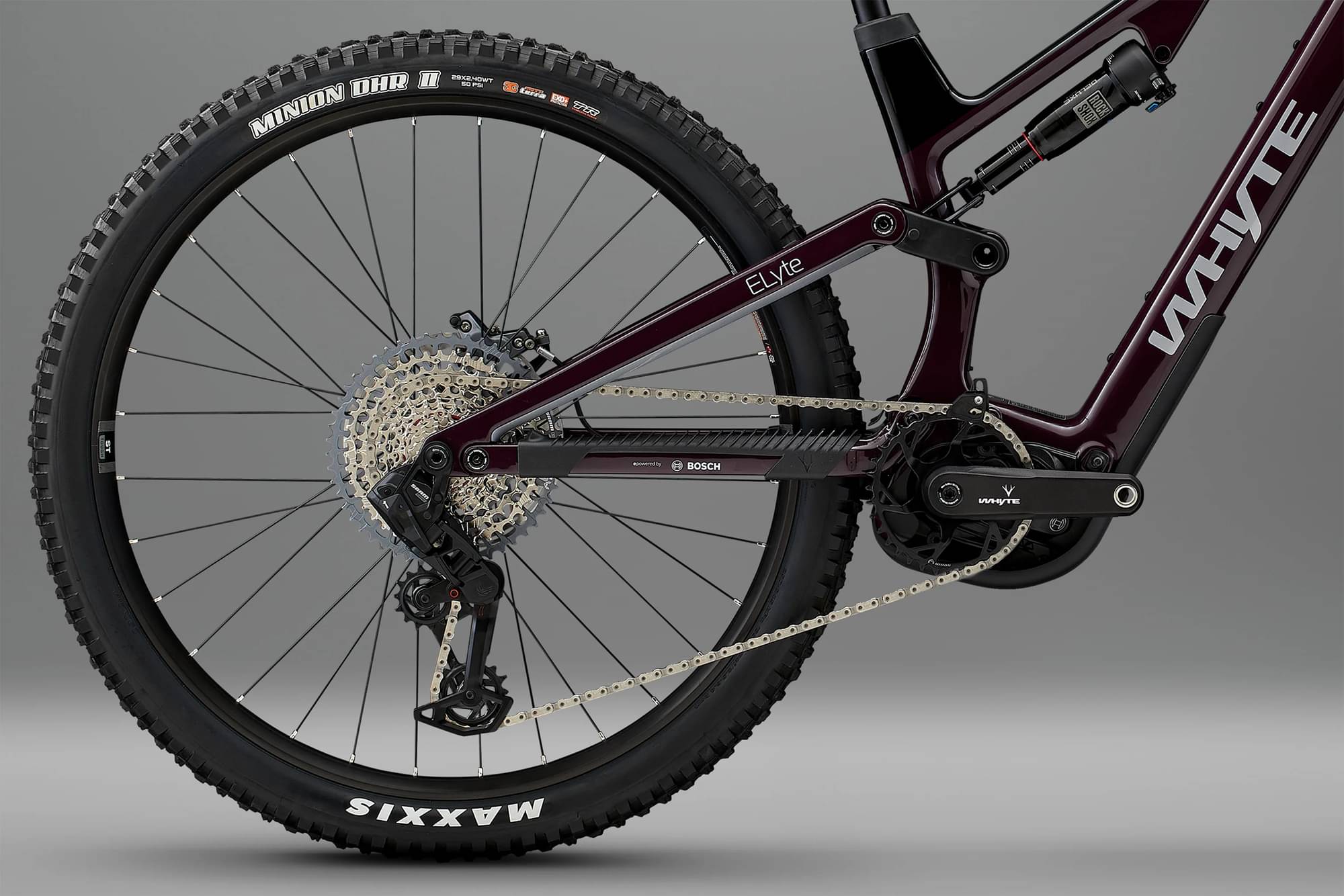

Drivetrain
Rear Derailleur
SRAM S1000 T-Type AXS, 12 speed
Front Derailleur
N/A

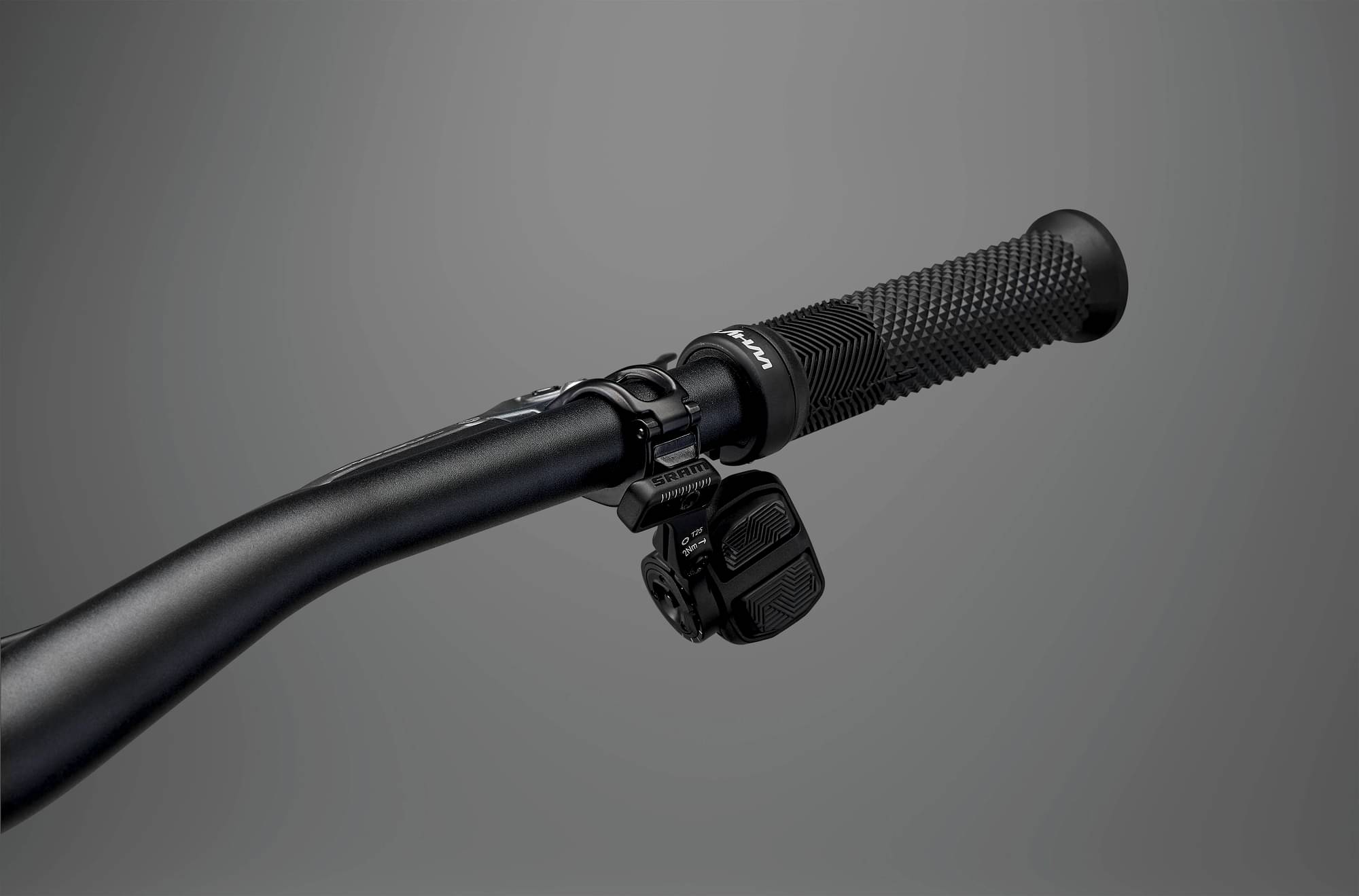

Shift Levers
SRAM AXS Pod, right, MMX, 12 speed
Cassette
SRAM XS 1270, T-Type, 10-52T, 12 speed
Crank
Whyte 155mm ISIS arms, SRAM Direct Mount 36T chainring, T-Type
Bottom Bracket
N/A
Chain
SRAM GX T-Type, 12 speed
Pedals
Fibre reinforced composite platform
Wheels
Front Hub
Alloy, double sealed cartridge bearings, 15mm x 110mm Boost spacing, 28 hole
Rear Hub
Alloy, light assist e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, 32 hole
Rims
WTB ST Tough, 30mm internal width
Spokes
DT Swiss Elemental
Tires
Maxxis Minion DHF, EXO TR MaxxGrip 29in x 2.5in front; Maxxis Dissector, EXO+ TR MaxxTerra 29in x 2.4in, rear

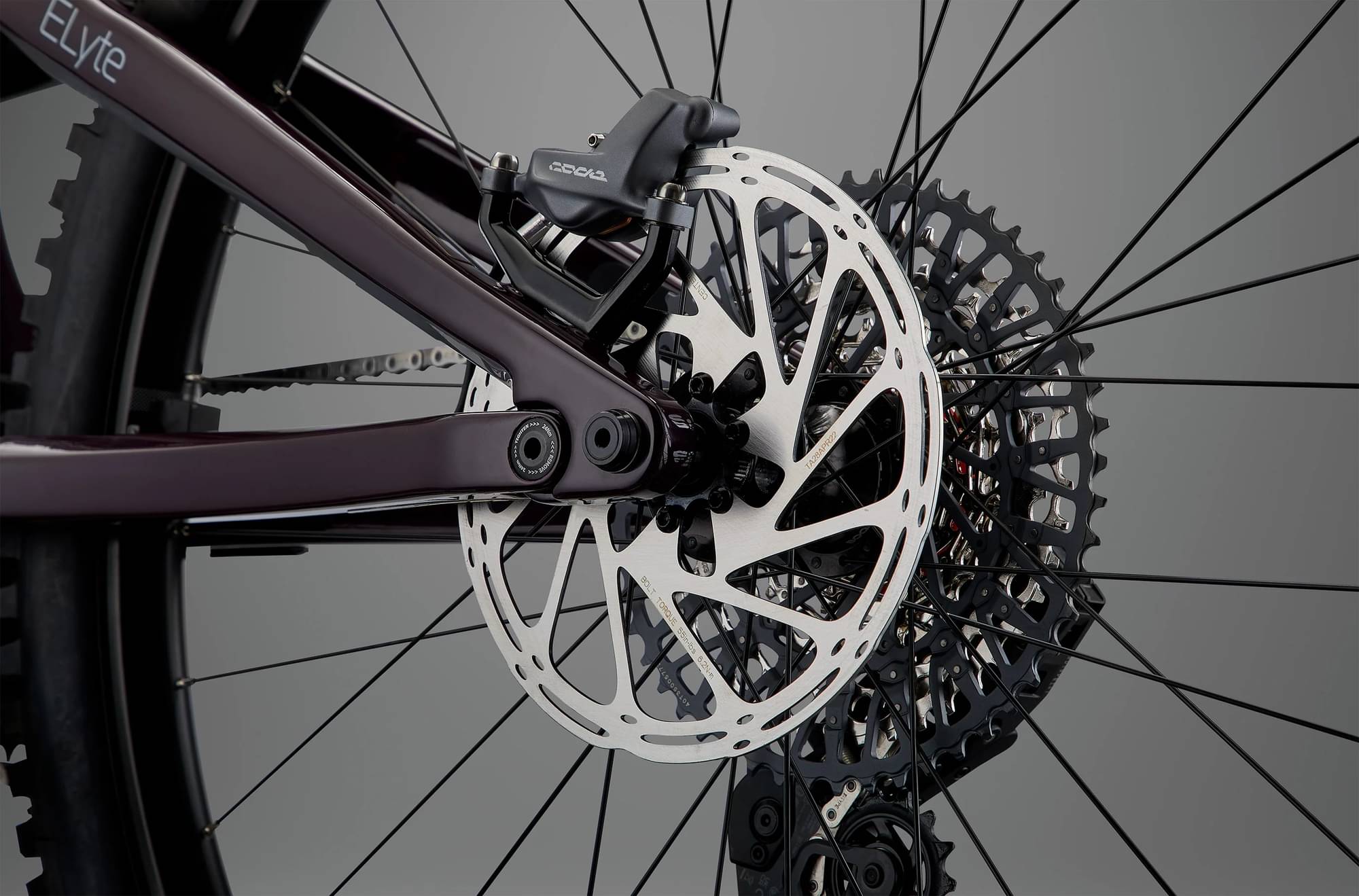

Brakes
Brakes
SRAM Code Bronze Stealth, four piston hydraulic, 200mm diameter disc rotor

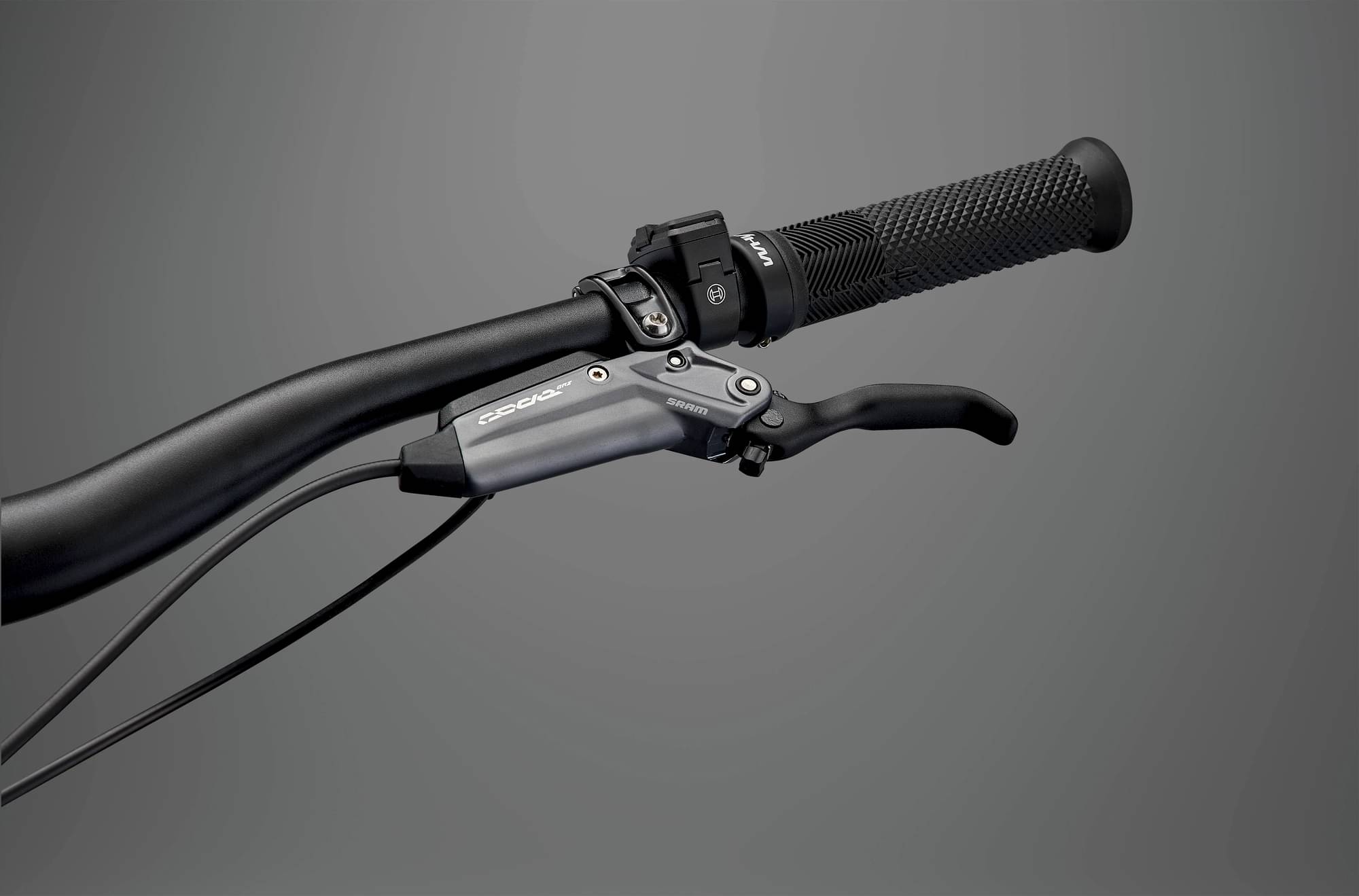

Brake Levers
SRAM Code Bronze Stealth
Cockpit
Stem
Whyte Trail full CNC, 32mm extension, 35mm bar bore
Handlebar
Whyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 800mm wide
Grips
Whyte Enduro lock-on
Headset
FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) cartridge bearings, with side entry internal routing
Seat
Saddle
Whyte custom
Seatpost
TranzX +RAD 30.9mm, Adjustable, 125 drop (S), 150 drop (M), 170mm drop (L), 200mm drop (XL)
Motor & Battery
Motor
Alloy, light assist e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, 32 hole
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.459 mm | 1.405 mm | 1.356 mm | 1.311 mm |
| Bottom Bracket Height | 341.9 mm | 341.9 mm | 341.9 mm | 341.9 mm |
| Front Center | 763 mm | 794 mm | 824 mm | 854 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 129 mm | 129 mm | 129 mm | 129 mm |
| Stack | 628.7 mm | 640.5 mm | 652.3 mm | 663.2 mm |
| Reach | 431 mm | 456 mm | 481 mm | 506 mm |
| Seat Tube Angle | 77.5 ° | 77.3 ° | 77.1 ° | 76.9 ° |
| Seat Tube Length | 395 mm | 420 mm | 445 mm | 470 mm |
| Head Tube Angle | 64.6 ° | 64.6 ° | 64.6 ° | 64.6 ° |
| Head Tube Length | 114 mm | 127 mm | 140 mm | 152 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1211 mm | 1242 mm | 1272 mm | 1302 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 741 mm | 741 mm | 741 mm | 741 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
