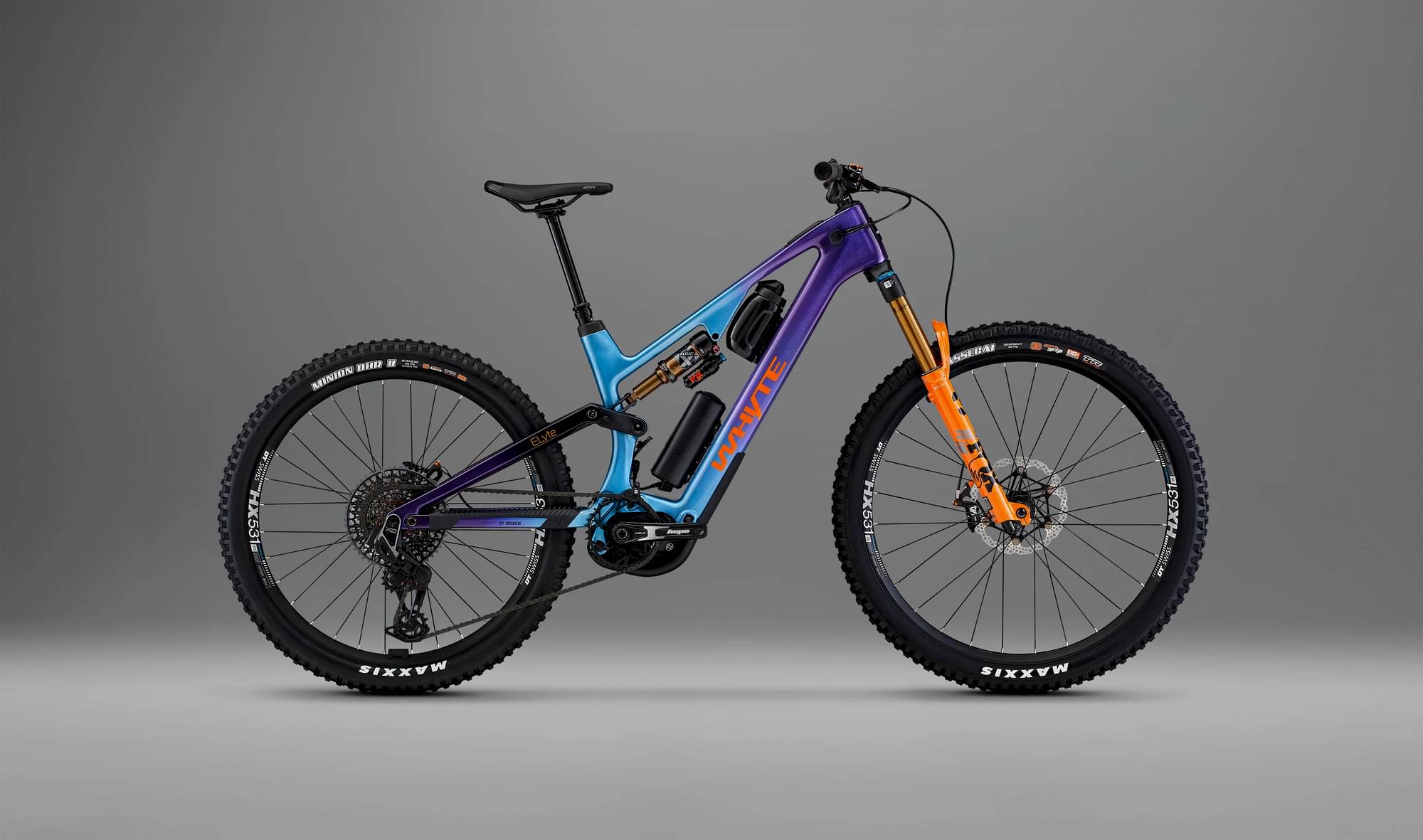

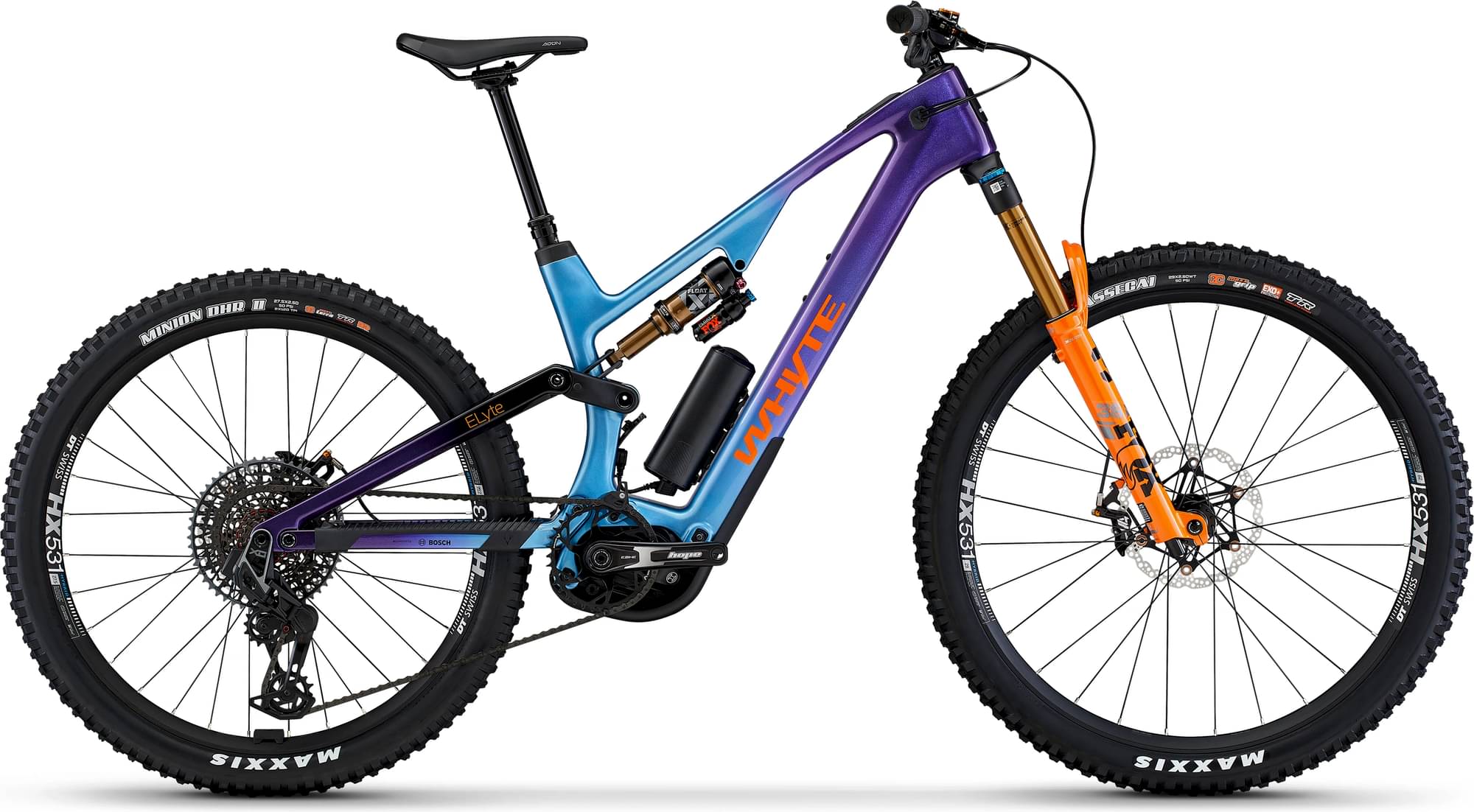

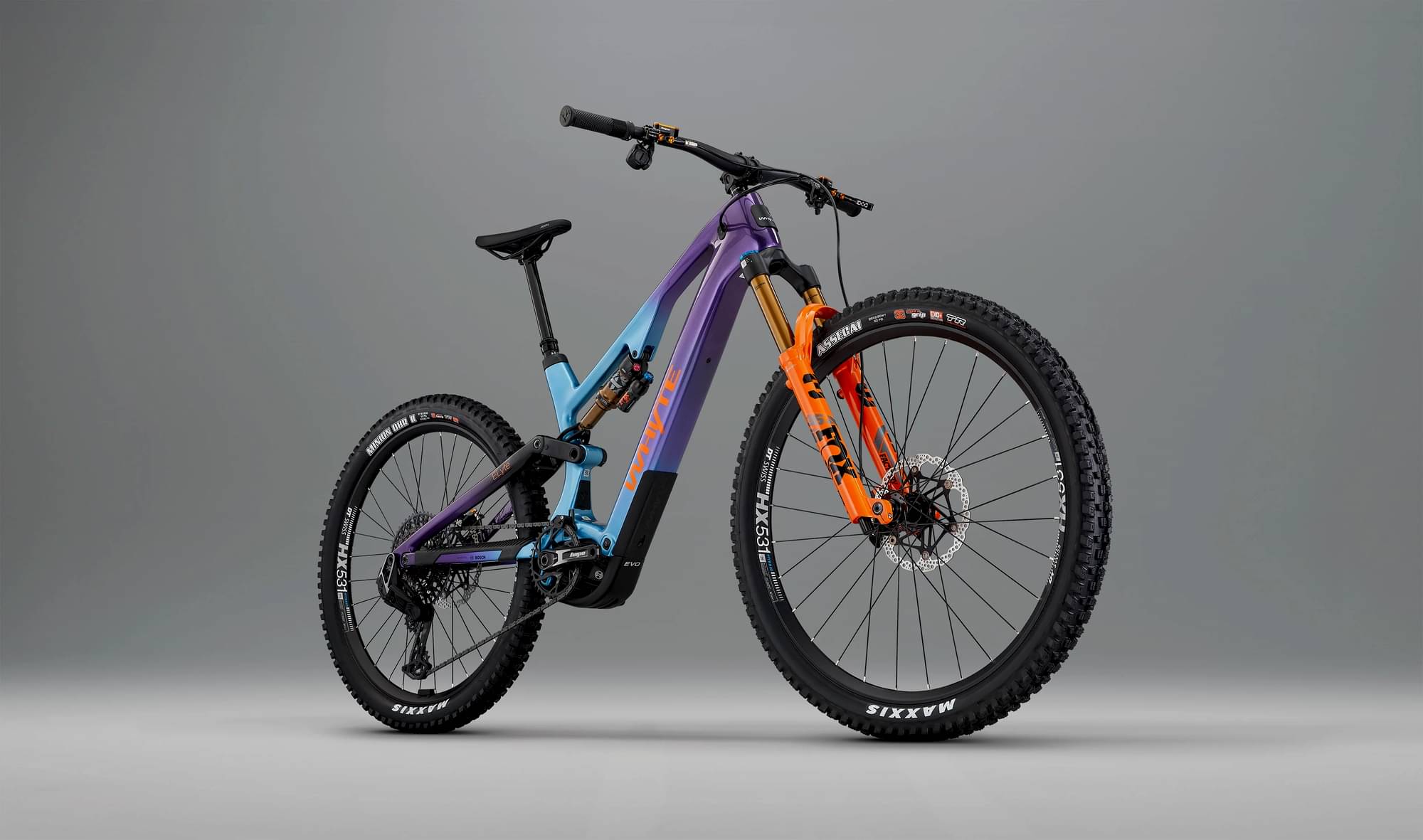

Whyte ELyte EVO Stag Works 2025
2025 E-bike
Estimate price |
13,547$
Weight | 20.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Fork Fox Factory Float 36
-
Groupset X0 Eagle Transmission, Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

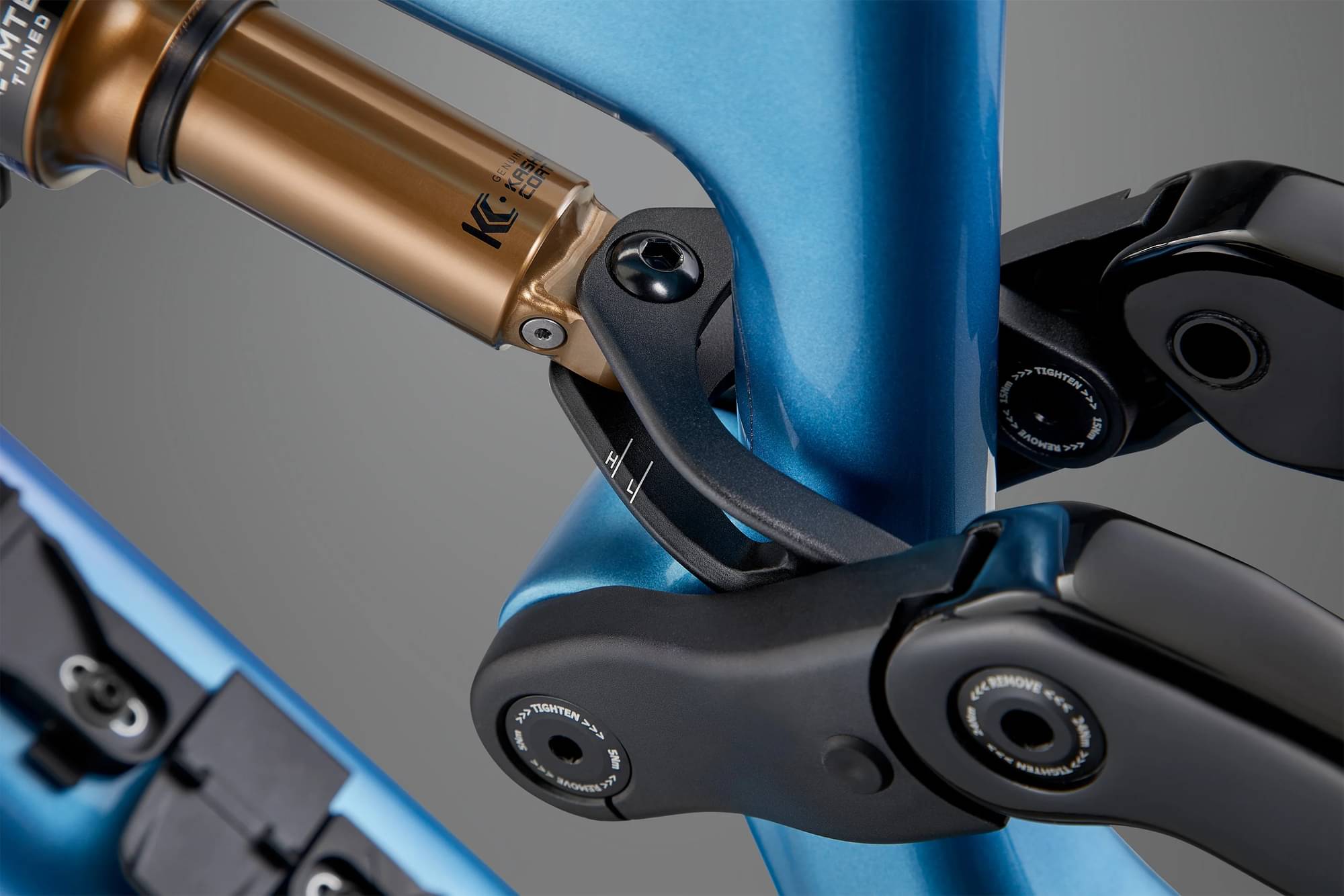

Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
Suspension Fork
Fox Float 36 Factory 29in, 150mm travel, 44mm offset, Grip X2 damper, tapered steerer, 110m x 15mm Kabolt axle
Rear Shock

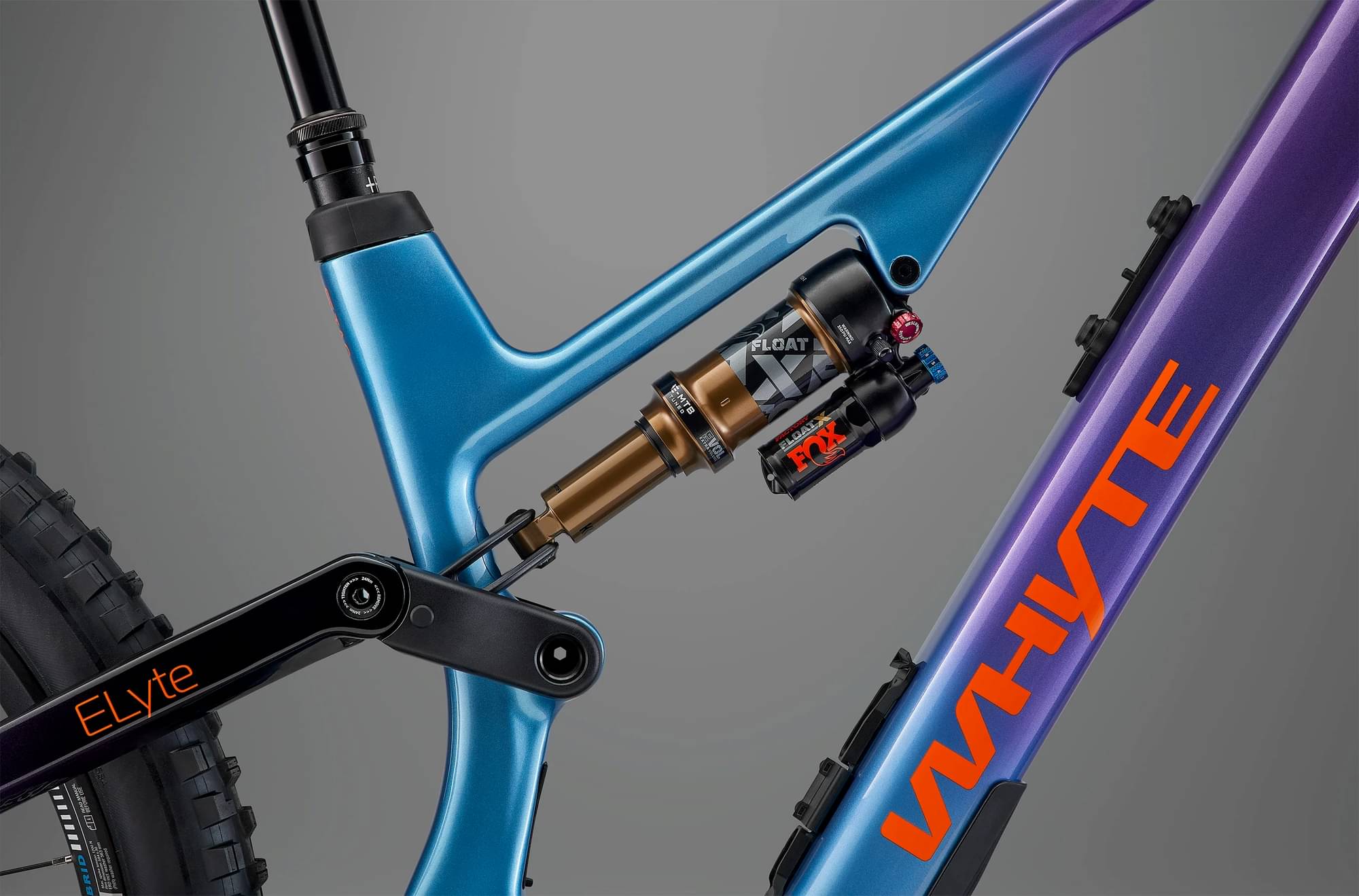

Fox Float X Factory Series, EVOL, lock out, 210mm x 50mm, custom tuned for Whyte

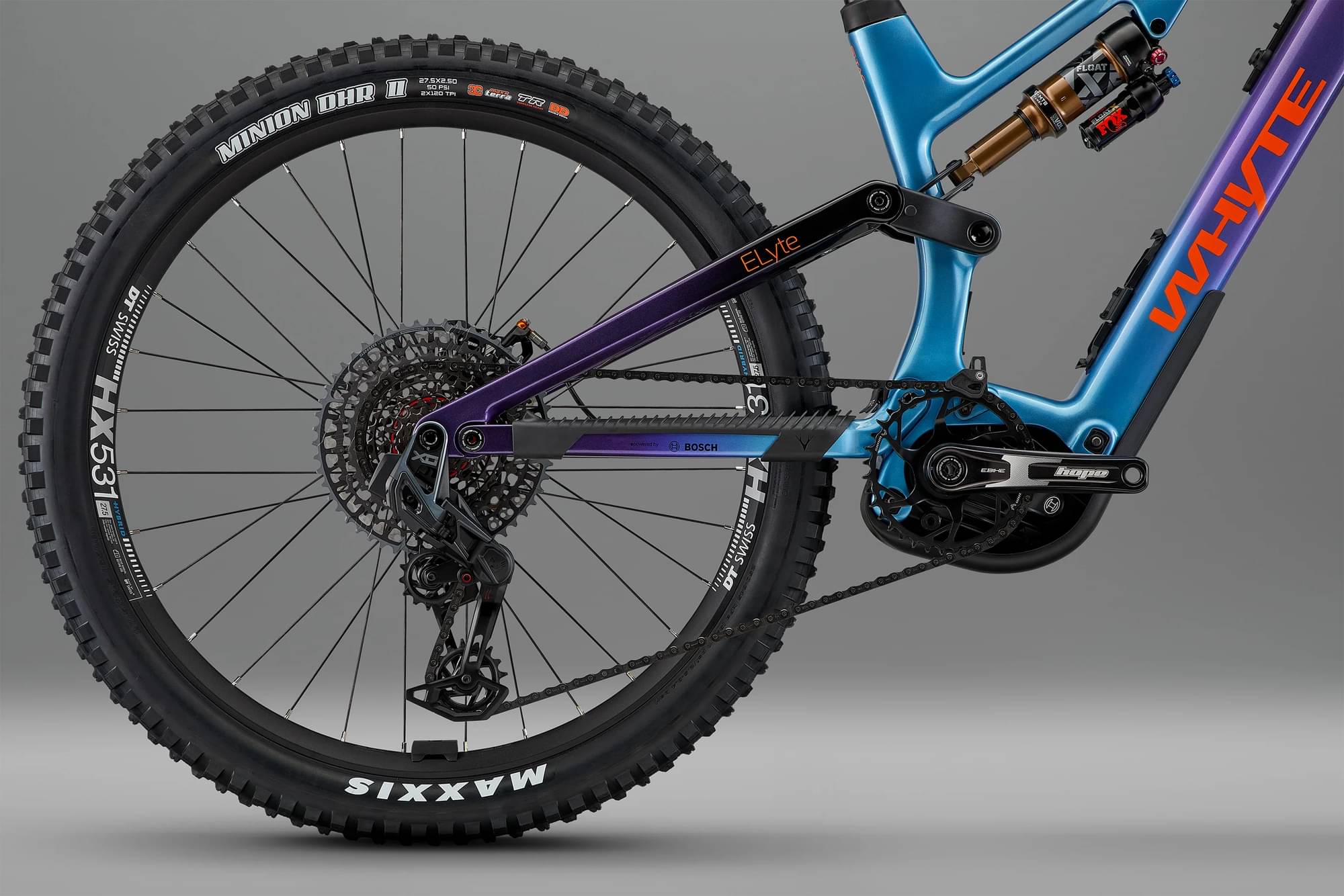

Drivetrain
Rear Derailleur
SRAM XO T-Type AXS, 12 speed
Front Derailleur
N/A
Shift Levers
SRAM AXS Pod, right, MMX, 12 speed
Cassette
SRAM XS 1295, T-Type, 10-52T, 12 speed
Crank
Hope E-Bike Cranks, 155mm length, Bosch mounting, 36T chainring T-type
Bottom Bracket
N/A
Chain
SRAM XO T-Type, 12 speed
Pedals
Fibre reinforced composite platform
Wheels
Front Hub
Hope Pro 5, six bolt, 15mm x 110mm Boost spacing, 28 hole
Rear Hub
Hope Pro 5, six bolt, 12mm x 148mm Boost spacing, XD driver, 32 hole
Rims
DT HX531, 30mm Internal
Spokes
DT Swiss Elemental
Tires
Maxxis Assegai WT, TR, 29in x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead, front; Maxxis Minion DHR 2 WT, TR, 27.5in x 2.5in 120TPI, Double Down Casing, 3C MaxxTerra, Dual Compound, rear
Brakes
Brakes

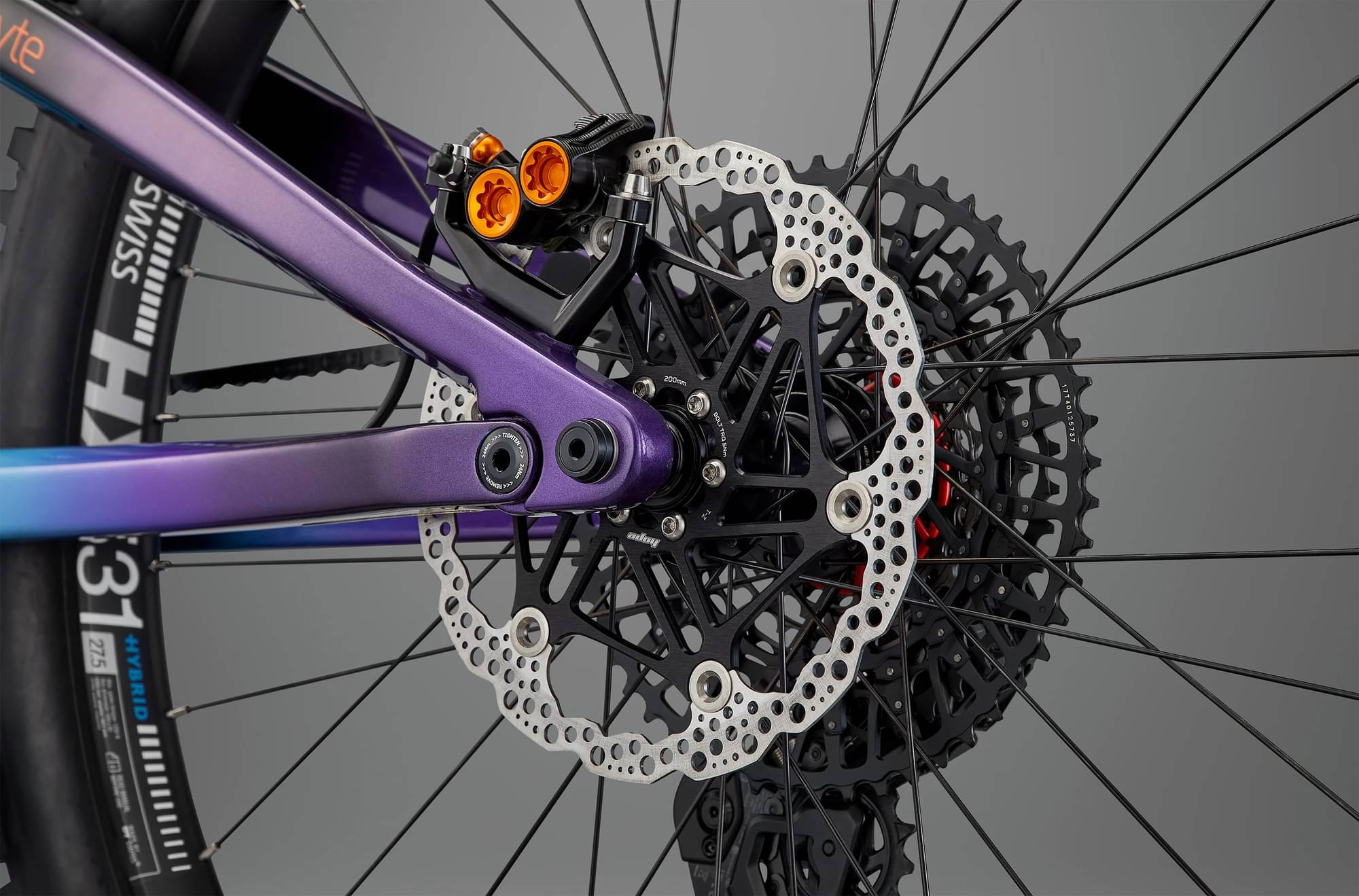

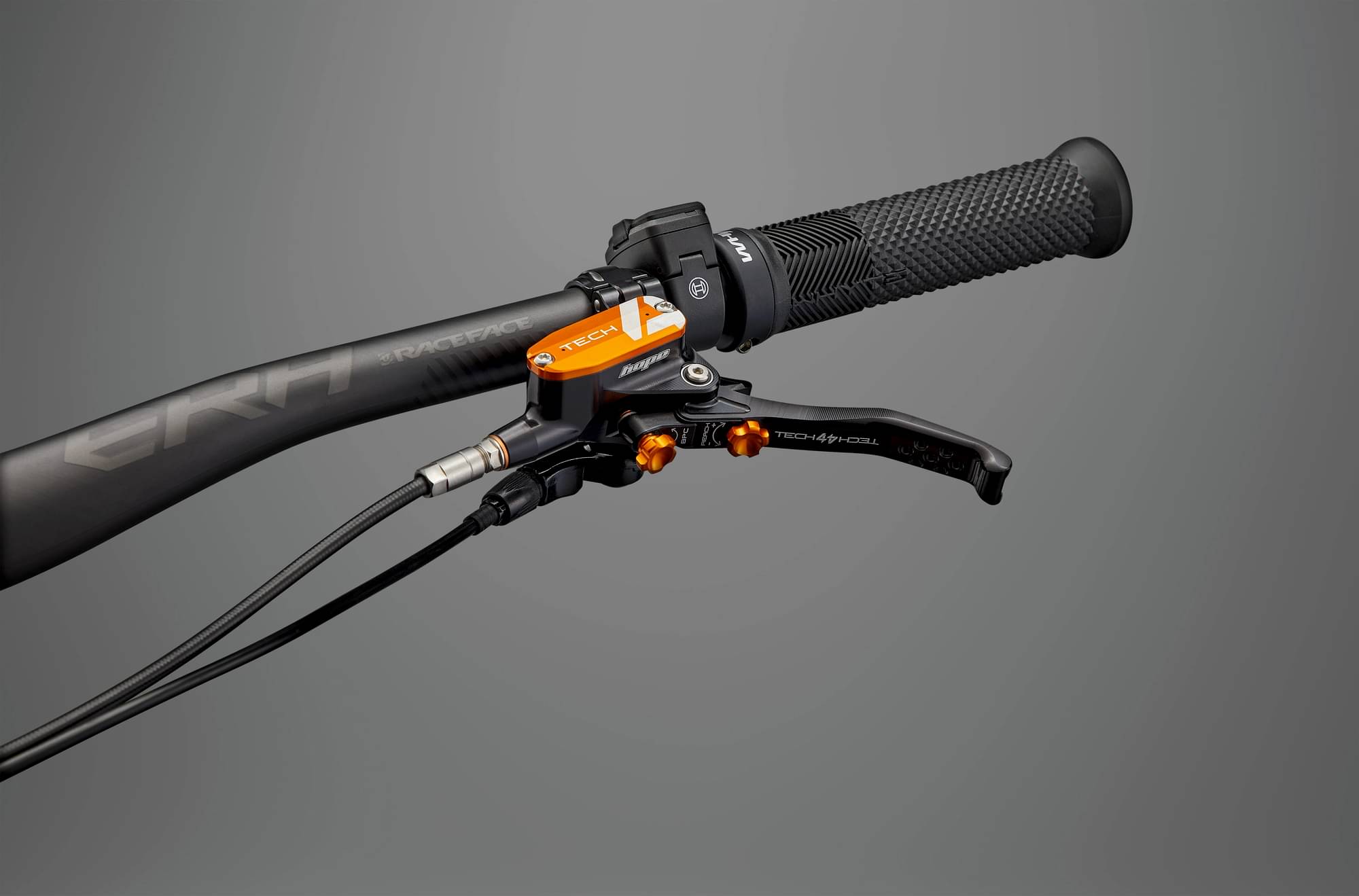

Hope Tech4 V4, four piston hydraulic, 200mm diameter floating disc rotor
Brake Levers
Hope Tech 4
Cockpit
Stem
Whyte Trail full CNC, 32mm extension, 35mm bar bore
Handlebar

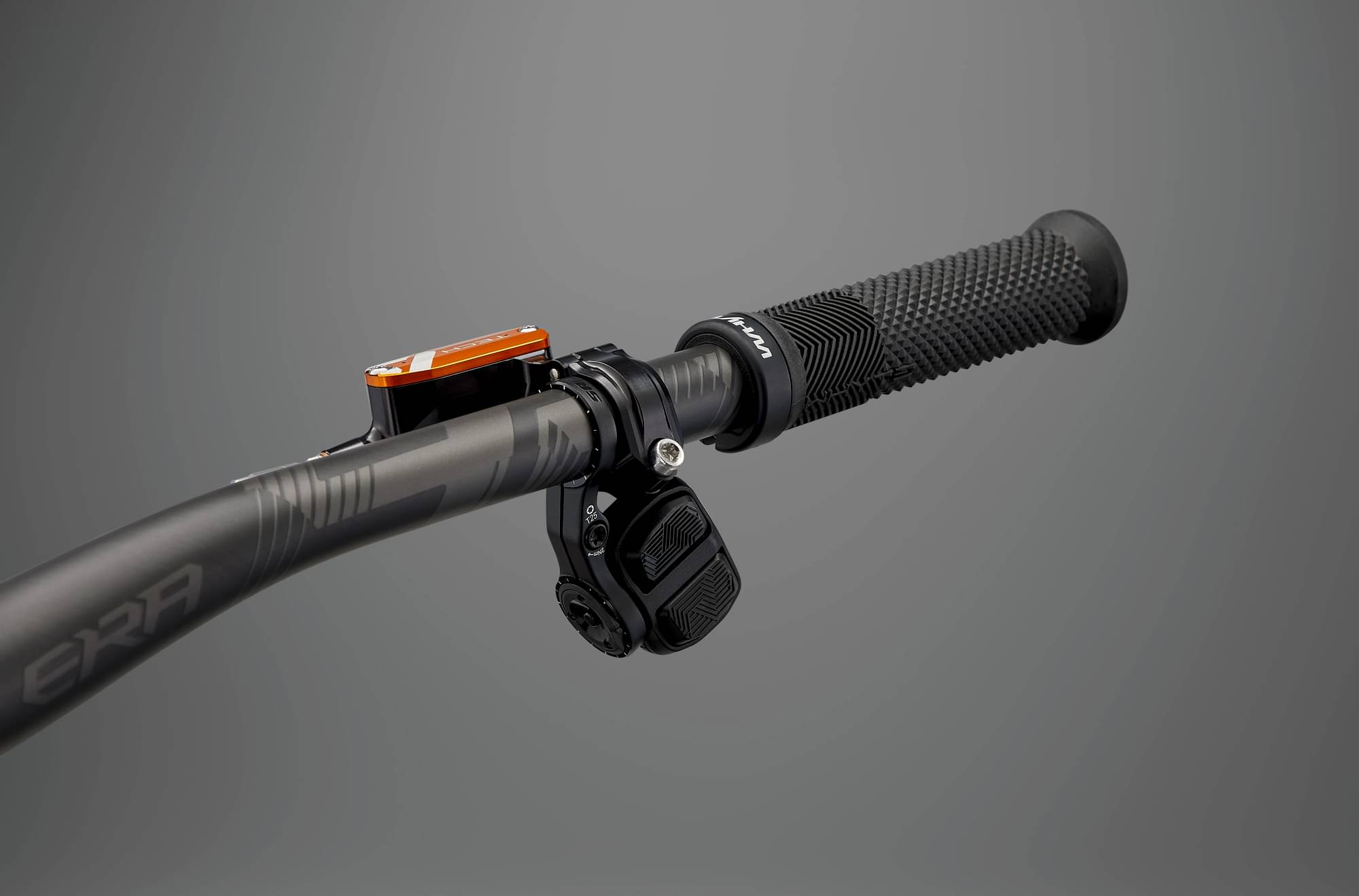

Race Face ERA Carbon, 20mm rise, 35mm bar bore, 800mm wide
Grips
Whyte Enduro lock-on
Headset
FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) cartridge bearings, with side entry internal routing
Seat
Saddle
Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
Seatpost
Whyte drop.it II Adjust, 30.9mm (sizes S/M 140-170mm travel; sizes L/XL 170-200mm travel), MMX Paddle remote lever
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.405 mm | 1.356 mm | 1.311 mm |
| Bottom Bracket Height | 341.9 mm | 341.9 mm | 341.9 mm |
| Stack | 640.5 mm | 652.3 mm | 663.2 mm |
| Reach | 456 mm | 481 mm | 506 mm |
| Seat Tube Angle | 77.3 ° | 77.1 ° | 76.9 ° |
| Seat Tube Length | 420 mm | 445 mm | 470 mm |
| Head Tube Angle | 64.6 ° | 64.6 ° | 64.6 ° |
| Head Tube Length | 127 mm | 140 mm | 152 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1242 mm | 1272 mm | 1302 mm |
| Standover Height | 741 mm | 741 mm | 741 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
